2008 Lexus GS450h display

Topic 5
Driving Comfort
35
Touch Screen
By touching the screen with your finger, you can control the audio system, air conditioning
and adjust the screen display, etc. For details, see the Owner’s Manual.*: See Navigation System Owner’s Manual.
When you press this button...This display appears.
“CLIMATE”Air conditioning operation screen
“AUDIO”Audio control screen
“INFO”Information screen
“DISP”Display screen
Trip informationTrip information screen
MaintenanceMaintenance screen*
TelephoneTelephone screen
Adjust ClockAdjust clock screen
CalendarCalendar screen*
“LEXUS Park Assist”LEXUS Park Assist setting screen
LanguageSelect language screen
Screen SettingScreen setting screen
1
2
3
4
5
6
7
8
9
10
11
12

Topic 5
Driving Comfort
36
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Before Driving
Air Conditioning System
Press to display the air conditioning operation screen. For details, refer to the Owner’s
Manual.
Vehicles with navigation system
Vehicles without navigation system
Air conditioning operation screen display button
Driver’s side temperature control
Automatic mode
Dual operation switch
Passenger’s side temperature control
1
2
3
4
5

Topic 5
Driving Comfort
38
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Before Driving
Audio System
■ Basic operation
*: Various adjustments can be made in each mode.
For details, refer to the Owner’s Manual. Audio control screen display button*
FM radio mode button
AM•SAT radio mode button
Power ON/OFF button, Volume adjustment knob
Disc eject button
Tape eject button
Disc slot
TAPE mode button
DISC•AUX mode button
Disc load button
Ta p e s l o t
1
2
3
4
5
6
7
8
9
10
11

Topic 5
Driving Comfort
45
Interior Lights
ON
OFF
The light comes on if a door is opened.
Rear Sunshade
To raise the rear sunshade, press the switch.
Press the switch again to lower it.
The sunshade automatically lowers to ensure visi-
bility when reversing.
Compass (If Equipped)
To display the compass, press and hold the
“AUTO” for 3 or more seconds.
To cancel the display, press and hold the “AUTO”
again for 3 or more seconds.
1
2
3

60
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s

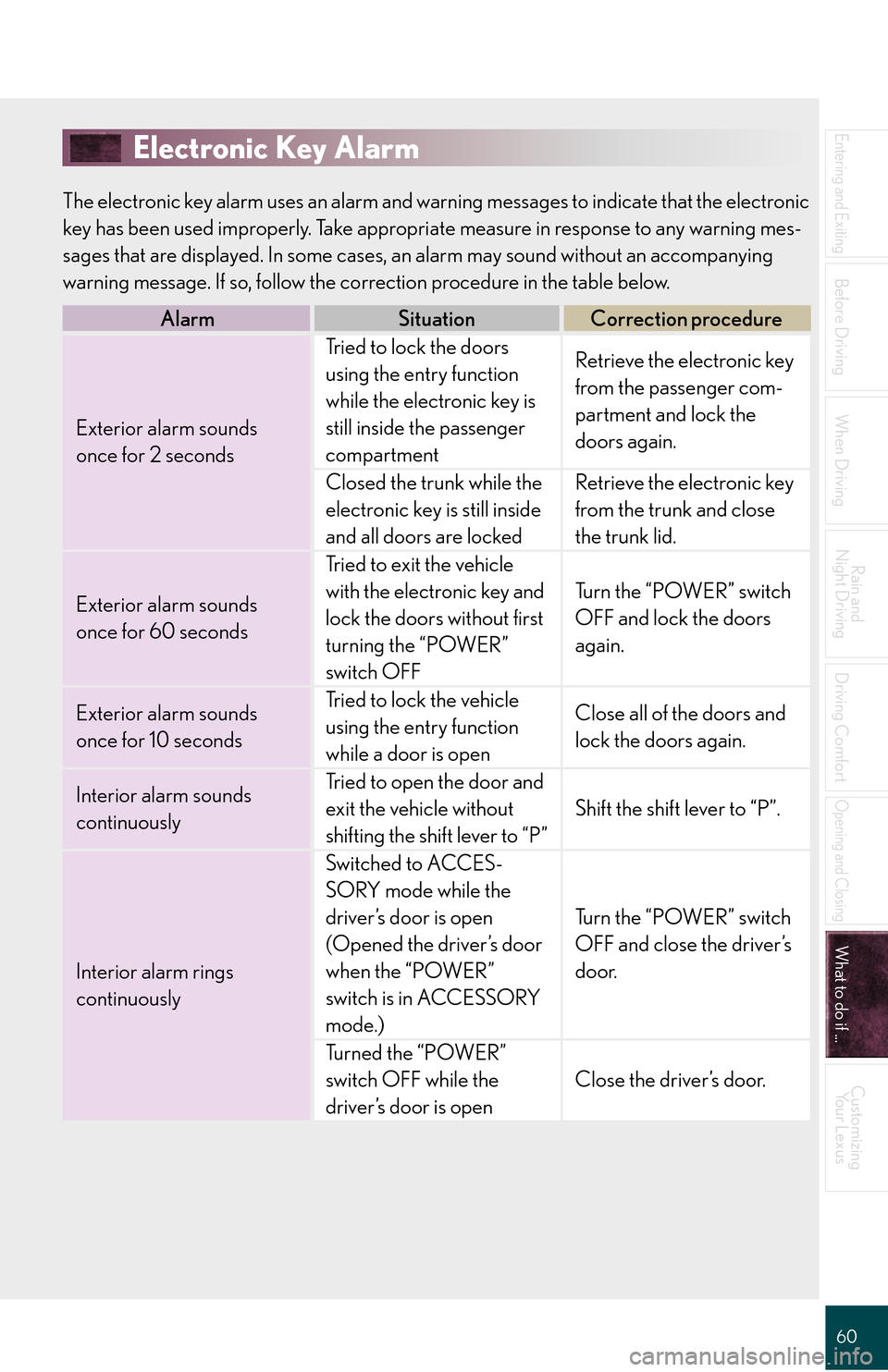

Electronic Key Alarm
The electronic key alarm uses an alarm and warn ing messages to indicate that the electronic
key has been used improperly. Take appropri ate measure in response to any warning mes-
sages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the co rrection procedure in the table below.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartmentRetrieve the electronic key
from the passenger com-
partment and lock the
doors again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic key
from the trunk and close
the trunk lid.
Exterior alarm sounds
once for 60 seconds
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the “POWER”
switch OFF
Tu r n t h e “ P O W E R ” s w i t c h
OFF and lock the doors
again.
Exterior alarm sounds
once for 10 secondsTried to lock the vehicle
using the entry function
while a door is openClose all of the doors and
lock the doors again.
Interior alarm sounds
continuouslyTried to open the door and
exit the vehicle without
shifting the shift lever to “P”
Shift the shift lever to “P”.
Interior alarm rings
continuously
Switched to ACCES-
SORY mode while the
driver’s door is open
(Opened the driver’s door
when the “POWER”
switch is in ACCESSORY
mode.)
Tu r n t h e “ P O W E R ” s w i t c h
OFF and close the driver’s
door.
Turned the “POWER”
switch OFF while the
driver’s door is open
Close the driver’s door.
