2008 Lexus GS450h check engine

5
When trouble arises
507
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

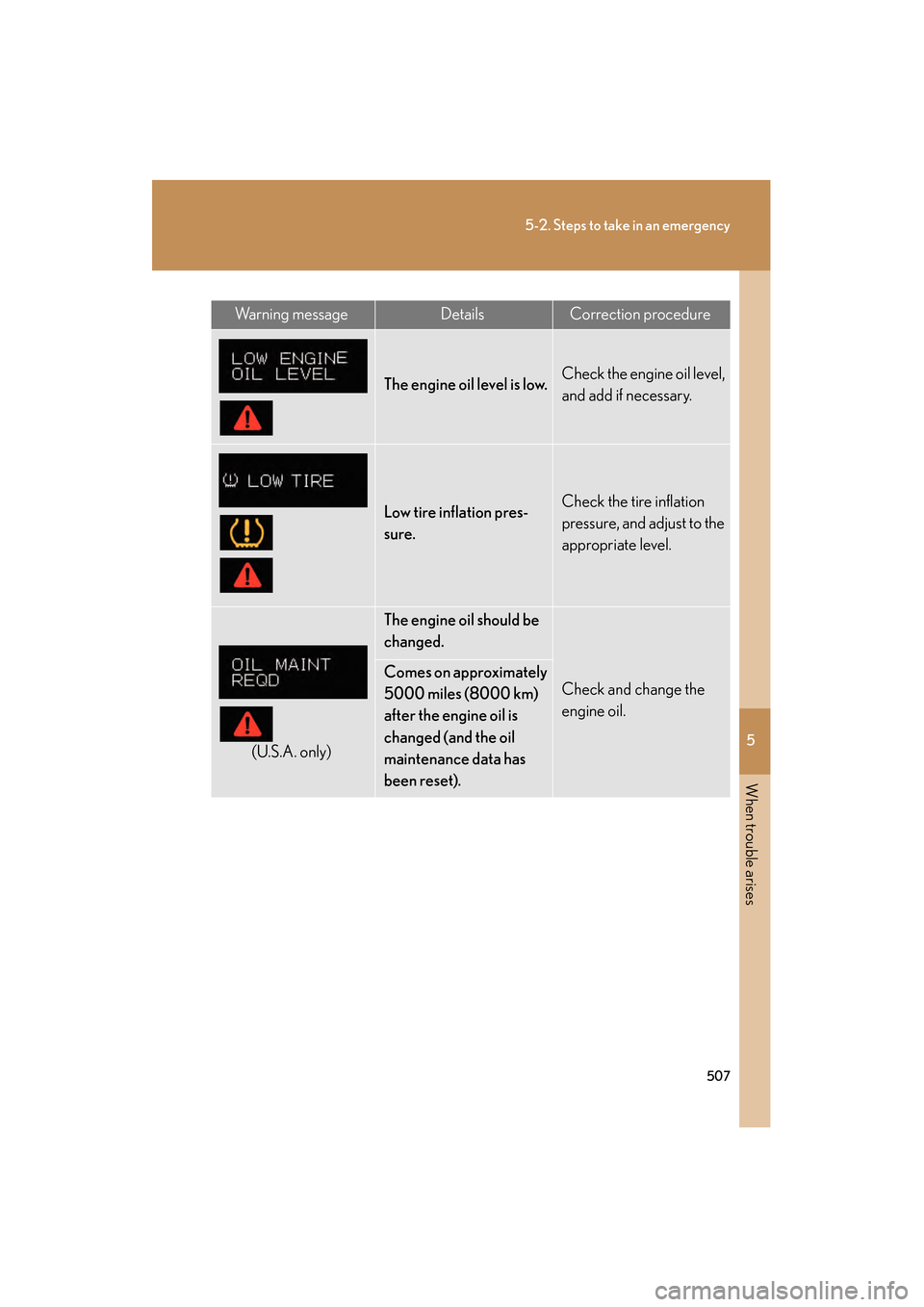

Wa r n i n g m e s s a g eDetailsCorrection procedure
The engine oil level is low.Check the engine oil level,
and add if necessary.
Low tire inflation pres-
sure.Check the tire inflation
pressure, and adjust to the
appropriate level.
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
GS450h_HV_U.book Page 507 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
535
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Negative (-) battery terminal on your vehicle.Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the 12 volt battery of your vehicle.
Open and close any of the doors with the “POWER” switch is
OFF.
Maintain the engine speed on the second vehicle and turn the
“POWER” switch to the ON mode, then start the vehicle’s
hybrid system.
Make sure the “READY” light comes on. If the light does not
come on, contact your Lexus dealer.
Once the vehicle’s hybrid system has started, remove the
jumper cables in the exact reverse order in which they were
connected.
Once the hybrid system starts, have the vehicle checked at your Lexus
dealer as soon as possible.
STEP3
STEP4
STEP5
STEP6
STEP7
GS450h_HV_U.book Page 535 Thursday, June 19, 2008 1:44 PM

538
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
If your vehicle overheats
If your hybrid system overheats:
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the hybrid system and carefully lift the hood.
If you do not see steam: Leave the hybrid system running and carefully lift the hood.
Remove the engine compartment cover. ( →P. 4 2 1 )
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the hybrid system.
If the fan is not operating: Stop the hybrid system immediately and call your local
Lexus dealer.
After the hybrid system has
cooled down sufficiently, check
the coolant level and inspect the
radiator core (radiator) for any
leaks.STEP1
STEP2
STEP3
STEP4
STEP5
GS450h_HV_U.book Page 538 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
539
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
●The message “HYBRID SYSTEM OVERHEAT” is displayed on the multi-infor-
mation display.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the hybrid
system is running.
●Do not loosen the radiator cap while the hybrid system and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add coolant if necessary.
Water can be used in an emer-
gency measure if coolant is
unavailable. (→P. 5 4 8 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6
GS450h_HV_U.book Page 539 Thursday, June 19, 2008 1:44 PM

586
Alphabetical index
GS_HV_U
June 19, 2008 1:15 pm
DoorsDoor lock................................ 35, 47, 50
Rear door child protector .................. 51
Driver’s seat belt reminder light .....493
Driver’s seat position memory ...........60
Driving
Correct posture .................................... 93
Procedures .............................................128
DVD player/changer.......................... 266
Electric power steering ..................... 200
Electronic key If the electronic key does not operate properly ......................531
Replacing battery .............................. 454
Emergency, in case of
If a warning light turns on ................ 491
If a warning message is displayed ........................................... 500
If the electronic key does
not operate properly ......................531
If the hybrid system
will not start .......................................528
If the shift lever cannot be
shifted from “P”................................ 529
If the 12 volt battery is
discharged ....................................... 534
If you have a flat tire ............... 517, 527
If you lose your keys.........................530
If you think something is
wrong .................................................. 488
If your vehicle becomes stuck.......541
If your vehicle needs to be towed ................................................... 482
If your vehicle overheats ................538
Energy monitor......................................... 27 Engine
ACCESSORY mode .....................139
Compartment ..................................... 420
Hood ......................................................... 417
How to start the hybrid system..................................... 138
If the hybrid system will not start ....................................... 528
Overheating ........................................ 538
Power (ignition) switch .................... 138
Engine compartment cover ...............421
Engine coolant temperature gauge ...................................................... 148
Engine/power control unit coolant
Capacity ................................................ 548
Checking................................................ 427
Preparing and checking before winter...................................... 215
Engine oil Capacity .................................................547
Checking................................................ 422
Preparing and checking
before winter...................................... 215
Engine oil maintenance data ........... 425
Event data recorder ............................ 489
First-aid kit storage belt ..................... 375
Floor mats ................................................ 374
Fluid Brake ........................................................429
Washer....................................................434
Fog lights
Switch .......................................................... 161
Wattage ................................................. 552
Foot light .................................................. 352
E
F
GS450h_HV_U.book Page 586 Thursday, June 19, 2008 1:44 PM
