4-2. Maintenance
GS_G_U
May 13, 2008 5:14 pm

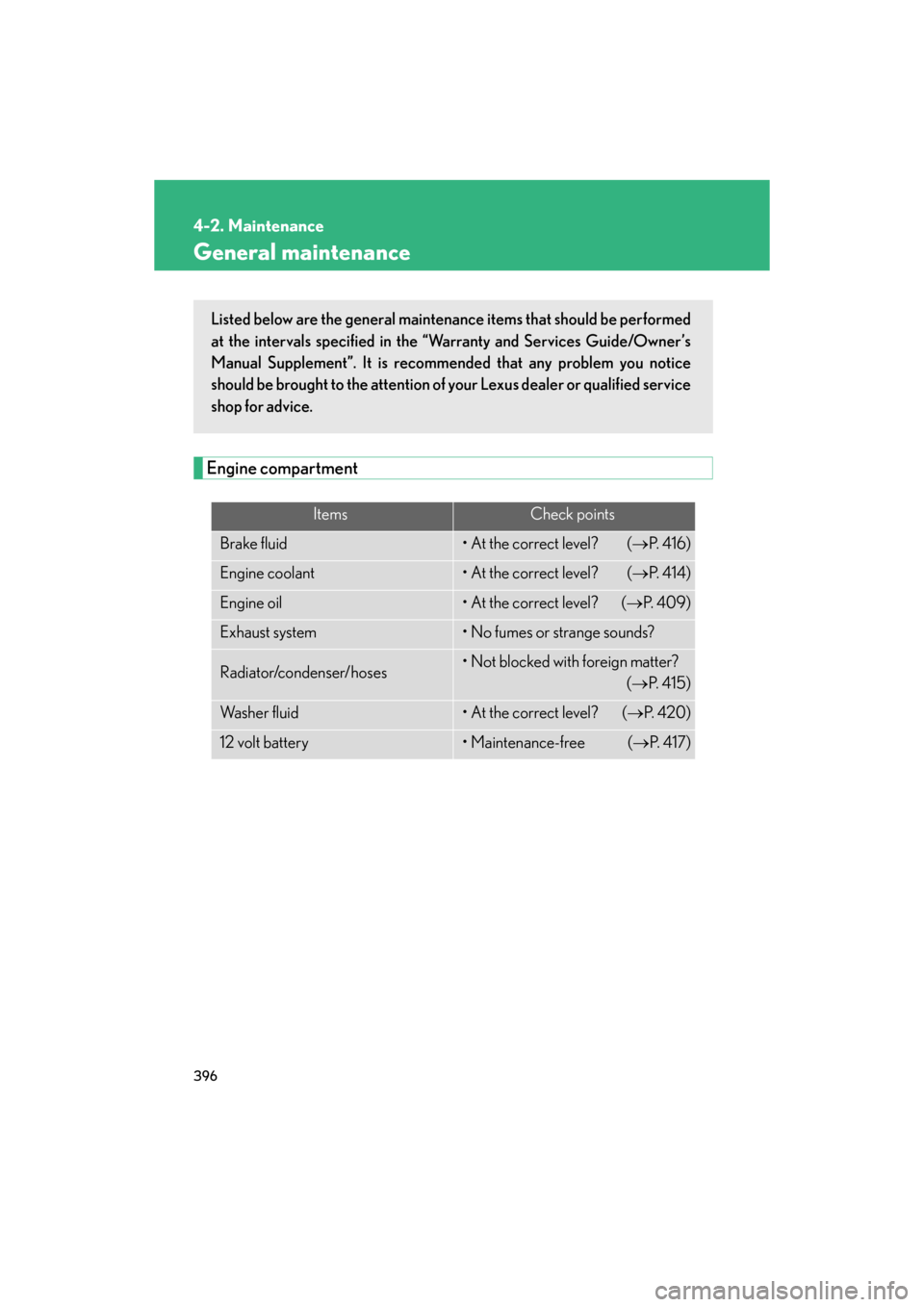

General maintenance
Engine compartment
ItemsCheck points
Brake fluid• At the correct level? (P. 4 1 6 )
Engine coolant• At the correct level? ( P. 4 1 4 )
Engine oil• At the correct level? ( P. 4 0 9 )
Exhaust system• No fumes or strange sounds?
Radiator/condenser/hoses• Not blocked with foreign matter? 
( P. 4 1 5 )
Wa s h e r f l u i d• At the correct level? ( P. 4 2 0 )
12 volt battery• Maintenance-free ( P. 4 1 7 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recommend ed that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

398
4-2. Maintenance
GS_G_U
May 13, 2008 5:14 pm
Vehicle exterior
ItemsCheck points
Doors/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Tires rotated according to the
maintenance schedule?
• Wheel nuts are not loose?
CAUTION
■If the engine is running
Turn off the engine and ensure that there is adequate ventilation before performing
maintenance checks.

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
■Installing the clips
Push up center portion
Insert
Press
Engine oil
With the engine at operating temperat ure and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

410
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
Wipe the dipstick and reinsert it fully.Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.STEP6
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in househol d trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.

414
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
CoolantThe coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
“FULL”
“LOW”
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock and water
pump. 
If you cannot find a leak, have your Lexus dealer pressure test the cap and check for
leaks in the cooling system.
■Coolant selection
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50%
deionized water. (Enabled: -31F [-35 C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Enabled: -44 F [-42C])
For more details about coolant, contact your Lexus dealer.

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
Radiator and condenserCheck the radiator and condenser and clear any foreign objects. 
If either of the above parts are extremely dirty or you are not sure of their
condition, have your vehicle checked by your Lexus dealer.
CAUTION
■When the engine is hot
Do not remove the radiator and reservoir cap. 
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing burns or other injuries.
NOTICE
■When adding the coolant
Coolant is neither plain water not straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to pr event it from damaging to parts or paint.
CAUTION
■When the engine is hot
Do not touch the radiator or condenser, as they may be hot and you may be burned.

442
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Remove the engine compartment cover if necessary.
P. 4 0 8
Open the fuse box cover.
■ Engine compartment
Type A
Push the tabs in and lift the lid
off.
Type B Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3
