5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
If you have a flat tire (Vehicles with standard tires)
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P”.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Wheel nut wrench Jack
Jack handle
Spare tireTi g h t e n
Loosen
Tools
Towing eyelet
GS_U_G.book Page 512 Thursday, June 19, 2008 12:54 PM

518
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP4
■If you have a flat rear tire on a road covered with snow or ice
Install the compact spare tire on the front of the vehicle. Perform the following steps
and fit tire chains to the rear tires.Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehi-
cle.
Fit tire chains to the rear tires.
■After completing the tire change
The tire pressure warning system must be reset. ( →P. 422)
STEP5
STEP1
STEP2
STEP3
GS_U_G.book Page 518 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
537

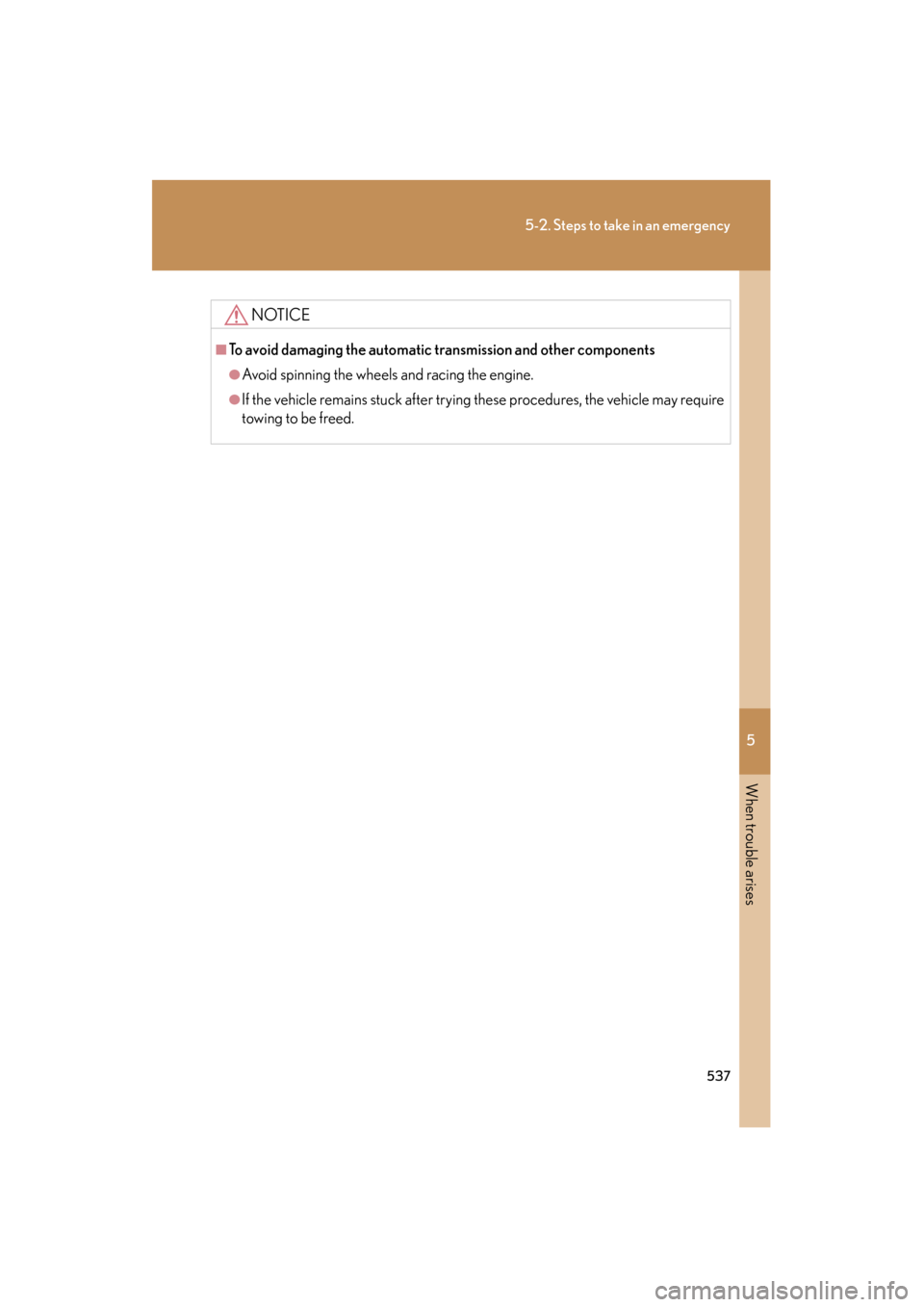

5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
NOTICE
■To avoid damaging the automatic transmission and other components
●Avoid spinning the wheels and racing the engine.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
GS_U_G.book Page 537 Thursday, June 19, 2008 12:54 PM

585
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
BrakeFluid ............................................................ 416
Parking brake ..........................................131
Brake assist ............................................... 184
Care
Exterior ...................................................388
Interior.......................................................391
Seat belts ............................................... 392
Cargo capacity ....................................... 194
Cargo hooks .......................................... 360
CD player/changer .............................242
Chains....................................................... 200
Child-protectors ..................................... 38
Child restraint system Definition................................................... 98
Installation................................................ 102
Installing CRS with lower
anchors .................................................106
Installing CRS with seatbelts .........103
Installing CRS with top straps ....... 107
Child safety
Airbag precautions ............................. 87
Battery precautions................419, 532
Child restraint system ........................ 98
Child-protectors................................... 38
How your child should wear the seatbelt ........................................... 56
Installing child restraints ................... 102
Moon roof precautions ..................... 69
Power window lock switch ..............64
Power window precautions.............64
Removed electronic key battery precautions ......................................... 441
Seat belt comfort guide..................... 54
Seat belt precautions...........................57 Seat heater precautions................ 355
Trunk precautions................................. 44
Cigarette lighter....................................352
Cleaning Exterior................................................... 388
Interior ...................................................... 391
Seat belts ................................................392
Clock ......................................................... 349
Coin holder .............................................345
Compass .................................................. 369
Condenser ............................................... 415
Console box ........................................... 342
Cooling system Engine overheating.......................... 533
Cruise control Cruise control....................................... 150
Dynamic radar cruise control....... 153
Cup holders ............................................345
Curtain shield airbags........................... 80
Customizable features .......................569
Daytime running light system ........... 143
Defogger Rear window ........................................ 225
Side mirror............................................. 225
Dimension................................................540
Dinghy towing ........................................205
Display
Multi-information display ................ 139
Touch screen ...................................... 208
Trip information ................................... 140
Warning message............................. 497
Do-it-yourself maintenance ............ 400
Door courtesy lights ............................ 337
Door pocket............................................ 346
C
D
GS_U_G.book Page 585 Thursday, June 19, 2008 12:54 PM

586
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
DoorsDoor lock................................. 22, 34, 37
Rear door child protector ................ 38
Driver’s seat belt reminder light .....490
Driver’s seat position memory ........... 47
Driving
Correct posture .................................... 78
Procedures ...............................................112
DVD player/changer........................... 251
Electric power steering ....................... 184
Electronic key If the electronic key does not operate properly .................... 526
Replacing battery .............................. 440
Emergency, in case of
If a warning light turns on ............. 488
If a warning message is displayed ............................................ 497
If the electronic key does
not operate properly .................... 526
If the engine will not
start ........................................................ 523
If the shift lever cannot be
shifted from “P”................................ 524
If the 12 volt battery is
discharged ....................................... 529
If you have a flat tire ...............512, 522
If you lose your keys......................... 525
If you think something is
wrong ................................................... 484
If your vehicle becomes stuck.....536
If your vehicle needs to be towed ................................................... 478
If your vehicle overheats ................533 Engine
ACCESSORY mode........................122
Compartment ..................................... 406
Engine (ignition) switch...................... 121
Hood ....................................................... 403
How to start the engine ..................... 121
If the engine will not start ............... 523
Overheating ........................................ 533
Engine compartment cover .............408
Engine coolant temperature gauge .......................................................132
Engine coolant
Capacity ................................................ 546
Checking................................................. 414
Preparing and checking before winter...................................... 199
Engine oil Capacity ................................................ 544
Checking............................................... 409
Preparing and checking
before winter...................................... 199
Engine oil maintenance data .............412
Engine (ignition) switch......................... 121
Event data recorder ............................ 486
First-aid kit storage belt .....................360
Floor mats ................................................ 359
Fluid
Brake ......................................................... 416
Washer................................................... 420
Fog lights Switch ........................................................ 145
Wattage ................................................. 552
Foot light .................................................. 337
E
F
GS_U_G.book Page 586 Thursday, June 19, 2008 12:54 PM

590
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
Smart access system with push-button start
Antenna location....................................24
Entry function...........................................22
Starting the engine ................................ 121
Spare tire
Inflation pressure............................... 550
Spare tire..................................................513
Spark plug ................................................546
Specifications ........................................ 540
Speedometer........................................... 132
Steering wheel Adjustment............................................... 60
Audio switches ...................................288
Steering wheel position memory...................................................47
Storage compartment ........................ 344
Storage feature......................................340
Stuck If your vehicle becomes stuck.....536
Sun visors ................................................. 347
Switch “ENGINE START STOP” switch ....................................................... 121
Fog light switch.....................................145
Ignition switch..........................................121
Light switches ........................................ 142
Mode select switch............................. 126
Power door lock switch .....................37
Power window switch ........................ 64
Tire pressure warning reset switch ....................................... 422
Tire pressure warning select switch ................... 424
Window lock switch ........................... 64
Wipers and washer switch ............. 146 Tachometer ..............................................132
Tail lights
Switch ........................................................ 142
Theft deterrent system
Alarm...........................................................75
Immobilizer system .............................. 73
Theft prevention labels...........................77
Tire inflation pressure .........................550
Tire information Glossary ................................................ 562
Size ........................................................... 559
Tire identification number .............558
Uniform Tire Quality Grading ... 560
Tires
Chains..................................................... 200
Checking................................................. 421
Compact spare tire............................ 513
If you have a flat tire ............... 512, 522
Inflation pressure ...............................550
Information ........................................... 556
Replacing ................................................ 512
Rotating tires.......................................... 421
Size ........................................................... 550
Snow tires.............................................. 202
Tire pressure warning system....... 421
Tools.............................................................512
Total load capacity ................................ 198
Touch screen..........................................208
Towing Dinghy towing .................................... 205
Emergency towing ........................... 478
Trailer towing ...................................... 204
Traction control...................................... 184
Trip meter ..................................................132T
GS_U_G.book Page 590 Thursday, June 19, 2008 12:54 PM
