2008 Lexus GS350 stop start

40
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
FunctionShift lever positionSwitch position
Shift position linked door locking
function
“P”Shift position linked door unlock-
ing function
Speed linked door locking function
“N”Driver’s door linked door unlocking
function
■Closing the front doors from outside with the inside lock button set in the locked
position
The door cannot be locked if the “ENGINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode, or the electronic key is left in the vehicle. (How-
ever, depending on the key’s location, the system may not be able to detect it. In
these instances the door lock protection function will not operate properly.)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 5 2 6 )
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features →P. 5 7 1 )
GS_U_G.book Page 40 Thursday, June 19, 2008 12:54 PM

47
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_G_U
June 19, 2008 12:54 pm
Driving position memory system (if equipped)
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be entered into the computer’s
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.
Three different driving positions can be entered into memory.
The same buttons are found on the front passenger’s side, allowing the
position of the front passen ger’s seat to be memorized.
■Entering a position to memory
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions. While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3
GS_U_G.book Page 47 Thursday, June 19, 2008 12:54 PM

48
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U
June 19, 2008 12:54 pm
Linking driving position memory with door unlock operation (driver
side only)
Memorized driving positions can be recalled when you unlock the
driver’s door using the entry function or wireless remote control and
open the driver’s door. Steering wheel position is recalled when the
“ENGINE START STOP” switch is set to the IGNITION ON mode.
■ Setting the linked do or unlock operation
Set the driving positions into the memory system using the “1”, “2”
or “3” buttons on the driver’s side. ( →P. 4 7 )
Turn the “ENGINE START STOP” switch to the OFF, then close
the driver’s door.
■ Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode. Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP1
STEP2
GS_U_G.book Page 48 Thursday, June 19, 2008 12:54 PM

49
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
Push the “1”, “2” or “3” button on
the driver’s side and the button
on the wireless remote control at
the same time for about 1 second
until you hear a beep.
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(→ P. 7 5 )STEP3
■Canceling the linked door unlock operation
Close the driver’s door with the “ENGINE START STOP” switch set to
the OFF.
Push the “SET” button and the button on the wireless remote control
at the same time for about 1 second until you hear 2 beeps.
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column) can
be activated within 30 seconds after the corresponding side door is opened, even if
the “ENGINE START STOP” switch is in the OFF.
■If any position memory button is push ed while the adjustments are being made
The operation will stop. To reactivate the system, push the desired button (“1” or “2”)
again.
■If the 12 volt battery is disconnected
The memorized positions must be reset because the computer’s memory is erased
when the 12 volt battery is disconnected.
STEP4
STEP1
STEP2
GS_U_G.book Page 49 Thursday, June 19, 2008 12:54 PM

60
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U
June 19, 2008 12:54 pm

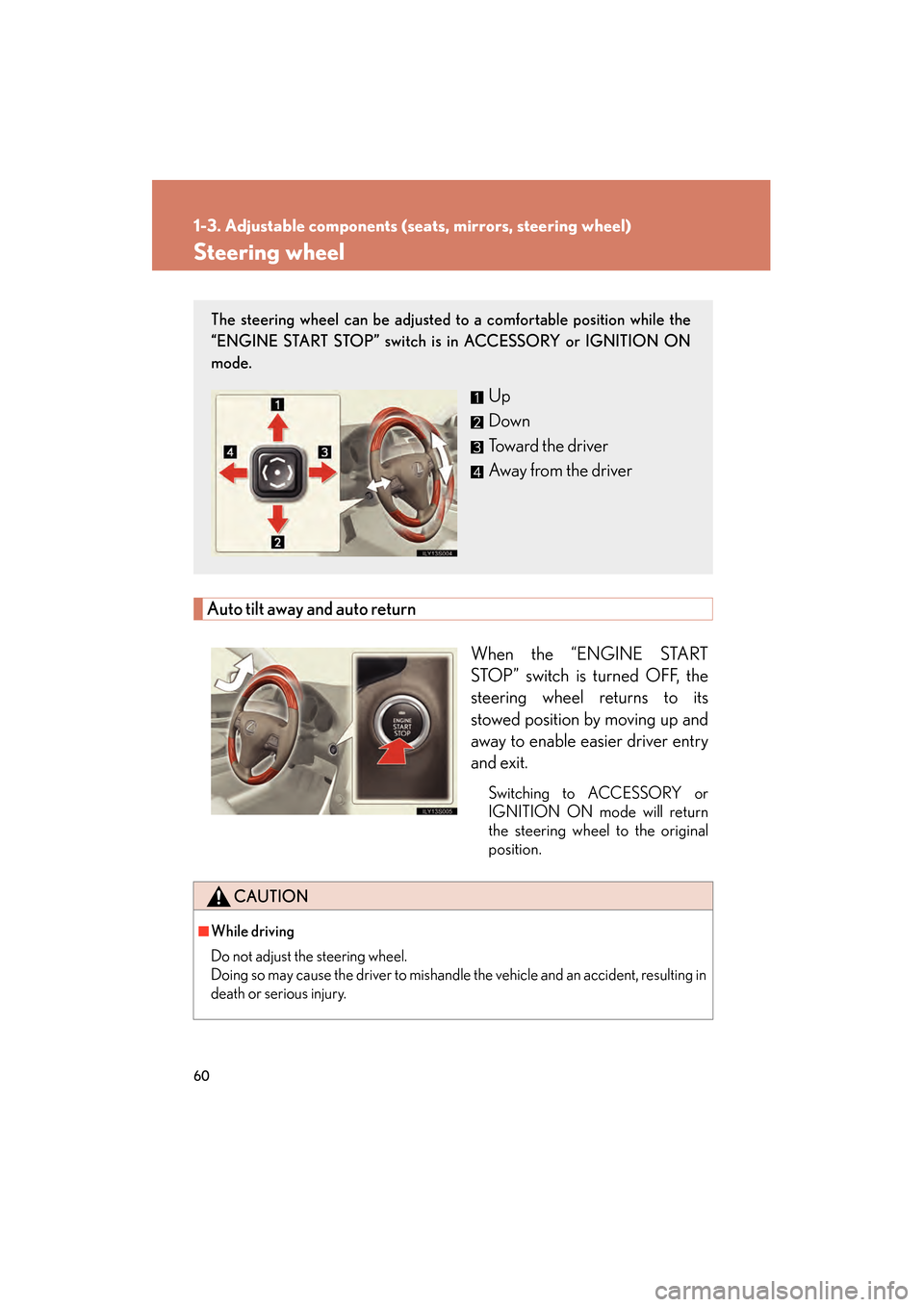

Steering wheel
Auto tilt away and auto returnWhen the “ENGINE START
STOP” switch is turned OFF, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Switching to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position while the
“ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Up
Down
Toward the driver
Away from the driver
CAUTION
■While driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.
GS_U_G.book Page 60 Thursday, June 19, 2008 12:54 PM

61
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_G_U
June 19, 2008 12:54 pm
Inside rear view mirror
■To prevent sensor error
CAUTION
■While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, or resulting in
death or serious injury.
In the auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
Turns auto mode on/off
The indicator comes on when
auto mode is turned on.
The mirror is automatically set
to auto whenever the “ENGINE
START STOP” switch is turned
IGNITION ON mode.
To ensure correct functioning of the sensors,
do not touch or cover the sensors.
GS_U_G.book Page 61 Thursday, June 19, 2008 12:54 PM

62
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U
June 19, 2008 12:54 pm
Outside rear view mirrors
Folding the mirrorsPress the switch
Pressing again will extend the mir-
rors.
Mirror angle can be adjusted using the switch when the “ENGINE START
STOP” switch is in ACCESSORY or IGNITION ON mode.
Select the mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. ( →P. 225)
■Auto anti-glare function
When the inside rear view mirror is set to auto mode, the outside rear view mirrors
will activate in conjunction with the inside rear view mirror to reduce reflected light.
(→ P. 6 1 )
GS_U_G.book Page 62 Thursday, June 19, 2008 12:54 PM

65
1-4. Opening and closing the windows and moon roof
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 5 2 6 )
●The power windows can be opened using the wireless remote control.
(→ P. 3 4 )
●The power windows can be closed using the smart access system with push-
button start. (→ P. 22)
■Operating the power windows after turning the “ENGINE START STOP” switch
OFF
The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. They cannot, however, be operated once the driver’s or front passenger’s door
is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 7 1 )
GS_U_G.book Page 65 Thursday, June 19, 2008 12:54 PM
