2-1. Driving procedures
2
When driving
GS_G_U
June 19, 2008 12:54 pm
Engine (ignition) switch
■Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
The “ENGINE START STOP” switch indicator turns green.
Press the “ENGINE START
STOP” switch.
STEP1
STEP2
STEP3
STEP4
GS_U_G.book Page 121 Thursday, June 19, 2008 12:54 PM

124
2-1. Driving procedures
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not press the accelera-
tor pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle, push and
hold the “ENGINE START STOP” switch for more than 3 seconds.
However, do not touch the “ENGINE START STOP” switch while driving except in
an emergency. If the engine stops while the vehicle is being driven, this could lead to
an unexpected accident.
NOTICE
■To prevent 12 volt battery discharge
Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNITION
ON mode for long periods if the engine is not running.
■When starting the engine
●Do not race the engine.
●If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
GS_U_G.book Page 124 Thursday, June 19, 2008 12:54 PM

130
2-1. Driving procedures
GS_G_U
June 19, 2008 12:54 pm
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.
GS_U_G.book Page 130 Thursday, June 19, 2008 12:54 PM

135
2-2. Instrument cluster
2
When driving
GS_G_U
June 19, 2008 12:54 pm
NOTICE
■To prevent damage to the engine and its components
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (“H”). In this case, immediately stop the vehicle in a safe place. Check
the engine after it has cooled completely. ( →P. 5 3 3 )
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
■To activate the light sensitivity function properly
Do not affix a sticker or window tint to the rear window glass, or put an object
behind the rear seat.
GS_U_G.book Page 135 Thursday, June 19, 2008 12:54 PM

138
2-2. Instrument cluster
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light not
come on when you turn to IGNITION ON mode, this could mean that these sys-
tems are not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Lexus dealer immediately if
this occurs.
■Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( →P. 4 8 8 )
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is on, or after a few seconds.
There may be a malfunction in a system if the lights do not come on, or
turn off. Have the vehicle inspected by your Lexus dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(if equipped)
*******
*****
*
GS_U_G.book Page 138 Thursday, June 19, 2008 12:54 PM

141
2-2. Instrument cluster
2
When driving
GS_G_U
June 19, 2008 12:54 pm

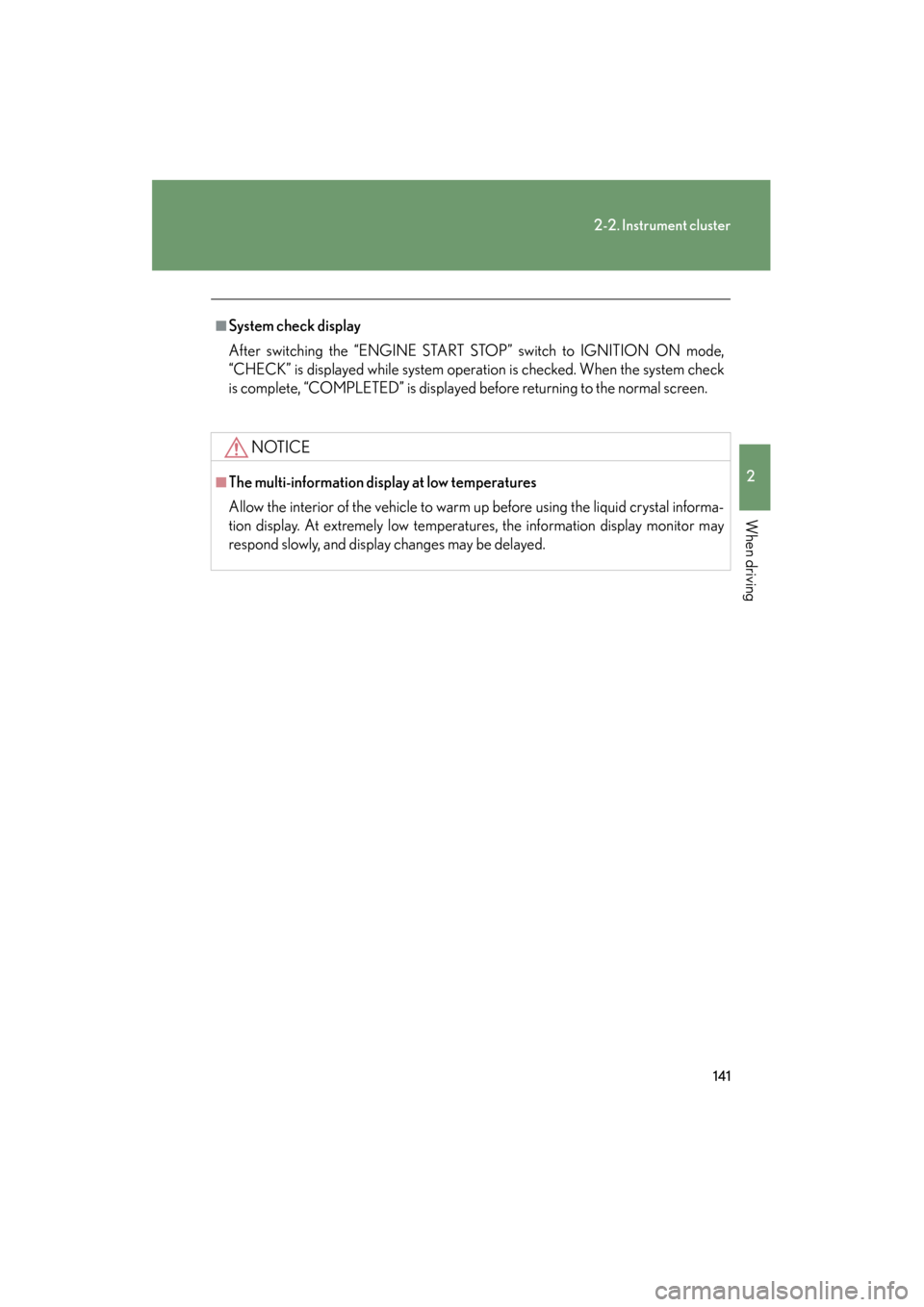

■System check display
After switching the “ENGINE START STOP” switch to IGNITION ON mode,
“CHECK” is displayed while system operation is checked. When the system check
is complete, “COMPLETED” is displayed before returning to the normal screen.
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
GS_U_G.book Page 141 Thursday, June 19, 2008 12:54 PM

199
2-5. Driving information
2
When driving
GS_G_U
June 19, 2008 12:54 pm
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
● Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.
GS_U_G.book Page 199 Thursday, June 19, 2008 12:54 PM

Maintenance and care4
387
GS_G_U
June 19, 2008 12:54 pm
4-1. Maintenance and care .............................. 388
Cleaning and protecting the vehicle exterior............ 388
Cleaning and protecting the vehicle interior ............... 391 4-2. Maintenance .................. 394
Maintenance requirements........................ 394
General maintenance .......... 396
Emission inspection and maintenance (I/M)
programs ............................... 399
4-3. Do-it-yourself maintenance ................ 400
Do-it-yourself service precautions ........................... 400
Hood .......................................... 403
Positioning a floor jack ......... 404
Engine compartment ........... 406
Tires............................................. 421
Tire inflation pressure............ 431
Wheels ...................................... 435
Air conditioning filter ........... 437
Electronic key battery.......... 440
Checking and replacing fuses ........................................ 442
Headlight aim .......................... 467
Light bulbs................................ 470
GS_U_G.book Page 387 Thursday, June 19, 2008 12:54 PM
