6-1. Specifications
GS_G_U
June 19, 2008 12:54 pm
Cooling system
Ignition system
CapacityGS46011.7 qt. (11.0 L, 9.7 Imp.qt.)
GS3509.6 qt. (9.1 L, 8.0 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSOFK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
GS_U_G.book Page 546 Thursday, June 19, 2008 12:54 PM

547
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
Electrical system
Differential
Rear differential: “Toyota Genuine Differential Gear Oil” is filled in your
Lexus vehicle at factory fill. Use Lexus approved “Toyota Genuine Differen-
tial Gear Oil” or an equivalent of matching quality to satisfy the above spec-
ification. Please contact your Lexus dealer for further details.
12 volt battery
Open voltage at
68 °F (20 °C):12.6  12.8V Fully charged
12.2  12.4V Half charged
11.8  12.0V Discharged
(Voltage is checked 20 minutes after
the engine and all lights are turned off.)
Charging rates5A max.
GS460/
GS350 (2WD)GS350 (4WD)
FrontRear
Oil capacity1.42 qt.
(1.35 L, 1.19 Imp.qt.)0.73 qt.
(0.70 L, 0.61 Imp.qt.)1.42 qt.
(1.35 L, 1.19 Imp.qt.)
Oil type and
viscosity
To y o t a G e n u i n e D i f -
ferential Gear Oil LT
75W-85 GL-5 or
equivalent
Hypoid gear oil API
GL-5
Above 0°F (-18°C):
SAE 90
Below 0°F (-18°C):
SAE 80W or SAE
80W-90
To y o t a G e n u i n e D i f -
ferential Gear Oil LT
75W-85 GL-5 or
equivalent
GS_U_G.book Page 547 Thursday, June 19, 2008 12:54 PM

549
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
Brakes
*1: Minimum pedal clearance when depressed with a force of 200 N (20.4 kgf, 45lbf) while the engine is running.
*
2: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112 lbf) while the engine is running.
*
3: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf, 67.4 l bf ).
Steering
Pe d a l c l e a r a n c e GS460 *12.9 in. (74 mm) Min.
GS350 *22.6 in. (65 mm) Min.
Pedal free play GS460Less than 0.08 in. (2.0 mm)
GS3500.04 0.08 in. (1.0 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *37  9 clicks
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)
GS_U_G.book Page 549 Thursday, June 19, 2008 12:54 PM

553
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If premium gasoline is not available
If 91 Octane cannot be obtained, you may use unleaded gasoline with an Octane
Rating as low as 87 (Research Octane Number 91).
However, use of unleaded fuel with an Octane Rating lower than 91 may result in
engine knocking or drastically reduce output to protect itself while driving with a
heavy load. Persistent knocking can lead to engine damage and should be cor-
rected by refueling with higher octane unleaded gasoline.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an Octane Rating 91 (Research Octane
Number 96) or higher required for optimum engine performance.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.
GS_U_G.book Page 553 Thursday, June 19, 2008 12:54 PM

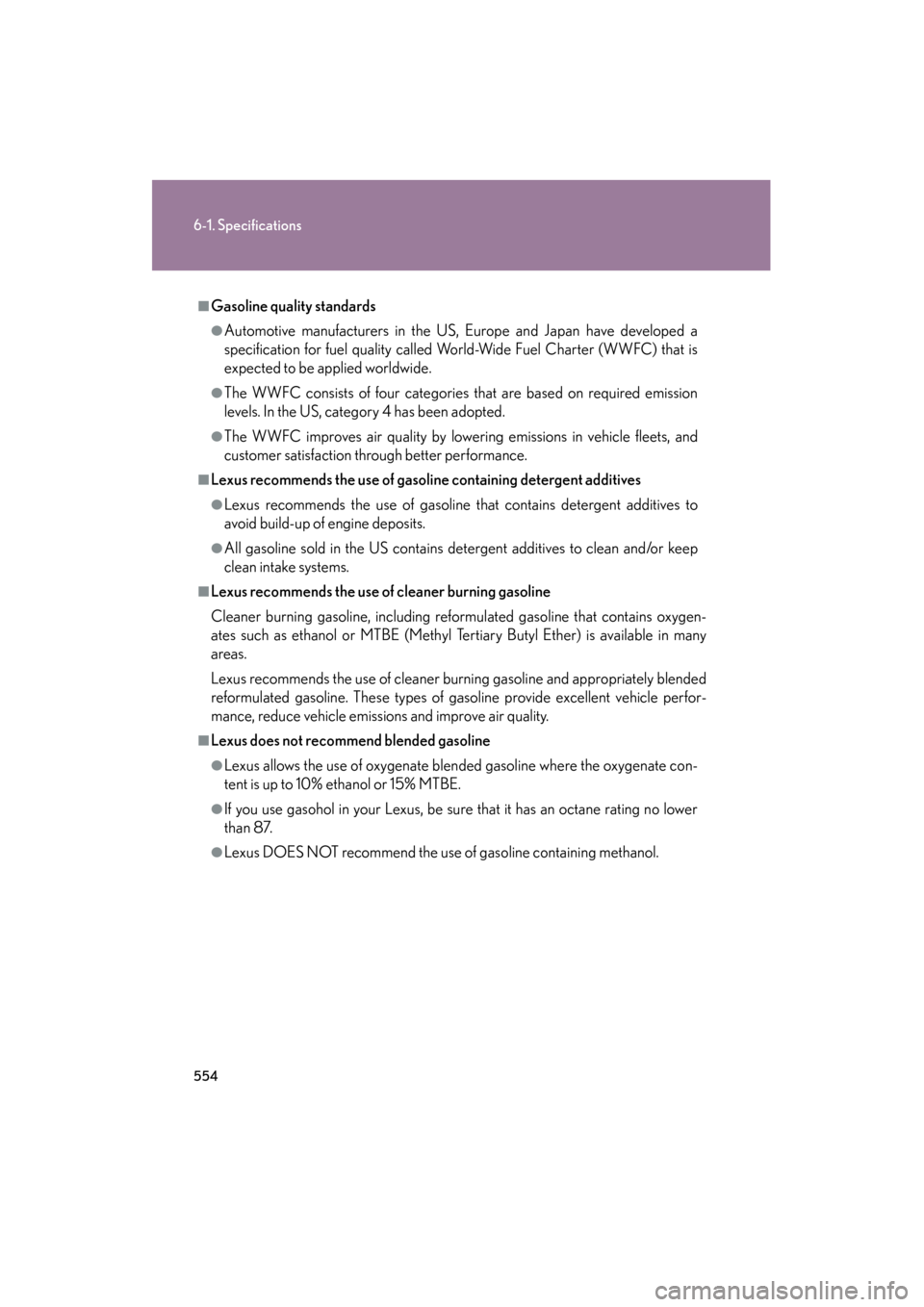

554
6-1. Specifications
GS_G_U
June 19, 2008 12:54 pm
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains detergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
GS_U_G.book Page 554 Thursday, June 19, 2008 12:54 PM

555
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
NOTICE
■Notice on gasoline quality
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.
GS_U_G.book Page 555 Thursday, June 19, 2008 12:54 PM

563
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1* below
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
GS_U_G.book Page 563 Thursday, June 19, 2008 12:54 PM

573
6-2. Customization
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
→P. 1 4 6 )
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Illumination
(
→P. 3 3 7 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
“ENGINE START STOP”
switch turned OFF
ONOFF
Front/rear personal lights
turned on when a door is
openedCorresponding light onlyAll lights
OFF
Foot lights ONOFF
Shift lever lightONOFF
Outer foot lightONOFF
Rear sunshade
(
→P. 3 5 7 )
Time elapsed before the
reverse operation feature
activates
0.7 seconds
0 seconds
0.9 seconds
1.2 seconds
GS_U_G.book Page 573 Thursday, June 19, 2008 12:54 PM
