2008 Lexus GS350 door lock

Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
2
Quick_GS_G_U
January 29, 2008 5:02 pm
Driving Comfort
Topic 5
Opening and Closing
Topic 6
What to do if ...
Customizing Your LexusResponding to warning/indicator lights
and other problems that may arise.
A list of features that can be customized.
Rain and Night Driving
Topic 4
●Headlights P. 3 1
●Fog LightsP. 3 2
●Windshield Wipers and 
Wa s h e r s P. 3 2
●Headlight Cleaner P. 3 3
●Rear Window and Outside Rear 
View Mirror Defoggers P. 3 3
●Instrument Panel Light ControlP. 3 3
●Rear SunshadeP. 4 5
●CompassP. 4 5
●Luggage Mat P. 4 6
●Garage Door Opener P. 4 6
●Lexus Link SystemP. 4 8
●Door LocksP. 5 1
●Po w e r Wi n d o w s P. 5 2
●Moon RoofP. 5 2
●Fuel Tank Cap P. 5 3
●HoodP. 5 3
●Tr u n kP. 5 4
●To u c h S c r e e n P. 3 5
●Air Conditioning System P. 3 6
●Audio SystemP. 3 8
●Hands-free System P. 4 0
●AshtraysP. 4 1
●Seat Heaters/Ventilators P. 4 2
●Console BoxP. 4 3
●Glove BoxP. 4 4
●Cup Holders P. 4 4
●Interior Lights P. 4 5
Depending on specifications, the vehi cle shown in the illustration may
differ from your vehicle in terms of color and equipment.

3
Quick_GS_G_U
January 29, 2008 5:02 pm

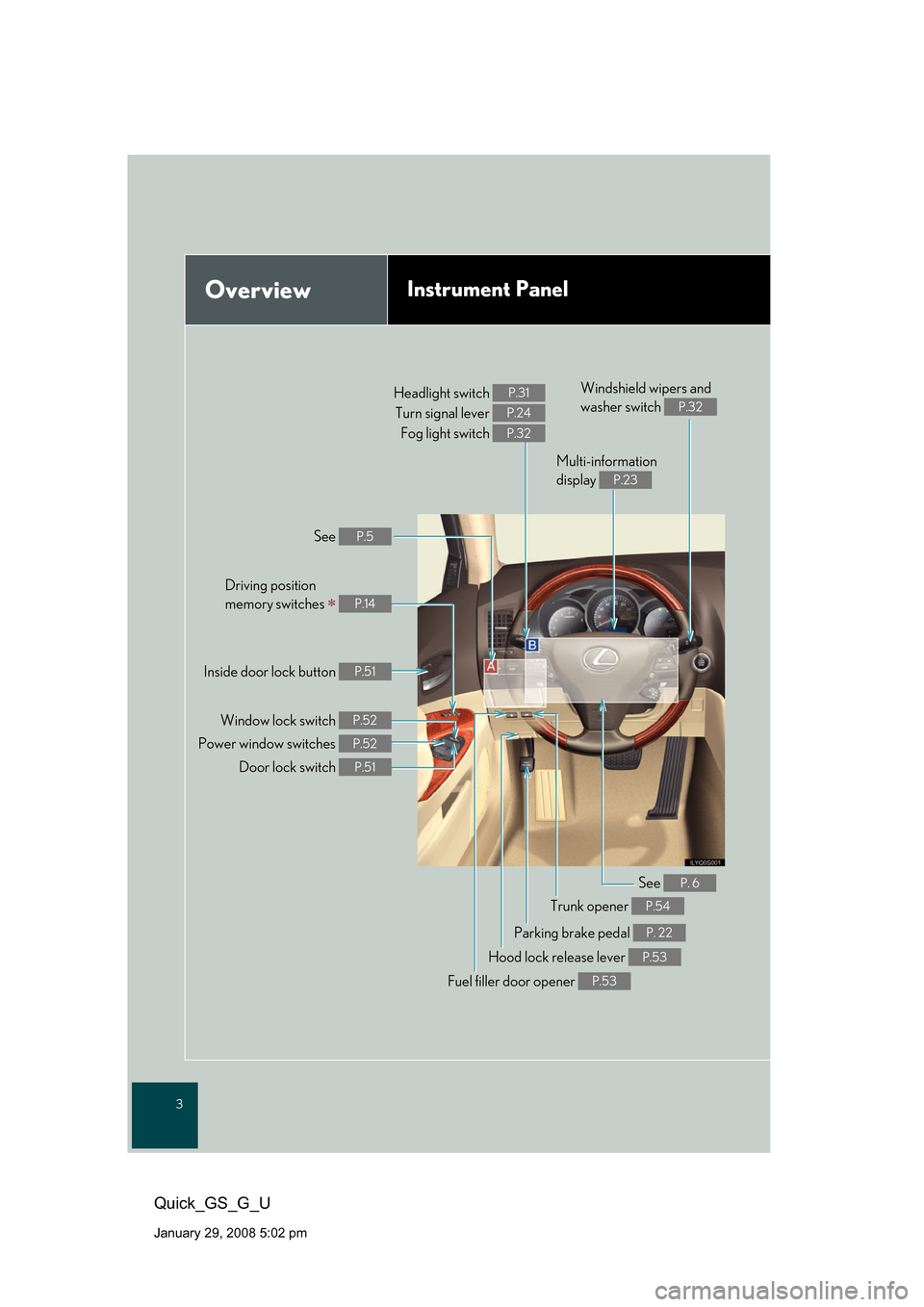

OverviewInstrument Panel
Windshield wipers and
washer switch
P.32Headlight switch Turn signal lever Fog light switch P.31
P.24
P.32
See P.5
Inside door lock button P.51
Door lock switch P.51
Power window switches P.52
Window lock switch P.52
Multi-information 
display
P.23
Driving position 
memory switches
 P.14
Parking brake pedal P. 22
Trunk opener P.54
Fuel filler door opener P.53
See P. 6
Hood lock release lever P.53

Topic 1
Entering and Exiting
9
Quick_GS_G_U
January 29, 2008 5:04 pm
Keys
■Electronic key
● Locks and unlocks the doors
● Opens the trunk
● Starts and stops the engine
■Mechanical key
● Locks and unlocks the doors
● Opens the trunk
● Locks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull.
■ Wireless remote control
Locks the doors
Unlocks the doors
Opens the trunk
Sounds the alarm
(To stop the alarm, push any button on the
wireless remote control.)1
2
3
4
The wireless remote control can also be used to open the windows and moon roof. 
To do so, simply press and hold button.

Topic 1
Entering and Exiting
10
Entering and Exiting
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Before DrivingBefore Driving
Quick_GS_G_U
January 29, 2008 5:04 pm
Smart Access System with Push-button Start
■ Entering the vehicle
To unlock the vehicle, simply grasp the door han-
dle.
■Exiting the vehicle
To lock the vehicle, press the button on the door
handle.
■Opening the trunk
To open the trunk, press the button.
The smart access system with push-button start allows you to enter and exit the vehicle
or start the engine by simply carrying th e electronic key in your pocket or bag.
For details on starting the engine, see page 21.
For details on what to do when the electronic key does not operate properly, see page 58.

Topic 1
Entering and Exiting
11
Quick_GS_G_U
January 29, 2008 5:04 pm
Theft Deterrent System
■Immobilizer system
The immobilizer system prevents the engine from
being started in the event that an attempt is made
to start the vehicle using an unregistered key.
The security indicator light flashes to indicate that
the system is set.
■ Alarm
The system sounds the alarm and flashes light when an attempt to steal the vehicle is
detected.
To set the alarm: close the doors, trunk and hood, and lock all doors. The indicator light
comes on to indicate that the alarm is in it s preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the "ENGINE START STOP" switch to the ACCES-
SORY or IGNITION ON mode, or unlock the doors or trunk.
■ Steering lock
The steering lock is engaged when the driver’s
door is opened with the “ENGINE START STOP”
switch OFF.
The theft deterrent system includes the following features to help protect your vehicle from
theft.

Topic 2
Before Driving
14
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Quick_GS_G_U
January 29, 2008 5:04 pm
Driving Position Memory System (If Equipped)
■ Setting memory positions
While holding the “SET” button, press and hold
one of the memory buttons (“1”, “2”, or “3”) until
you hear a beep.
The current position of the driver’s or front pas-
senger’s seat, and the outside rear view mirror
and steering wheel (driver’s side switch only) are
stored.
■Recalling memory positions
Press one of the memory buttons (“1”, “2”, or “3”).
■Linking driving position memory with door unlock operation 
(driver’s side only)
While holding the desired memory button, press
and hold button on the wireless remote con-
trol until you hear a beep.
To prevent triggering of the alarm, open one of the
doors within 60 seconds after the beep is heard.
The seats can be returned to a previously set position by simply pressing a button.
The position of the steering wheel and the outside rear view mirrors is adjusted along with the
driver’s seat.
Positions can be conveniently stored for t he vehicle’s primary drivers and passengers.
Linking driving position memory to the door unlock operation allows the memory position
to be recalled automatically when the driver’s door is opened. (The linked function does not
operate if the driver’s door is unlocked usin g the mechanical key or manually from inside
the vehicle.)

Topic 5
Driving Comfort
46
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Before Driving
Quick_GS_G_U
December 3, 2007 7:00 pm
Luggage Mat
Pull the lever upwards when lifting the luggage
mat up.
The lever can be hooked on the edge of the trunk.
Garage Door Opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured under
license from HomeLink®.
The HomeLink
® compatible transceiver in your
vehicle has 3 buttons which can be programmed
to operate 3 different devices.
The garage door opener can be programmed to operate garage doors, gates, entry
doors, door locks, home lighting system s, security systems, and other devices.

Topic 5
Driving Comfort
49
Quick_GS_G_U
December 3, 2007 7:00 pm
■Services
The Lexus Link System offers the following se rvices. For details about the services and sub-
scription, refer to the Owner’s Manual or ca ll the Lexus Link Call Center at 1-800-25-
LEXUS (1-800-255-3987) (toll-free).
● Airbag deployment notification
If an airbag deploys, an emergency call is automatically placed to the Lexus Link Call
Center with your vehicle’s location. You do not need to press any buttons.
● Emergency assistance
When you press the Emergency button, a priority call is placed to the Lexus Link Call
Center with your vehicle’s location. At the Call Center, the Lexus Link Advisor can deter-
mine your vehicle’s location, communicate with you, and, if appropriate, contact the near-
est emergency service provider.
● Stolen vehicle location assistance
If your vehicle is stolen, call the Lexus Link Call Center and then select the option for
Lexus Link.
● Remote horn/lights and remote door lock/unlock
The remote operations are performed by contacting the Lexus Link Call Center from the
outside of the vehicle. When necessary, call the Lexus Link Call Center and then select
the option for Lexus Link.
● Advisor record
You can record a conversation with the Lexus Link Advisor.
● Personal calling
A hands-free personal calling feature can be added to the Lexus Link System as an
option.
● Other services
Press the “SERVICES” button in the vehicle or call the Lexus Link Call Center and then
select the option for Lexus Link. The services provided will depend on the service plan
level.
The system is only operational in GPS (Global Positioning System) and cellular coverage
areas.
