2008 Lexus GS350 fog lights

1
2
3
4
5
6
7
3
GS_G_U
May 13, 2008 5:14 pm
2-3. Operating the lights and 
windshield wipers .................... 142
Headlight switch ............................ 142
Fog light switch .............................. 145
Windshield wipers and 
washer............................................. 146
Headlight cleaner switch ........... 149
2-4. Using other driving 
systems ...................................... 150
Cruise control ................................ 150
Dynamic radar cruise 
control............................................. 153
Intuitive parking assist ................. 164
Rear view monitor system ......... 179
AVS (Adaptive Variable 
Suspension System) .................. 183
Driving assist systems.................. 184
PCS (Pre-Collision System)..... 190
2-5. Driving information ................... 194 Cargo and luggage ...................... 194
Vehicle load limits ......................... 198
Winter driving tips ........................ 199
Trailer towing ................................. 204
Dinghy towing .............................. 205 3-1. Using the touch screen .......... 208
Touch screen ................................ 208
Setting the touch screen ............ 212
3-2. Using the air conditioning 
system and defogger .............. 217
Automatic air conditioning 
system .............................................. 217
Rear window and outside rear 
view mirror defoggers ............ 225
3-3. Using the audio system........... 226 Audio system type ....................... 226
Using the radio.............................. 229
Using the cassette player ......... 238
Using the CD player................... 242
Playing MP3 and WMA discs.................................. 247
Using the DVD player ................ 251
Playing DVD 
video/audio ................................. 254
Playing video CD ......................... 266
DVD player and DVD 
video disc information ............. 270
Optimal use of the 
audio/video system .................. 282
Using the AUX adapter ............ 287
Using the steering switches .... 288
3Interior features

7
GS_G_U
May 13, 2008 5:14 pm
Tire
●Rotation
● Replacement
● Inflation pressure
● Information
P. 421
P. 512
P. 550
P. 556
Tail lights P. 142
Side marker light P. 142
Trunk P. 42
Rear window defogger P. 225
Door P. 37
Fuel filler door P. 70
Turn signal light P. 130
: If equipped

When driving2
111
GS_G_U
May 13, 2008 5:14 pm
2-1. Driving procedures ........ 112Driving the vehicle................... 112
Engine (ignition) switch .......... 121
Automatic transmission ........ 125
Turn signal lever ....................... 130
Parking brake ............................ 131
2-2. Instrument cluster .......... 132 Gauges and meters ................ 132
Indicators and warning 
lights ......................................... 136
Multi-information display ..... 139 2-3. Operating the lights and

windshield wipers ........ 142
Headlight switch ..................... 142
Fog light switch ........................ 145
Windshield wipers and 
washer ..................................... 146
Headlight cleaner switch ..... 149
2-4. Using other driving 
systems .......................... 150
Cruise control.......................... 150
Dynamic radar cruise 
control ..................................... 153
Intuitive parking assist ........... 164
Rear view monitor 
system....................................... 179
AVS (Adaptive Variable 
Suspension System) ............ 183
Driving assist systems ............ 184
PCS (Pre-Collision 
System) ................................... 190
2-5. Driving information........ 194 Cargo and luggage ................ 194
Vehicle load limits ................... 198
Winter driving tips .................. 199
Trailer towing .......................... 204
Dinghy towing......................... 205

145
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U
June 5, 2008 10:37 am
Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
OFF
ON

452
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
FuseAmpereCircuit
9DOME10
Foot lights, vanity lights, gauges and
meters, steering spot light, steering
switch illumination, rear personal
lights, automatic transmission selec-
tor lever spot light, front personal
lights
10CDS10Noise filter
11ABS MAIN210Electronically controlled 
brake system
12ABS MOTOR30ABS
13ABS MAIN110Capacitor
14BATT-E/G60FR CTRL BATT, ETCS, ALT-S and 
A/F HTR
15ABS150VDIM system
16RH J/B-B30AM2, DOOR FR and DOOR RR
17VGRS40VGRS
18MAIN30H-LP R LWR and H-LP L LWR
19STARTER30Starting system
20LH J/B-B30FL DOOR, RL DOOR and RAD
NO.3
21P/ I - B60EFI NO.1, F/PMP and INJ
22EPS80EPS
23ALT150
RH J/B-AM, LH J/B-AM, E/G-AM,
RR JB, HEATER, DEFOG, FAN1,
FAN2, ABS2, ABS MOTOR, 
ABS MAIN1, and ABS MAIN2

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
FuseAmpereCircuit
10IG210Ignition system, noise filter and ECT
ECU
11EFI NO.210
Fuel system, exhaust system, multi-
port fuel injection system/sequential
multiport fuel injection system, elec-
tronic engine control system, leak
detection pump
12H-LP R LWR15Headlight low beam (right)
13H-LP L LWR15Headlight low beam (left)
14F/ P M P25Fuel system
15EFI25
Multiport fuel injection system/
sequential multiport fuel injection
system, ECT ECU
16INJ25
Multiport fuel injection system/
sequential multiport fuel injection
system
17H-LP UPR15Headlight high beams
18HORN10Horns
19WA S H E R20Windshield wipers and washer
20FR TAIL10Parking lights, side marker light
21FR FOG15Front fog lights

457
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
FuseAmpereCircuit
11H-LP R LWR15Headlight low beam (right)
12H-LP L LWR15Headlight low beam (left)
13F/ P M P25Fuel system
14EFI NO.125
Multiport fuel injection system/
sequential multiport fuel injection
system
15INJ20
Multiport fuel injection system/
sequential multiport fuel injection
system
16H-LP HI15Headlight high beams
17HORN10Horns
18WA S H E R20Windshield wipers and washer
19FR TAIL10Parking lights, side marker light
20FR FOG15Front fog lights

464
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm

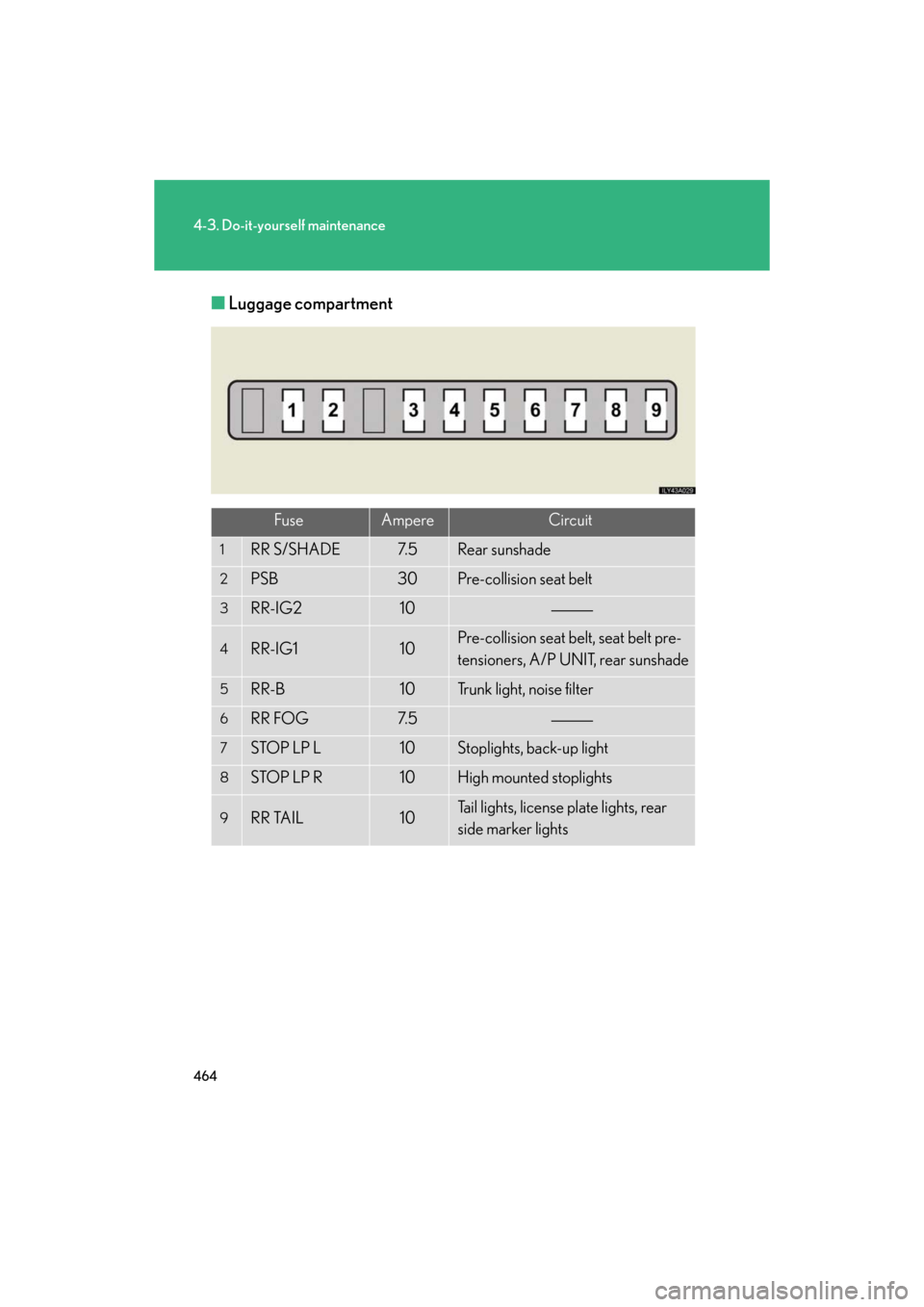

■Luggage compartment
FuseAmpereCircuit
1RR S/SHADE7. 5Rear sunshade
2PSB30Pre-collision seat belt
3RR-IG210
4RR-IG110Pre-collision seat belt, seat belt pre-
tensioners, A/P UNIT, rear sunshade
5RR-B10Trunk light, noise filter
6RR FOG7. 5
7STOP LP L10Stoplights, back-up light
8STOP LP R10High mounted stoplights
9RR TAIL10Tail lights, license plate lights, rear
side marker lights
