Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s airbag
2. Light control / Turn signals
3. Instrument cluster
4. Wiper/Washer
5. Ignition switch
6. Steering wheel
7. Digital clock
8. Hazard
9. Audio controls (if equipped)
10. Climate control system (if equipped)
11. Passenger’s airbag
12. Vent controls
13. Glove box
14. Ashtray
15. Cigar lighter
16. Shift lever
17. Auto cruise controls (if equipped)
18. PASSENGER AIR BAG OFF
indicator
1KMA0003

355
1
2
3
4
5
6
7
8
9
Knowing your vehicle
➀Driver’s airbag
(see page 3- 59)
➁Front passenger’s airbag
(see page 3- 60)
➂Side airbag
(if equipped, see page 3- 67)
➃Curtain Airbag
(if equipped, see page 3- 67)
➄Front impact sensor
(see page 3- 69)
➅Side impact sensor
(if equipped, see page 3- 69)
➆SRS Control Module
(see page 3- 69)
➇Front seat position sensor
➈Occupant classification system
(see page 3- 60)
■Airbag inflation condition
(see page 3- 70)
■Airbag non-inflation condition
(see page 3- 71)
■Airbag warning light
(see page 3- 76)
■Airbag service
(see page 3- 77)
■Airbag warning label
(see page 3- 79)
What your airbag system does
Driver’s airbag and front passenger’s
airbag are designed to supplement
the protection offered by the safety
belt in certain frontal collisions.
Likewise, side airbag and curtain
airbags are designed to supplement
the protection offered by the safety
belt in side collisions. Safety belts
are designed to reduce the injury of
the driver or passengers in case of
impact or collision. No safety belt or
airbag system can completely elimi-
nate injuries that may cause in colli-
sions or impacts. To help reduce
impact on driver or passengers in
any collision, safety belts must be
correctly worn.
What your airbag system does
not do
The air bag system is designed to
supplement the protection offered by
the safety belt system.IT IS NOT A
SUBSTITUTE FOR THE SAFETY
BELT.

Knowing your vehicle
58 3
1
2
3
4
5
6
7
8
9
The advanced SRS offers the ability
to control the airbag inflation with two
levels. A first stage level is provided
for moderate-severity impacts. A sec-
ond stage level is provided for more
severe impacts.
According to the impact severity,
seating position and safety belt
usage, the SRS Control Module con-
trols the airbag inflation.
Additionally, your SRS is equipped
with an occupant classification sys-
tem in the front passenger’s seat.
The occupant classification system
detects the presence of a passenger
in the front passenger’s seat and will
turn off the front passenger’s airbag
under certain conditions in order to
protect smaller front passenger seat
occupants. For more detail, see
“Occupant Classification System”
later in this section.
WARNING-Seating sen-
sors malfunction
If the seat position sensor is not
working properly, the airbag
warning light ( ) on the instru-
ment panel will illuminate
because the airbag warning
light is connected with the seat
position sensor.If the airbag
warning light does not illumi-
nate when the ignition key is
turned to the "ON" position,if i
t
remains illuminated after illumi-
nating for approximately 6 sec-
onds, or if it illuminates while
the vehicle is being driven, have
an authorized Kia dealer inspect
your vehicle as soon as possi-
ble.
AIR
BAG
WARNING-Seat usage
• Modification to the seat struc-
ture can damage the seat
position sensor and cause the
airbag to deploy at a different
level than should be provided.
• Do not place any objects
underneath the front seats
since they could damage the
seat position sensor or inter-
fere with the occupant classi-
fication system.
• Do not place any objects that
may cause magnetic fields
near the front seat.These may
cause a malfunction of the
seat position sensor.
(Continued)

Knowing your vehicle
60 3
1
2
3
4
5
6
7
8
9
Front passenger’s airbag
Front passenger’s airbag is stored in
the instrument panel on the glove
box.
Never put any objects or ornaments
on the instrument panel.
Occupant classification system
The occupant classification system
detects the presence of a passenger
in the front passenger’s seat and will
turn off the front passenger’s airbag
under certain conditions.
The occupant classification system is
designed to detect the presence of a
properly-seated occupant and deter-
mine if the front passenger’s airbag
should be enabled (may inflate) or
not.If there is no passenger in the front
passenger seat or if the passenger in
the front passenger's seat is very
small (such as a child), the front PAS-
SENGER AIR BAG OFF indicator
may go ON.
When this indicator is ON, the front
passenger's air bag will not deploy.
The side air bag will not deploy if the
front seat is unoccupied.
The side air bag may deploy if the
front seat is occupied by a small
occupant.
1KMB21311KMN3162
1KMA2058
HLZ2121

361
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Main components of occupant
classification system
• A detection device located within
the front passenger seat cushion.
• Electronic system to determine
whether passenger air bag sys-
tems (both front and side) should
be activated or deactivated.
• A warning light located on the
instrument panel which illuminates
the words “PASSENGER AIR BAG
OFF” indicating the front passen-
ger air bag system is deactivated.
• The instrument panel air bag warn-
ing light is interconnected with the
occupant classification system.Always be sure that you and all vehi-
cle occupants are seated and
restrained properly (sitting upright
with the seat in an upright position,
centered on the seat cushion, with
the person’s legs comfortably
extended, feet on the floor, and wear-
ing the safety belt properly) for the
most effective protection by the air
bag and the safety belt.
• The OCS may not function proper-
ly if the passenger takes actions
which can defeat the detection sys-
tem. These include:
(1) Failing to sit in an upright posi-
tion.
(2) Leaning against the door or cen-
ter console.
(3) Sitting towards the sides or the
front of the seat.
(4) Putting legs on the dashboard or
resting them on other locations
which reduce the passenger
weight on the front seat.
(5) Improperly wearing the safety
belt.
(6) Reclining the seat back.• The “PASSENGER AIR BAG OFF”
indicator illuminates after the igni-
tion key is turned to the “ON” posi-
tion or after the engine is started. If
the front passenger’s seat is occu-
pied by very small person, the
“PASSENGER AIR BAG OFF” indi-
cator will remain illuminated. If the
front passenger’s seat is occupied
by a person of adult size, the “PAS-
SENGER AIR BAG OFF” indicator
will turn off after 4 seconds.
• If the front passenger's seat is
unoccupied, the “PASSENGER
AIR BAG OFF” indicator will turn
on, and the front passenger's
airbag will not deploy in frontal
crashes.
• If the “PASSENGER AIR BAG
OFF” indicator illuminates, the front
passenger’s airbag will not deploy
in frontal crashes.
• If the front passenger’s seat is
occupied by a person of adult size,
the “PASSENGER AIR BAG OFF”
indicator is not illuminated and the
front passenger’s airbag will deploy
in frontal crashes.

Knowing your vehicle
62 3
1
2
3
4
5
6
7
8
9
CAUTION
If the “PASSENGER AIR BAG
OFF”indicator illuminates or
blinks continuously when a per-
son of adult size sits in the front
passenger’s seat,it could be
because that person isn’t sitting
properly in the seat.
If this happens, turn the vehicle
off, place the seat back in the
full upright position,sit upright
in the seat, centered on the seat
cushion, with legs comfortably
extended.Res
tart the vehicle
and have the person remain in
this position for about 1 minute.
This will allow the system to
detect the person and enable
the passenger’s airbag.
Condition and operation in the front passenger occupant
classification system
Condition detected by
the occupant classifi-
cation system
1. Adult *
1
2. Child *2
3. Unoccupied
4. There is a malfunc-
tion in the system Off
On
On
OnOff
Off
Off
OnActivated
Deactivated
Deactivated
Deactivated
"PASSENGER AIR
BAG OFF" indicator lightAirbag warning lightFront passenger
airbag Indicator/Warning light Devices
*1The system judges a person of adult size as an adult. When a smaller adult
sits in the front passenger seat, the system may recognize him/her as a
child depending on his/her physique and posture.
*
2When a larger child who has outgrown a child restraint system sits in the
front passenger seat, the system may recognize him/her as an adult
depending on his/her physique or posture.

363
1
2
3
4
5
6
7
8
9
Knowing your vehicle
CAUTION
If the occupant classification
system is not working properly,
the airbag warning light ( ) on
the instrument panel will illumi-
nate because the passenger’s
airbag is connected with the
occupant classification system.
If there is a malfunction of the
occupant classification system,
the "PASSENGER AIR BAG
OFF" indicator will illuminate
and the front passenger's
airbag will not deploy in frontal
crashes
even if there is adult
occupant in the front passen-
ger's seat.
(Continued)
AIR
BAG
(Continued)
Have an authorized Kia dealer
inspect the occupant classifica-
tion system with the SRS airbag
system as soon as possible if
any of following occur;
• The SRS airbag warning light
does not illuminate when the
ignition key is turned to "ON"
position.
• The SRS airbag warning light
remains illuminated after illu-
minating for approximately 6
seconds.
• The SRS a
irbag warning light
illuminates while the vehicle is
being driven.
WARNING
• The occupant classification
system can function only
when the ignition key is in the
"ON" position.
• For very small person, the
occupant classification sys-
tem may or may not turn off
the right front passenger's
frontal airbag, depending
upon the person's seating
posture and body build.
Everyone in your vehicle
should wear a safety belt
properly -- whether or not
there is an air bag for that per-
son.
(Continued)
WARNING
If the front passenger seat
should be modified for persons
with disabilities that may affect
the operation of the occupant
classification system, contact
an authorized Kia dealer.

Knowing your vehicle
64 3
1
2
3
4
5
6
7
8
9
(Continued)

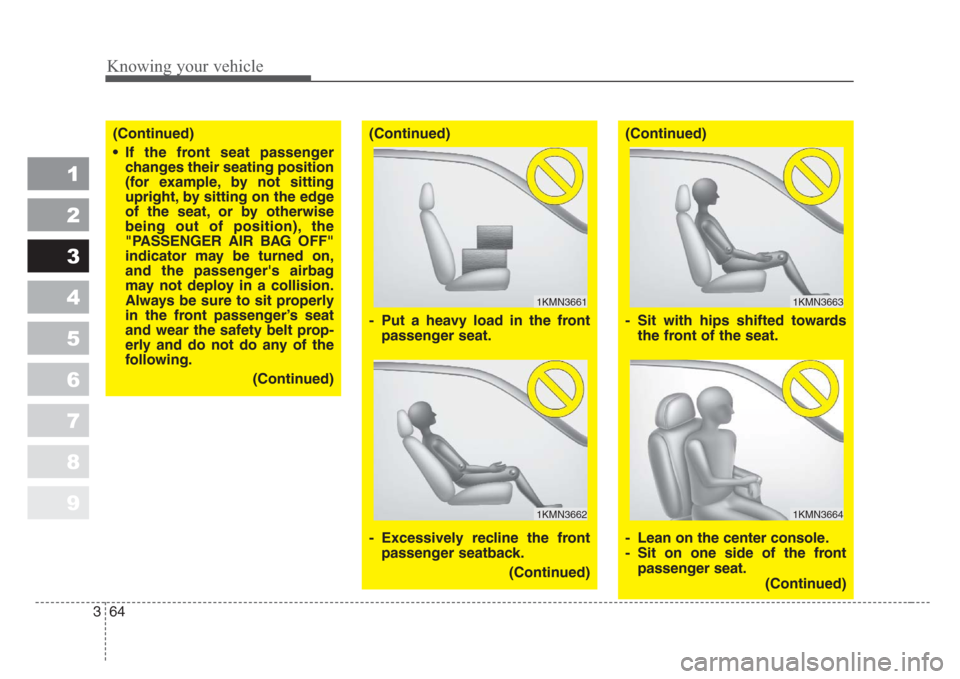

• If the front seat passenger
changes their seating position
(for example, by not sitting
upright, by sitting on the edge
of the seat, or by otherwise
being out of position), the
"PASSENGER AIR BAG OFF"
indicator may be turned on,
and the passenger's airbag
may not deploy in a collision.
Always be sure to sit properly
in the front passenger’s seat
and wear the safety belt prop-
erly and do not do any of the
following.
(Continued)(Continued)
- Put a heavy load in the front
passenger seat.
- Excessively recline the front
passenger seatback.
(Continued)
1KMN3661
1KMN3662
(Continued)
-Sit with hips shifted towards
the front of the seat.
- Lean on the center console.
-Sit on one side of the front
passenger seat.
(Continued)
1KMN3663
1KMN3664
