Knowing your vehicle
Always be sure that you and all vehi-
cle occupants are seated and
restrained properly (sitting upright
with the seat in an upright position,
centered on the seat cushion, with
the person's legs comfortably
extended, feet on the floor, and wear-
ing the safety belt properly) for the
most effective protection by the air
bag and the safety belt.
• The OCS may not function proper-
ly if the passenger takes actions
which can defeat the detection sys-
tem. These include:
(1) Failing to sit in an upright posi-
tion.
(2) Leaning against the door or cen-
ter console.
(3) Sitting towards the sides or the
front of the seat.
(4) Putting legs on the dashboard or
resting them on other locations
which reduce the passenger
weight on the front seat.
(5) Improperly wearing the safety
belt.
(6) Reclining the seat back.• The “PASSENGER AIR BAG OFF”
indicator illuminates after the igni-
tion key is turned to the “ON” posi-
tion or after the engine is started. If
the front passenger's seat is occu-
pied by a very small person or is
occupied by someone who is
improperly seated, the “PASSEN-
GER AIR BAG OFF” indicator will
remain illuminated and the front
passenger air bag will not deploy in
frontal crashes. If the front passen-
ger’s seat is occupied by an adult
size person seated properly, the
“PASSENGER AIR BAG OFF” indi-
cator will turn off after approxi-
mately 4 seconds and the front
passenger's air bag will deploy in
frontal collision.
CAUTION
If the occupant classification
system is not working properly,
the air bag warning light ( ) on
the instrument panel will illumi-
nate. If there is a malfunction of
the occupant classification sys-
tem, the "PASSENGER AIR BAG
OFF" indicator will not illumi-
nate and the front passenger's
air bag will deploy in frontal
crashes even if there is child or
no occupant in the front pas-
senger’s seat. If the SRS air bag
warning light does not illumi-
nate when the ignition key is
turned to "ON" position, if it
remains illuminated after blink-
ing for approximately six sec-
onds, or if it illuminates while
the vehicle is being driven, have
an authorized Kia dealer inspect
the occupant classification sys-
tem with the SRS air bag system
as soon as possible.

Knowing your vehicle
58 3
1
2
3
4
5
6
7
8
9

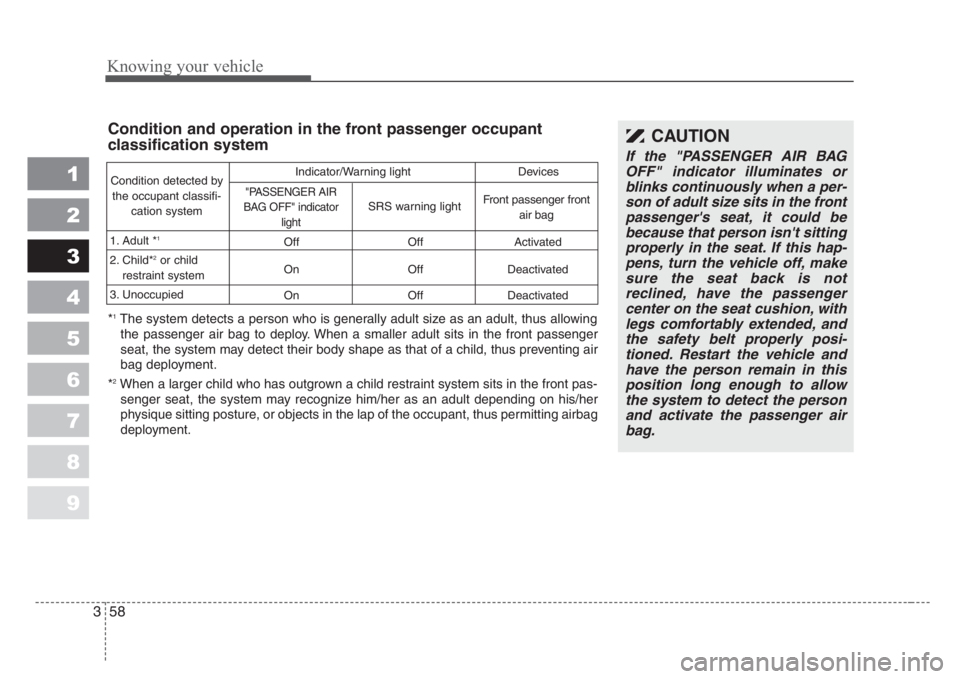

Condition and operation in the front passenger occupant
classification system
Condition detected by
the occupant classifi-
cation system
1. Adult *
1
2. Child*2or child
restraint system
3. Unoccupied Off
On
OnOff
Off
OffActivated
Deactivated
Deactivated
"PASSENGER AIR
BAG OFF" indicator
light
SRS warning lightFront passenger front
air bag Indicator/Warning light Devices
*1The system detects a person who is generally adult size as an adult, thus allowing
the passenger air bag to deploy. When a smaller adult sits in the front passenger
seat, the system may detect their body shape as that of a child, thus preventing air
bag deployment.
*
2When a larger child who has outgrown a child restraint system sits in the front pas-
senger seat, the system may recognize him/her as an adult depending on his/her
physique sitting posture, or objects in the lap of the occupant, thus permitting airbag
deployment.
CAUTION
If the "PASSENGER AIR BAG
OFF" indicator illuminates or
blinks continuously when a per-
son of adult size sits in the front
passenger's seat, it could be
because that person isn't sitting
properly in the seat. If this hap-
pens, turn the vehicle off, make
sure the seat back is not
reclined, have the passenger
center on the seat cushion, with
legs comfortably extended, and
the safety belt properly posi-
tioned. Restart the vehicle and
have the person remain in this
position long enough to allow
the system to detect the person
and activate the passenger air
bag.

373
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Air bag warning light
The purpose of air bag warning light
in your instrument panel is to alert
you of a potential problem with your
air bag - Supplemental Restraint
System (SRS).When the ignition switch is turned
ON, the indicator light should blink or
illuminate for approximately 6 sec-
onds, then go off.
Have the system checked if:
• The light does not turn on briefly
when you turn the ignition ON.
• The light stays on after the engine
starts.
• The light comes on while the vehi-
cle is in motion.
Air bag (Supplemental
Restraint System) service
Your Supplemental Restraint System
is virtually maintenance-free. There
are no parts which you can service.
You must have the system serviced
under the following circumstances:
• If an air bag ever inflates, the air
bag must be replaced. Do not try to
remove or discard the air bag by
yourself. This must be done by an
authorized Kia dealer.
• If the air bag warning indicator light
alerts you to a problem, have the
air bag system checked as soon as
possible. Otherwise, your air bag
system may be ineffective.
A-BAG-W

Knowing your vehicle
78 3
1
2
3
4
5
6
7
8
9
Opening the hood:
1. Pull the release lever on the lower
left side of the instrument panel to
unlatch the hood. The hood should
pop open slightly.2. Go to the front of the vehicle,
slightly raise the hood, push the
secondary latch (
1) inside of the
hood center and lift (
2) the hood.
WARNING
• If a person is locked in the
trunk, they can pull the emer-
gency release to open the
trunk lid.
• We recommend that cars be
kept locked and keys be kept
out of the reach of children,
and that parents teach their
children about the dangers of
playing in trunks.
HOOD
1LDA2020OLD026023

Knowing your vehicle
80 3
1
2
3
4
5
6
7
8
9
WARNING
If pressurized fuel sprays out, it
can cause serious injuries.
Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a
hissing sound, wait until the
condition stops before com-
pletely removing the cap.
1. Stop the engine.
2. To open the fuel filler lid, pull the
release lever.3. Pull the fuel filler lid out to open.
4. To remove the cap, turn the fuel
tank cap counterclockwise.
5. Refuel as needed.
6. To install the cap, turn it clockwise
until it “clicks”. This indicates that
the cap is securely tightened.
7. Close the fuel filler lid and push it
lightly and make sure that it is
securely closed.
FUEL FILLER LID
1LDA2019OLD026018
WARNING
To avoid injury from sharp
edges, it is recommended that
protective gloves be worn if
there is a need to open the fuel
filler door manually.
WARNING
Automotive fuels are flamma-
ble/explosive materials. When
refueling, please note the fol-
lowing guidelines carefully.
Failure to follow these guide-
lines may result in severe per-
sonal injury,severe burns or
death by fire or explosion.
• Before refueling always note
the location of the Emergency
Gasoline Shut-Off, if available,
at the gas station facility.
(Continued)

Knowing your vehicle
88 3
1
2
3
4
5
6
7
8
9
Center console storage
To open either of the console storage
compartments, push the button (1) or
pull up the lever (2).
These compartments can be used to
store small items required by the
driver or front passenger.
STORAGE COMPARTMENT
WARNING - Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
peratures for extended periods.
OLD026151
CAUTION
• To avoid possible theft, do not
leave valuables in the storage
compartment.
•Always keep the storage com-
partment covers closed while
driving. Do not attempt to
place many items in the stor-
age compartment that the
storage compartment cover
can not close securely.

Knowing your vehicle
90 3
1
2
3
4
5
6
7
8
9
Cigarette lighter
Front
To operate the cigarette lighter, press
it in and release it. When it is heated,
it automatically pops out ready for
use.
If the engine is not running, the igni-
tion switch must be in the ACC posi-
tion for the lighter to operate.
Ashtray
Front
The front ashtray may be opened by
pushing in the ashtray lid. To clean
the ashtray, the plastic receptacle
should be removed by lifting the plas-
tic ash receptacle upward and pulling
it out.
INTERIOR FEATURES
WARNING- Ashtray use
• Do not use the vehicle’s ash-
trays as waste receptacles.
• Putting lit cigarettes or match-
es in an ashtray with other
combustible materials may
cause a fire.
OLD026148OLD026147
CAUTION
• Do not hold the lighter in after
it is already heated because it
will overheat.
• Only a genuine Kia lighter
should be used in the ciga-
rette lighter socket. The use of
plug-in accessories (shavers,
hand-held vacuums, and cof-
fee pots, for example) may
damage the socket or cause
electrical failure.
• If the lighter does not pop out
within 30 seconds, remove it
to prevent overheating.

3 101
Knowing your vehicle
1
2
3
4
5
6
7
8
9

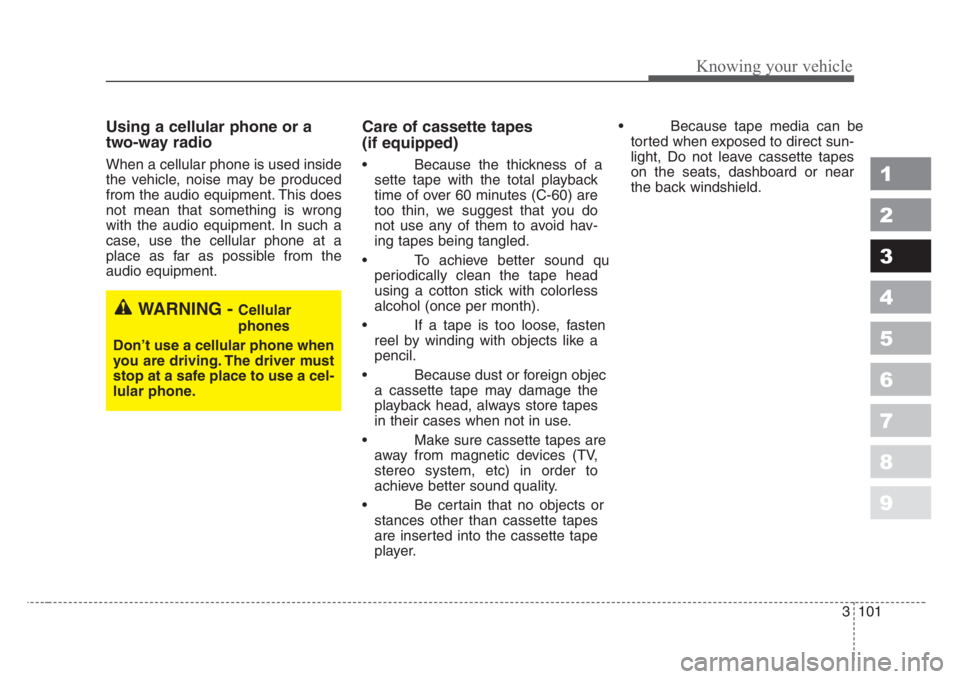

Using a cellular phone or a
two-way radio
When a cellular phone is used inside
the vehicle, noise may be produced
from the audio equipment. This does
not mean that something is wrong
with the audio equipment. In such a
case, use the cellular phone at a
place as far as possible from the
audio equipment.
Care of cassette tapes
(if equipped)
• Because the thickness of a
sette tape with the total playback
time of over 60 minutes (C-60) are
too thin, we suggest that you do
not use any of them to avoid hav-
ing tapes being tangled.
• To achieve better sound qu
periodically clean the tape head
using a cotton stick with colorless
alcohol (once per month).
• If a tape is too loose, fasten
reel by winding with objects like a
pencil.
• Because dust or foreign objec
a cassette tape may damage the
playback head, always store tapes
in their cases when not in use.
• Make sure cassette tapes are
away from magnetic devices (TV,
stereo system, etc) in order to
achieve better sound quality.
• Be certain that no objects or
stances other than cassette tapes
are inserted into the cassette tape
player.• Because tape media can be
torted when exposed to direct sun-
light, Do not leave cassette tapes
on the seats, dashboard or near
the back windshield.
WARNING - Cellular
phones
Don’t use a cellular phone when
you are driving. The driver must
stop at a safe place to use a cel-
lular phone.
