2008 KIA Sedona headrest

337
Features of your vehicle
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)*
(4) Seat warmer*
(5) Headrest
(6) Armrest
(7) Lumbar support
Rear seats
(8) Forward and backward
(Long wheelbase)*
(9) Seatback angle
(10) Headrest
(11) Armrest
(12) Stowing (Long wheelbase)*
* if equipped
SEAT
OVQ038201N
Long wheelbase
Short wheelbase
Power seatManual seat
WARNING-Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.

Features of your vehicle
42 3

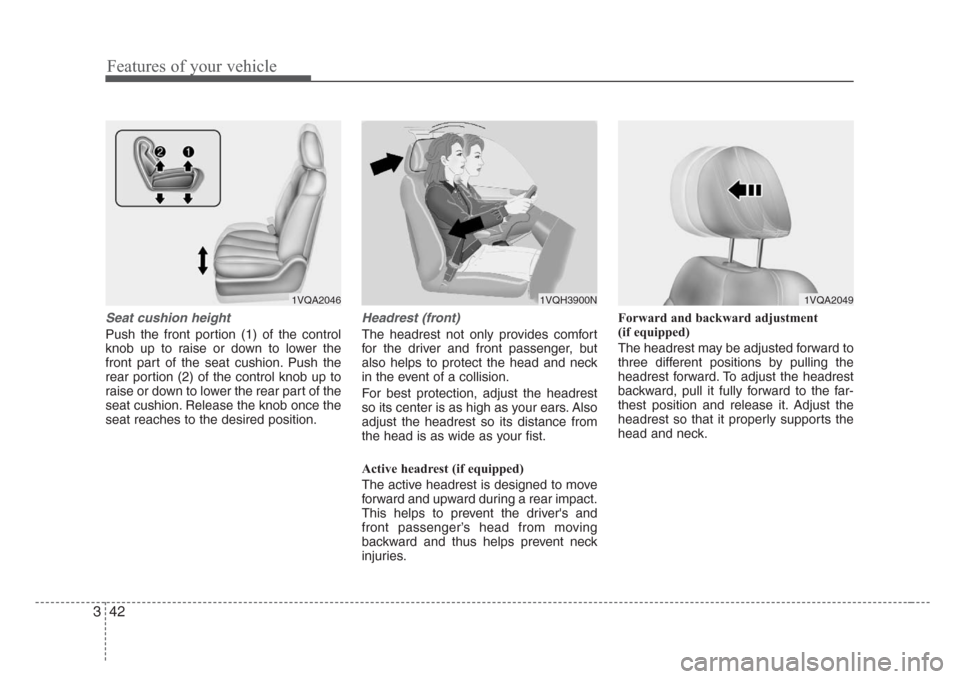

Seat cushion height
Push the front portion (1) of the control
knob up to raise or down to lower the
front part of the seat cushion. Push the
rear portion (2) of the control knob up to
raise or down to lower the rear part of the
seat cushion. Release the knob once the
seat reaches to the desired position.
Headrest (front)
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.
For best protection, adjust the headrest
so its center is as high as your ears. Also
adjust the headrest so its distance from
the head is as wide as your fist.
Active headrest (if equipped)
The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and
front passenger’s head from moving
backward and thus helps prevent neck
injuries.Forward and backward adjustment
(if equipped)
The headrest may be adjusted forward to
three different positions by pulling the
headrest forward. To adjust the headrest
backward, pull it fully forward to the far-
thest position and release it. Adjust the
headrest so that it properly supports the
head and neck.
1VQA20461VQH3900N1VQA2049

343
Features of your vehicle
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).Removal
To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling upward (2).Armrest (for driver’s seat)
The front seats have the armrest located
on the side of seatback.
To use the armrest, swing down the arm-
rest to the lowest position.
WARNING-Headrest posi-
tioning
To reduce the risk of head and neck
injuries, each occupant headrest
must be properly adjusted. Do not
drive the vehicle with the headrest
removed or improperly positioned.
Do not adjust the driver's headrest
while driving, or else loss of control
and an accident is possible.
1VQA20511VQA2050OVQ027052

347
Features of your vehicle
Armrest
The 2nd row seats have the armrest
located on the side of seatback.
To use the armrest, swing down the arm-
rest to the lowest position.
Headrest (rear)
The headrest not only provides comfort
for the passengers, but also helps to pro-
tect the head and neck in the event of a
collision. For best protection, adjust the
headrest so its center is as high as your
ears.
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).Removal
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling upward (2).
1VQA2057OVQ036206N1VQA2058
WARNING
To reduce the risk of head and neck
injuries, do not drive the vehicle
with the headrest removed or
improperly positioned.

Features of your vehicle
48 3

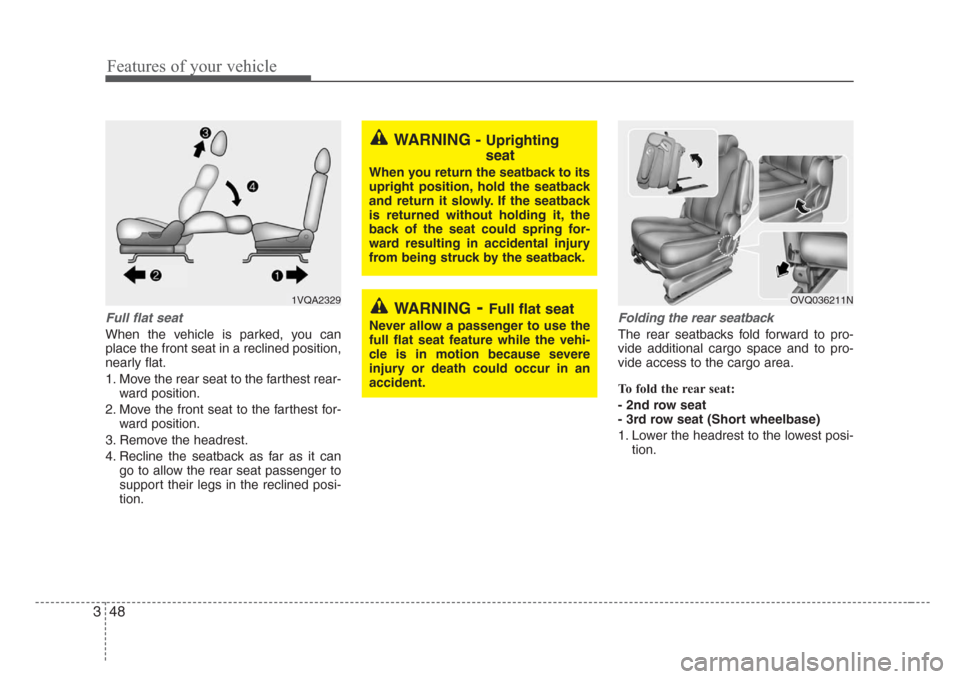

Full flat seat
When the vehicle is parked, you can
place the front seat in a reclined position,
nearly flat.
1. Move the rear seat to the farthest rear-
ward position.
2. Move the front seat to the farthest for-
ward position.
3. Remove the headrest.
4. Recline the seatback as far as it can
go to allow the rear seat passenger to
support their legs in the reclined posi-
tion.
Folding the rear seatback
The rear seatbacks fold forward to pro-
vide additional cargo space and to pro-
vide access to the cargo area.
To fold the rear seat:
- 2nd row seat
- 3rd row seat (Short wheelbase)
1. Lower the headrest to the lowest posi-
tion.
WARNING-Full flat seat
Never allow a passenger to use the
full flat seat feature while the vehi-
cle is in motion because severe
injury or death could occur in an
accident.
WARNING - Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly. If the seatback
is returned without holding it, the
back of the seat could spring for-
ward resulting in accidental injury
from being struck by the seatback.
1VQA2329OVQ036211N

349
Features of your vehicle
2. Pull the seatback recliner (or strap)
and double-fold the seat forward.
3. Push down the seat backward firmly to
lock the catches into the rear anchors
until an audible "click" is heard.4. Make sure the green mark on the rear
seat cushion frame is visible and the
catches are locked in position by mov-
ing the seat forward and backward or
lifting the front portion of the seat. If the
green mark is invisible and the seat
moves, it is not locked properly.- 3rd row seat (Long wheelbase)
1. Lower the headrest to the lowest posi-
tion.
2. Hold the seatback and pull out the
folding strap.
3. Fold the seatback forward and down
firmly until it clicks into place.
To unfold the rear seat:
1. Pull up the seatback recline lever (or
strap).
2. Lift and push the seatback backward
firmly until it clicks into place.
Make sure the seatback is locked in
place.
3. Return the rear safety belt to the prop-
er position.
OVQ036208NOVQ036209NOVQ036210N

Features of your vehicle
50 3
Double-folding the rear seat
- 2nd row seat
- 3rd row seat (Short wheelbase)
To fold the rear seat:
1. Lower the headrest to the lowest position.
2. Move the seat to rear-most position.
3. Double-fold the rear seat forward by
pull up the seatback recline lever (or
strap).4. Pull the folding strap out of the pocket
located under the seat cushion. (2nd
row seat)
5. Lift the entire folded seat forward and
tie the folded seat to the assist handle
using the strap. (2nd row seat)
To unfold the rear seat
1. Untie the strap from the assist handle
and insert the strap into the pocket.
(2nd row seat)
2. Push down the seat backward firmly to
lock the catches into the rear anchors
until an audible “click” is heard.
OVQ036212N
OVQ036211N
2nd row seat2nd row seat
OVQ037338N
3rd row seat (Short wheelbase)
OVQ036213N
OVQ036209N

Features of your vehicle
54 3
4. Remove the seat while lifting up the
rear portion of seat cushion (6).Stowing the rear seat
- 3rd row seat (Long wheelbase)
The rear seat can be folded and stowed
in the luggage compartment to provide
additional cargo space.
To stow the rear seat:
1. Lower the headrest to the lowest posi-
tion.
2. Fold the seatback by pulling out the
folding strap.3. Pull the seat by using the stowing
strap.
4. Stow the seat by pushing down firmly.
OVQ036218NOVQ037403N
OVQ036219N
OVQ036220N
