2008 KIA CERATO keyless

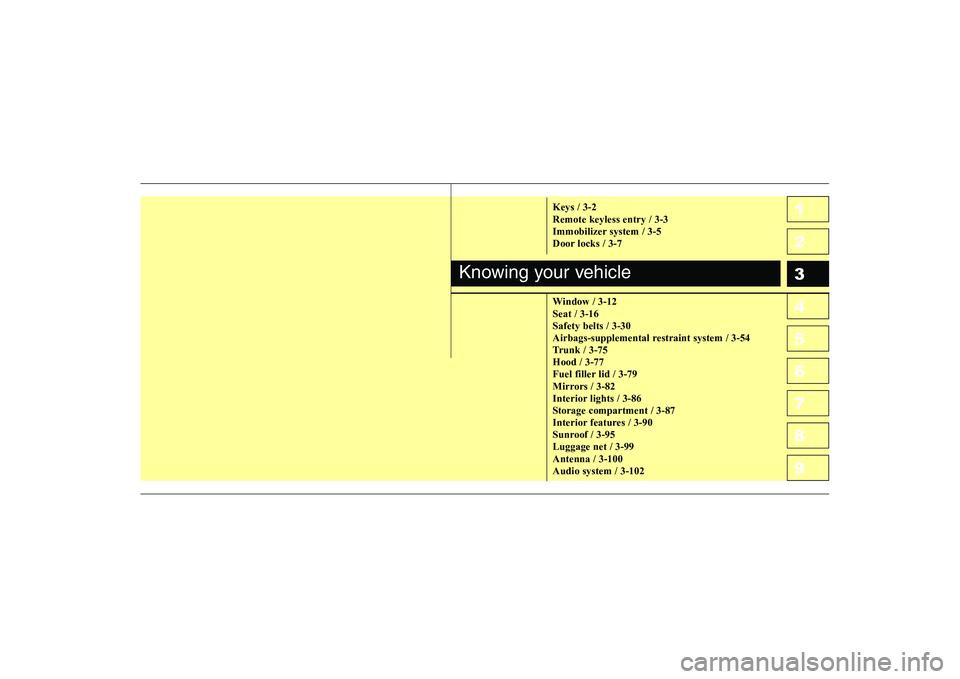

1 23456789Keys / 3-2 Remote keyless entry / 3-3
Immobilizer system / 3-5
Door locks / 3-7
Window / 3-12 Seat / 3-16Safety belts / 3-30
Airbags-supplemental restraint system / 3-54
Trunk / 3-75Hood / 3-77
Fuel filler lid / 3-79
Mirrors / 3-82
Interior lights / 3-86
Storage compartment / 3-87
Interior features / 3-90
Sunroof / 3-95Luggage net / 3-99Antenna / 3-100Audio system / 3-102
Knowing your vehicle

33
1 23456789
Knowing your vehicle

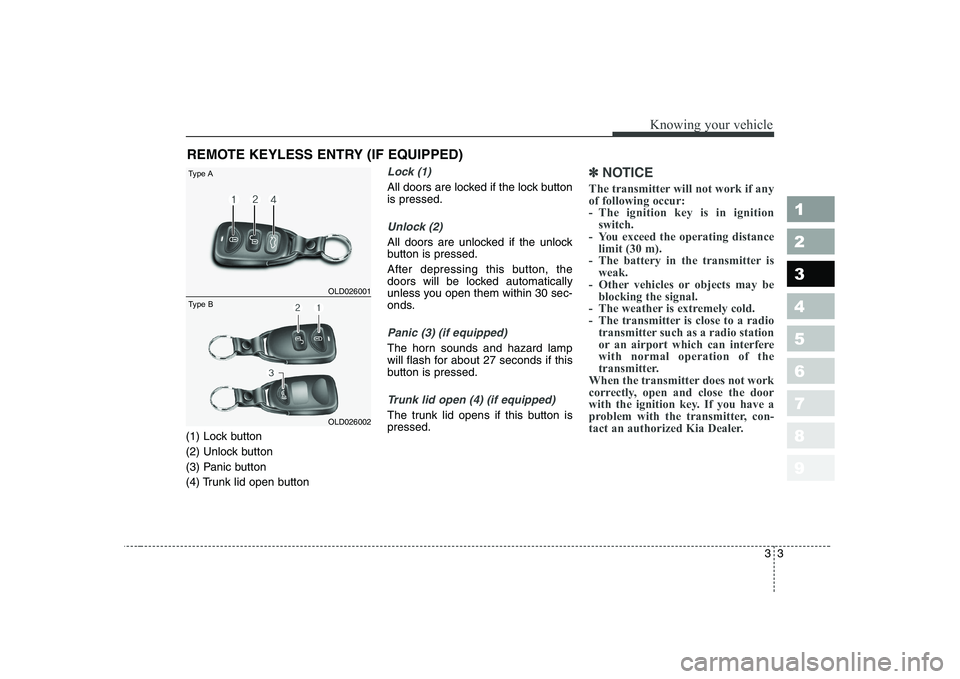

(1) Lock button
(2) Unlock button
(3) Panic button
(4) Trunk lid open button
Lock (1)
All doors are locked if the lock button is pressed.
Unlock (2)
All doors are unlocked if the unlock
button is pressed.
After depressing this button, the
doors will be locked automatically
unless you open them within 30 sec-
onds.
Panic (3) (if equipped)
The horn sounds and hazard lamp
will flash for about 27 seconds if this
button is pressed.
Trunk lid open (4) (if equipped)
The trunk lid opens if this button is pressed.
✽✽NOTICE
The transmitter will not work if any of following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance limit (30 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio transmitter such as a radio station
or an airport which can interferewith normal operation of the
transmitter.
When the transmitter does not work
correctly, open and close the door
with the ignition key. If you have a
problem with the transmitter, con-
tact an authorized Kia Dealer.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
OLD026001
Type A
Type B
OLD026002

Knowing your vehicle
4
3
1 23456789
✽✽
NOTICE
Keep the transmitter away from
water or any liquid. If the keylessentry system is inoperative due to
exposure to water or liquids, it will
not be covered by your manufactur-
er vehicle warranty.
Operational distance may vary
depending upon the area the trans-
mitter is used in. For example, if the
vehicle is parked near police sta-
tions, government and public offices,
broadcasting stations, military instal-
lations, airports, or transmitting tow-

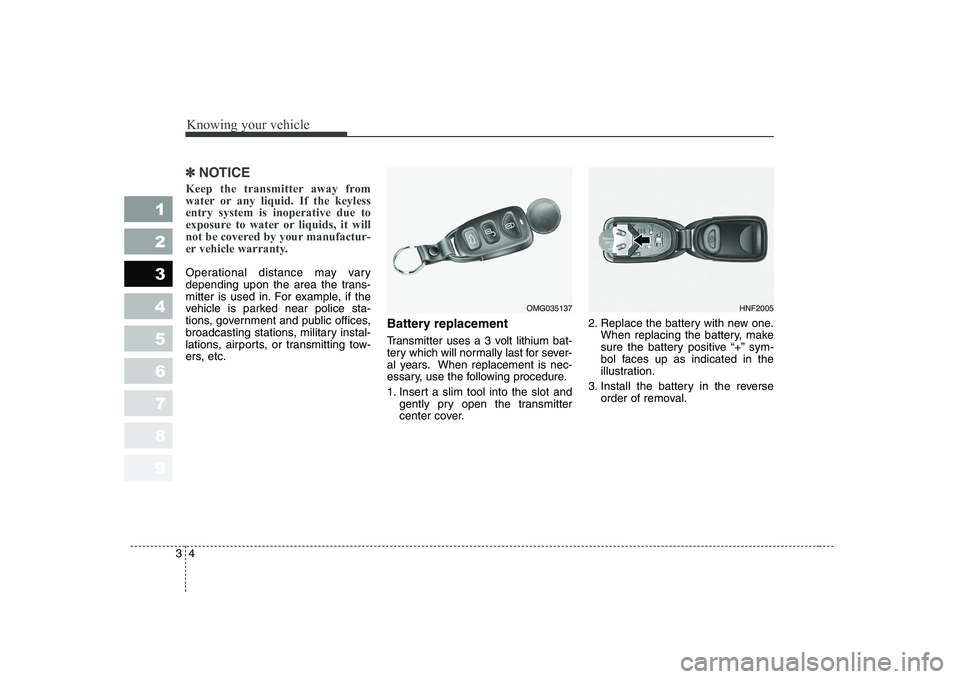

ers, etc. Battery replacement
Transmitter uses a 3 volt lithium bat-
tery which will normally last for sever-
al years. When replacement is nec-
essary, use the following procedure.
1. Insert a slim tool into the slot and
gently pry open the transmitter
center cover. 2. Replace the battery with new one.
When replacing the battery, make
sure the battery positive “+” sym-
bol faces up as indicated in the
illustration.
3. Install the battery in the reverse order of removal.
OMG035137HNF2005

35
1 23456789
Knowing your vehicle

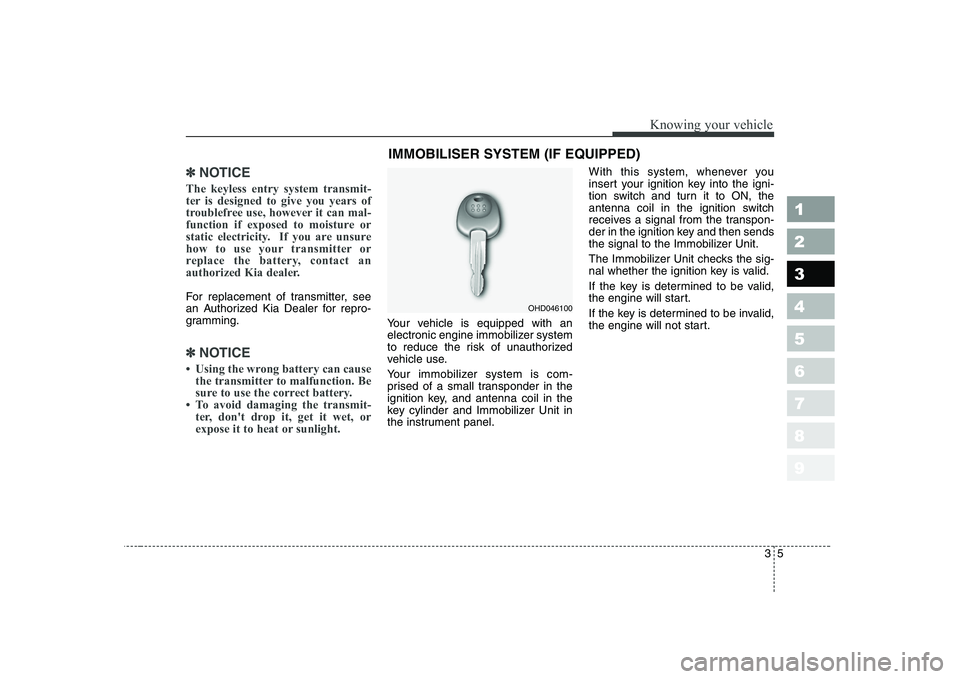

✽✽NOTICE
The keyless entry system transmit-
ter is designed to give you years of
troublefree use, however it can mal-
function if exposed to moisture or
static electricity. If you are unsure
how to use your transmitter or
replace the battery, contact an
authorized Kia dealer.
For replacement of transmitter, see
an Authorized Kia Dealer for repro-
gramming.
✽✽ NOTICE

37
1 23456789
Knowing your vehicle

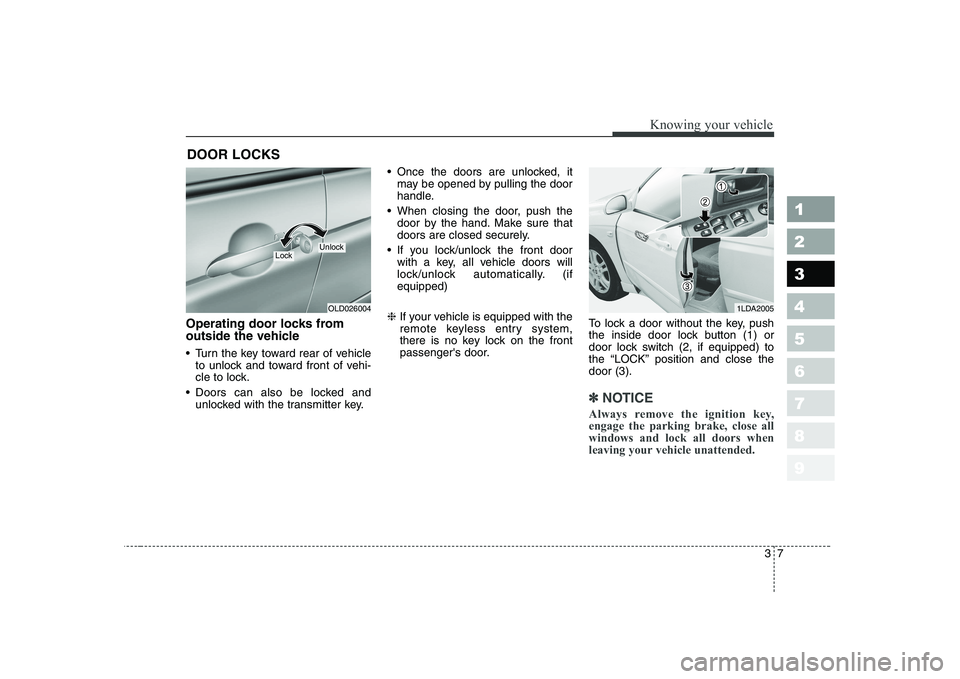

Operating door locks from
outside the vehicle
Turn the key toward rear of vehicleto unlock and toward front of vehi-
cle to lock.
Doors can also be locked and unlocked with the transmitter key. Once the doors are unlocked, it
may be opened by pulling the door
handle.
When closing the door, push the door by the hand. Make sure that
doors are closed securely.
If you lock/unlock the front door with a key, all vehicle doors will
lock/unlock automatically. (ifequipped)
❈ If your vehicle is equipped with the
remote keyless entry system,
there is no key lock on the front
passenger's door. To lock a door without the key, push
the inside door lock button (1) or
door lock switch (2, if equipped) to
the “LOCK” position and close thedoor (3).
✽✽
NOTICE
Always remove the ignition key, engage the parking brake, close allwindows and lock all doors when
leaving your vehicle unattended.
DOOR LOCKS
OLD026004
LockUnlock
1LDA2005

In case of an emergency
12
6
1 23456789
Driver-side knee bolster
Description Fuse rating Protected component
START 10A Start motor
SRF/D_LOCK 20A Sunroof, Door lock
RR FOG 10A Rear fog light
HAZARD 10A Hazard warning flasher
A/CON 10A Air conditioner
CLUSTER 10A Cluster
RKE 10A Remote keyless entry
S/HTR 20A Seat warmer
C/LIGHTER 15A Cigar lighter
A/BAG 15A Airbag
R/WIPER 15A Rear wiper
AUDIO 10A Audio
ABS 10A Anti-lock brake system
POWER 15A Power outlet
ROOM 15A Room lamp
IGN 10A Ignition
ECU 10A Engine control unit
TAIL RH 10A Tail light (right)
T/SIG 10A Turn signal light
RR/HTR 30A Rear window defroster
P/WDW LH 25A Power window (left)
HTD/MIRR 10A Outside rearview mirror heater
P/WDW RH 25A Power window (right)
TAIL LH 10A Tail light (left)Description Fuse rating Protected component
RR/HTR - Rear window defroster relay
RESISTOR - Resistor
P/WDW - Power window relay
ACC/PWR - Accessory / Power socket relay
TAIL - Tail light relay
Description Fuse rating Protected component
F/HEATER 30A Fuel filter heater
HEATER 3 40A PTC heater 3
HEATER 2 40A PTC heater 2
GLOW 60A Glow plug
HEATER 1 40A PTC heater 1
RELAY F/HEATER - Fuel filter heater relay
RELAY HEATER 3 - PTC heater relay 3
RELAY HEATER 2 - PTC heater relay 2
RELAY GLOW - Glow plug relay
RELAY HEATER 1 - PTC heater relay 1
Engine compartment (Diesel only)

93
1
2
3
4
5
6
7
8
9
Index
If you have a flat tire . . . . . . . . . . . . . . . . . . . . . . . . 6-19
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Instrument panel overview . . . . . . . . . . . . . . . . . . . . 2-3
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-90
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-86
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Label information . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Lubricants and fluids . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-99
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance under severe usage conditions . . . . . . . 7-9Manual climate control system . . . . . . . . . . . . . . . . 4-55
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . 4-7, 7-23
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-82
Normal maintenance schedule . . . . . . . . . . . . . . . . . . 7-5
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Overloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-21
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
Parking brake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Safety belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
