2008 KIA CERATO CD player

Knowing your vehicle
104
3
1 23456789

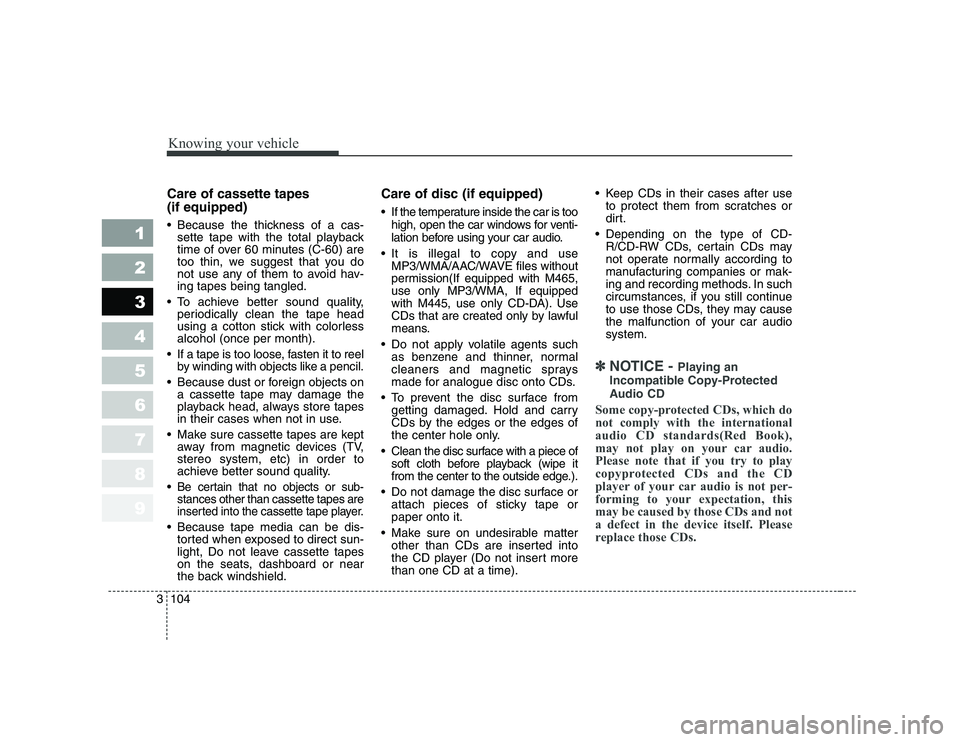

Care of cassette tapes (if equipped)
Because the thickness of a cas-
sette tape with the total playback
time of over 60 minutes (C-60) are
too thin, we suggest that you do
not use any of them to avoid hav-ing tapes being tangled.
To achieve better sound quality, periodically clean the tape head
using a cotton stick with colorlessalcohol (once per month).
If a tape is too loose, fasten it to reel by winding with objects like a pencil.
Because dust or foreign objects on a cassette tape may damage the
playback head, always store tapes
in their cases when not in use.
Make sure cassette tapes are kept away from magnetic devices (TV,stereo system, etc) in order to
achieve better sound quality.

Be certain that no objects or sub-stances other than cassette tapes are
inserted into the cassette tape player.
Because tape media can be dis- torted when exposed to direct sun-
light, Do not leave cassette tapes
on the seats, dashboard or near
the back windshield. Care of disc (if equipped)
If the temperature inside the car is too
high, open the car windows for venti-
lation before using your car audio.
It is illegal to copy and use MP3/WMA/AAC/WAVE files without
permission(If equipped with M465,use only MP3/WMA, If equipped
with M445, use only CD-DA). Use
CDs that are created only by lawful
means.
Do not apply volatile agents such as benzene and thinner, normal
cleaners and magnetic sprays
made for analogue disc onto CDs.
To prevent the disc surface from getting damaged. Hold and carry
CDs by the edges or the edges of
the center hole only.
Clean the disc surface with a piece of soft cloth before playback (wipe it
from the center to the outside edge.).
Do not damage the disc surface or attach pieces of sticky tape orpaper onto it.
Make sure on undesirable matter other than CDs are inserted into
the CD player (Do not insert morethan one CD at a time). Keep CDs in their cases after use
to protect them from scratches or
dirt.
Depending on the type of CD- R/CD-RW CDs, certain CDs may
not operate normally according to
manufacturing companies or mak-
ing and recording methods. In such
circumstances, if you still continue
to use those CDs, they may cause
the malfunction of your car audiosystem.
✽✽ NOTICE - Playing an
Incompatible Copy-Protected
Audio CD
Some copy-protected CDs, which do not comply with the internationalaudio CD standards(Red Book),
may not play on your car audio.Please note that if you try to play
copyprotected CDs and the CD
player of your car audio is not per-
forming to your expectation, thismay be caused by those CDs and nota defect in the device itself. Please
replace those CDs.

Knowing your vehicle
108
3
1 23456789

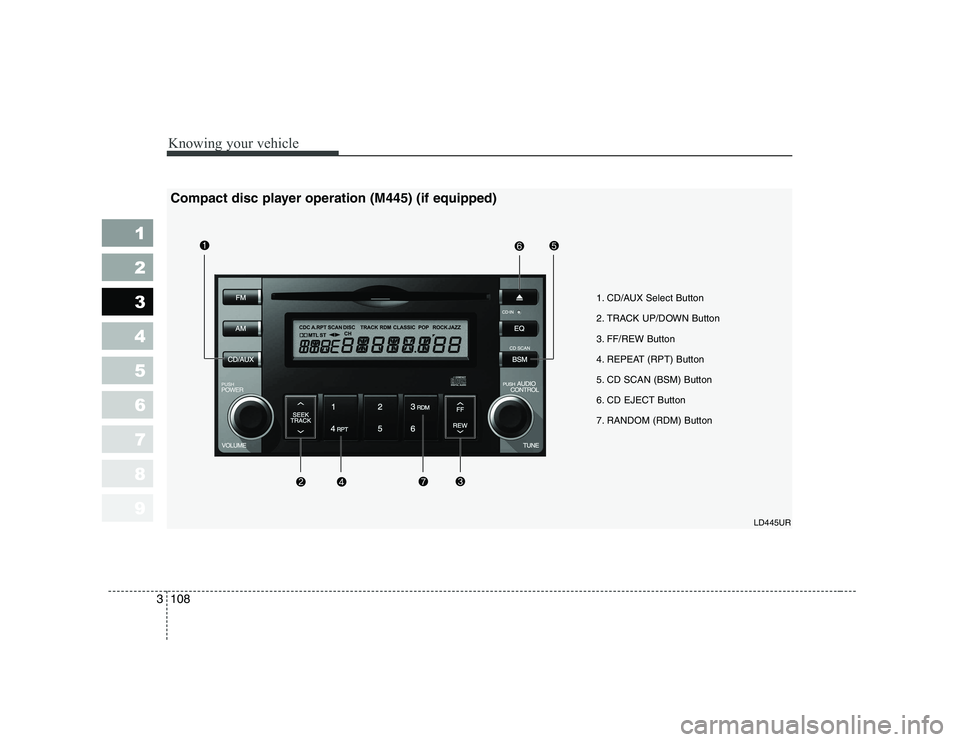

1. CD/AUX Select Button
2. TRACK UP/DOWN Button
3. FF/REW Button
4. REPEAT (RPT) Button
5. CD SCAN (BSM) Button
6. CD EJECT Button
7. RANDOM (RDM) Button
LD445UR
Compact disc player operation (M445) (if equipped)

3109
Knowing your vehicle
1 23456789

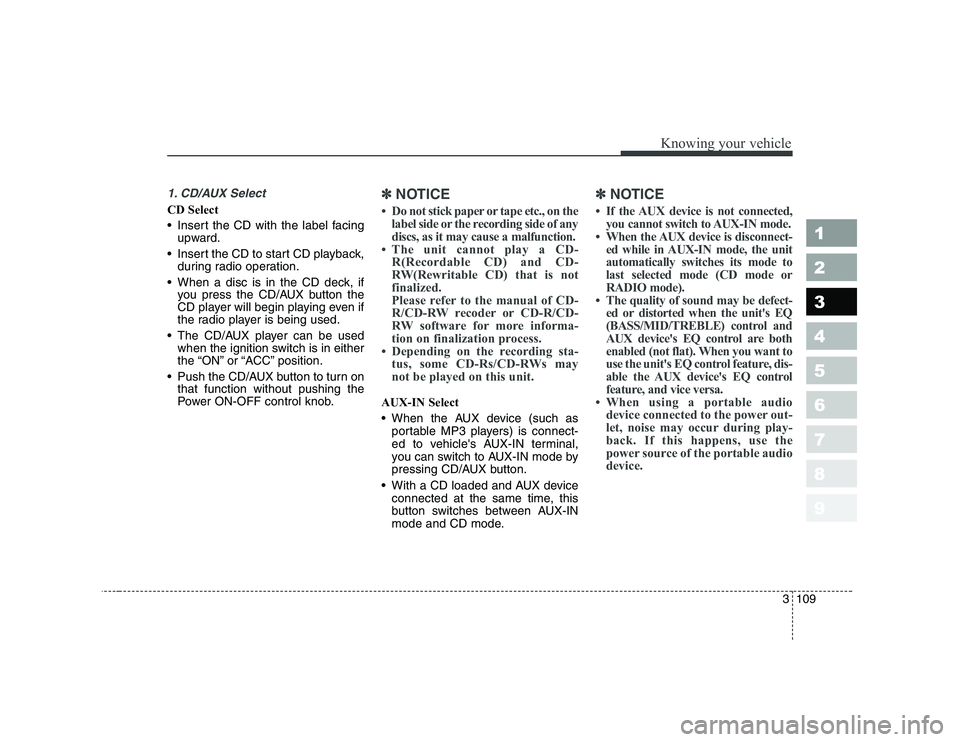

1. CD/AUX Select
CD Select
Insert the CD with the label facingupward.
Insert the CD to start CD playback, during radio operation.
When a disc is in the CD deck, if you press the CD/AUX button the
CD player will begin playing even if
the radio player is being used.
The CD/AUX player can be used when the ignition switch is in either
the “ON” or “ACC” position.
Push the CD/AUX button to turn on that function without pushing the
Power ON-OFF control knob.
✽✽ NOTICE

Knowing your vehicle
110
3
1 23456789

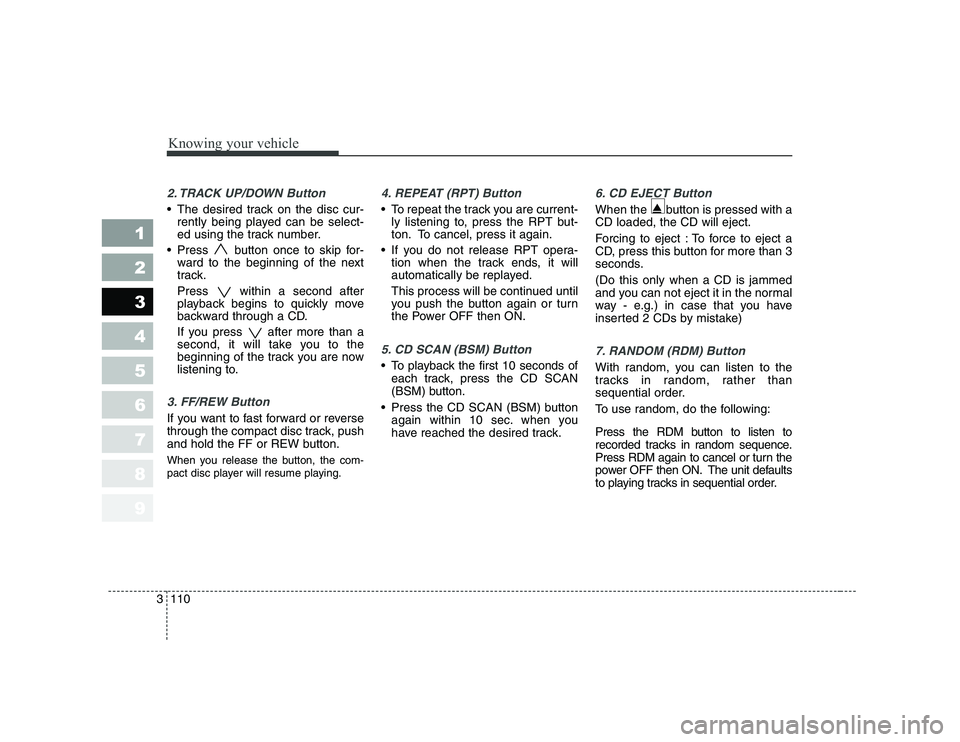

2. TRACK UP/DOWN Button
The desired track on the disc cur-
rently being played can be select-
ed using the track number.
Press button once to skip for- ward to the beginning of the next
track.
Press within a second after
playback begins to quickly move
backward through a CD.
If you press after more than a
second, it will take you to the
beginning of the track you are now
listening to.
3. FF/REW Button
If you want to fast forward or reverse
through the compact disc track, push
and hold the FF or REW button.
When you release the button, the com-
pact disc player will resume playing.
4. REPEAT (RPT) Button
To repeat the track you are current- ly listening to, press the RPT but-
ton. To cancel, press it again.
If you do not release RPT opera- tion when the track ends, it will
automatically be replayed.
This process will be continued until
you push the button again or turn
the Power OFF then ON.
5. CD SCAN (BSM) Button
To playback the first 10 seconds of
each track, press the CD SCAN
(BSM) button.
Press the CD SCAN (BSM) button again within 10 sec. when you
have reached the desired track.
6. CD EJECT Button
When the button is pressed with a CD loaded, the CD will eject.
Forcing to eject : To force to eject a
CD, press this button for more than 3
seconds. (Do this only when a CD is jammed
and you can not eject it in the normal
way - e.g.) in case that you have
inserted 2 CDs by mistake)
7. RANDOM (RDM) Button
With random, you can listen to the
tracks in random, rather than
sequential order.
To use random, do the following:
Press the RDM button to listen to
recorded tracks in random sequence.
Press RDM again to cancel or turn the
power OFF then ON. The unit defaults
to playing tracks in sequential order.

3115
Knowing your vehicle
1 23456789

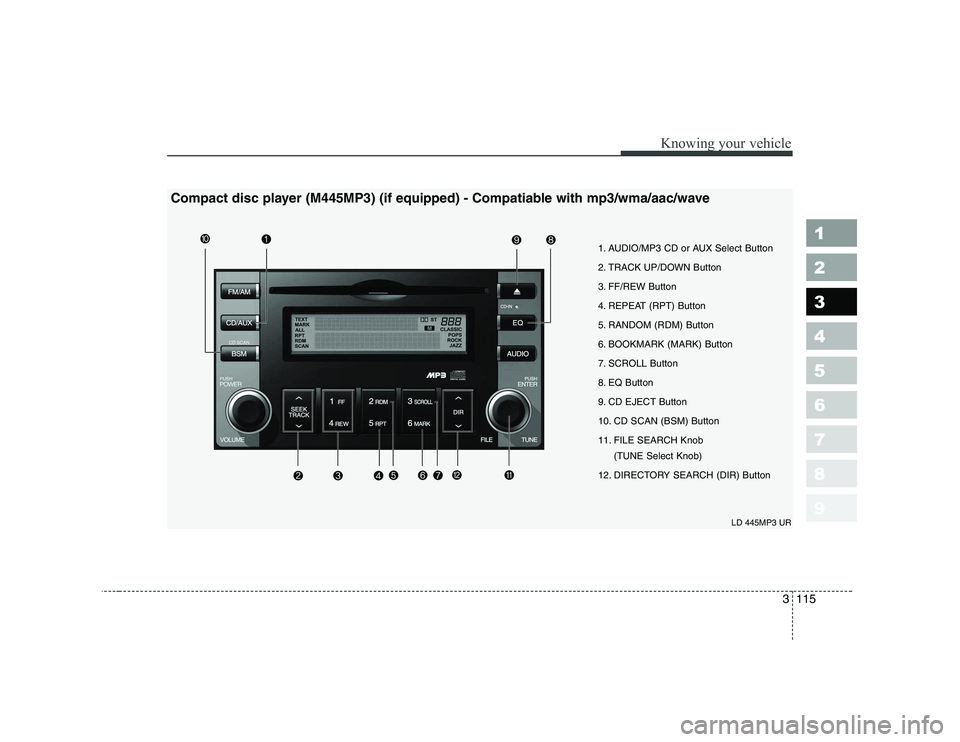

LD 445MP3 UR
Compact disc player (M445MP3) (if equipped) - Compatiable with mp3/wma/aac/wave
1. AUDIO/MP3 CD or AUX Select Button
2. TRACK UP/DOWN Button
3. FF/REW Button
4. REPEAT (RPT) Button
5. RANDOM (RDM) Button
6. BOOKMARK (MARK) Button
7. SCROLL Button
8. EQ Button
9. CD EJECT Button
10. CD SCAN (BSM) Button
11. FILE SEARCH Knob
(TUNE Select Knob)
12. DIRECTORY SEARCH (DIR) Button

Knowing your vehicle
116
3
1 23456789

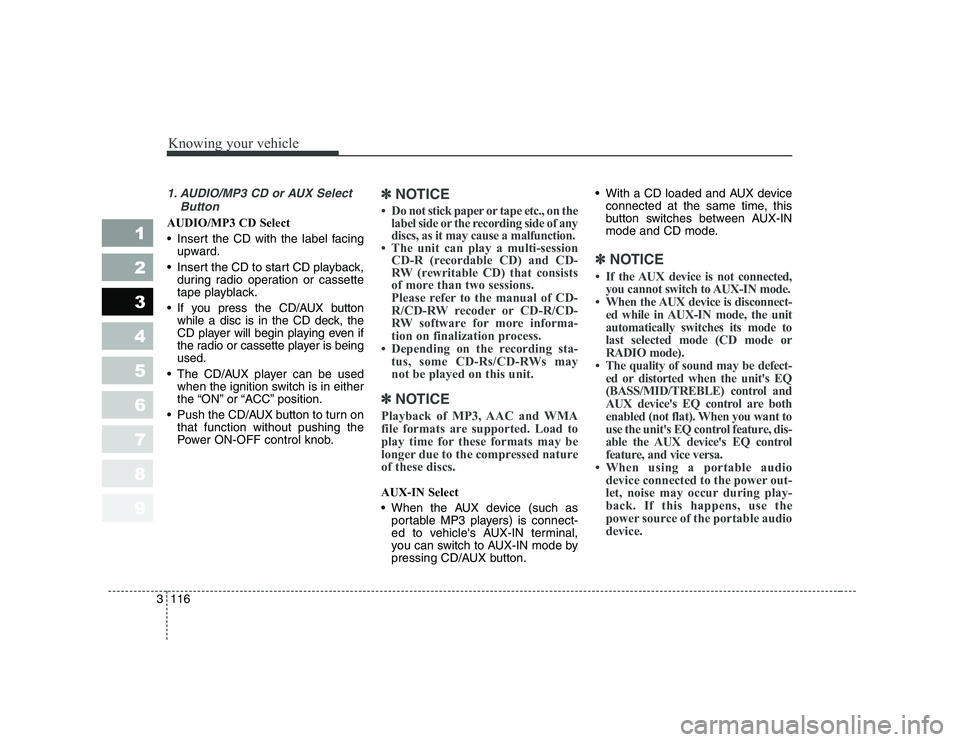

1. AUDIO/MP3 CD or AUX Select
Button
AUDIO/MP3 CD Select
Insert the CD with the label facingupward.
Insert the CD to start CD playback, during radio operation or cassette
tape playblack.
If you press the CD/AUX button while a disc is in the CD deck, the
CD player will begin playing even if
the radio or cassette player is beingused.
The CD/AUX player can be used
when the ignition switch is in either
the “ON” or “ACC” position.
Push the CD/AUX button to turn on
that function without pushing the
Power ON-OFF control knob.
✽✽ NOTICE

3117
Knowing your vehicle
1 23456789
2. TRACK UP/DOWN Button
The desired track on the disc cur-rently being played can be select-
ed using the track number.
Press button once to skip forward to the beginning of the next track.
Press within a second after
playback begins to quickly move
backward through a CD.
If you press after more than a
second, it will take you to the
beginning of the file you are now
listening to.
3. FF/REW Button
If you want to fast forward or reverse
through the compact disc track, push
and hold the FF or REW button.
When you release the button, the com-
pact disc player will resume playing.
4. REPEAT (RPT) Button
To repeat the track you are current-ly listening to, press the RPT but-
ton. To cancel, press it again.
To repeat the music within selected folder, press the RPT button for
more than 0.8 seconds. To cancel,
press it again. (MP3 CD only)
If you do not release RPT opera- tion when the track ends, it will
automatically be replayed.
This process will be continued until
you push the button again or turn
the power OFF then ON.
5. RANDOM (RDM) Button
With random, you can listen to the
tracks in random, rather than
sequential order.
To use random, do the following: Press the RDM button to listen to
recorded tracks in random
sequence. Press RDM again to
cancel or turn the power OFF then
ON. The unit defaults to playing
tracks in sequential order.
To listen to the music within the selected folder in random order,
press the RDM button within a sec-
ond. To cancel, press it again or
turn the power OFF then ON.(MP3CD only)
6. BOOKMARK (MARK) Button
When the CD player unit is operat-
ing, the desired track on the disc can
be bookmarked by using the MARK
button.(MP3 CD only)
Press the MARK button for morethan 0.8 seconds to bookmark the
desired track.
“M” will be displayed on the LCD
and “MEMORY(1~50)” will display
for approximately five seconds withbeep sound.
To play a bookmarked track, press
the MARK button within 0.8 sec-
onds and select the bookmarked
track to play.

Knowing your vehicle
124
3
1 23456789

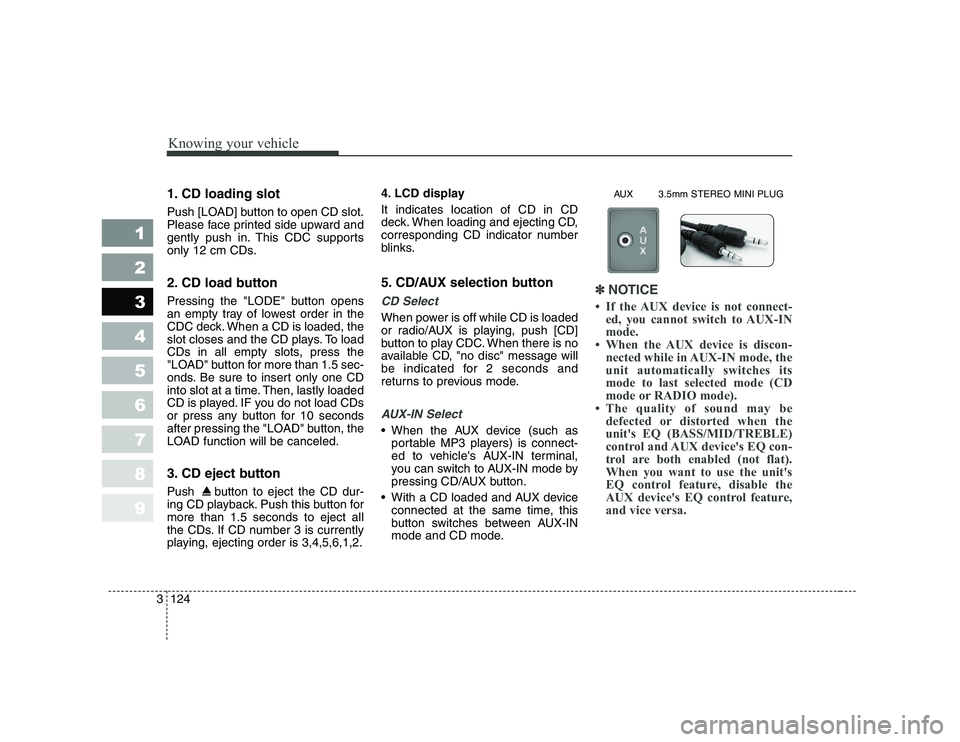

1. CD loading slot
Push [LOAD] button to open CD slot.
Please face printed side upward and
gently push in. This CDC supports
only 12 cm CDs.
2. CD load button
Pressing the "LODE" button opens
an empty tray of lowest order in the
CDC deck. When a CD is loaded, the
slot closes and the CD plays. To load
CDs in all empty slots, press the
"LOAD" button for more than 1.5 sec-
onds. Be sure to insert only one CD
into slot at a time. Then, lastly loaded
CD is played. IF you do not load CDs
or press any button for 10 seconds
after pressing the "LOAD" button, the
LOAD function will be canceled.
3. CD eject button
Push button to eject the CD dur-
ing CD playback. Push this button formore than 1.5 seconds to eject all
the CDs. If CD number 3 is currently
playing, ejecting order is 3,4,5,6,1,2. 4. LCD display It indicates location of CD in CD
deck. When loading and ejecting CD,
corresponding CD indicator number
blinks.
5. CD/AUX selection button
CD Select
When power is off while CD is loaded
or radio/AUX is playing, push [CD]
button to play CDC. When there is no
available CD, "no disc" message will
be indicated for 2 seconds and
returns to previous mode.
AUX-IN Select
When the AUX device (such as
portable MP3 players) is connect-
ed to vehicle's AUX-IN terminal,
you can switch to AUX-IN mode by
pressing CD/AUX button.
With a CD loaded and AUX device connected at the same time, this
button switches between AUX-IN
mode and CD mode. AUX 3.5mm STEREO MINI PLUG
✽✽
NOTICE
