2008 JEEP WRANGLER remote start

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ..................12
▫ Ignition Key Removal ...................12
▫ Key-In-Ignition Reminder ................14
 Steering Wheel Lock .....................14
▫ To Manually Lock The Steering Wheel .......14
▫ To Release The Steering Wheel Lock .........14
 Sentry Key ...........................14
▫ Replacement Keys ......................16
▫ Customer Key Programming ..............16▫
General Information ....................17
 Security Alarm System — If Equipped .........18
▫ To Set The Alarm ......................18
▫ To Disarm The System ...................18
 Illuminated Entry ........................19
 Remote Keyless Entry — If Equipped .........19
▫ To Unlock The Doors And Swing Gate .......20
▫ To Lock The Doors And Swing Gate .........20
▫ Using The Panic Alarm ..................21
2

▫To Turn Off “Flash Lights With Lock” ........21
▫ Programming Additional Transmitters ........22
▫ General Information ....................23
▫ Battery Replacement ....................24
 Remote Starting System — If Equipped ........25
 Doors ................................26
▫ Upper Half Door Window Removal
(If Equipped) .........................27
▫ Upper Half Door Window Installation
(If Equipped) .........................27
▫ Front Door Removal ....................28
▫ Rear Door Removal (Four-Door Models) ......29
 Door Locks ............................31
▫ Manual Door Locks .....................32 ▫
Power Door Locks — If Equipped ..........33
▫ Automatic Unlock Doors On Exit ...........34
▫ Automatic Door Locks ...................35
 Windows .............................36
▫ Power Windows — If Equipped ............36
▫ Rear Power Windows (Four-Door
Models Only) .........................37
▫ Wind Buffeting ........................38
 Rear Swing Gate ........................38
 Occupant Restraints ......................40
▫ Lap/Shoulder Belts .....................41
▫ Rear Center Lap/Shoulder Belt Retractor
Lock-Out (Four-Door Models Only) .........46
▫ Adjustable Upper Shoulder Belt Anchorage ....47
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will
turn on for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.
NOTE:
•The Sentry Key
Immobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
•Exxon/Mobil Speedpass™, additional Sentry Keys,
or any other transponder-equipped components on
the same key chain will notcause a key-related
(transponder) fault unless the additional part is physi-
cally held against the ignition key being used when
starting the vehicle. Cell phones, pagers, or other RF
electronics will not cause interference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within 15
seconds. After 10 seconds, a chime will sound. In addi-
tion, the Vehicle Security Alarm Indicator Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key.
4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON position within 60
seconds. After 10 seconds, a single chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
stop flashing. To indicate that programming is complete,
the Vehicle Security Alarm Indicator Light will turn on
again for three seconds and then turn off.
The new Sentry Key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure. Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:
If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
This system monitors the vehicle doors, swing gate, and
ignition for unauthorized operation. When the alarm is
activated, the system provides both audible and visible
signals. The horn, headlights, and tail lights will sound/
flash repeatedly for three minutes. If disturbance is still
present (driver’s door, passenger door, other doors, igni-
tion) after three minutes, the headlights and tail lights
will flash for an additional 15 minutes.
NOTE:The Panic and Security alarms are quite differ-
ent. Please take a moment to activate the Panic and the
Security modes to hear the differences in the horn. In case
one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.
To Set the Alarm
The alarm will set when you use the remote keyless entry
(RKE) transmitter to lock the doors and swing gate, or
when you use the power door lock switch while the door
is open. After all the doors are locked and closed, the
Sentry Key/Security Alarm Indicator Light (located on
the instrument cluster) will flash rapidly for about 16
seconds to signal that the system is arming. During this
16–second arming period, opening any door or the swing
gate will cancel the arming. If the system successfully
arms, the Sentry Key/Security Alarm Indicator Light
will flash at a slower rate to indicate the alarm is set.
To Disarm the System
To disarm the system, you will need to press the UN-
LOCK button on the RKE transmitter, or turn the ignition
key to the ON position. If something has triggered the
system in your absence, the horn will sound three times
when you unlock the doors. Check the vehicle for tam-
pering.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The Security Alarm System is designed to protect your
vehicle; however, you can create conditions where the
system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the RKE transmitter, once
the system is armed (after 16 seconds), when you pull the
door handle to exit, the alarm will sound. If this occurs,
press the UNLOCK button on the RKE transmitter to
disarm the system. You may also accidentally disarm the
system by unlocking the driver’s door with the key and
then locking it. The door will be locked but the Security
Alarm will not arm.
ILLUMINATED ENTRY
The interior lights will come on when you open any door.
The lights will remain on after all of the doors are closed,
and then fade to off or they will immediately fade to off
once the ignition switch is turned on.
REMOTE KEYLESS ENTRY — IF EQUIPPED
This system allows you to lock or unlock the doors,
swing gate, and activate the panic alarm from a maxi-
mum distance of 66 ft (20 m) using a hand-held radio
transmitter (key fob). The RKE transmitter does not need
to be pointed at the vehicle to activate the system.
Remote Keyless Entry (Key Fob)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

11. A single chime will be heard.
12. Repeat steps 8 through 10 to program up to six
additional key fobs.
13. Turn the ignition to the OFF position.
14. Your vehicle will remain in program mode up to 60
seconds from when the original chime was heard. After
60 seconds, all programmed key fobs function normally.
NOTE:If you do not have a programmed RKE key fob,
contact your authorized dealer for details.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference. 2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Remote Keyless Entry fails to operate from a
normal distance, check for these two conditions.
1. Weak batteries in the RKE key fob. The expected life of
batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

NOTE:If the key fob is equipped with a screw, reinstall
and tighten the screw until snug.

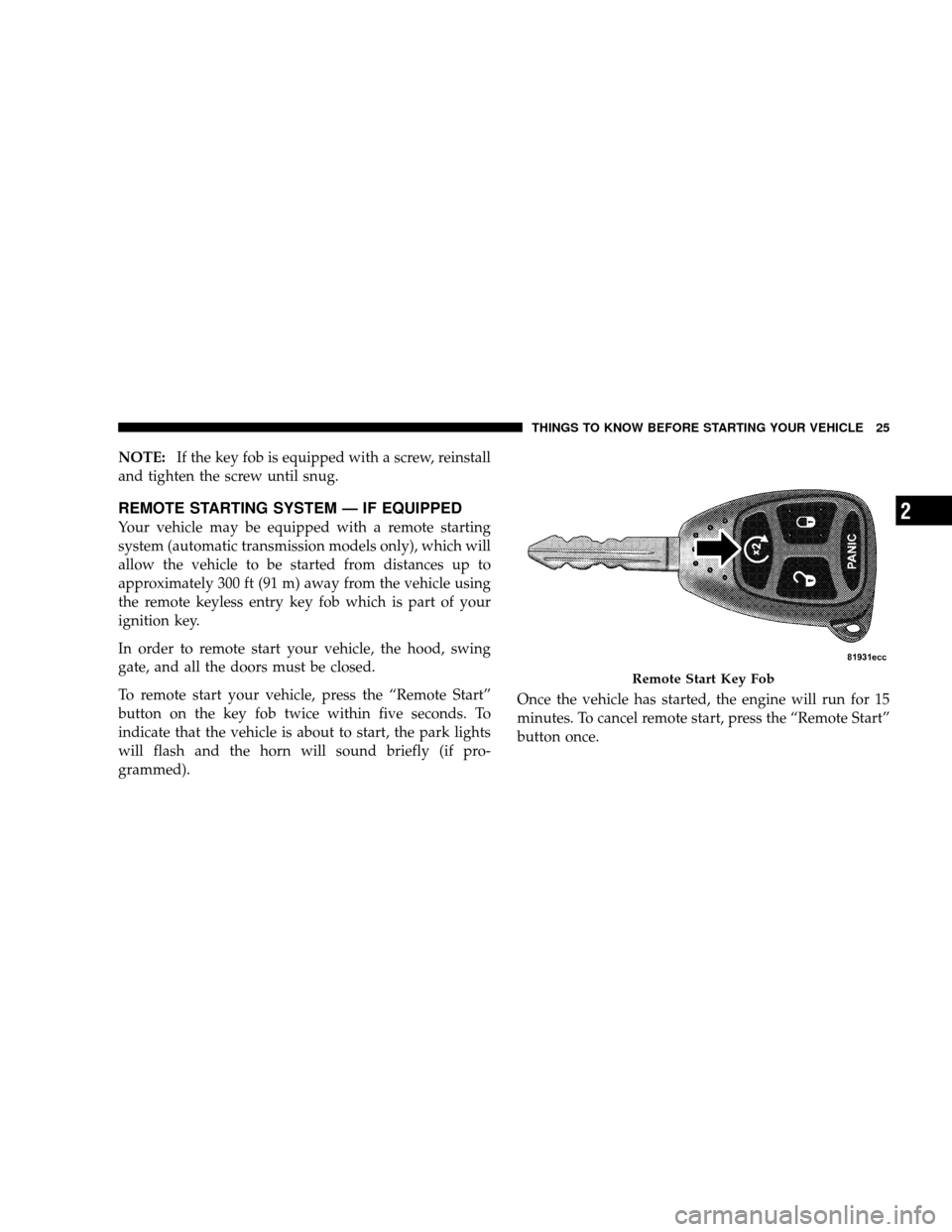

REMOTE STARTING SYSTEM — IF EQUIPPED
Your vehicle may be equipped with a remote starting
system (automatic transmission models only), which will
allow the vehicle to be started from distances up to
approximately 300 ft (91 m) away from the vehicle using
the remote keyless entry key fob which is part of your
ignition key.
In order to remote start your vehicle, the hood, swing
gate, and all the doors must be closed.
To remote start your vehicle, press the “Remote Start”
button on the key fob twice within five seconds. To
indicate that the vehicle is about to start, the park lights
will flash and the horn will sound briefly (if pro-
grammed). Once the vehicle has started, the engine will run for 15
minutes. To cancel remote start, press the “Remote Start”
button once.
Remote Start Key Fob
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
