3. Turn the socket assembly 1/4 turn counterclockwise
and remove from housing. Pull the bulb straight from the
socket to replace.
Front Side Marker
1. Reach under the front fender flare and locate the front
side marker socket.
2. Turn the socket assembly counterclockwise 1/3 turn
and remove it from the housing. Pull the bulb straight
from the socket to replace.
Front Fog Light
1. Locate the front fog lamp in the front fascia, and
disconnect the electrical connector from underneath.
2. Turn the bulb 1/4 turn counterclockwise.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Rear Tail, Stop, Turn Signal, and Backup Lights
1. Remove the two inboard screws attaching the tail light
housing to the body.DO NOT REMOVE THE OUTER
SCREWS AT ANY TIME.
422 MAINTAINING YOUR VEHICLE

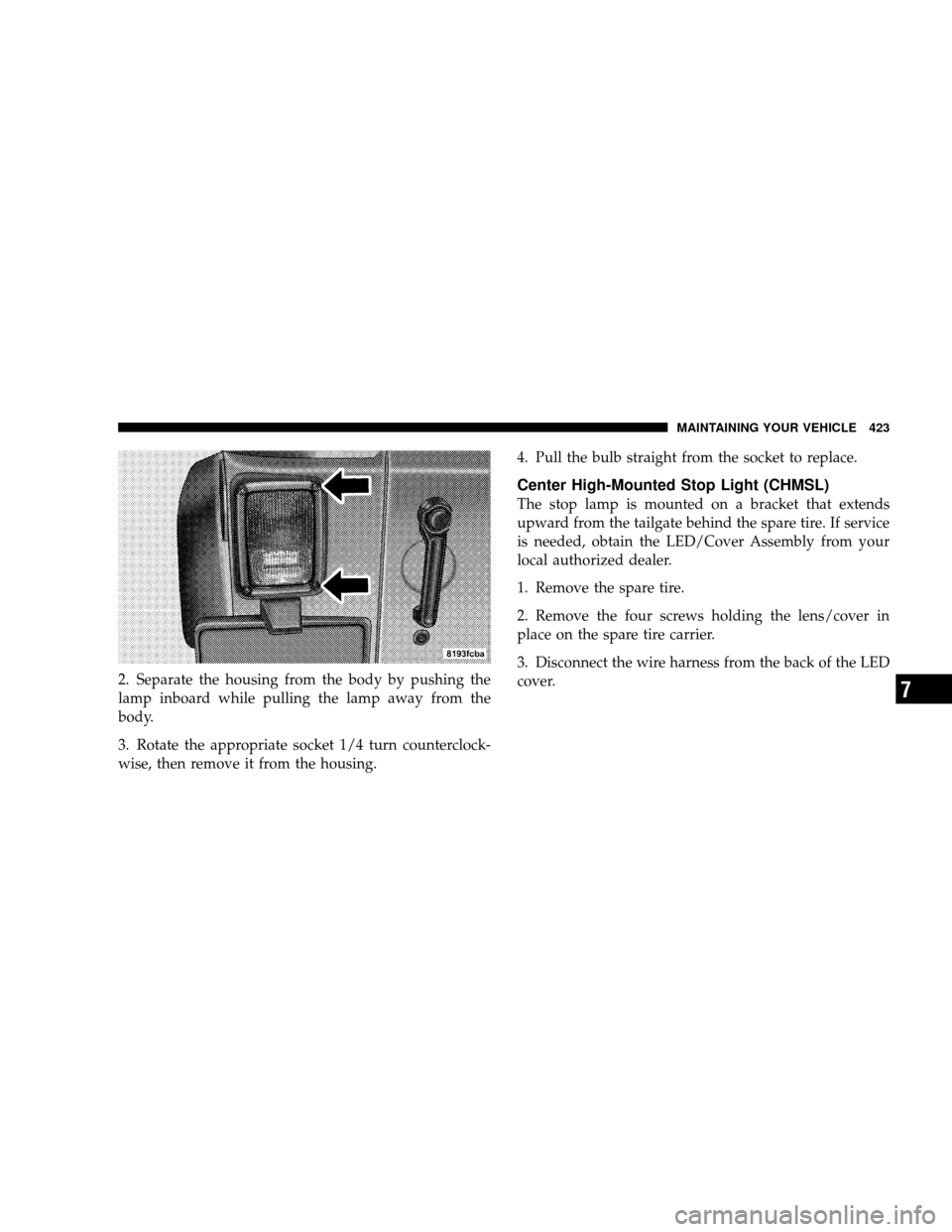

2. Separate the housing from the body by pushing the
lamp inboard while pulling the lamp away from the
body.
3. Rotate the appropriate socket 1/4 turn counterclock-
wise, then remove it from the housing.4. Pull the bulb straight from the socket to replace.
Center High-Mounted Stop Light (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate behind the spare tire. If service
is needed, obtain the LED/Cover Assembly from your
local authorized dealer.
1. Remove the spare tire.
2. Remove the four screws holding the lens/cover in
place on the spare tire carrier.
3. Disconnect the wire harness from the back of the LED
cover.
MAINTAINING YOUR VEHICLE 423
7

Charging System Light.................... 206
Chart, Tire Sizing ........................ 314
Check Engine Light
(Malfunction Indicator Light) .............213,380
Child Restraint .................... 62,63,69,72
Child Restraint Tether Anchors .............68,69
Child Seat .............................. 67
Climate Control ......................... 259
Clock ........................... 224,236,251
Compact Disc (CD) Maintenance ............. 258
Compass .............................. 215
Compass Calibration ..................... 217
Computer, Trip/Travel .................... 215
Console ............................... 118
Console, Floor .......................... 118
Contract, Service ........................ 439
Converter, Catalytic ...................... 386
Cooling System ......................... 394
Adding Coolant (Antifreeze) .............. 396Coolant Capacity
...................... 424
Coolant Level ......................... 397
Disposal of Used Coolant ................ 397
Drain, Flush, and Refill .................. 395
Inspection ........................... 394
Points to Remember .................... 398
Pressure Cap ......................... 396
Selection of Coolant (Antifreeze) .........395,424
Temperature Gauge ..................... 209
Corrosion Protection ..................... 406
Crankcase Emission Control System .......... 388
Cruise Light ........................... 209
Cup Holder ............................ 117
Customer Assistance ..................... 437
Data Recorder, Event ...................... 60
Daytime Running Lights ................... 99
Dealer Service .......................... 382
Defroster, Rear Window ................... 198
448 INDEX

Sentry Key Programming................... 16
Sentry Key Replacement ................... 16
Service Assistance ....................... 437
Service Contract ......................... 439
Service Manuals ........................ 441
Setting the Clock .................. 224,236,251
Shift Lock Manual Override ................ 280
Shifting ............................... 279
Automatic Transmission ................. 281
Manual Transmission ................... 275
Shoulder Belt Upper Anchorage .............. 47
Shoulder Belts ........................... 41
Side Airbag ............................. 57
Signals, Turn ................... 99,207,421,422
Snow Chains (Tire Chains) ................. 329
Soft Top ........................... 141,168
Sound Systems (Radio) .................... 250
Spare Tire ............................. 367
Spark Plugs ............................ 386 Specifications
Fuel (Gasoline) ........................ 336
Oil ................................ 384
Speed Control (Cruise Control) .............. 102
Speedometer ........................... 206
Starting ............................... 271
Automatic Transmission ................. 271
Cold Weather ......................... 272
Engine Block Heater .................... 275
Engine Fails to Start .................... 273
Manual Transmission ................... 271
Remote .............................. 25
Steering Power ........................... 31 1,391
Tilt Column .......................... 101
Wheel Lock ........................... 14
Wheel, Tilt ........................... 101
Storage ............................ 1 18,419
Storage, Behind the Seat ................... 119
INDEX 459
