NOTE:If your vehicle is not equipped with a matching
full-size spare wheel and tire assembly, it does not have a
tire pressure monitoring sensor in the spare tire. The
TPMS will not be able to monitor the tire pressure. If you
install the spare tire in place of a road tire that has a
pressure below the low-pressure warning limit, upon the
next ignition key cycle, a chime will sound and the Tire
Pressure Monitoring Telltale Light will turn ON. After
driving the vehicle for up to 10 minutes above 15 mph (25
km/h), the Tire Pressure Monitoring Telltale Light will
flash on and off for 75 seconds and then remain on solid.
For each subsequent ignition key cycle, a chime will
sound and the Tire Pressure Monitoring Telltale Light
will flash on and off for 75 seconds and then remain on
solid. Once you repair or replace the original road tire,
and reinstall it on the vehicle in place of the spare tire, the
TPMS will update automatically and the Tire Pressure
Monitoring Telltale Light will turn OFF, as long as no tire
pressure is below the low-pressure warning limit in any of the four active road tires. The vehicle may need to be
driven for up to 10 minutes above 15 mph (25 km/h) in
order for the TPMS to receive this information.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
The tire pressure sensors are covered under one of the
following licenses:
United States ..................... KR5S120123
Canada ........................ 2671-S120123
STARTING AND OPERATING 335
5

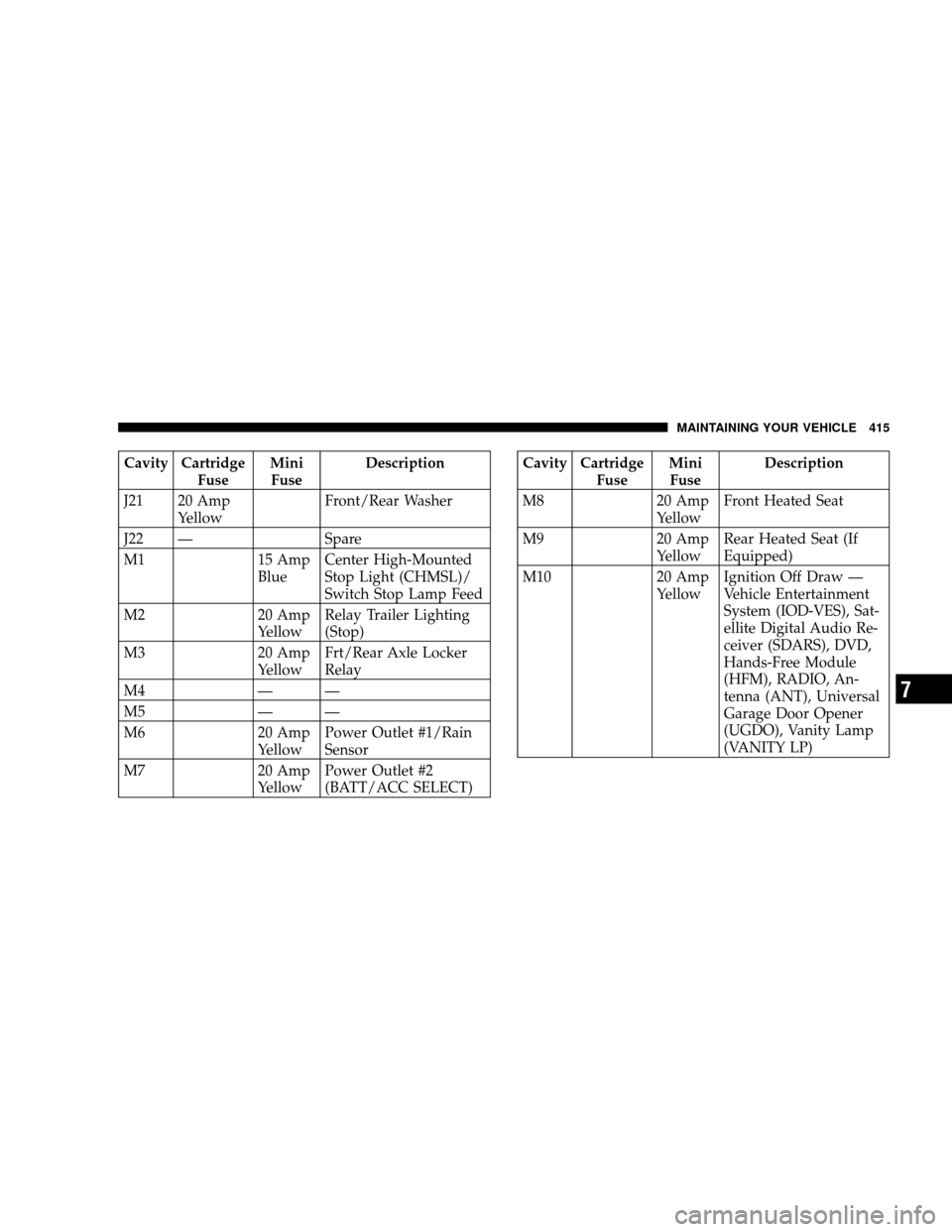

Cavity CartridgeFuseMini
Fuse Description
J21 20 Amp Yellow Front/Rear Washer
J22 — Spare
M1 15 Amp
Blue Center High-Mounted
Stop Light (CHMSL)/
Switch Stop Lamp Feed
M2 20 Amp
Yellow Relay Trailer Lighting
(Stop)
M3 20 Amp
Yellow Frt/Rear Axle Locker
Relay
M4 — —
M5 — —
M6 20 Amp
Yellow Power Outlet #1/Rain
Sensor
M7 20 Amp
Yellow Power Outlet #2
(BATT/ACC SELECT)Cavity Cartridge
FuseMini
Fuse Description
M8 20 Amp
Yellow Front Heated Seat
M9 20 Amp
Yellow Rear Heated Seat (If
Equipped)
M10 20 Amp
Yellow Ignition Off Draw —
Vehicle Entertainment
System (IOD-VES), Sat-
ellite Digital Audio Re-
ceiver (SDARS), DVD,
Hands-Free Module
(HFM), RADIO, An-
tenna (ANT), Universal
Garage Door Opener
(UGDO), Vanity Lamp
(VANITY LP)
MAINTAINING YOUR VEHICLE 415
7
