2008 JEEP WRANGLER engine coolant

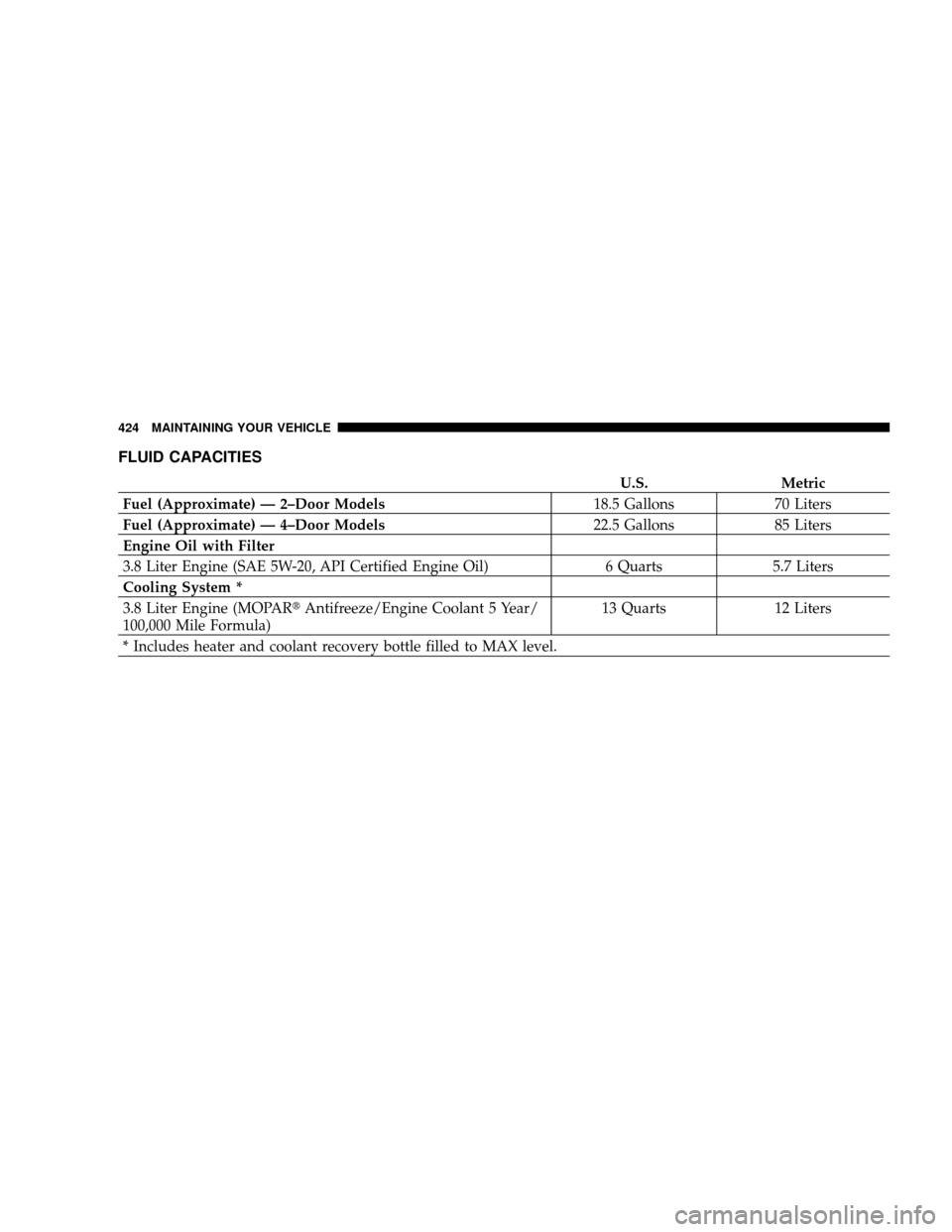

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) — 2–Door Models 18.5 Gallons70 Liters
Fuel (Approximate) — 4–Door Models 22.5 Gallons85 Liters
Engine Oil with Filter
3.8 Liter Engine (SAE 5W-20, API Certified Engine Oil) 6 Quarts5.7 Liters
Cooling System *
3.8 Liter Engine (MOPAR Antifreeze/Engine Coolant 5 Year/
100,000 Mile Formula) 13 Quarts
12 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
424 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology)
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
DaimlerChrysler Material Standard MS-6395. Refer to your engine oil filler cap
for correct SAE grade.
Spark Plugs (3.8L Engine) RE14PLP5 (Gap 0.050 in [1.27 mm])
Oil Filter (3.8L Engine) MOPAROil Filter (P/N 04105409AC)
Fuel Selection 87 Octane
MAINTAINING YOUR VEHICLE 425
7

•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 6,000 mi (10,000 km) or 6 months, whichever
comes first.
Your dealer will reset the oil change indicator message
after completing the scheduled oil change. If this sched-
uled oil change is performed by someone other than your
dealer the message can be reset by referring to the steps
described under “Odometer/Trip Odometer” in the “In-
strument Cluster Description” section of this manual.
At Each Stop for Fuel
•Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission and
add as needed.
•Check all lights and other electrical items for correct
operation.
MAINTENANCE SCHEDULES 429
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Perform Maintenance Every(Where time and mileage
are listed, follow the interval that occurs first.)
Maintenance Items MilesKilometers or Months
Change the transfer case fluid if using your vehicle for
any of the following: police, taxi, fleet, off-road or fre-
quent trailer towing. 60,000
100 000 60
Inspect and replace PCV valve if necessary. 90,000150 000 90
Flush and replace the engine coolant. 102,000170 000 60
Replace the ignition cables. 102,000170 000 102
Replace the spark plugs. 102,000170 000 102
Change the automatic transmission fluid, and filter(s). 120,000 200 000120
Replace accessory drive belt(s). 120,000200 000 120
MAINTENANCE SCHEDULES 433
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

ABS (Anti-Lock Brake System)............208,309
Adding Fuel ........................... 340
Adding Washer Fluid ..................... 198
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 389
Air Conditioner Maintenance ............... 390
Air Conditioning ..................... 261,264
Air Conditioning Controls ................. 264
Air Conditioning, Operating Tips ............ 265
Air Conditioning Refrigerant ............... 391
Air Conditioning System .................. 264
Air Filter .............................. 389
Air Pressure, Tires ....................... 322
Airbag ................................ 51
Airbag Deployment ....................... 57
Airbag Light ......................... 60,208
Airbag Maintenance ....................... 59
Airbag, Side ............................ 57
Alarm (Security Alarm) .................... 18
Alignment and Balance ................... 328 Alterations/Modifications, Vehicle
............. 8
Antenna, Satellite Radio ................... 255
Antifreeze (Engine Coolant) ................ 424
Anti-Lock Brake System (ABS) ............105,309
Anti-Lock Warning Light .................. 208
Appearance Care ........................ 406
Arming Theft System (Security Alarm) ......... 18
Audio Systems (Radio) .................... 250
Auto Down Power Windows ................ 37
Automatic Transmission ................... 401
Fluid and Filter Changes ................. 401
Fluid Level Check ...................... 401
Fluid Type ........................... 401
Gear Ranges .......................... 281
Shifting ............................. 281
Special Additives ...................... 403
Torque Converter ...................... 285
Auxiliary Electrical Outlet (Power Outlet) ....... 116
Auxiliary Power Outlet .................... 116
446 INDEX

Charging System Light.................... 206
Chart, Tire Sizing ........................ 314
Check Engine Light
(Malfunction Indicator Light) .............213,380
Child Restraint .................... 62,63,69,72
Child Restraint Tether Anchors .............68,69
Child Seat .............................. 67
Climate Control ......................... 259
Clock ........................... 224,236,251
Compact Disc (CD) Maintenance ............. 258
Compass .............................. 215
Compass Calibration ..................... 217
Computer, Trip/Travel .................... 215
Console ............................... 118
Console, Floor .......................... 118
Contract, Service ........................ 439
Converter, Catalytic ...................... 386
Cooling System ......................... 394
Adding Coolant (Antifreeze) .............. 396Coolant Capacity
...................... 424
Coolant Level ......................... 397
Disposal of Used Coolant ................ 397
Drain, Flush, and Refill .................. 395
Inspection ........................... 394
Points to Remember .................... 398
Pressure Cap ......................... 396
Selection of Coolant (Antifreeze) .........395,424
Temperature Gauge ..................... 209
Corrosion Protection ..................... 406
Crankcase Emission Control System .......... 388
Cruise Light ........................... 209
Cup Holder ............................ 117
Customer Assistance ..................... 437
Data Recorder, Event ...................... 60
Daytime Running Lights ................... 99
Dealer Service .......................... 382
Defroster, Rear Window ................... 198
448 INDEX

Defroster, Windshield.................. 260,262
Delay (Intermittent) Wipers ................. 100
Diagnostic System, Onboard ................ 379
Digital Video Disc (DVD) Player ............. 250
Dimmer Switch, Headlight .................. 98
Dipsticks Oil (Engine) .......................... 383
Disabled Vehicle Towing ................... 374
Disarming, Theft System ................... 18
Disposal Engine Oil ........................... 385
Used Coolant (Antifreeze) ................ 397
Door Locks ........................... 31,32
Doors ................................. 26
Drive Belts ............................ 386
Driver’s Seat Back Tilt ..................... 87
Driving ............................... 294
Off-Pavement ......................... 294
Off-Road ............................ 294 Dual Top
.............................. 120
Electrical Outlet, Auxiliary (Power Outlet) ...... 116
Electrical Power Outlets ................... 116
Electronic Brake Control System ............. 105
Anti-Lock Brake System ................. 105
Brake Assist System .................... 107
Electronic Roll Mitigation ................ 108
Electronic Stability Program ............... 109
Traction Control System ................. 106
Electronic Roll Mitigation (ERM) ............. 108
Electronic Speed Control (Cruise Control) ...... 102
Electronic Stability Program (ESP) ............ 109
Electronic Throttle Control Warning Light ...... 214
Emergency Brake ........................ 308
Emergency, In Case of Brake Warning Light .................... 207
Coolant Temperature Gauge .............. 209
Hazard Warning Flasher ................. 364
INDEX 449
10

Gasoline/Oxygenate Blends................ 337
Gauges Coolant Temperature .................... 209
Fuel ................................ 206
Odometer ............................ 211
Speedometer ......................... 206
Tachometer .......................... 209
Gear Ranges ........................ 276,281
General Information .................... 17,335
Glass Cleaning .......................... 410
Gross Axle Weight Rating ...............342,345
Gross Vehicle Weight Rating .............342,345
GVWR ............................... 342
Hands-Free Phone (UConnect™) ........85,250,251
Hard Drive (HDD) ....................... 250
HardTop ............................. 125
Hard Top, Modular ...................... 125
Hard Top Removal ....................... 129 Hazard Warning Flasher
................... 364
Head Restraints .......................... 89
Head Rests ............................. 89
Headlights Bulb Replacement ...................... 420
Dimmer Switch ........................ 98
Replacing ............................ 420
Switch ............................... 97
Heater ............................... 259
Heater, Engine Block ..................... 275
High Beam Indicator ..................... 207
Hitches Trailer Towing ........................ 348
Holder, Cup ........................... 117
Hood Release ........................... 94
Hoses ............................. 399,400
Hydraulic Clutch Fluid .................... 403
Ignition ............................... 12
452 INDEX
