KEYLESS POWER WINDOW DOWN DOES NOT OPERATE
KEYLESS POWER WINDOW DOWN DOES NOT OPERATE
Diagnosis ProcedureINFOID:0000000001735754
1. CHECK INTELLIGENT KEY FUNCTION
Check Intelligent Key function.
Refer to DLK-52, "
CONSULT-III Function (INTELLIGENT KEY)".
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-38, "Intermittent Incident".
NO >> Replace BCM. Refer to BCS-55, "
Removal and Installation".
Revision: March 2010 2008 QX56

BCM (BODY CONTROL MODULE)RF-19
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
RF
N
O P
Te r m i n a l Wire
color Signal name Signal
input/
output Measuring condition
Reference value or waveform
(Approx.)
Ignition
switch Operation or condition
1BR/W Ignition keyhole illumi-
nation Output OFFDoor is locked (SW OFF)
Battery voltage
Door is unlocked (SW ON) 0V
2SB Combination switch
input 5 Input ON
Lighting, turn, wiper OFF
Wiper dial position 4
3G/Y Combination switch
input 4 Input ONLighting, turn, wiper OFF
Wiper dial position 4
4Y Combination switch
input 3 Input ON
Lighting, turn, wiper OFF
Wiper dial position 4
5G/B Combination switch
input 2
Input ONLighting, turn, wiper OFF
Wiper dial position 4
6V Combination switch
input 1
9GR/R Rear window defogger
switch
Input ONRear window defogger switch
ON
0V
Rear window defogger switch
OFF 5V
10 G Hazard lamp flash Input OFF ON (opening or closing)
0V
OFF (other than above) Battery voltage
11 O Ignition switch (ACC
or ON)
InputACC or
ON Ignition switch ACC or ON
Battery voltage
12 R/L Front door switch RH Input OFF ON (open)
0V
OFF (closed) Battery voltage
13 GR Rear door switch RH Input OFF ON (open)
0V
OFF (closed) Battery voltage
15 L/W Tire pressure warning
check connector
Input OFF
—5V
18 P Remote keyless entry
receiver and optical
sensor (ground)
Output OFF
—0V
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
Revision: March 2010 2008 QX56

RF-20
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
19 V/WRemote keyless entry
receiver (power sup-
ply) Output OFF Ignition switch OFF
20 G/W Remote keyless entry
receiver (signal) Input OFFStand-by (keyfob buttons re-
leased)
When remote keyless entry
receiver receives signal from
keyfob (keyfob buttons
pressed)
21 G NATS antenna amp. Input OFF
→
ON Ignition switch (OFF
→ ON)Just after turning ignition switch
ON: Pointer of tester should
move for approx. 1 second, then return to battery voltage.
22 W/V BUS — —Ignition switch ON or power
window timer operates
23 G/O Security indicator
lamp Output OFF
Goes OFF
→ illuminates (Ev-
ery 2.4 seconds) Battery voltage
→ 0V
25 BR NATS antenna amp. Input OFF
→
ON Ignition switch (OFF
→ ON)Just after turning ignition switch
ON: Pointer of tester should
move for approx. 1 second, then return to battery voltage.
26 Y/L Rear wiper auto stop
switch 2 Input ONRise up position (rear wiper
arm on stopper)
0V
A Position (full clockwise stop
position) 0V
Forward sweep (counterclock-
wise direction) Fluctuating
B Position (full counterclock-
wise stop position) Battery voltage
Reverse sweep (clockwise di-
rection) Fluctuating
27 W/R Compressor ON sig-
nal Input ONA/C switch OFF
5V
A/C switch ON 0V
Te r m i n a l
Wire
color Signal name Signal
input/
output Measuring condition
Reference value or waveform
(Approx.)
Ignition
switch Operation or condition
LIIA1893E
LIIA1894E
LIIA1895E
PIIA2344E
Revision: March 2010
2008 QX56

SEC-6
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
PRE-INSPECTION FOR DIAGNOSTIC
PRE-INSPECTION
FOR DIAGNOSTIC
Basic InspectionINFOID:0000000004807932
The engine start function, door lock function, power distribution system and NATS-IVIS/ NVIS in the Intelligent
Key system are closely related to each other regarding control. Narrow down the functional area in question
by performing basic inspection to identify which function is malfunctioning. The vehicle security function can
operate only when the door lock and power distribution system are operating normally. Therefore, it is easy to
identify any factor unique to the vehicle security syst em by performing the vehicle security operation check
after basic inspection.
1.CHECK DOOR LOCK OPERATION
Check the door lock for normal operation with the In telligent Key controller and door request switch.
Successful door lock operation with the Intelligent Key and request SW indicates that the remote keyless entry
receiver and inside key antenna required for engine start are functioning normally.
Identify the malfunctioning point by referring to the DLK section if the door cannot be unlocked.
Can the door be locked with the Intelligent Key and door request switch?
YES >> GO TO 2.
NO >> Refer to DLK-200, "
Symptom Table".
2.CHECK ENGINE STARTING
Check that the engine starts when operating with the Intelligent Key.
Does the engine start?
YES >> GO TO 3.
NO >> Refer to S E C - 111 , "
Symptom Table".
3.CHECK STEERING LOCK
Does the steering lock when operating door switch after switching the power supply from ON position (or ACC
position) to LOCK position?
If door switch is malfunctioning, BC M cannot lock the steering. If BCM does not detect DTC, steering lock unit
is normal.
Does steering lock?
YES >> GO TO 4.
NO >> Refer to DLK-67, "
ComponentFunctionCheck".
4.CHECK IGNITION KNOB SWITCH OPERATION
Press ignition knob to check switch operation.
Does the combination meter display any message?
YES >> GO TO 5.
NO >> Refer to SEC-44, "
Ignition Knob Switch Check".
5.CHECK VEHICLE SECURITY SYSTEM
Check the vehicle security system for normal operation.
The vehicle security function can operate only when the door lock and power distribution functions are operat-
ing normally.
Therefore, it is easy to identify any factor unique to the vehicle security by performing the vehicle security
operation check after this basic inspection.
>> Go to SEC-6, "
Vehicle Security Operation Check".
Vehicle Security Operation CheckINFOID:0000000004807933
1.INSPECTION START
Turn ignition switch OFF”.
NOTE:
Before starting operation check, open front windows.
>> GO TO 2.
Revision: March 2010 2008 QX56

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-11
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
Component Parts LocationINFOID:0000000001539102
ALKIA0958ZZ
1. BCM M18, M19, M20 (view with instrument panel LH removed) 2. Intelligent Key unit M70
(view with instrument panel LH removed) 3. IPDM E/R
E119, E120, E122, E124
4. ECM E16 5. Key switch and ignition knob switch M12
(view with st eering column removed) 6. Steering lock solenoid M15
7. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 8. A/T shift selector (detention switch key)
M203
(view with center console removed) 9. Inside key antenna 3 (front of cen-
ter console) M210
(view with center console removed)
Revision: March 2010 2008 QX56

SEC-12
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Component Description
INFOID:0000000001539103
10. Inside key antenna 1 (rear of center con- sole) M209 11. Inside key antenna 4 (overhead console
area) R210
(view with overhead console removed) 12. Inside key antenna 2 (luggage
compartment) B76
(view with rear carpet removed)
13. Intelligent Key warning buzzer E25 14. Combination meter M23, M24 15. Vehicle security indicator lamp
Item Function
Intelligent Key unit Receives lock/unlock signal from remote keyless entry receiver, and then transmits to BCM.
BCM Verifies the received signal from Intelligent Key, then informs ECM whether to allow engine start.
Remote keyless entry receiver Receives lock/unlock signal from th e Intelligent Key, and then transmits to Intelligent Key unit.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Steering lock solenoid Locks the steering wheel when the ignition key is off and the Intelligent Key is outside the vehicle.
Inside key antenna Detects if Intelligent Key is inside the vehicle.
Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.
A/T shift selector (detention key
switch) Detects whether the shift lever is in park.
Revision: March 2010
2008 QX56

SEC-14
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
NVIS (NISSAN VEHICLE I
MMOBILIZER SYSTEM-NATS)
- Mechanical key
- Intelligent Key unit
- Remote keyless entry receiver
- Steering lock solenoid
• NATS trouble diagnosis, system initialization and additional registration of other mechanical key IDs must be
carried out using CONSULT-III.
When NATS initialization has been completed, the ID of the inserted mechanical key or mechanical key IDs
can be carried out.
• Possible symptom of NATS malfunction is “Engine cannot start”. Identify the possible causes according to
“Work Flow”, Refer to SEC-3, "
Work Flow".
• If ECM other than Genuine NISSAN is installed, t he engine cannot be started. For ECM replacement proce-
dure, refer to SEC-8, "
ECM RE-COMMUNICATING FUNCTION : Description".
PRECAUTIONS FOR KEY REGISTRATION
• The key registration is a procedure that erases the current NATS ID once, and then re-registers a new ID.
Therefore the registered Intelligent Key is necessary fo r this procedure. Before starting the registration oper-
ation collect all registered Intelligent Keys from the customer.
• The NATS ID registration is the procedure that regi sters the ID stored into the transponder (integrated in
mechanical key) to BCM.
The Intelligent Key ID registration is the procedur e that registers the ID to Intelligent Key unit.
• When performing the Intelligent Key system registration only, the engine cannot be started by inserting the key into the key cylinder. When performing the NATS registration only, the engine cannot be started by using
the mechanical key.
SECURITY INDICATOR
• Always flashes with ignition knob released (ignition knob switch: LOCK) condition on ignition knob LOCKposition.
• Always flashes with ignition knob released (ignition knob switch: LOCK) condition on mechanical key removed position.
MAINTENANCE INFORMATION
CAUTION:
It is necessary to perform NATS ID registration when replacing any of the following part.
If it's not (or fail to do so), the electrical system may not operate properly.
• Intelligent Key unit
• BCM
•ECM
• Mechanical key
• Steering lock solenoid
• NATS antenna amp.
Revision: March 2010 2008 QX56

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
SEC-15
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
Component Parts LocationINFOID:0000000001539106
Component DescriptionINFOID:0000000001539107

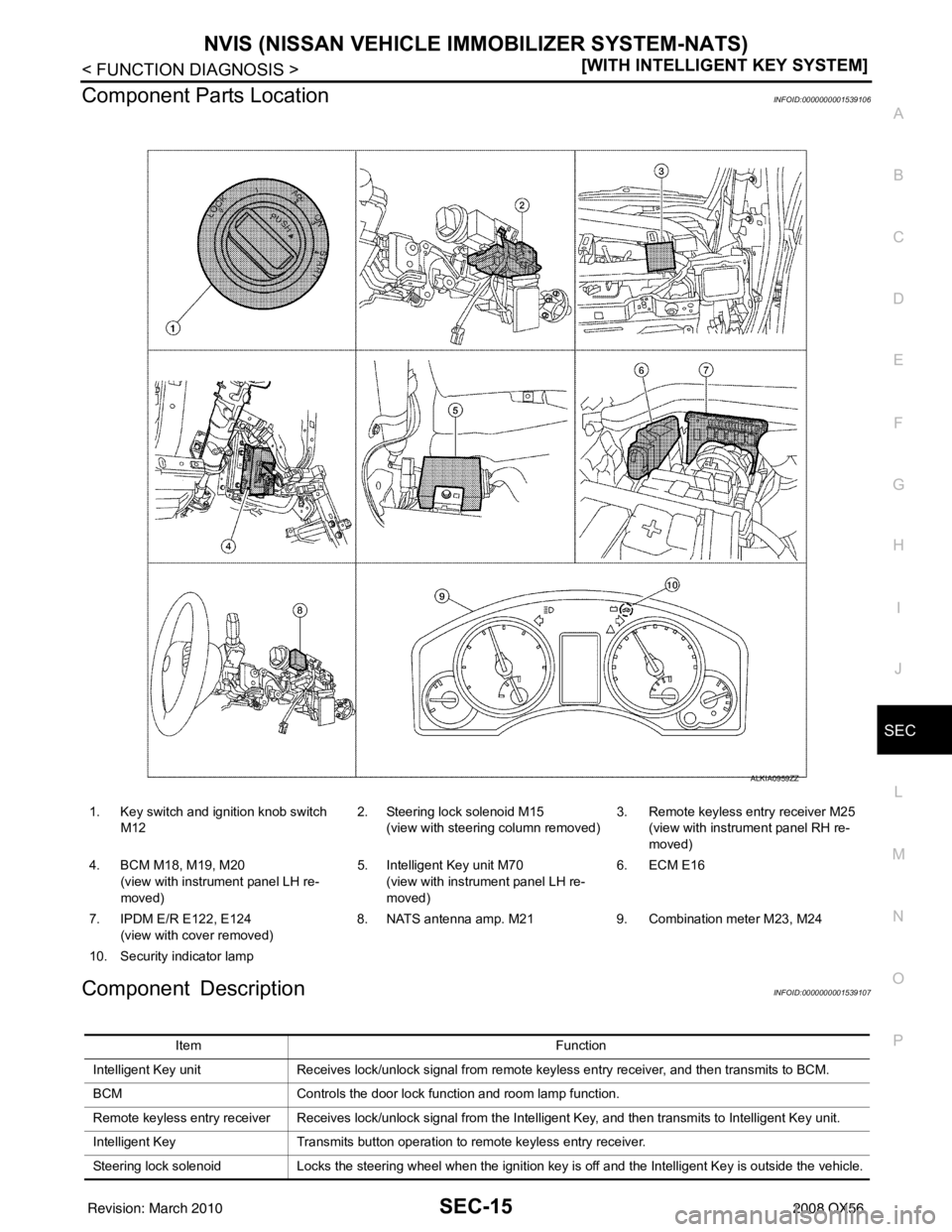

1. Key switch and ignition knob switch M12 2. Steering lock solenoid M15
(view with steering column removed) 3. Remote keyless entry receiver M25
(view with instrument panel RH re-
moved)
4. BCM M18, M19, M20 (view with instrument panel LH re-
moved) 5. Intelligent Key unit M70
(view with instrument panel LH re-
moved) 6. ECM E16
7. IPDM E/R E122, E124 (view with co ver removed) 8. NATS antenna amp. M21
9. Combination meter M23, M24
10. Security indicator lamp
ALKIA0959ZZ
Item Function
Intelligent Key unit Receives lock/unlock signal from re mote keyless entry receiver, and then transmits to BCM.
BCM Controls the door lock function and room lamp function.
Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to Intelligent Key unit.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Steering lock solenoid Locks the steering wheel when the ignition key is off and the Intelligent Key is outside the vehicle.
Revision: March 2010 2008 QX56
