HAC-64
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
REAR AIR CONTROL SYSTEM
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector
M50 terminal 49 and terminal 50.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> GO TO 7.
7.CHECK AIR MIX DOOR MOTOR (REAR) CIRCUITS FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect the air mix door motor (rear) harness connector.
3. Check continuity between A/C auto amp. harness connector M50 terminal 49, 50 and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair or replace harness as necessary.
8.CHECK AIR MIX DOOR MOTOR (REAR) CIRCUITS FOR OPEN
1. Disconnect the air mix door motor (rear) harness connector.
2. Check continuity between A/C auto amp. harness connector M50 (A) terminal 49, 50 and the air mix door motor (rear) har-
ness connector B155 (B) terminal 1, 6.
Is the inspection result normal?
YES >> Replace air mix door motor (rear). Refer to VTL-26,
"Removal and Installation".
NO >> Repair or replace harness as necessary.
9.CHECK A/C AUTO AMP. OWER AND GR OUND FOR AIR MIX DOOR MOTOR (REAR)
1. Rotate temperature control dial (front) to maximum cold.
2. Check voltage between A/C auto amp. harness connector M50 terminal 49 and terminal 50 while rotating temperature control
dial (rear) to maximum heat.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Replace A/C auto amp. Refer to VTL-7, "
Removal and Installation".
10.CHECK A/C AUTO AMP. FOR AIR MIX DOOR MOTOR (REAR) PBR POWER AND GROUND

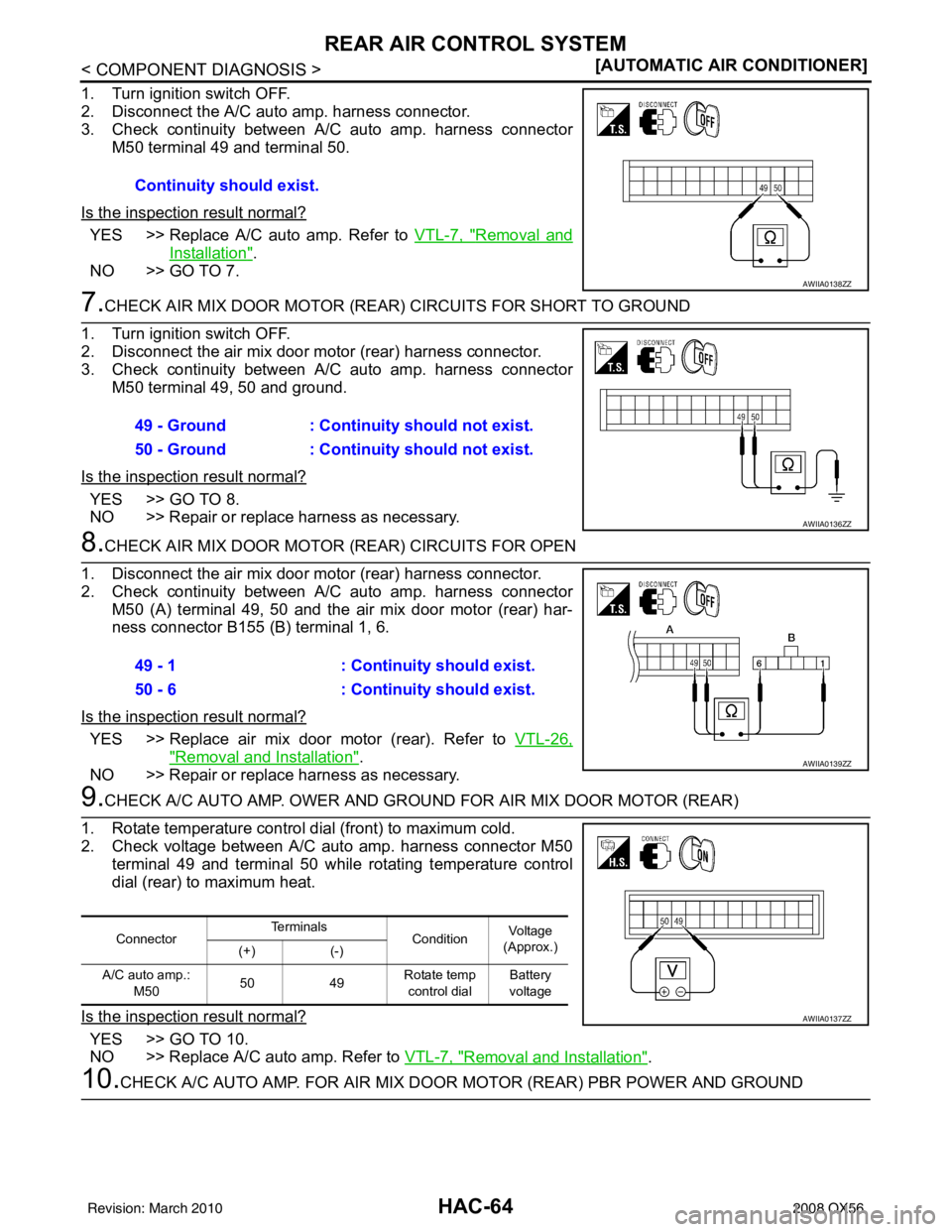

Continuity should exist.
AWIIA0138ZZ
49 - Ground
: Continuity should not exist.
50 - Ground : Continuity should not exist.
AWIIA0136ZZ
49 - 1 : Continuity should exist.
50 - 6 : Continuity should exist.
AWIIA0139ZZ
ConnectorTe r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
A/C auto amp.: M50 50 49 Rotate temp
control dial Battery
voltage
AWIIA0137ZZ
Revision: March 2010 2008 QX56

REAR AIR CONTROL SYSTEMHAC-65
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
1. Check voltage between A/C auto amp. harness connector M50 (A) terminal 28 and M49 (B) terminal 3.
Is the inspection result normal?
YES >> GO TO 14.
NO >> GO TO 11.
11 .CHECK PBR REFERENCE VO LTAGE AND GROUND CIRCUITS
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector M50 (A) terminal 28 and M49 (B) terminal 3.
Is the inspection result normal?
YES >> GO TO 13.
NO >> GO TO 12.
12.CHECK PBR REFERENCE VO LTAGE CIRCUIT FOR OPEN
1. Disconnect the air mix door motor (rear) harness connector.
2. Check continuity between air mix door motor (rear) harness con- nector B155 (B) terminal 3, 2 and A/C auto amp. harness con-
nector M50 (A) terminal 28 and M49 (C) terminal 3.
Is the inspection result normal?
YES >> Replace air mix door motor (rear). Refer to VTL-26,
"Removal and Installation".
NO >> Repair or replace harness as necessary.
13.CHECK PBR REFERENCE VOLTAGE CIRCUIT FOR SHORT TO GROUND
Check continuity between A/C auto amp. harness connector M50
terminal 28 and ground.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> Repair or replace harness as necessary.
14.CHECK PBR FEEDBACK VOLTAGE
Connector Te r m i n a l s
Voltage (Ap-
prox.)
(+) (-)
A/C auto amp.: M49, M50 28 35V
AWIIA0118ZZ

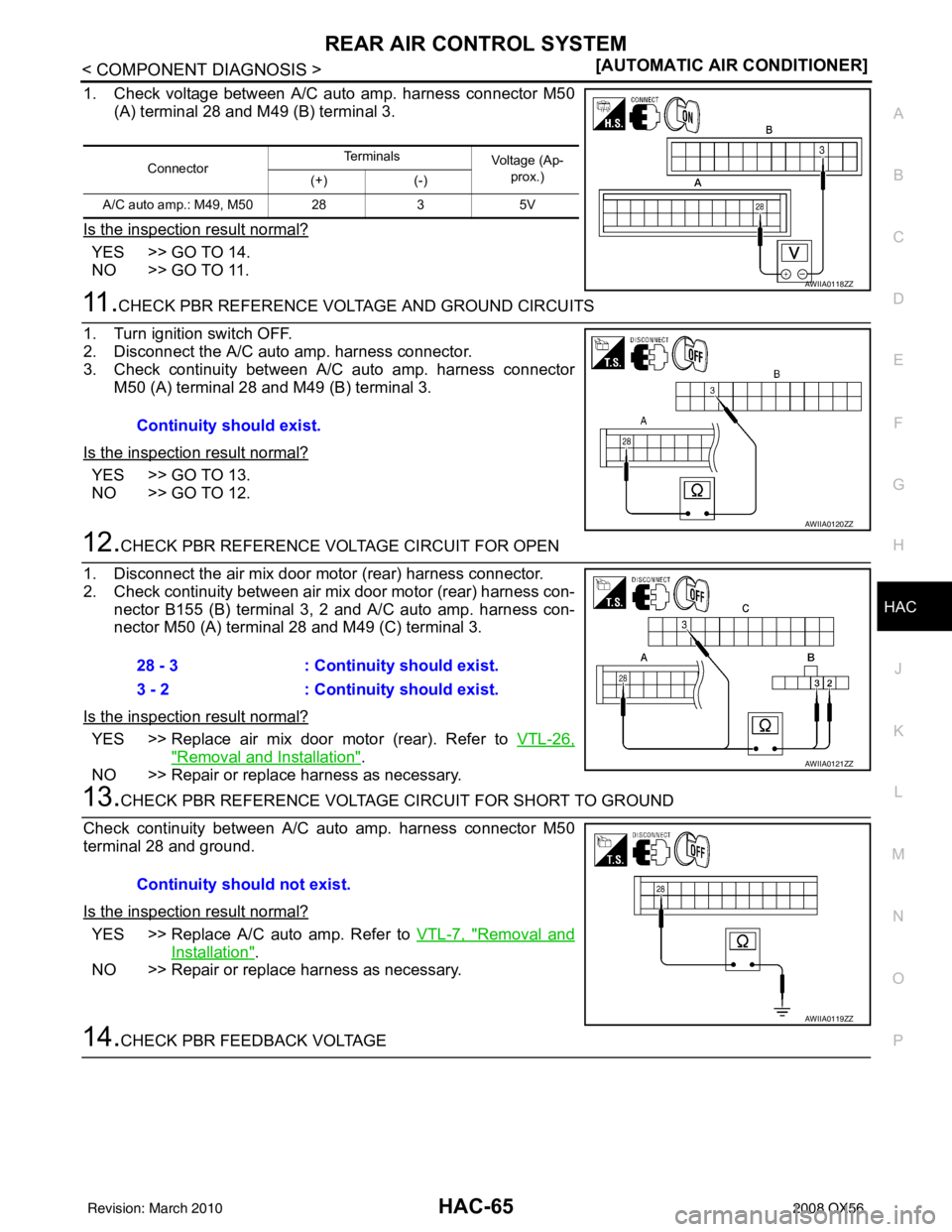

Continuity should exist.
AWIIA0120ZZ
28 - 3 : Continuity should exist.
3 - 2 : Continuity should exist.
AWIIA0121ZZ
Continuity should not exist.
AWIIA0119ZZ
Revision: March 2010 2008 QX56

HAC-66
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
REAR AIR CONTROL SYSTEM
Check voltage between A/C auto amp. harness connector M50 ter-
minal 33 and ground while rotating temperature control dial (rear)
from maximum cold to maximum heat.
Is the inspection result normal?
YES >> System OK.
NO >> GO TO 15.
15.CHECK PBR FEEDBACK CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect the air mix door motor (rear) harness connector and A/C auto amp. harness connector.
3. Check continuity between air mix door motor (rear) harness con- nector B155 (B) terminal 4 and A/C auto amp. harness connec-
tor M50 (A) terminal 33.
Is the inspection result normal?
YES >> GO TO 16.
NO >> Repair or replace harness as necessary.
16.CHECK PBR FEEDBACK SIGNAL CIRCUIT FOR SHORT TO GROUND
Check continuity between A/C auto amp. harness connector M50
terminal 33 and ground.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> Repair or replace harness as necessary.
Mode Door Motor (Rear) Diagnosis ProcedureINFOID:0000000001679807
DIAGNOSTIC PROCEDURE INOPERATIVE MODE DOOR MOTOR (REAR)
1.CHECK REAR AIR CONTRO L (FRONT) POWER SUPPLY
1. Disconnect rear air control (front) harness connector.
2. Turn ignition switch ON.
3. Check voltage between rear air control (front) harness connec- tor R108 terminal 1 and ground.
Is the inspection results normal?
YES >> GO TO 2.
NO >> Repair harness or connector.
2.CHECK REAR AIR CONTROL (FRONT) LIN BUS VOLTAGE
Voltage

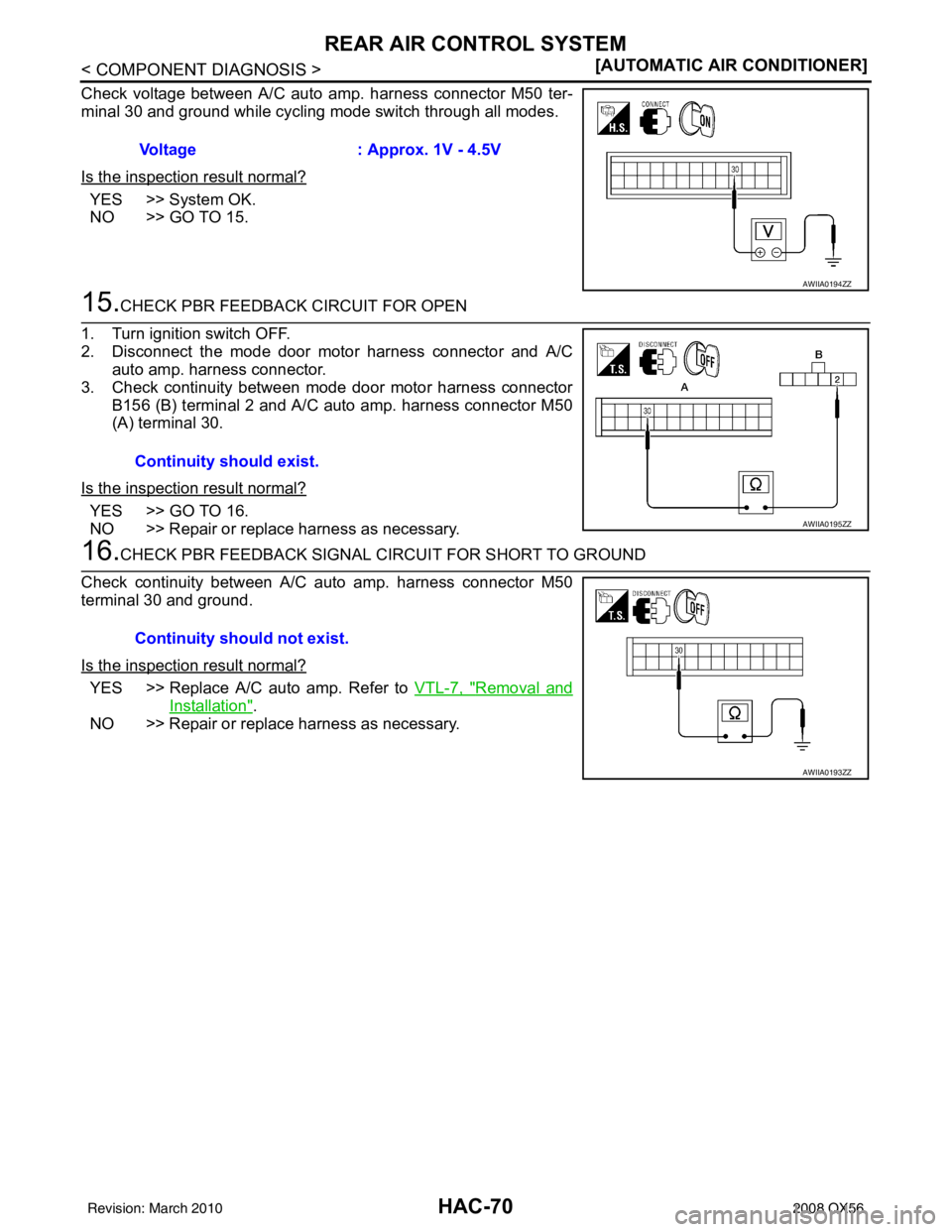

: Approx. 1V - 4.5V
AWIIA0140ZZ

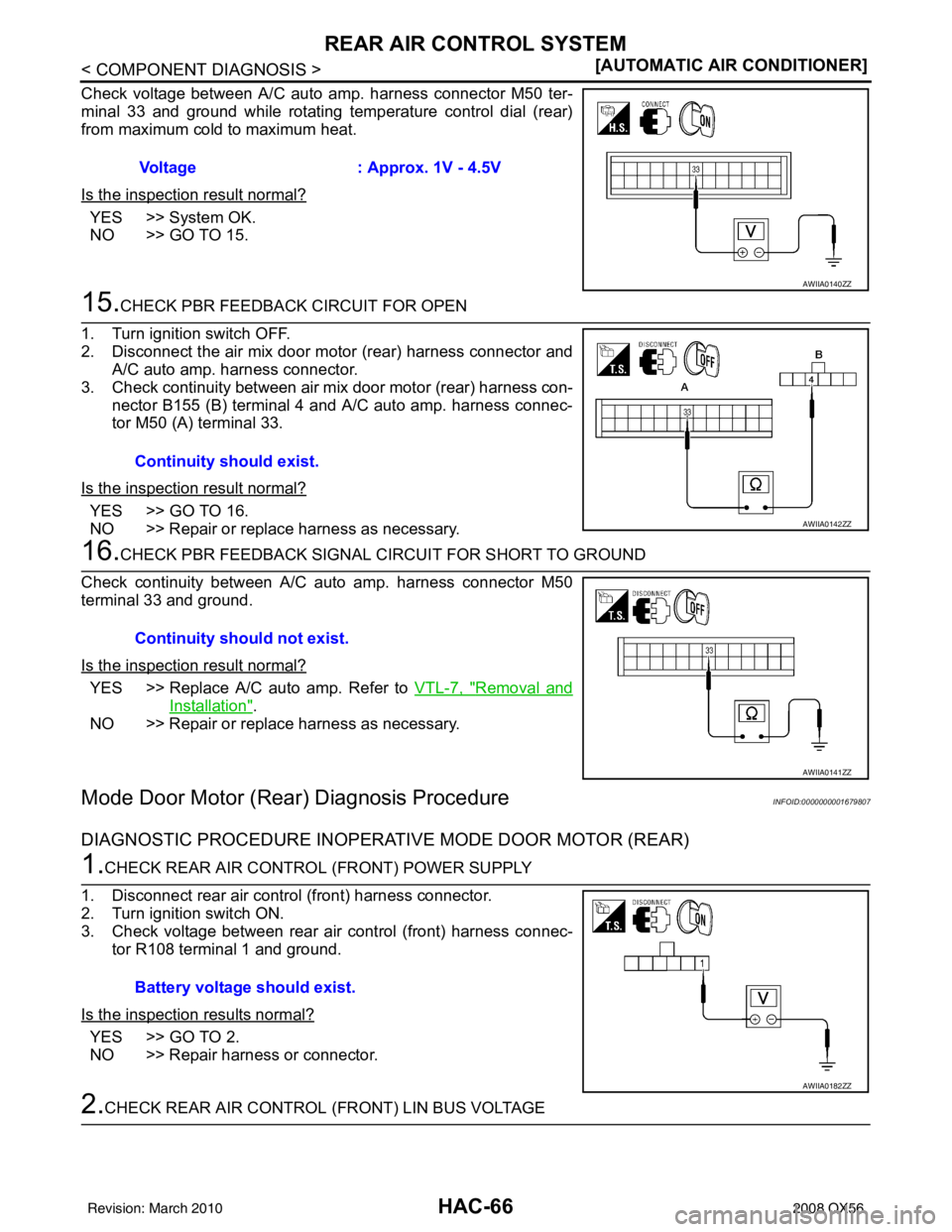

Continuity should exist.
AWIIA0142ZZ
Continuity should not exist.
AWIIA0141ZZ

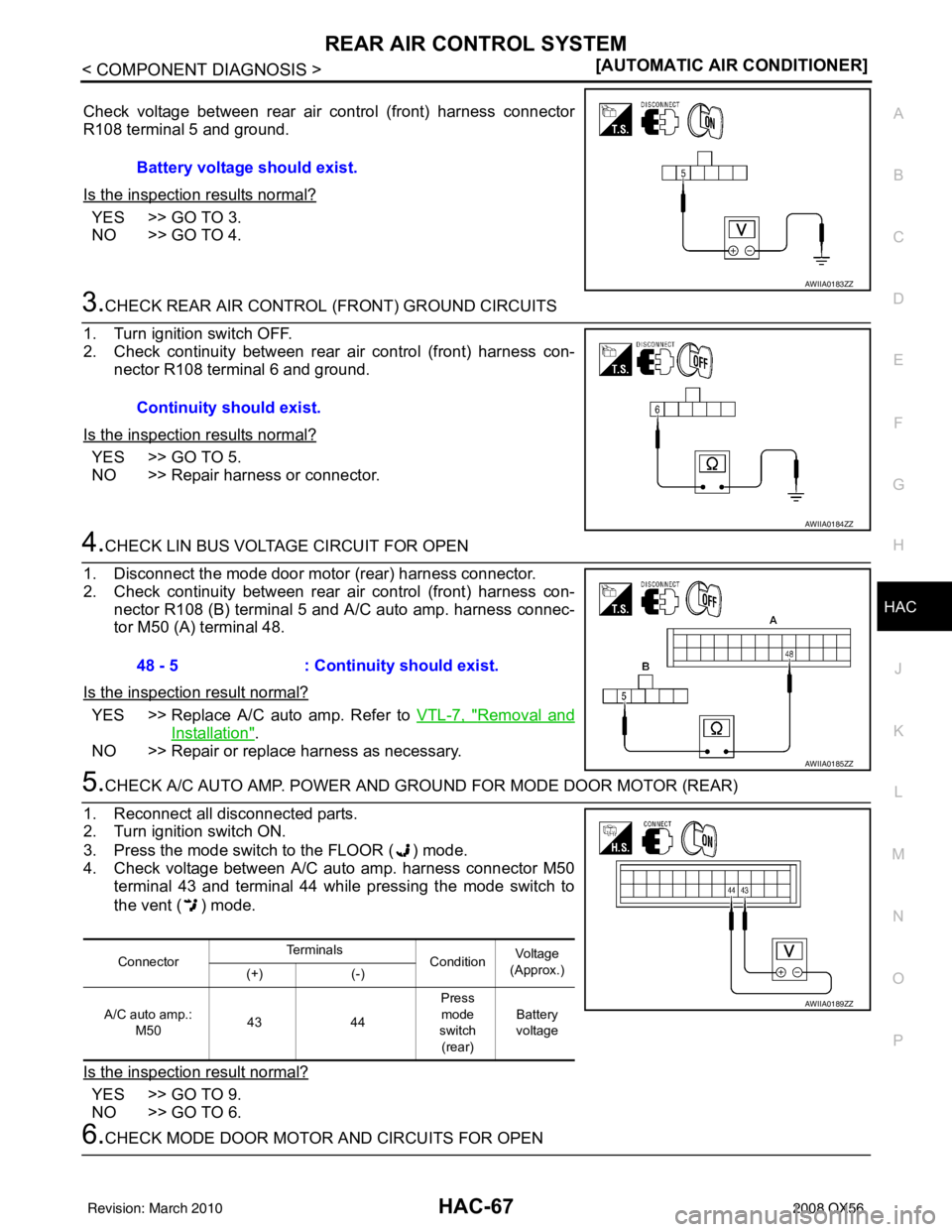

Battery voltage should exist.
AWIIA0182ZZ
Revision: March 2010 2008 QX56

REAR AIR CONTROL SYSTEMHAC-67
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
Check voltage between rear air control (front) harness connector
R108 terminal 5 and ground.
Is the inspection results normal?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK REAR AIR CONTROL (FRONT) GROUND CIRCUITS
1. Turn ignition switch OFF.
2. Check continuity between rear air control (front) harness con- nector R108 terminal 6 and ground.
Is the inspection results normal?
YES >> GO TO 5.
NO >> Repair harness or connector.
4.CHECK LIN BUS VOLTAGE CIRCUIT FOR OPEN
1. Disconnect the mode door motor (rear) harness connector.
2. Check continuity between rear air control (front) harness con- nector R108 (B) terminal 5 and A/C auto amp. harness connec-
tor M50 (A) terminal 48.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> Repair or replace harness as necessary.
5.CHECK A/C AUTO AMP. POWER AND GROUND FOR MODE DOOR MOTOR (REAR)
1. Reconnect all disconnected parts.
2. Turn ignition switch ON.
3. Press the mode switch to the FLOOR ( ) mode.
4. Check voltage between A/C auto amp. harness connector M50 terminal 43 and terminal 44 while pressing the mode switch to
the vent ( ) mode.
Is the inspection result normal?
YES >> GO TO 9.
NO >> GO TO 6.
6.CHECK MODE DOOR MOTOR AND CIRCUITS FOR OPEN Battery voltage should exist.
AWIIA0183ZZ
Continuity should exist.
AWIIA0184ZZ
48 - 5
: Continuity should exist.
AWIIA0185ZZ
Connector Te r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
A/C auto amp.: M50 43 44 Press
mode
switch
(rear) Battery
voltage
AWIIA0189ZZ
Revision: March 2010 2008 QX56

HAC-68
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
REAR AIR CONTROL SYSTEM
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector
M50 terminal 43 and terminal 44.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> GO TO 7.
7.CHECK MODE DOOR MOTOR CIRCUITS FOR SHORT TO GROUND
1. Disconnect the A/C auto amp. harness connector and mode door motor (rear) harness connector
2. Check continuity between A/C auto amp. harness connector
M50 terminal 43, 44 and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair or replace harness as necessary.
8.CHECK MODE DOOR MOTOR CIRCUITS FOR OPEN
Check continuity between A/C auto amp. harness connector M50 (A)
terminal 43, 44 and the mode door motor (rear) harness connector
B156 (B) terminal 5, 6.
Is the inspection result normal?
YES >> Replace mode door motor. Refer to VTL-26, "Removal
and Installation".
NO >> Repair or replace harness as necessary.
9.CHECK A/C AUTO AMP. POWER AND GROUND FOR MODE DOOR MOTOR (REAR)
Check voltage between A/C auto amp. harness connector M50 ter-
minal 43 and terminal 44 while pressing the mode switch to the
FLOOR ( ) mode.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Replace A/C auto amp. Refer to VTL-7, "
Removal and Installation".
10.CHECK A/C AUTO AMP. FOR MODE DOOR MOTOR (REAR) PBR POWER AND GROUND

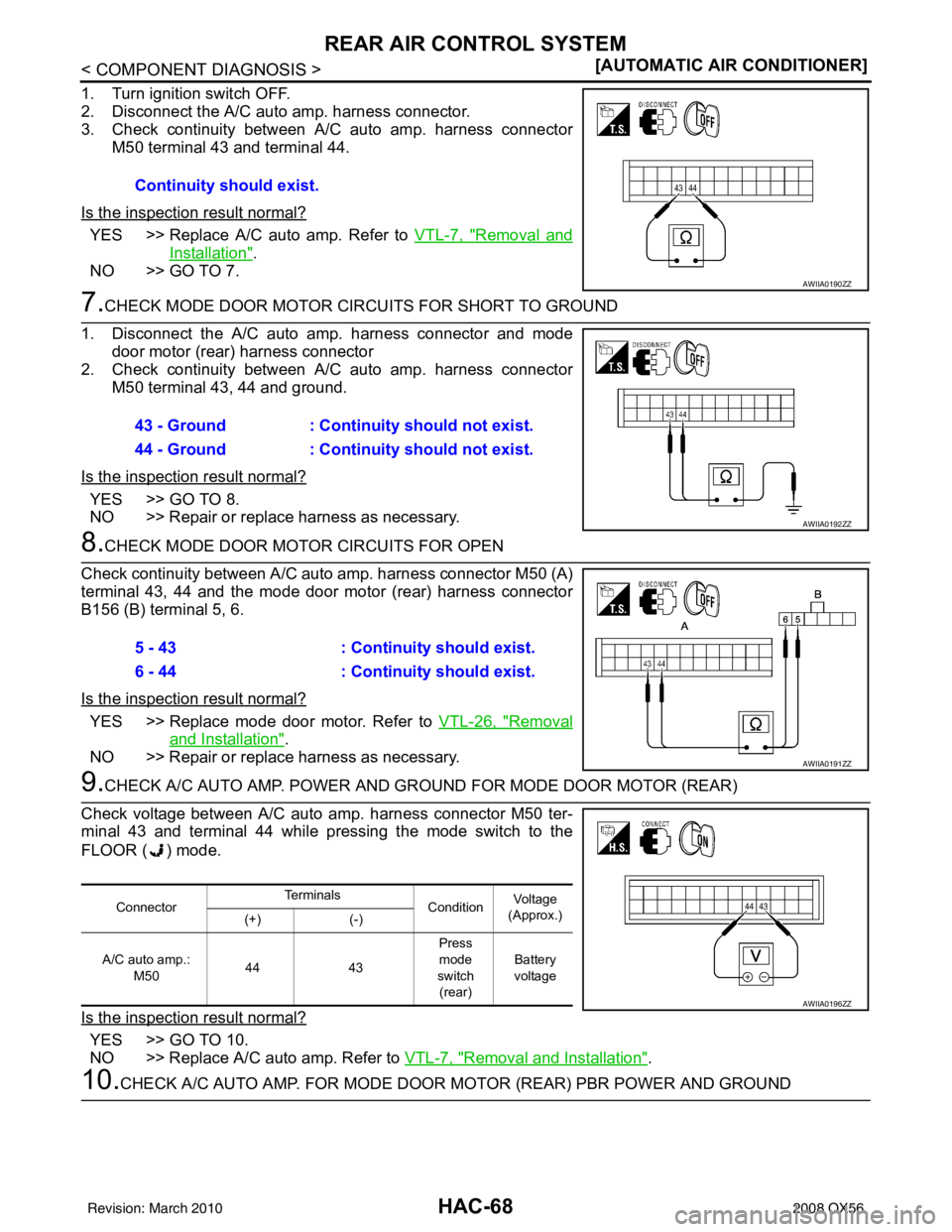

Continuity should exist.
AWIIA0190ZZ
43 - Ground
: Continuity should not exist.
44 - Ground : Continuity should not exist.
AWIIA0192ZZ
5 - 43 : Continuity should exist.
6 - 44 : Continuity should exist.
AWIIA0191ZZ
Connector Te r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
A/C auto amp.: M50 44 43 Press
mode
switch (rear) Battery
voltage
AWIIA0196ZZ
Revision: March 2010 2008 QX56

REAR AIR CONTROL SYSTEMHAC-69
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
Check voltage between A/C auto am p. harness connector M50 (A)
terminal 28 and M49 (B) terminal 3.
Is the inspection result normal?
YES >> GO TO 14.
NO >> GO TO 11.
11 .CHECK PBR REFERENCE VO LTAGE AND GROUND CIRCUITS
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector M50 (A) terminal 28 and M49 (B) terminal 3.
Is the inspection result normal?
YES >> GO TO 13.
NO >> GO TO 12
12.CHECK PBR REFERENCE VO LTAGE CIRCUIT FOR OPEN
1. Disconnect the mode door motor (rear) harness connector.
2. Check continuity between mode door motor (rear) harness con- nector B156 (B) terminal 3, 1 and A/C auto amp. harness con-
nector M49 (C) terminal 3, M50 (A) terminal 28.
Is the inspection result normal?
YES >> Replace mode door motor (rear). Refer to VTL-26,
"Removal and Installation".
NO >> Repair or replace harness as necessary.
13.CHECK PBR REFERENCE VOLTAGE CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect the A/C auto amp. harness connector.
3. Check continuity between A/C auto amp. harness connector M50 terminal 28 and ground.
Is the inspection result normal?
YES >> Replace the A/C auto amp. Refer to VTL-7, "Removal
and Installation".
NO >> Repair or replace harness as necessary.
14.CHECK PBR FEEDBACK VOLTAGE
Connector Te r m i n a l s
Voltage (Ap-
prox.)
(+) (-)
A/C auto amp.: M49, M50 28 35V
AWIIA0099ZZ

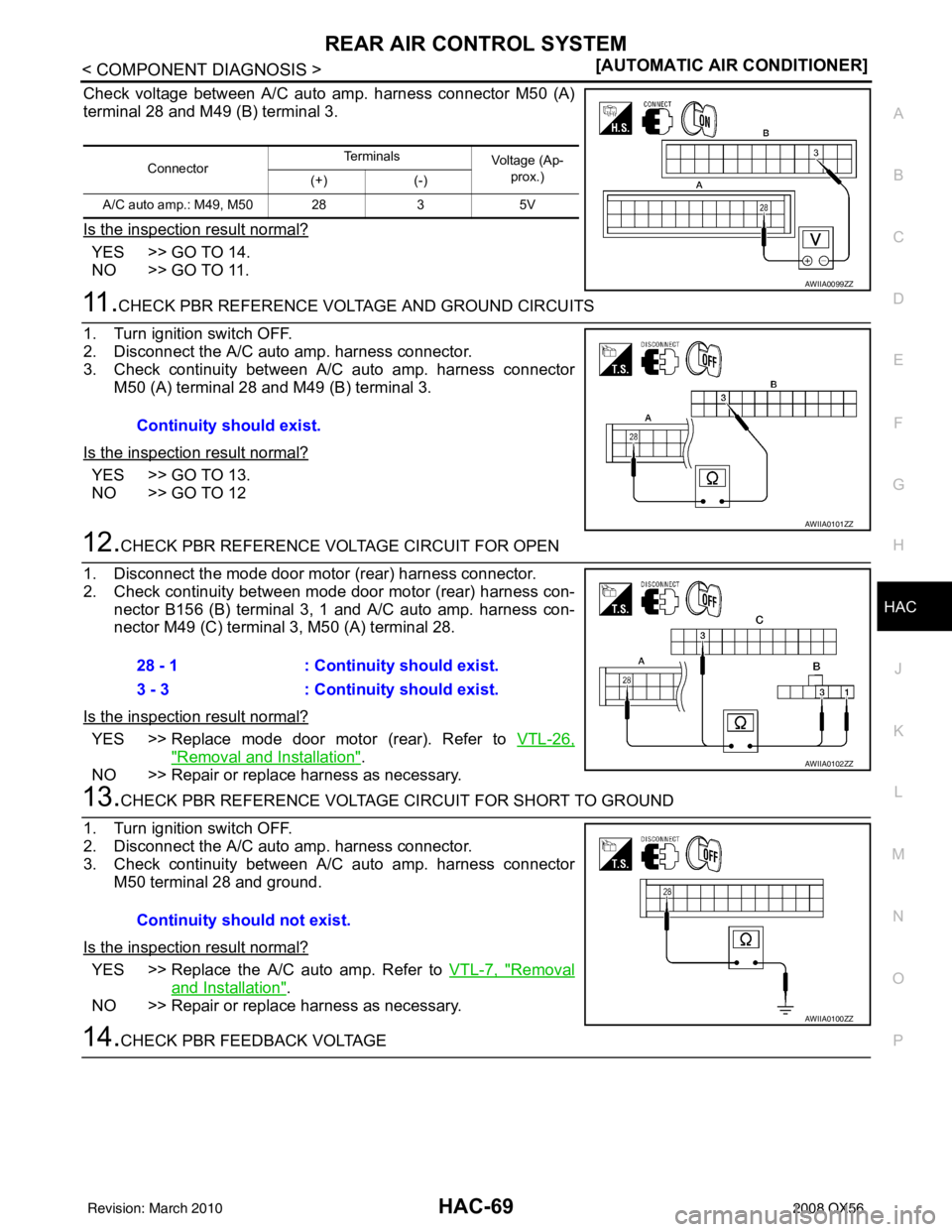

Continuity should exist.
AWIIA0101ZZ
28 - 1 : Continuity should exist.
3 - 3 : Continuity should exist.
AWIIA0102ZZ
Continuity should not exist.
AWIIA0100ZZ
Revision: March 2010 2008 QX56

HAC-70
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
REAR AIR CONTROL SYSTEM
Check voltage between A/C auto amp. harness connector M50 ter-
minal 30 and ground while cycling mode switch through all modes.
Is the inspection result normal?
YES >> System OK.
NO >> GO TO 15.
15.CHECK PBR FEEDBACK CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect the mode door motor harness connector and A/C auto amp. harness connector.
3. Check continuity between mode door motor harness connector B156 (B) terminal 2 and A/C auto amp. harness connector M50
(A) terminal 30.
Is the inspection result normal?
YES >> GO TO 16.
NO >> Repair or replace harness as necessary.
16.CHECK PBR FEEDBACK SIGNAL CIRCUIT FOR SHORT TO GROUND
Check continuity between A/C auto amp. harness connector M50
terminal 30 and ground.
Is the inspection result normal?
YES >> Replace A/C auto amp. Refer to VTL-7, "Removal and
Installation".
NO >> Repair or replace harness as necessary. Voltage
: Approx. 1V - 4.5V
AWIIA0194ZZ
Continuity should exist.
AWIIA0195ZZ
Continuity should not exist.
AWIIA0193ZZ
Revision: March 2010 2008 QX56

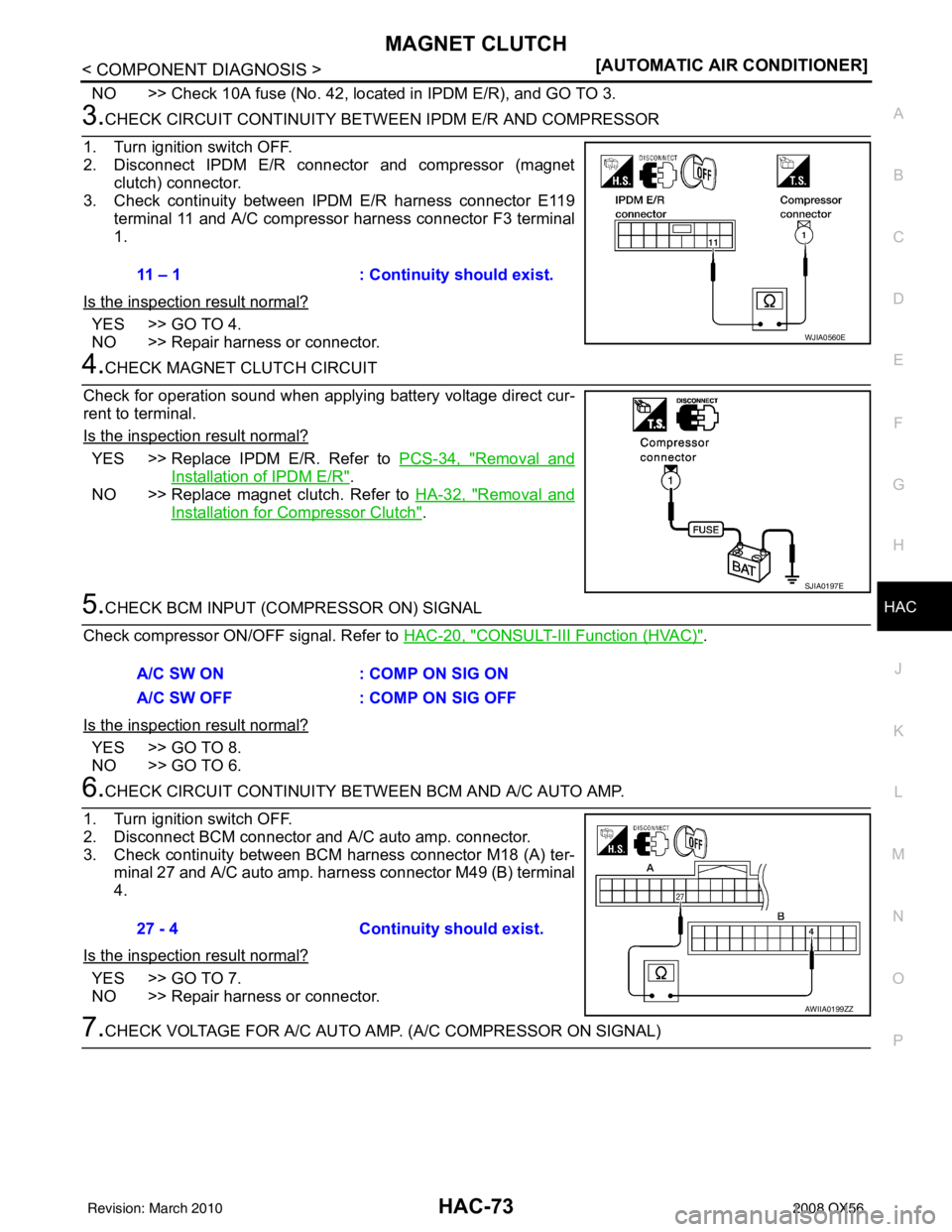

MAGNET CLUTCHHAC-73
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
NO >> Check 10A fuse (No. 42, located in IPDM E/R), and GO TO 3.
3.CHECK CIRCUIT CONTINUITY BETW EEN IPDM E/R AND COMPRESSOR
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and compressor (magnet clutch) connector.
3. Check continuity between IPDM E/R harness connector E119
terminal 11 and A/C compressor harness connector F3 terminal
1.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair harness or connector.
4.CHECK MAGNET CLUTCH CIRCUIT
Check for operation sound when applying battery voltage direct cur-
rent to terminal.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PCS-34, "Removal and
Installation of IPDM E/R".
NO >> Replace magnet clutch. Refer to HA-32, "
Removal and
Installation for Compressor Clutch".
5.CHECK BCM INPUT (COMPRESSOR ON) SIGNAL
Check compressor ON/OFF signal. Refer to HAC-20, "
CONSULT-III Function (HVAC)".
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 6.
6.CHECK CIRCUIT CONTINUITY BETWEEN BCM AND A/C AUTO AMP.
1. Turn ignition switch OFF.
2. Disconnect BCM connector and A/C auto amp. connector.
3. Check continuity between BCM harness connector M18 (A) ter- minal 27 and A/C auto amp. harness connector M49 (B) terminal
4.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair harness or connector.
7.CHECK VOLTAGE FOR A/C AUTO AMP. (A/C COMPRESSOR ON SIGNAL)
11 – 1
: Continuity should exist.
WJIA0560E
SJIA0197E
A/C SW ON: COMP ON SIG ON
A/C SW OFF : COMP ON SIG OFF
27 - 4 Continuity should exist.
AWIIA0199ZZ
Revision: March 2010 2008 QX56
