2008 Hyundai Tiburon wiper fluid

1
FEATURES OF YOUR HYUNDAI
61
OGK048900N
Type B
The windshield wiper switch has three posi-
tions:
(1) Intermittent wiper operation
(2) Low-speed operation
(3) High-speed operationNOTE:To prevent damage to the wiper system, do
not attempt to wipe away heavy accumula-
tions of snow or ice. Accumulated snow
and ice should be removed manually. If
there is only a light layer of snow or ice,
operate the heater in the defrost mode to
melt the snow or ice before using the wiper.
B350B01O-AATWindshield Washer Operation
OGK047048N
Type A
OGK048048N
Type B
To use the windshield washer, pull the wiper/
washer lever toward the steering wheel.When the washer lever is operated, the wipers
automatically make two passes across the
windshield. The washer continues to operate
until the lever is released.
NOTE:o Do not operate the washer more than 15
seconds at a time or when the fluid
reservoir is empty.
o In icy or freezing weather, be sure the
wiper blades are not frozen to the glass
prior to operating the wipers.
o In areas where water freezes in winter,
use windshield washer antifreeze.

Do-It-Yourself Maintenance
6
Engine Compartment .................................................... 6-2
General Checks ............................................................ 6-4
Checking the Engine Oil ............................................... 6-5
Checking and Changing the Engine Coolant ................ 6-7
Changing the Air Cleaner Filter ..................................... 6-9
Windshield Wiper Blades .............................................. 6-9
Checking the Transaxle Oil (manual) .........................6-11
Checking the Transaxle Fluid (Automatic)..................6-12
Checking the Brakes ..................................................6-14
Checking the Clutch Fluid...........................................6-15
Air Conditioning Care..................................................6-16
Checking and Replacing Fuses..................................6-18
Checking the Battery..................................................6-19
Power Steering Fluid Level .........................................6-22
Headlight Aiming Adjustment......................................6-23
Replacement of Light Bulbs ........................................6-24
Bulb Wattage ...............................................................6-33
Fuse Panel Description...............................................6-34
6

6
DO-IT-YOURSELF MAINTENANCE
4
GENERAL CHECKS
G020C01A-AATVehicle InteriorThe following should be checked each time
when the vehicle is driven:
o Lights operation
o Windshield wiper operation
o Horn operation
o Defroster, heating system operation (and air
conditioning, if installed)
o Steering operation and condition
o Mirror condition and operation
o Turn signal operation
o Accelerator pedal operation
o Brake operation, including parking brake
o Manual transaxle operation, including clutch
operation
o Automatic transaxle operation, including
"Park" mechanism operation
o Seat control condition and operation
o Seat belt condition and operation
o Sunvisor operation
If you notice anything that does not operate
correctly or appears to be functioning incor-
rectly, inspect it carefully and seek assistance
from your Hyundai dealer if service is needed.
G020B01A-AATVehicle ExteriorThe following should be checked monthly:
o Overall appearance and condition
o Wheel condition and wheel nut torque
o Exhaust system condition
o Light condition and operation
o Windshield glass condition
o Wiper blade condition
o Paint condition and body corrosion
o Fluid leaks
o Door and hood lock condition
o Tire pressure and condition (including spare
tire)
G020A01A-AATEngine CompartmentThe following should be checked regularly:
o Engine oil level and condition
o Transaxle fluid level and condition
o Brake fluid level
o Clutch fluid level
o Engine coolant level
o Windshield washer fluid level
o Accessory drive belt condition
o Engine coolant hose condition
o Fluid leaks (on or below components)
o Power steering fluid level
o Battery condition
o Air filter condition

6
DO-IT-YOURSELF MAINTENANCE
10
o When the wiper blades are frozen in
winter weather or the washer fluid reser-
voir is empty, the wipers may not operate
for ten minutes.
This isn't a mechanical trouble but the
function protecting the wiper by operat-
ing circuit breaker inside of the wiper
motor.

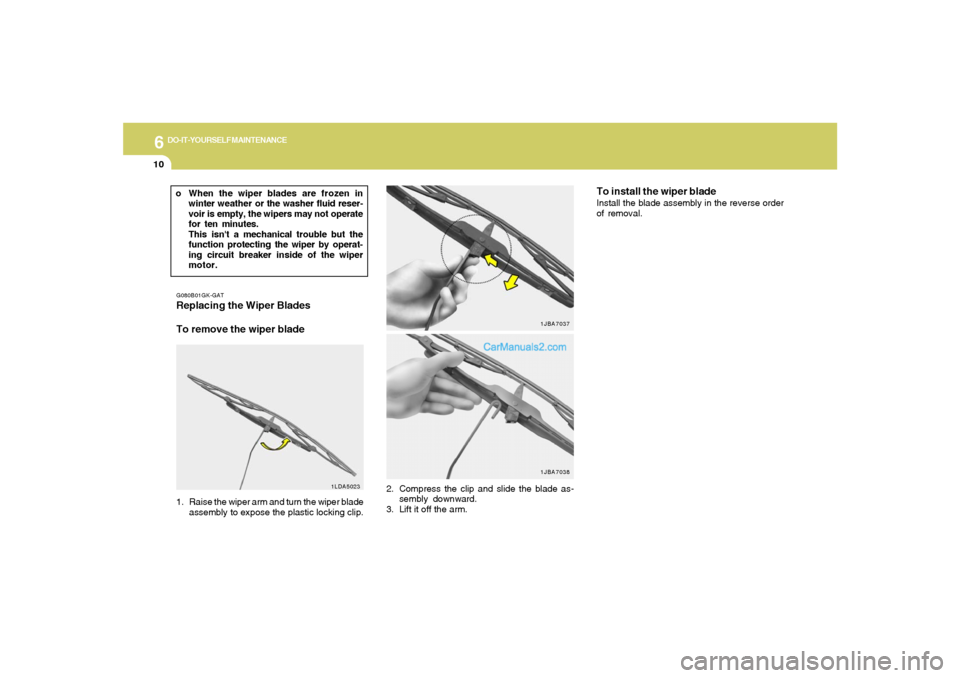

G080B01GK-GATReplacing the Wiper Blades
To remove the wiper blade1. Raise the wiper arm and turn the wiper blade
assembly to expose the plastic locking clip.
1LDA5023
2. Compress the clip and slide the blade as-
sembly downward.
3. Lift it off the arm.
1JBA7037
To install the wiper bladeInstall the blade assembly in the reverse order
of removal.
1JBA7038

10
INDEX
5
Tires
All season tires............................................................................... 8-9
Balancing......................................................................................8-11
Chains..........................................................................................8-10
Changing a flat tire .......................................................................3-11
If you have a flat tire .....................................................................3-11
Information...................................................................................... 8-2
Pressure......................................................................................... 8-3
Replacement................................................................................8-12
Rotation........................................................................................8-10
Sidewall labeling............................................................................. 8-5
Snow tires....................................................................................... 8-9
Spare tire........................................................................................ 3-9
Summer tires.................................................................................. 8-9
Terminology and definitions........................................................... 8-7
Traction........................................................................................8-11
Towing
A trailer (or vehicle)......................................................................2-19
Emergency...................................................................................3-18
If your vehicle must be towed ......................................................3-16
Transaxle
Automatic........................................................................................ 2-8
Automatic transaxle fluid checking ..............................................6-13
Manual............................................................................................ 2-6
Manual transaxle oil checking.....................................................6-11
Trip Computer...................................................................................1-55
Trip Odometer...................................................................................1-54V
Vehicle Identification Number (VIN) ................................................... 8-2
Vehicle Load Limit .............................................................................2-22
Vehicle Specification........................................................................... 9-1
Ventilation
Center ventilator...........................................................................1-84
Side ventilator...............................................................................1-84
W
Warning Lights..................................................................................1-48
Warranties for Your Hyundai ............................................................8-13
Windshield Wiper and Washer ..........................................................1-60
Windshield Wiper Blades.................................................................... 6-9
