2008 HUMMER H3 Transfer case

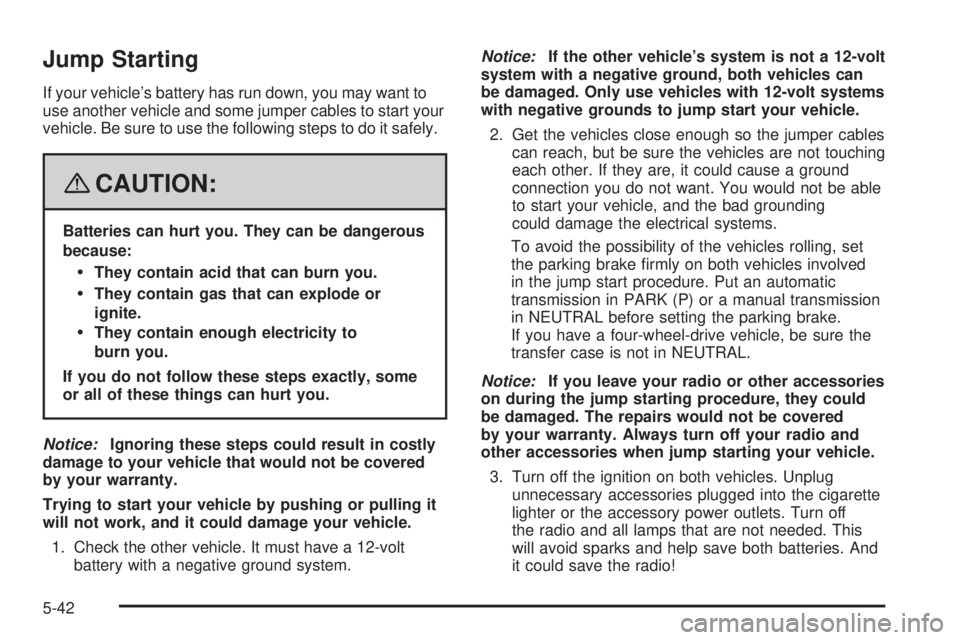

Jump Starting
If your vehicle’s battery has run down, you may want to
use another vehicle and some jumper cables to start your
vehicle. Be sure to use the following steps to do it safely.
{CAUTION:
Batteries can hurt you. They can be dangerous
because:
They contain acid that can burn you.
They contain gas that can explode or
ignite.
They contain enough electricity to
burn you.
If you do not follow these steps exactly, some
or all of these things can hurt you.
Notice:Ignoring these steps could result in costly
damage to your vehicle that would not be covered
by your warranty.
Trying to start your vehicle by pushing or pulling it
will not work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.Notice:If the other vehicle’s system is not a 12-volt
system with a negative ground, both vehicles can
be damaged. Only use vehicles with 12-volt systems
with negative grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles are not touching
each other. If they are, it could cause a ground
connection you do not want. You would not be able
to start your vehicle, and the bad grounding
could damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake rmly on both vehicles involved
in the jump start procedure. Put an automatic
transmission in PARK (P) or a manual transmission
in NEUTRAL before setting the parking brake.
If you have a four-wheel-drive vehicle, be sure the
transfer case is not in NEUTRAL.
Notice:If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
other accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlets. Turn off
the radio and all lamps that are not needed. This
will avoid sparks and help save both batteries. And
it could save the radio!
5-42

Four-Wheel Drive
It is recommended that the four-wheel drive transfer
case uid be checked and lled by your dealer.
Front Axle
It is not necessary to regularly check front axle uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
It is recommended that the front axle uid be checked
and lled by your dealer.
Headlamp Aiming
The vehicle may have a visual optical headlamp aiming
system. The aim has been preset at the factory and
should need no further adjustment.
However, if the vehicle is damaged in a crash, the
headlamp aim may be affected and adjustment may be
necessary.
If oncoming vehicles ash their high beams at you, this
may also mean the vertical aim needs to be adjusted.It is recommended that the vehicle is taken to your
dealer/retailer for service if the headlamps need to be
re-aimed. It is possible however, to re-aim the
headlamps as described.
The vehicle should:
Be placed so the headlamps are 25 ft. (7.6 m) from
a light colored wall or other at surface.
Have all four tires on a level surface which is level
all the way to a wall.
Be placed so it is perpendicular to the wall or other
at surface.
Not have any snow, ice, or mud on it.
Be fully assembled and all other work stopped while
headlamp aiming is being performed.
Be normally loaded with a full tank of fuel and one
person or 160 lbs (75 kg) sitting on the driver seat.
Have the tires properly inated.
Have the spare tire is in its original location in the
vehicle.
5-46

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your
hazard warning ashers.
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
3. If you have a four-wheel-drive vehicle,
be sure the transfer case is in a drive
gear – not in NEUTRAL.
CAUTION: (Continued)
CAUTION: (Continued)
4. Turn off the engine and do not restart
while the vehicle is raised.
5. Do not allow passengers to remain in the
vehicle.
To be even more certain the vehicle will not
move, put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side, at the
opposite end of the vehicle.
When you have a at tire, you will rst need to set up
the wheel blocks before changing it. They are located in
the tool bag, in the swing-gate. SeeRemoving the
Spare Tire and Tools on page 5-81for more information.
5-79

Spare Tire
Your vehicle, when new, had a fully-inated spare tire.
A spare tire may lose air over time, so check its
ination pressure regularly. SeeInflation - Tire Pressure
on page 5-62andLoading Your Vehicle on page 4-42
for information regarding proper tire ination and loading
your vehicle. For instruction on how to remove, install
or store a spare tire, seeRemoving the Flat Tire
and Installing the Spare Tire on page 5-83andStoring
a Flat or Spare Tire and Tools on page 5-89.
After installing the spare tire on your vehicle, you should
stop as soon as possible and make sure the spare is
correctly inated. The spare tire is made to perform well
at speeds up to 70 mph (112 km/h) at the recommended
ination pressure, so you can nish your trip.
Have the damaged or at road tire repaired or replaced
as soon as you can and installed back onto your
vehicle. This way, a spare tire will be available in case
you need it again. Do not mix tires and wheels of
different sizes, because they will not t. Keep your spare
tire and its wheel together.
Appearance Care
Interior Cleaning
Your vehicle’s interior will continue to look its best if it is
cleaned often. Although not always visible, dust and
dirt can accumulate on your upholstery. Dirt can damage
carpet, fabric, leather, and plastic surfaces. Regular
vacuuming is recommended to remove particles
from your upholstery. It is important to keep your
upholstery from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible. Your
vehicle’s interior may experience extremes of heat
that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and garments
that transfer color to your home furnishings may also
transfer color to your vehicle’s interior.
5-91

Fuse Usage
7 Regulated Voltage Control Power
8 Power Locks
9 Sunroof, Front Washer Pump
10 Accessories (SPO)
11 Air Compressor
12 Transfer Case Control Module
13Radio, Heating, Ventilation, Air
Conditioning Display
14 Body Control Module
15 Rear Wiper Motor
16 Rear Wiper Pump Switch
17 Air Injection Reactor (AIR) Solenoid
18 Spare 6
19 Cluster
20 Rear Turn Signal, Hazard Signal
21 Powertrain Control Module 1
22Mass Air Flow Sensor, Purge
Solenoid
23 Injector
24 Fog Lamp
25 Powertrain Control Module B
26 Transmission Control Module (TCM)
27 Airbags
28 Back-up LampsFuse Usage
29 Antilock Brakes, StabiliTrak®
30 Rear Window Defogger
31 Canister Vent
32 Regulated Voltage Control VSense+
33 Ignition 1
34 Transmission
35 Cruise, Inside Rearview Mirror
36 Horn
37 Driver Side Rear Park Lamp
38 Amplier
39Reduced Intensity Low-Beam
Daytime Running Lamps
40 Passenger Side Headlamp
41 Driver Side Headlamp
42 Trailer Back-Up Lamp
43 Front Park Lamps
44 Air Injection Reactor (AIR) Solenoid
45 Auxiliary Power 2
46 Electronic Throttle Control
47 Oxygen Sensor
48 Air Conditioning Clutch
49 Passenger Side Rear Park Lamp
50 Spare
51 Auxiliary Power 1
5-105

Fuse Usage
52 StabiliTrak®, Antilock Brakes
53 Power Heater Switch
54 Stop
55 Trailer Parking Lamps
56 Front Turn Signal, Hazard Signal
57 Power Sunroof
58Transfer Case Control Module
Switch
59 Climate Control
60 Spare 8
61 Power Seats
62 Air Pump
63 Passenger Side Power Window
64Antilock Brakes, StabiliTrak
®2
Solenoid
67Antilock Brakes, StabiliTrak
®1
Motor
68 Driver Side Power Window
82 Climate Control Fan
83 Electronic Brake Controller
84 Trailer B+ Fuse
85 Starter
91 Megafuse
Relay Usage
66 Fuel Pump
69 Fog Lamp
70 High, Low Beam Headlamps
71 Rear Defogger
72 Windshield Wiper On/Off
73 Windshield Wiper High/Low
74 Horn
75 Headlamp
76 Air Conditioning Clutch
77 Powertrain Control Module
78 Run, Crank
79Reduced Intensity Low-Beam
Daytime Running Lamps
80 Air Injection Reactor (AIR) Solenoid
81 Powertrain (Starter)
86 Spare 2
87 Heating, Ventilation, Air Conditioning
88 Retained Accessory Power
89 Park Lamp
Diode Usage
65 Wiper Diode
90 Air Conditioning Clutch Diode
5-106

Capacities and Specications
The following approximate capacities are given in English and metric. Please refer toRecommended Fluids and
Lubricants on page 6-12for more information.
Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more
information.
Cooling System
3.7L Engine 10.0 qt 9.5 L
5.3L Engine 14.3 qt 13.5 L
Engine Oil with Filter
3.7L and 5.3L Engines 6.0 qt 5.7 L
Fuel Tank 23.0 gal 87.1 L
Transfer Case 1.6 qt 1.5 L
5-107

Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated miles
(kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage or
leaks.• •••••
Inspect exhaust system for loose or
damaged components.• •••••
Replace engine air cleaner lter. See
Engine Air Cleaner/Filter on page 5-20.•••
Change automatic transmission uid
and lter (severe service).
See footnote (h).•••
Change automatic transmission uid
and lter (normal service).•
Change transfer case uid.
See footnote (g).•••
Replace spark plugs and inspect spark
plug wires.An Emission Control Service.•
6-6
