2008 GMC SIERRA service indicator

Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-ination has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is
not operating properly. The TPMS malfunction indicator
is combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will ash for
approximately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists.
When the malfunction indicator is illuminated, the
system may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions may occur for
a variety of reasons, including the installation of
replacement or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning properly. Always
check the TPMS malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the
TPMS to continue to function properly.
SeeTire Pressure Monitor Operation on page 5-78, for
additional information.Federal Communications Commission
(FCC) and Industry and Science
Canada
The Tire Pressure Monitor System (TPMS) operates on
a radio frequency and complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
The Tire Pressure Monitor System (TPMS) operates on
a radio frequency and complies with RSS-210 of
Industry and Science Canada. Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
5-77

MaintenanceI— Use MaintenanceIif the
CHANGE ENGINE OIL SOON message comes
on within 10 months since the vehicle was purchased
or MaintenanceIIwas performed.MaintenanceII— Use MaintenanceIIif the previous
service performed was MaintenanceI. Always use
MaintenanceIIwhenever the message comes on
10 months or more since the last service or if the
message has not come on at all for one year.
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil (Gasoline Engine) on page 5-15.
Reset oil life system. SeeEngine Oil Life System on page 5-18.An Emission
Control Service.••
Allison Transmission
®only: Replace external transmission lter at the rst
maintenance service performed on the vehicle.
Lubricate chassis components.See footnote #.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter or change indicator (if equipped). If
necessary, replace lter. SeeEngine Air Cleaner/Filter (Gasoline Engines) on
page 5-19.See footnote (p).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 5-81and “Tire Wear Inspection” inAt Least Once a Month
on page 6-12.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
6-5

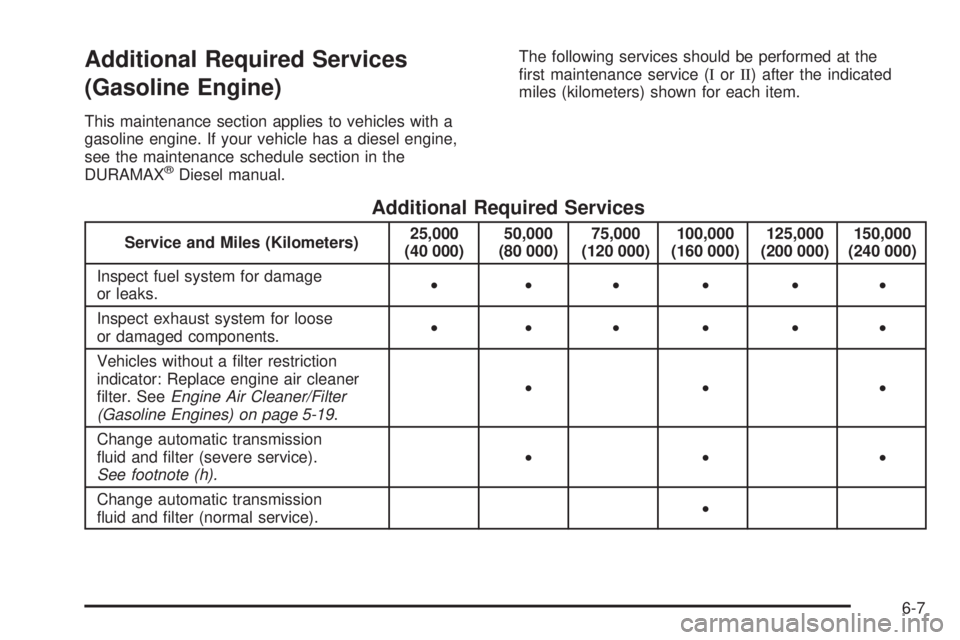

Additional Required Services
(Gasoline Engine)
This maintenance section applies to vehicles with a
gasoline engine. If your vehicle has a diesel engine,
see the maintenance schedule section in the
DURAMAX
®Diesel manual.The following services should be performed at the
rst maintenance service (IorII) after the indicated
miles (kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage
or leaks.• •••••
Inspect exhaust system for loose
or damaged components.• •••••
Vehicles without a lter restriction
indicator: Replace engine air cleaner
lter. SeeEngine Air Cleaner/Filter
(Gasoline Engines) on page 5-19.•••
Change automatic transmission
uid and lter (severe service).
See footnote (h).•••
Change automatic transmission
uid and lter (normal service).•
6-7

(l)Extreme Duty Service: Change transfer case fluid if
the vehicle is mainly driven off-road in four-wheel
drive, or is used for heavy trailer towing. Farming,
mining, forestry, and Department of Natural Resources
(DNR) vehicles meet this definition.
(m)During any maintenance, if a power washer is used
to clean mud and dirt from the underbody, care should be
taken to not directly spray the transfer case output seals.
High pressure water can overcome the seals and
contaminate the transfer case fluid. Contaminated fluid
will decrease the life of the transfer case and should be
replaced.
(n)Vehicles with diesel engine or with GVWR above
10,000 lbs (4 536 kg) only: Inspect shields for damage or
looseness. Adjust or replace as required. This is a
Noise Emission Control Service. Applicable to vehicles
sold in the United States and recommended for
vehicles sold in Canada.
(p)If you drive regularly under dusty conditions, inspect
the filter or change indicator (if equipped) at each
engine oil change.
(q)Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability, and emission control performance of your
vehicle. Your dealer/retailer can assist you with these
checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-15.
At the First 100, 1,000 and 6,000
Miles (160, 1 600 and 10 000 km)
For vehicles with dual wheels, check dual wheel
nut torque. For proper torque, seeCapacities and
Specifications on page 5-130.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel fill.
6-11

A
Accessories and Modications............................ 5-4
Adding a Snow Plow or Similar Equipment.........4-43
Adding Equipment to Your Airbag-Equipped
Vehicle.......................................................1-85
Additives, Fuel................................................. 5-7
Add-On Electrical Equipment...........................5-122
Adjustable Throttle and Brake Pedal..................2-26
Air Cleaner/Filter, Engine.................................5-19
Air Conditioning..............................3-25, 3-27, 3-28
Airbag
Off Light.....................................................3-39
Passenger Status Indicator...........................3-41
Readiness Light..........................................3-38
Airbag System................................................1-68
What Will You See After an Airbag Inates?....1-75
When Should an Airbag Inate?....................1-73
Where Are the Airbags?...............................1-71
Airbag Systems
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-85
Airbag Off Switch........................................1-76
How Does an Airbag Restrain?......................1-74
Passenger Sensing System...........................1-80
Servicing Your Airbag-Equipped Vehicle..........1-84
What Makes an Airbag Inate?......................1-74
Antenna, Fixed Mast......................................3-126Antenna, XM™ Satellite Radio Antenna
System.....................................................3-126
Antilock Brake System (ABS)............................. 4-4
Antilock Brake, System Warning Light................3-45
Appearance Care
Aluminum or Chrome-Plated Wheels.............5-118
Care of Safety Belts...................................5-115
Chemical Paint Spotting..............................5-120
Cleaning Exterior Lamps/Lenses..................5-116
Fabric/Carpet............................................5-114
Finish Care...............................................5-116
Finish Damage..........................................5-119
Instrument Panel, Vinyl, and Other Plastic
Surfaces
...............................................5-115
Interior Cleaning........................................5-112
Leather....................................................5-114
Sheet Metal Damage..................................5-119
Tires........................................................5-119
Underbody Maintenance.............................5-119
Vehicle Care/Appearance Materials...............5-120
Washing Your Vehicle.................................5-116
Weatherstrips............................................5-115
Windshield and Wiper Blades......................5-117
Appointments, Scheduling Service....................... 7-9
Ashtray.........................................................3-24
Audio System.................................................3-80
Audio Steering Wheel Controls....................3-124
Fixed Mast Antenna...................................3-126
1

Lighting
Entry.........................................................3-21
Exit...........................................................3-21
Lights
Exterior Lamps............................................3-17
Flash-to-Pass..............................................3-11
High/Low Beam Changer..............................3-11
On Reminder..............................................3-18
Loading Your Vehicle.......................................4-36
Locking Rear Axle............................................ 4-5
Lockout Protection..........................................2-12
Locks
Delayed Locking..........................................2-10
Door..........................................................2-10
Lockout Protection.......................................2-12
Power Door................................................2-10
Programmable Automatic Door Locks.............2-11
Rear Door Security Locks.............................2-11
Loss of Control...............................................4-11
Low Fuel Warning Light...................................3-54
Luggage Carrier..............................................2-76
Lumbar
Manual Controls............................................ 1-5
Power Controls............................................. 1-5M
Maintenance Schedule
Additional Required Services........................... 6-7
At Each Fuel Fill.........................................6-11
At Least Once a Month................................6-12
At Least Once a Year..................................6-13
At the First 100, 1,000 and 6,000 Miles
(160, 1 600 and 10 000km).......................6-11
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-9
Maintenance Record....................................6-19
Maintenance Replacement Parts....................6-17
Maintenance Requirements............................. 6-2
Owner Checks and Services.........................6-11
Recommended Fluids and Lubricants.............6-15
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-3
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-48
Manual Lumbar Controls.................................... 1-5
Manual Seats................................................... 1-3
Manual, Using.................................................... iii
Manual Windows............................................2-16
Memory Seat, Mirrors, and Pedals...................... 1-6
Message
DIC Warnings and Messages........................3-63
8

Secondary Latch System................................5-105
Securing a Child Restraint
Center Front Seat Position............................1-57
Rear Seat Position......................................1-55
Right Front Seat Position..............1-58, 1-62, 1-66
Security Light.................................................3-52
Service........................................................... 5-4
Accessories and Modications......................... 5-4
Adding Equipment to the Outside of Your
Vehicle..................................................... 5-6
California Pershlorate Materials Requirements.... 5-5
California Proposition 65 Warning.................... 5-4
Doing Your Own Work................................... 5-5
Engine Soon Light.......................................3-48
Publications Ordering Information...................7-15
Service, Scheduling Appointments....................... 7-9
Servicing Your Airbag-Equipped Vehicle..............1-84
Sheet Metal Damage.....................................5-119
Shifting Into Park (P).......................................2-50
Shifting Out of Park (P)...................................2-52
Signals, Turn and Lane-Change........................3-10
Sliding Rear Window, Power.............................2-17
Snow Plow....................................................4-43
Spare Tire....................................................5-112
Installing....................................................5-98
Removing...................................................5-93
Storing.....................................................5-108
Specications, Capacities...............................5-130
Speedometer..................................................3-36
StabiliTrak
®System.......................................... 4-6StabiliTrak
®Indicator Light................................3-46
Start Vehicle, Remote....................................... 2-7
Starting the Engine.........................................2-24
Steering.......................................................... 4-8
Steering Wheel Controls, Audio.......................3-124
Steering Wheel, Tilt Wheel................................. 3-9
Storage Areas
Cargo Management System..........................2-78
Center Console Storage Area........................2-76
Cupholder(s)...............................................2-75
Glove Box..................................................2-74
Instrument Panel Storage Area......................2-75
Luggage Carrier..........................................2-76
Rear Seat Armrest.......................................2-77
Stuck in Sand, Mud, Ice, or Snow.....................4-34
Sun Visors.....................................................2-18
Sunroof.........................................................2-79
T
Tachometer....................................................3-36
Tailgate.........................................................2-14
Taillamps
Turn Signal, Stoplamps and Back-up Lamps....5-62
Theft-Deterrent, Radio....................................3-123
Theft-Deterrent Systems...................................2-18
Content Theft-Deterrent................................2-18
PASS-Key
®III+...........................................2-20
PASS-Key®III+ Operation.............................2-20
12

V
Vehicle
Control........................................................ 4-3
Damage Warnings........................................... iv
Loading......................................................4-36
Symbols......................................................... iv
Vehicle Customization, DIC..............................3-72
Vehicle Data Recording and Privacy..................7-16
Vehicle Identication
Number (VIN)............................................5-121
Service Parts Identication Label..................5-122
Vehicle, Remote Start....................................... 2-7
Ventilation Adjustment......................................3-33
Visors...........................................................2-18
Voltmeter Gage..............................................3-43
W
Warning Lights, Gages and Indicators................3-34
Warnings
DIC Warnings and Messages........................3-63
Hazard Warning Flashers............................... 3-8
Other Warning Devices.................................. 3-8
Safety and Symbols......................................... iii
Vehicle Damage.............................................. ivWheels
Alignment and Tire Balance..........................5-88
Different Size..............................................5-86
Replacement...............................................5-88
Where to Put the Restraint...............................1-44
Windows.......................................................2-15
Manual......................................................2-16
Power........................................................2-16
Sliding Rear................................................2-17
Windshield
Rainsense™ II Wipers..................................3-12
Washer......................................................3-13
Washer Fluid..............................................5-40
Wiper Blade Replacement.............................5-65
Wiper Blades, Cleaning..............................5-117
Wiper Fuses.............................................5-123
Wipers.......................................................3-12
Winter Driving................................................4-31X
XM Radio Messages.....................................3-111
XM™ Satellite Radio Antenna System..............3-126
Y
Your Vehicle and the Environment....................... 6-2
14
