2008 GMC CANYON radio

Congratulations on your purchase of a GMC Canyon. Please read this information and your Owner Manual
to ensure an outstanding ownership experience. Note that your vehicle may not include all the featuresdescribed in this booklet. Keep this booklet with your Owner Manual for easy reference.
DRIVER INFORMATION
Instrument Panel . . . . . . . . . . . . . .2
Instrument Panel Cluster . . . . . . .3
Driver Information Center . . . . . . .4
SAFETY & SECURITY
Safety Belts . . . . . . . . . . . . . . . . . .5
Child Comfort Guide . . . . . . . . . . .5Child Restraints (LATCH) . . . . . . .6
Automatic Door Locks . . . . . . . . .6
Rear Door Security Locks . . . . . .6
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . .7
Content TheftDeterrent System .7
OnStar
® . . . . . . . . . . . . . . . . . . . . . .8
COMFORT
Power Seats . . . . . . . . . . . . . . . . . .8
Heated Seats . . . . . . . . . . . . . . . . .8
Manual/Power Lumbar . . . . . . . . .9
Preventing Window Fogging . . . .9
ENTERTAINMENT
Audio Systems . . . . . . . . . . . . . . .9
Radio Antenna . . . . . . . . . . . . . . .12
CONVENIENCE
Headlamp Controls . . . . . . . . . . .12
Automatic Headlamp System . . .13
Fog Lamps . . . . . . . . . . . . . . . . . .13
Cargo Lamps . . . . . . . . . . . . . . . .13
Dome Lamp Override . . . . . . . . .13
Rear Seat Folding Operation . . .14Flexible, Locking Tailgate . . . . . .14
Cargo TieDowns and
Bed Rails . . . . . . . . . . . . . . . . . . .15
TwoTier Loading and
Optional Bed Extender . . . . . . . .15
PERFORMANCE & MAINTENANCE
Starting Your Engine . . . . . . . . . .16
Resetting the Oil Life System . .16
Automatic Locking Differential .16
FourWheel Drive System . . . . . .16
Traction Control System . . . . . . .19
Tire Pressure Monitor . . . . . . . . .19
OWNER INFORMATION
Roadside Assistance . . . . . . . . .20
My GMLink . . . . . . . . . . . . . . . . . .20
Canyon 2008 A 4/3/07 12:36 PM Page 1

9
Manual/Power Lumbar
(if equipped)
The manual lumbar control knob is
located on the outboard side of the driver’s seat. Turn the knob counterclock
wise to increase lumbar support andclockwise to decrease lumbar support.
The power lumbar control switches for
the driver and passenger seats arelocated on the outboard side of theseats.
See Section 1 of your Owner Manual.
Preventing Window Fogging
To clear fog or frost from the windshield
or side windows, turn the airflow controlknob to one of the following modes:
(Floor/Defog):Use to clear the
windows of moisture and to warm
passengers. This mode splits the air delivery between the windshield and thefloor outlets.
(Defrost):Use to remove fog or
frost from the windshield more quickly.This mode directs most of the air to the windshield.
When you select the floor/defog or
defrost mode, the system automatically
turns off the recirculation mode and runsthe air conditioning compressor. The
recirculation mode cannot be selected
because outside air is needed to removeinterior moisture from the vehicle.
See Section 3 of your Owner Manual.
ENTERTAINMENT
Audio Systems
AM/FM Stereo (if equipped)
Set the clock on the AM/FM stereo
radio
•Press and hold the HR button until
the correct hour appears.
• Press and hold MIN until the correct
minute appears.
Display the time with the ignition off
• Press RCL, HR or MIN.
Presetting Radio Stations
You can set up to 18 station presets
(six AM, six FM1 and six FM2) using the
process shown below.
Set a station
1.Turn the radio on.
2. Press the BAND button to select the
band (AM, FM1 or FM2).
3. Tune to the desired station using the
seek function or tune knob.
4.Press AUTO EQ or AUTO TONE (on
equipped audio systems, as applies
to your radio) to select the soundequalization best suiting the type ofstation selected.
5.Press/hold a numbered button until a
beep confirms storage of the station.
6. Repeat the previous steps for each
pushbutton.
Canyon 2008 A 4/3/07 12:36 PM Page 9

Getting to Know Your Canyon10
AM/FM Stereo with CD/MP3 and
Radio Data System (if equipped)
Set the clock on RDSequipped radios
• Press and hold HR and MN simul
taneously for two seconds until
UPDATED and the clock symbol
appear on the display.
If the time is not available from the
station, NO UPDAT will appear.
Using the RDS
Radios equipped with RDS mode allow
you to:
• Seek only stations with your
preferred programming type.
• Seek stations with traffic
announcements.
• Receive announcements of local
and/or national emergencies.
•Receive and display messages from
radio stations.
RDS features are available only on FM
stations that broadcast RDS information.When tuned to an RDS station, the radiodisplays the station name instead of the
frequency. Most RDS stations broadcasttheir station name, time of day and a
Program Type (PTY).
Access the traffic announcement
feature
• Press the TRAF button.
Access radio station messages
• Press the INFO button when INFO
appears on your radio display.
Access Program Type selections
1. To turn Program Type on, press the
SEEK TYPE button once.
2. Turn the PTYPE knob to select the
Program Type you want.
3. Press the SEEK or SEEK TYPE but
ton and the radio seeks to the firstavailable RDS broadcast of the
selected Program Type.
4. To turn Program Type off (while
seeking), press the SEEK or SEEKTYPE button, or wait for the seek tocomplete. All stations will now be
available when you press the SEEK
button.
Activate the Alternate Frequency
feature
• Press and hold the BAND button for
two seconds to turn it on; repeat to
turn it off.
When turned on, AF ON appears on the
radio display and the radio may switch
to stronger stations of the same PTY.
ALERT!
This message appears on the display
when a local or national emergency
announcementis available. If a CD is
playing, the announcement will override
it. ALERT! announcements cannot beturned off, and are not affected by tests
of the Emergency Broadcast System.
Canyon 2008 A 4/3/07 12:36 PM Page 10

11
MP3 Capability (if equipped)
A CDR or CDRW containing MP3
audio tracks will play automatically when
inserted into the CD player.
AM/FM Stereo with SixDisc CD
Changer (if equipped)
Load
oneCD into the sixdisc CD
changer
1. Turn the ignition on; then press and
release the LOAD side of the LOADCD button.
2. Wait for the indicator light at the right
side of the slot to turn green.
3. Insert the disc partway into the slot,
label side up; the player will pull thedisc in.
Load multipleCDs into the sixdisc
CD changer
1. Turn the ignition on; then press and
hold the LOAD button for two sec
onds. The unit beeps and the light tothe right of the slot begins to flash
and MULTI LOAD # will appear on
the display.
2.When the light stops flashing and
turns green and INSERT CD #
appears on the display, insert a disc
partway, label side up. The player willpull the disc in.
3.The indicator light will begin blinking
and then turn green. Load anotherdisc at this time.
• To load more than one but fewer than
six discs, press the LOAD buttonagain after loading the final CD.
• For every CD loaded, a number
appears on the radio display.
• To play a specific CD, press the CD
AUX button and then the number of
the CD you want to hear.
• A small bar appears under the CD
number that is playing, and the tracknumber appears.
Access Program Type selections for
SixDisc CD Changer
1. To turn Program Type on, press the
TYPE button once.
2. Turn the TYPE turn knob or press the
TYPE button to select the ProgramType you want.
3.Press the SEEK or TYPE arrows and
the radio seeks to the first availableRDS broadcast of the selected
Program Type.
4.To turn Program Type off (while
seeking), press the SEEK or TYPE
arrows, or wait for the seek to complete. All stations will now be
available when you press the SEEKbutton.
Note:CDs with any affixed labels may
jam in the CD player. Label a CD using
a permanent marker. If more than oneCD is inserted into the slot at one time,
or if scratched or damaged CDs are
played, the CD player could be
damaged. When using the CD player,
use only CDs in good condition without
labels; load one CD at a time; and keepthe CD player and the loading slot free
of foreign materials, liquids or debris.
Canyon 2008 A 4/3/07 12:36 PM Page 11

Getting to Know Your Canyon12
TheftLock
When TheftLock is activated, your radio
will not operate if it is stolen. This feature works by learning a portion of your
vehicle’s VIN (Vehicle IdentificationNumber). If the radio is installed on a
different vehicle, it will not operate andLOC or LOCKED (depending on radio
equipped) will appear on the display.
A blinking red light indicates that the
system is armed.
XM®Satellite Radio (if equipped)
XM Satellite Radio offers more than 170
channels of digitalquality sound thatgoes wherever you go — coast to coast.
XM displays song title, artist and entertainment genre.
For more information, visit XM on the
Internet at www.XMradio.com or call
1800852XMXM (9696).
Access XM Satellite Radio on
equipped vehicles
• Press the BAND button until XM1 or
XM2 appears on the display.
See Section 3 of your Owner Manual.
Radio Antenna
The fixed mast radio antenna is
designed to withstand most car washes.Check occasionally to make sure the
mast is still tightened to the fender. Iftightening is required, tighten it by hand,and then use the special tool (located inthe glove box) to turn it onequarter turn.
See Section 3 of your Owner Manual.
CONVENIENCE
Headlamp Controls
The exterior lamps control is located on
the instrument panel to the left of thesteering wheel.
Turn off all exterior lamps, including
the Daytime Running Lamps
• Turn the knob to the OFF position
().
Activate the Automatic Headlamp
System that illuminates all exterior
lamps and the instrument panel/radiolights when they are needed
• If not already in the AUTO position,
turn the knob to AUTO.
Manually illuminate the parking
lamps, exterior tail/sidemarker lampsand instrument panel/radio lights
•Turn the knob to this position ( ).
Activate the headlamps, exterior tail/
sidemarker lamps and instrumentpanel/radio lights
• Turn the knob to this position ( ).
See Section 3 of your Owner Manual.
Canyon 2008 A 4/3/07 12:36 PM Page 12

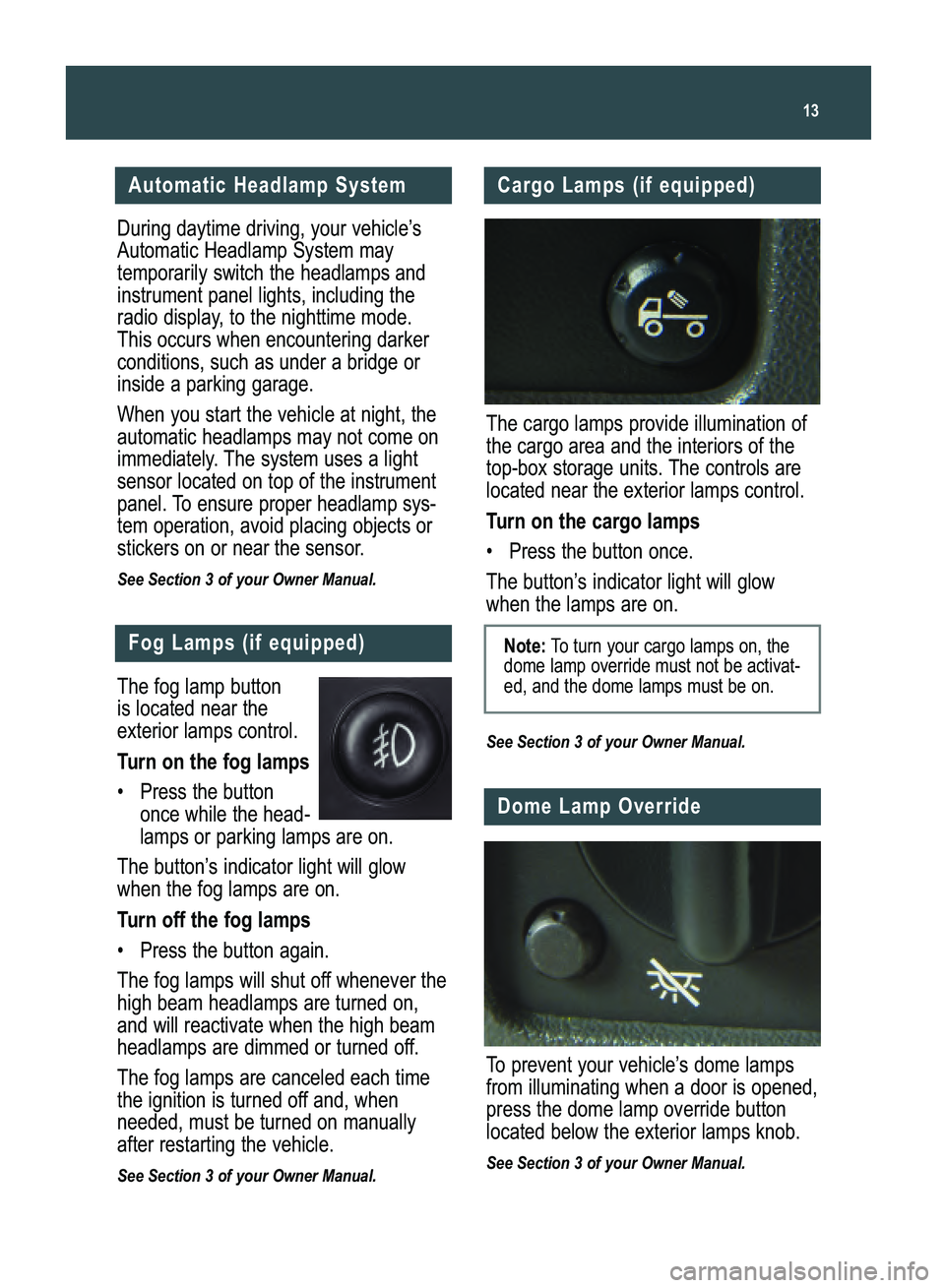

13
Automatic Headlamp System
During daytime driving, your vehicle’s
Automatic Headlamp System may temporarily switch the headlamps andinstrument panel lights, including the
radio display, to the nighttime mode.This occurs when encountering darkerconditions, such as under a bridge orinside a parking garage.
When you start the vehicle at night, the
automatic headlamps may not come onimmediately. The system uses a light
sensor located on top of the instrument
panel. To ensure proper headlamp system operation, avoid placing objects or
stickers on or near the sensor.
See Section 3 of your Owner Manual.
Fog Lamps (if equipped)
The fog lamp button
is located near theexterior lamps control.
Turn on the fog lamps
• Press the button
once while the head
lamps or parking lamps are on.
The button’s indicator light will glow
when the fog lamps are on.
Turn off the fog lamps
• Press the button again.
The fog lamps will shut off whenever the
high beam headlamps are turned on,and will reactivate when the high beamheadlamps are dimmed or turned off.
The fog lamps are canceled each time
the ignition is turned off and, whenneeded, must be turned on manuallyafter restarting the vehicle.
See Section 3 of your Owner Manual.
Cargo Lamps (if equipped)
The cargo lamps provide illumination of
the cargo area and the interiors of the
topbox storage units. The controls arelocated near the exterior lamps control.
Turn on the cargo lamps
• Press the button once.
The button’s indicator light will glow
when the lamps are on.
See Section 3 of your Owner Manual.
Note: To turn your cargo lamps on, the
dome lamp override must not be activated, and the dome lamps must be on.
Dome Lamp Override
To prevent your vehicle’s dome lamps
from illuminating when a door is opened,
press the dome lamp override buttonlocated below the exterior lamps knob.
See Section 3 of your Owner Manual.
Canyon 2008 A 4/3/07 12:36 PM Page 13

19
Traction Control System
(2WD models)
If the Traction Control System (TCS)
detects wheelspin at one or both rearwheels, the system will reduce enginepower and/or upshift the transmission
to help limit wheelspin. When the TCS is working, during which the Driver
Information Center displays LO TRAC,you may notice reduced engine performance.
The TCS is auto
matically turned on
each time the vehicle is started.
Under most driving
conditions, youshould leave the TCS turned on. But
if your vehicle ever gets stuck in sand,
mud or snow and rocking the vehicle is
required, you may want to turn off theTCS. See Section 4 of your OwnerManual for important details.
To turn off the TCS:
•Press the TCS button located on the
instrument panel just above the radio.
The indicator light will illuminate when
the TCS is turned off.
• Press the button again to turn the
TCS back on. The indicator light will
turn off.
See Section 4 of your Owner Manual.
Tire Pressure Monitor
The Tire Pressure Monitor alerts you
when a significant reduction in pressure
occurs in one or more of your vehicle’s
tires by illuminating the (Low Tire
Pressure) warning light on the instru
ment panel cluster. The low tire pres
sure warning light will remain on until
you correct the tire pressure. A LOWTIRE message may also appear on
the DIC.
Correcting the Tire Pressure
When the low tire pressure warning light
illuminates, you must fill the tire to theproper tire inflation pressure (just as youmust refuel the vehicle when the low fuel
warning light illuminates). The Tire andLoading Information label shows thecorrect inflation pressure for the tireswhen they’re cold. “Cold” means yourvehicle has been sitting for at least three
hours or driven no more than one mile.
You can temporarily clear the DIC
message by acknowledging it with yourDIC controls. However, at the next
vehicle startup, the DIC message will
reappear if the tire pressure has notbeen corrected.
During cooler conditions, the low tire
pressure warning light may appear whenthe vehicle is first started and then turn
off as you start to drive the vehicle. Thiscould be an early indicator that your tirepressures are getting low and need to
be inflated to the proper pressure.
See Section 5 of your Owner Manual.
Note:The Tire Pressure Monitor can
alert you about low tire pressure, but itdoesn’t replace normal monthly tiremaintenance.
Canyon 2008 A 4/3/07 12:36 PM Page 19
