Chapter 2 Usage and Maintenance of MK SeriesSection 1 Usage of MK Series1. Instrument Panel Overview1.Instrument Panel Outlet Vent
2. Instrument Panel
3.Upper Glove Compartment
(Front Passenger Airbag Cover)
4.Sunshade
5.Dome Light And Sunroof
Switch
6.Inside Rearview Mirror
7.Glove Box
8. Power Window Regulator
Switch
9. Manual Transmission Shift
Lever Or Automatic Transmis-
sion Shift Lever
10.Parking Brake Control Lever
11.Engine Hood Release Handle
12.Power Window Lock
13.Power Door Lock Switch1.Left Combination Switch
2.Right Combination Switch
3.Display
4.Audio
5.Short-Distance Odometer
Adjustment Button
6.Instrument Panel Brightness
Adjustment Switch
7.Hazard Warning Light
8.A/C Control Panel
9.Ash Tray
10.Defroster Switch
11.Cigarette Lighter
12.”A/C“ Switch
13.Ignition Switch
14.Tilt Steering Adjustment
Handle
15.Theft-Deterrent Indicator
16.Power Outside Rearview
Mirror Control SwitchUsage and Maintenance of MK Series - Usage of MK Series2-6
2-85. Actions to ensure vehicle working condition and safe driving.
(1) To make sure of driving safety, execute the following inspections before driving.
a. Inspect fuel level, and add fuel when necessary.
b. Inspect illuminating lights, turning signal lights, braking signal lights to see if they work.
c.Check the position of rearview mirrors.
d.Check if breaking system functions well.
e.Check if glass of all the lights, windshield is clean.
(2) Regular inspection Perform the following regular inspections to ensure the vehicle work condition and
driving safety.
a. Check engine oil level. Park the vehicle on flat road; check the oil level with engine oil level indicator
at least 10 minutes after the engine is stopped. The oil level should be between the two marks. If it is
lower than "L" mark, add some oil; if it is higher than "F" mark, there is excessive oil, so release it.
Or investigate the cause of high oil level.
The volume between the lowest oil level ("L") and highest oil level ("F") is 1.4L.
b. Check engine coolant level. Check the level when the engine is cool. The coolant level should be between
LOW and FULL. If it is lower than "LOW", add coolant. If the coolant is much lower than Min (every
coolant fill is more than 1L) or the vehicle requires frequent fills,investigate if there is any problem with
the cooling system.
To keep the function of coolant, replace coolant every two years at the beginning of cold winter.
c. Check brake and clutch fluid level (sharing a reservoir). Brake fluid level should between the Max and
Min marks. And it is better to keep it close to the Max mark. Add fluid in time when there is not enough
fluid.
d. Check power steering fluid tank. The level should be between Max and Min marks. Refill when there
is not enough steering fluid to avoid pump stuck. It is strictly prohibited to run the vehicle without
steering fluid in any circumstances.
e. Check the charging status of battery and if the connection of battery wires is good.
f. Check tire status and pressure
g. Check the status of wipers.
(3) Observe warning lights and indicators on instrument panel.
a. There are various warning lights and indicators on the instrument panel of MK-1 sedans to indicate and
warn abnormal operations of engine, braking, and charging systems.
b. Pay attention to these lights when driving.When the warning lights or indicators are on,stop the vehicle,
check the vehicle and resolve the causes to make sure the vehicle works well or drives safely.
6. Correct ways to use new cars
Reliability and stability of components in new cars and recently repaired cars still need to be confirmed, and
relative parts are not broken-in, so they must be used carefully to ensure driving safety, to avoid abnormal damage,
and to extend the useful life of the car.
(1) Before driving inspection The following inspections must be performed on the new car to ensure car safety
and reliable operation:
a. Check if instrument panel, warning lights, and indicator, front and rear wiper and washer, and switches
work.
b. Check if the fastening of driveline, steering, suspension, wheels and other connection parts is good.Usage and Maintenance of MK Series - Usage of MK Series
Chapter 6 WindshieldI. Component ViewRight front bady
pillar upper trim
Front windscreen seal-
ing strip
Left front body pillar
upper trim
Vent cover seal
Left vent cover assy.Left front wiper rocker arm assy.
Right vent cover assy. Right front wiper
rocker arm Assy.Polyurethane adhesive sealantFront windscreen stopInside rearview mirrorLeft Sun Visor assy. Right Sun Visor assy.
Sun Visor holder Sun Visor holderCeiling trim Roof handle assy.6-16Glasses box assembly
(without moonroof)Interior & Exterior Trim and Accessory -Windshield
6-17II. Install and replace windscreen glass1. Remove the rearview mirror assy.
2. Remove the cover assy.
a. Unfasten two bolts on the wiper and remove the wiper assy.
b. Remove bolts and clips from vent cover, and take down the left portion of the cover.
c. Remove the right part of the board.
3. Remove the exterior sealing strip of the windscreen glass.
a. As per the drawing, cut the sealing strip with a knife;
Attention:
Avoid damaging the car body.
b. Tear away the sealing strip.
4. Remove windscreen glass
a. Guide iron wire through inner side right car body and glass;
b. Fasten a wood block or article of similar function to both ends
of the wire;
(Tips: Stick a protective film on the exterior surface to avoid
it being scratched)
c. Draw the steel wire and cut the polyurethane adhesive sealant;
d. Remove the stop block;
e. Use a rubber cupule to detach the glass.
Attention:
1. When detaching the glass, be careful not to scratch the paint
or the inner and outer trims;
2. When removing the glass, leave as much as possible
polyurethane adhesive sealants.
5. Clean the windscreen glass;
a. Use drawknife to remove the remaining stop block and
polyurethane adhesive sealant;
b. Use clean gasoline to clean outer race of glass.
Attention:
Do not touch the glass surface after cleaning.
6. Install the stop block of windscreen glass (II)
(1) Clean the mounting position of stop block for glass;
(2)Install two new stops (with pressure sensitive adhesive) onto the glass.cut
cut
stopper
High-carbon steel wire
Safety pad
Protective beltInterior & Exterior Trim and Accessory -Windshield

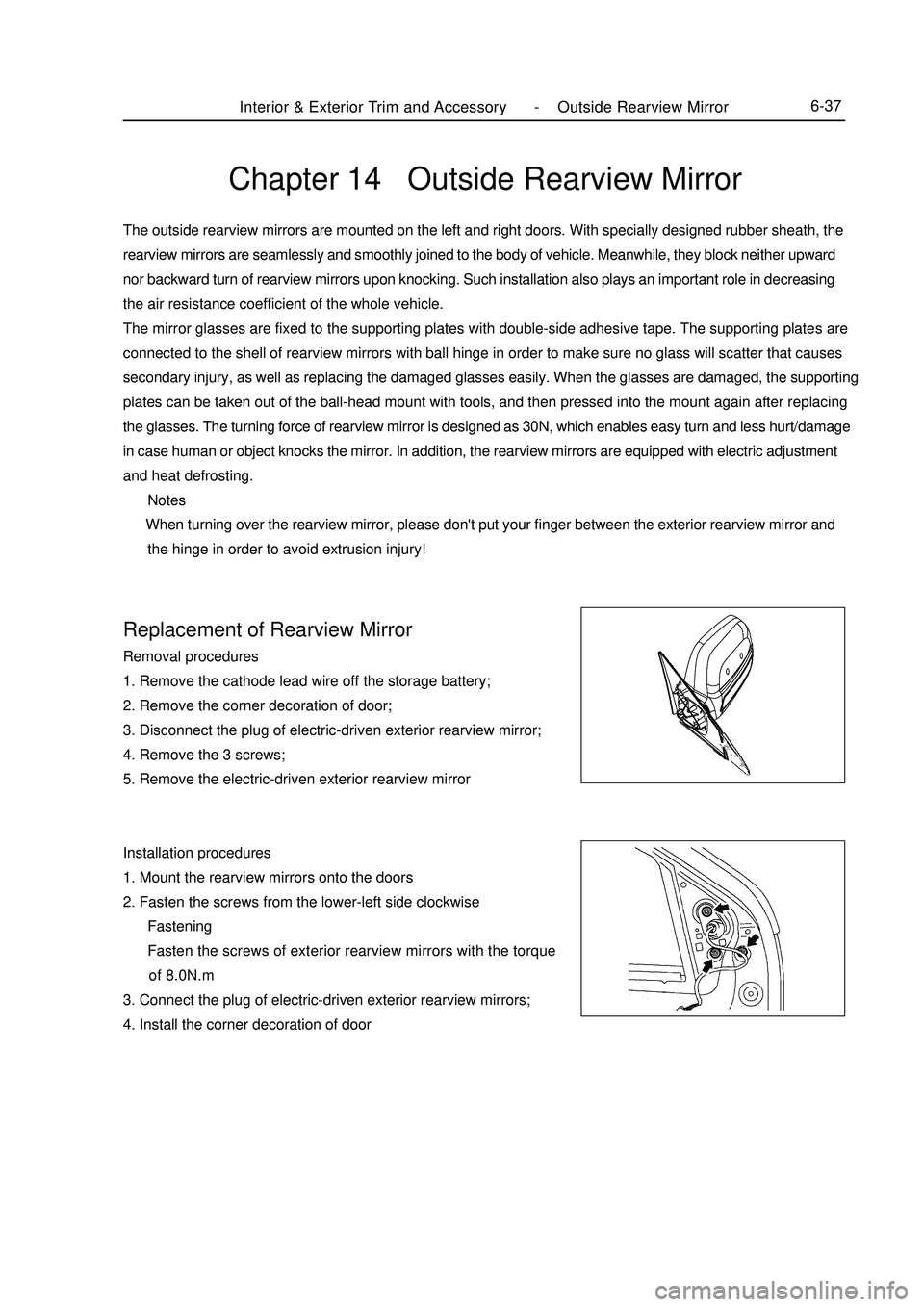

Interior & Exterior Trim and Accessory -Outside Rearview Mirror6-37Chapter 14 Outside Rearview MirrorThe outside rearview mirrors are mounted on the left and right doors. With specially designed rubber sheath, the
rearview mirrors are seamlessly and smoothly joined to the body of vehicle. Meanwhile, they block neither upward
nor backward turn of rearview mirrors upon knocking. Such installation also plays an important role in decreasing
the air resistance coefficient of the whole vehicle.
The mirror glasses are fixed to the supporting plates with double-side adhesive tape. The supporting plates are
connected to the shell of rearview mirrors with ball hinge in order to make sure no glass will scatter that causes
secondary injury, as well as replacing the damaged glasses easily. When the glasses are damaged, the supporting
plates can be taken out of the ball-head mount with tools, and then pressed into the mount again after replacing
the glasses. The turning force of rearview mirror is designed as 30N, which enables easy turn and less hurt/damage
in case human or object knocks the mirror. In addition, the rearview mirrors are equipped with electric adjustment
and heat defrosting.
Notes
When turning over the rearview mirror, please don't put your finger between the exterior rearview mirror and
the hinge in order to avoid extrusion injury!Replacement of Rearview MirrorRemoval procedures
1. Remove the cathode lead wire off the storage battery;
2. Remove the corner decoration of door;
3. Disconnect the plug of electric-driven exterior rearview mirror;
4. Remove the 3 screws;
5. Remove the electric-driven exterior rearview mirror
Installation procedures
1. Mount the rearview mirrors onto the doors
2. Fasten the screws from the lower-left side clockwise
Fastening
Fasten the screws of exterior rearview mirrors with the torque
of 8.0N.m
3. Connect the plug of electric-driven exterior rearview mirrors;
4. Install the corner decoration of door
