Move seat forward or backward angleUsage and Maintenance of MK Series - Usage of MK Series2-7212.How to use ignition switch
(1) LOCK when key is at this position, it can be pulled out and inserted in easily. The function of this position
is to lock steering wheel. If the key cannot be turned from LOCK to ACC, please rotate the steering wheel slightly
while turning the ignition key.
(2) ACC radio and cigarette lighter is turned on when key is at this position.
(3) ON when key is at this position, the following indicator is on: battery charging, ABS, brake fluid level,
park brake, engine coolant temperature, engine MIL, airbag oil pressure.
(4) START Turn the key to this position to start the engine. When engine is started, release the key
immediately. It returns to ON automatically. When engine is on, do not turn the key to this position.
Notice:
(1) Do not pull the key out or turn it to LOCK before the car is fully stopped, or there will be dangers caused
by locking steering wheel or disabling some safety functions.
(2) It is prohibited to drive the car with engine turned off to ensure functioning of braking and steering booster.
(3) Do not let the key stay at ON for a long time when engine is off, or the battery fully discharged.
(4) Shift to neutral gear before ignition key is switched to START.
(5) Turn the steering wheel lightly after the car is fully stopped to make sure it is locked.
3.Unlock Steering Wheel
How to unlock steering wheel: insert ignition key, turn the steering wheel lightly and switch the ignition key.
Steering wheel is unlocked.
4.Adjust seat position
Seat back angle and cushion angle of front seats in MK-1 sedan can be adjusted.
(1) Adjust seat back angle
Turn around adjusting handle, and adjust seat back to appro
priate position.
(2) Move seat forward or backward
Steps:
a. pull adjusting handler up
b. Move the seat forward or backward, and adjust the seat to
appropriate position.
c. Put the handler down and move the seat again till it is
locked.
Attention: adjust the seat only when the car is fully stopped
to ensure safety.
(3) Front head rest can be adjusted in two ways.
Push the head rest from back to front, there are three fixed
positions to lock.If pushed over the final locking position,the
head rest can return to the original position after hand
withdraws.
(4) Fold Rear Row Seat
The seat back can be tilted forward so that the trunk will be
used to the last degree.
a. Remove the head rest
b. Unlock the seatback and fold it down.
Split seatback can be folded separately on demand.

Notice
1. Work must be started 60s after the negative (-) terminal cable is detached from battery. The detached
negative (-) terminal cable shall be protected with insulating tape for insulation.
2. Never attempt to dismantle or repair an ECU. If there is any trouble, replace the ECU with a new one.
3. Prevent the ECU from shock or vibration. If pitting, crack or distortion is found, replace the ECU with a
new one.
4. Every time an airbag is deployed, the ECU shall be replaced with a new one.
5. When disassembling or maintaining the parts around ECU, attention must be given to avoid contacting the
ECU. 2. Removal procedures:
(1) Remove the miscellaneous box in the middle consoce.
(2) Remove the connectors to SRS ECU.
(3) Remove ECU.
3. Installation procedures:
(1) Install ECU.
(2) Install the connectors to SRS ECU.
(3) Install the miscellaneous box in the middle consoce.
(4) Connect negative (-) terminal cable of the battery.
4. Key points for Installation:
(1) Install ECU.Notice
If the ECU cannot be installed correctly, the airbag will not act normally.
5. Check
a. ECU case for pitting, crack and distortion
b. The connector for damage and distortion.Notice
If pitting, crack or distortion is found on an ECU, replace it with a new one.VII. Airbag assembly & clock spring1.Removal and Installation of driver airbag and clock spring
Operations prior to removal
(1)Take out the ignition key after the steering wheel and front
wheel are adjusted to straightforward direction.
(2)Remove negative (-) terminal cable from the battery.
Removal procedures of the driver airbag assembly:
(1) Unscrew the screws of the two sides, see fig.15-65SRS (Supplemental Restraint System)-SRS-General Information (2) Check after installation.
a. Turn the ignition switch ON.
b. The warning light goes on within 4s, and then goes out.
(3) If the light doesn't go out, check the trouble and eliminate it.
For other ECU inspections, see Troubleshooting.
fig.1

(2) Disconnect the connector of the wire harness.
(3) Remove the components of airbag assembly.
(4) Remove steering wheel.

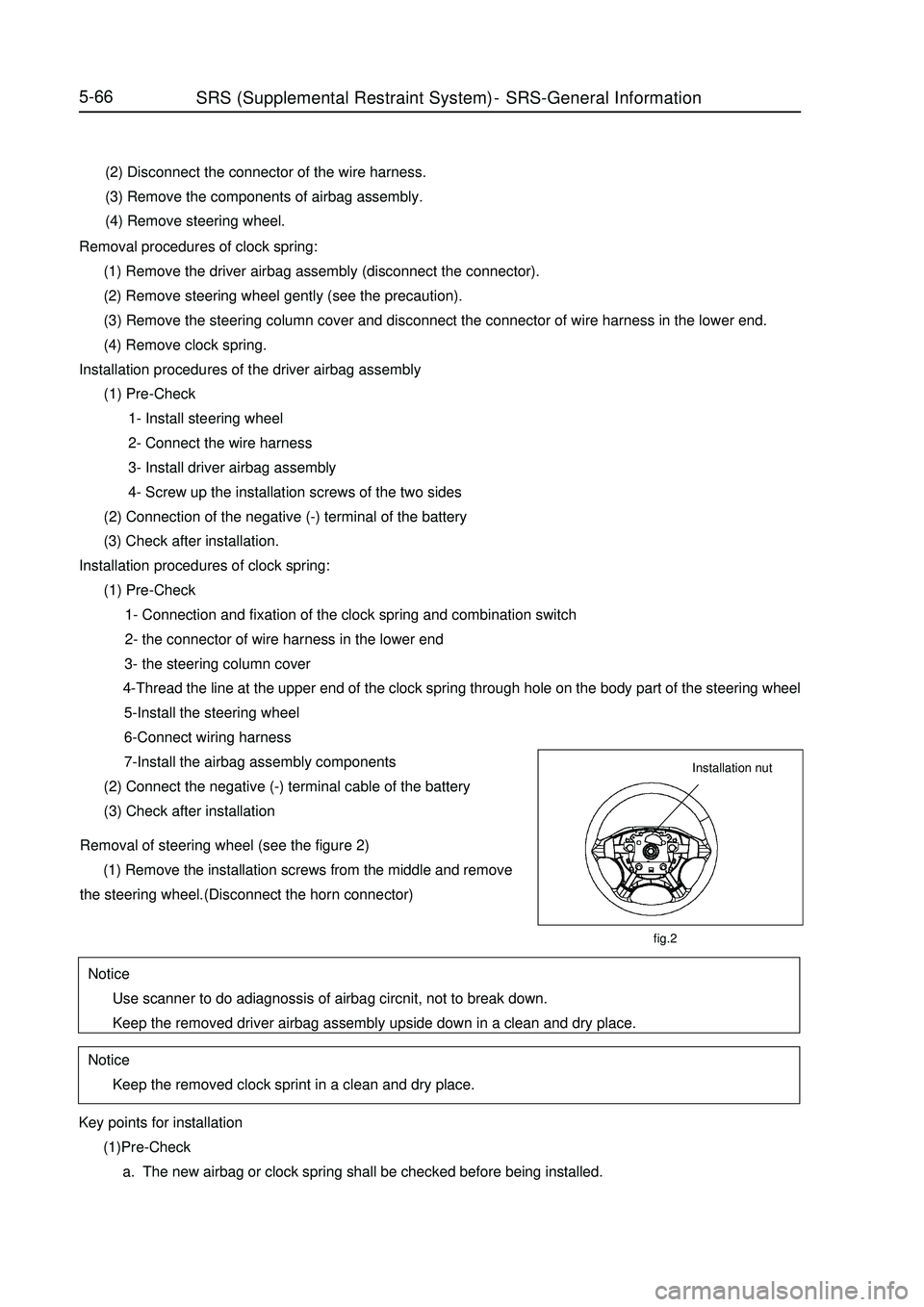

Removal procedures of clock spring:
(1) Remove the driver airbag assembly (disconnect the connector).
(2) Remove steering wheel gently (see the precaution).
(3) Remove the steering column cover and disconnect the connector of wire harness in the lower end.
(4) Remove clock spring.
Installation procedures of the driver airbag assembly
(1) Pre-Check

1- Install steering wheel

2- Connect the wire harness

3- Install driver airbag assembly

4- Screw up the installation screws of the two sides
(2) Connection of the negative (-) terminal of the battery
(3) Check after installation.
Installation procedures of clock spring:
(1) Pre-Check

1- Connection and fixation of the clock spring and combination switch

2- the connector of wire harness in the lower end
3- the steering column cover
4-Thread the line at the upper end of the clock spring through hole on the body part of the steering wheel
5-Install the steering wheel
6-Connect wiring harness
7-Install the airbag assembly components
(2) Connect the negative (-) terminal cable of the battery
(3) Check after installation5-66Key points for installation
(1)Pre-Check
a. The new airbag or clock spring shall be checked before being installed.SRS (Supplemental Restraint System)-SRS-General InformationNotice
Use scanner to do adiagnossis of airbag circnit, not to break down.
Keep the removed driver airbag assembly upside down in a clean and dry place.Notice
Keep the removed clock sprint in a clean and dry place.fig.2Installation nutRemoval of steering wheel (see the figure 2)
(1) Remove the installation screws from the middle and remove
the steering wheel.(Disconnect the horn connector)

5-68Notice
The circuit resistance of the airbag assembly (squib) cannot be measured even with a designated tester.
Since there is current flowing in the squib, when a tester is involved in measuring the resistance, sometimes
the airbag is unexpectedly deployed in case of static electricity, leading to serious accident.
(2) Check the clock spring
Check the following items, and replace the clock spring if any badness is found.
a. Check the connector and protecting tube for damage and the terminal for distortion.
b. Check the case for damage.
c. Check and see if the joint terminal at the upper end of the clock spring are in conduction with that at the
lower end.
d. A thin probe shall be inserted from the back of the yellow connector of the clock spring.
e. With reference to the figure below, insert thin probes into the current tester to check the conduction of the
terminals.VIII. Key points for scrapping the airbag assembly The airbag shall be deployed according to the following procedures before scrapping the airbag assembly or
a vehicle installed with an airbag.
1. Scrapping of an airbag assembly prior to deploymentNotice
The airbag shall be deployed before being scrapped.
The airbag shall be deployed outside the vehicle before being changed.
The airbag shall be deployed in the vicinity of a smoke detector since smoke will appear when the airbag
is deployed.
When being deployed, the airbag will create much noise. People nearby shall wear noise muffler to close
their ears. Avoid do the job within the residential areas.
Deploy inside a vehicle
1) Park the vehicle in a flat area
2) Disconnect the positive (+) and negative (-) terminal cables from the battery and remove the battery from
the vehicle.SRS (Supplemental Restraint System)-
SRS-General Information a. Check the cover for pitting, crack and distortion.
b. Check the connector of the wire harness for damage and the terminal for distortion.
c. Check the case of the gas generator for pitting, crack and distortion.
d. Check the installation status of the airbag assembly. 2. Checking
(1) Driver airbag assembly checking
Check the following items and replace the related components of the airbag assembly if any badness is found.
The old components shall be deployed before scrapping.Notice
If there is pitting, crack or distortion, replace the airbag assembly with new one. The old components of
the airbag shall be deployed before scrapping.

Abnormal
Replace HCUAbnormal
Replace HCUYes
Replace ABS ECUSection 2 ABS System CheckI. Check list of fault with fault codeNote: If storage battery is discharged excessively, it might fail to drive motor, so when conduct motor drive test,
firstly confirm whether voltage of storage battery is normal, when conduct motor drive test, vehicle must be in idle
state.MK-60 ABS system -ABS System Check5-103Fault code is 01276 1
[Description ] When vehicle speed exceeds 20 km/h, ABS ECU monitors that
motor can not work normally, it will record this fault code
[Prompt ] When this fault appears, wiring harness connection between motor
and ECU may get loose. Use hydraulic pressure unit functional
testing of fault diagnosis instrument to drive motor for this test.Possible cause

Power supply is discon-
nected or earthed

Motor wiring harness gets
loose

Motor is damaged
Pull out motor wiring harness plug, connect
battery power source directly to motor plug, see
whether motor works or not?
Check safety wire and ABS ECU joint
Connect motor wiring harness
Turn ignition switch to ON position
Eliminate fault code
Use fault diagnosis instrument to conduct
hydraulic control unit diagnosis
Whether fault recurs
Refer to "key points of occasional fault
repair"

MK-60 ABS system -ABS System Check5-107Fault code is 01044 5
[Description]When ECU software code is inconsistent with hardware
bouncing pin connection, this fault code will appearPossible cause

Bouncing pin connection
error in ABS wiring harness

Abs ecu coding error
Fault code is 00668 6
[Description]When supply terminal 30 does not supply voltage or
voltage is too high, this fault code will appear.Possible cause

Abs system fuse is blown out

Storage battery voltage is too
low or too high

ABS wiring harness socket
connector is damaged

ABS ECU is damaged
Check ABS system 30 A safety wireReplace fuse
NormalAbnormal
Disconnect connection of ABS wiring harness and ECU,
turn ignition switch to ON position, measure voltage value
between the following terminals of ABS wiring harness
Terminal 1 and 47 9.5 _ 16.5V
Terminal 32 and 16 9.5 - 16.5V
Terminal 4 and 16 9.5 _16.5VReplace fuse Normal
Check ABS wiring harness socket connectorReplace fuse Abnormal
Retry. Abnormity reoccursYes
Check storage battery voltageNormal Abnormal
NoRefer to repair of
occasional fault
Key pointsUse fault diagnosis instrument to check whether ABS ECU software
code is correct
Correct value: 040907Recode
YesNoCheck whether ABS wiring harness bouncing pin joint is connected
Bouncing pin joint : ABS ECU Pin 38and Pin 14Repair wiring harness Abnormal

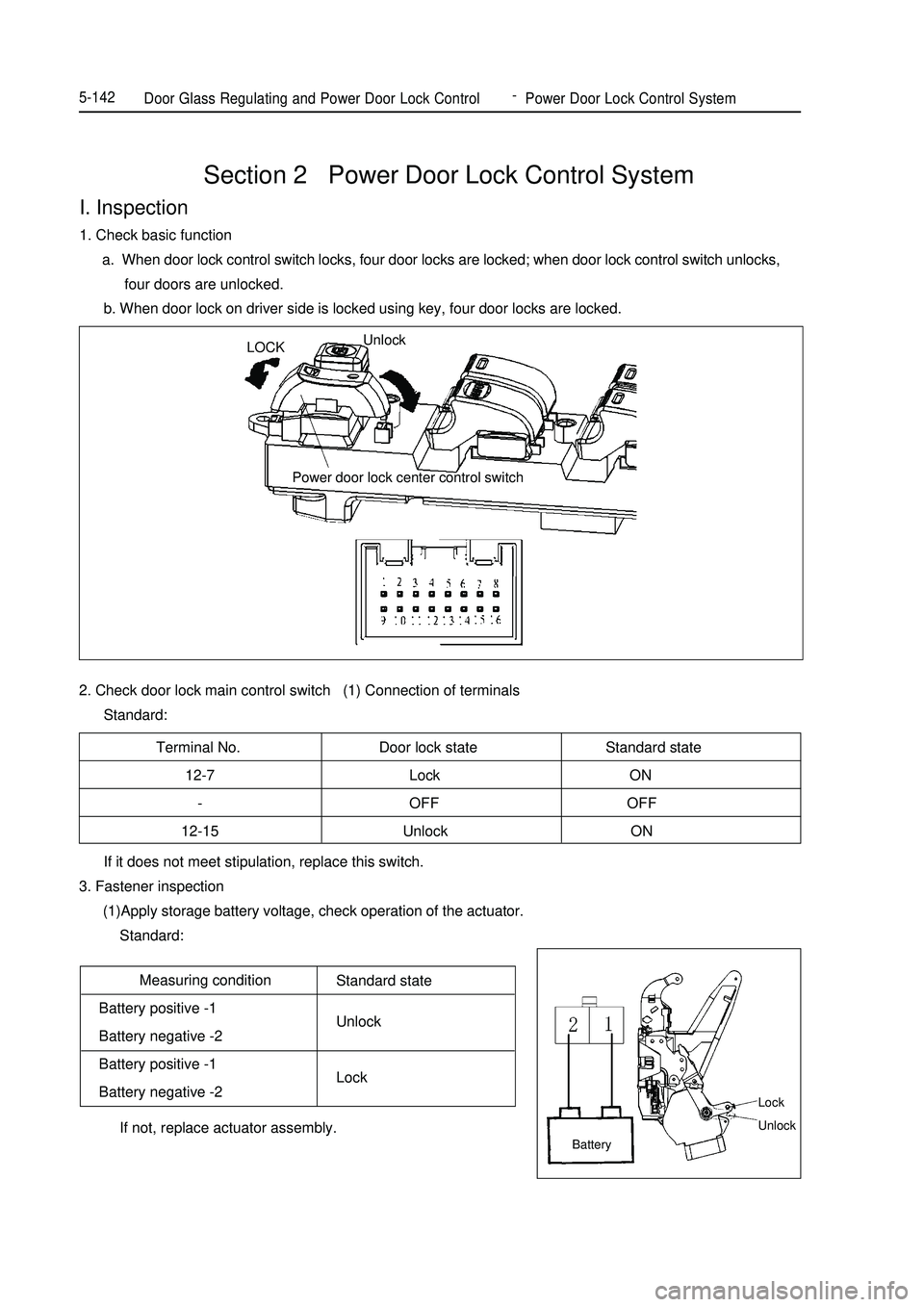

2. Check door lock main control switch (1) Connection of terminals
Standard:Section 2 Power Door Lock Control SystemI. Inspection1. Check basic function
a. When door lock control switch locks, four door locks are locked; when door lock control switch unlocks,
four doors are unlocked.
b. When door lock on driver side is locked using key, four door locks are locked.Terminal No. Door lock state Standard state
12-7 Lock ON
- OFF OFF
12-15 Unlock ONMeasuring condition
Battery positive -1
Battery negative -2
Battery positive -1
Battery negative -2Door Glass Regulating and Power Door Lock Control-
Power Door Lock Control System5-142 If it does not meet stipulation, replace this switch.
3. Fastener inspection
(1)Apply storage battery voltage, check operation of the actuator.
Standard:
If not, replace actuator assembly.Standard state
Unlock
LockLOCKUnlock
Power door lock center control switchBatteryLock
Unlock
