Propeller Shaft/DriveshaftFront Wheel Hub4-3319. Install left front shock absorber assembly
Install the front left shock absorber assembly on the left front axle
assembly with 2 sets of bolts and nuts
Torque: 132N.m
Notice:
Only coat the thread parts of the new bolts and nuts with engine
oil.
20. Install left front axle assembly
21. Install left tie rod end subassembly
22. Install left no.1 front lower suspension arm subassembly
23. Install front stabilizer
24. Install front brake disc
25. Install left front brake caliper assembly
Install the front brake caliper assembly on the steering knuckle
with 2 bolts.
Torque: 88N.
m
26. Install left front axle hub nut
Install new left axle hub nut.
Torque: 216N.m
27. Remove left front brake caliper assembly
28. Remove front brake disc
29. Check bearing backlash
30. Check axle hub deviation
31. Install front brake disc
32. Install left front brake caliper assembly
33. Install left front vehicle speed sensor (with ABS)
34. Install left front axle hub nut
Using a chisel and hammer, stake the left axle hub nut.
35. Install front wheel
Torque: 103N.m
36. Check and adjust front wheel alignment
37. Check abs vehicle speed sensor signal (with ABS) -

Propeller Shaft/DriveshaftRear Wheel Hub and Bearing Assembly4-35Section 4 Rear Wheel Hub and Bearing AssemblyComponent ViewRear Axle Hub UnitBrake Drum Assembly
specified torqueN.
m :Slip Control Sensor Wire Harness
With ABS
Left Rear Axle Hub Bolt - Non-reusable parts

Replacement1. Remove rear wheel
2. Remove rear wheel brake drum subassembly
3. Remove slip control sensor wire harness (with ABS)
4. Remove left rear axle hub and bearing assembly
Remove 4 bolts and left axle hub and bearing assembly.
5. Install left rear axle hub and bearing assembly
Install left axle hub and bearing assembly with 4 bolts
Torque: 63N.m
6. Connect slip control sensor wire harness (with ABS)
Notice:
Do not twist the sensor wire harness during connection.
7. Check bearing backlash
8. Check axle hub deviation
9. Install rear wheel brake drum subassembly
10. Install rear wheel
Torque: 103N.m
11. Check as vehicle speed sensor signal (with ABS)Propeller Shaft/DriveshaftRear Wheel Hub and Bearing Assembly4-36 -

Component ViewSection 2 Front Suspensionleft front suspension
bracket dust cover
left front suspension
bracket subassembly
left upper front
helical spring seat
left upper helical
spring pad
left front
spring
bumperFront Suspension SystemFront Suspension4-40left front shock absorber
assembly suspension support
front shock absorber with
helical spring
With/ ABS:
left front vehicle
speed sensor
brake hoseleft front helical springleft front suspension
bracket dust seal
specified torqueN.
m : - Non-reusable parts

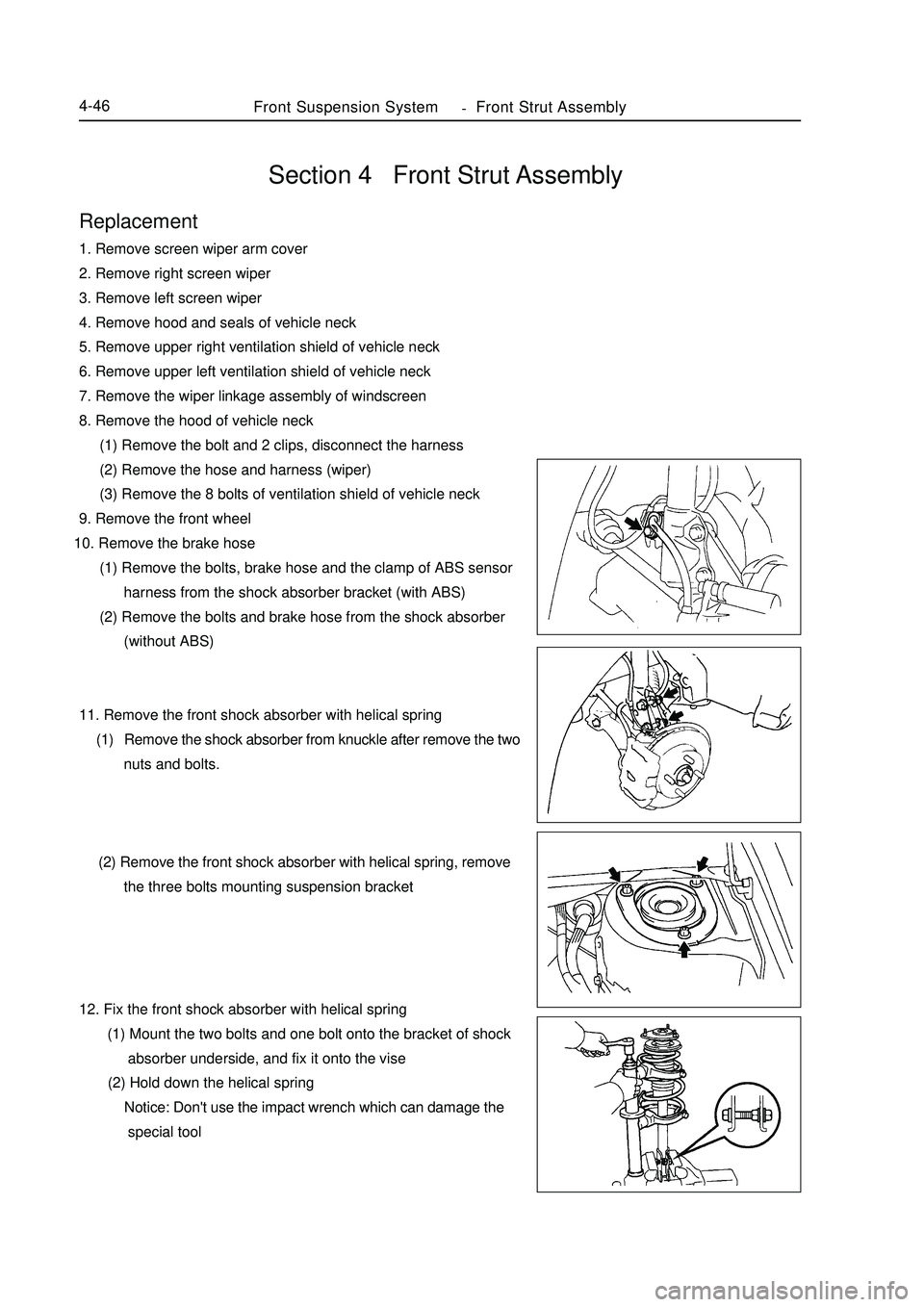

Front Suspension SystemFront Strut Assembly4-46Section 4 Front Strut AssemblyReplacement1. Remove screen wiper arm cover
2. Remove right screen wiper
3. Remove left screen wiper
4. Remove hood and seals of vehicle neck
5. Remove upper right ventilation shield of vehicle neck
6. Remove upper left ventilation shield of vehicle neck
7. Remove the wiper linkage assembly of windscreen
8. Remove the hood of vehicle neck
(1) Remove the bolt and 2 clips, disconnect the harness
(2) Remove the hose and harness (wiper)
(3) Remove the 8 bolts of ventilation shield of vehicle neck
9. Remove the front wheel
10. Remove the brake hose
(1) Remove the bolts, brake hose and the clamp of ABS sensor
harness from the shock absorber bracket (with ABS)
(2) Remove the bolts and brake hose from the shock absorber
(without ABS)
11. Remove the front shock absorber with helical spring
(1) Remove the shock absorber from knuckle after remove the two
nuts and bolts.
(2) Remove the front shock absorber with helical spring, remove
the three bolts mounting suspension bracket
12. Fix the front shock absorber with helical spring
(1) Mount the two bolts and one bolt onto the bracket of shock
absorber underside, and fix it onto the vise
(2) Hold down the helical spring
Notice: Don't use the impact wrench which can damage the
special tool-

Component ViewUpper washer
Left rear
helical spring
Lower washer Rear shock absorber assembly Right rear helical spring
Left rear helical spring
Lower washer829.09849Chapter 6 Rear Suspension SystemSection 1 Rear Suspension SystemLoad-sensing valve
bracketRear supension crossmemberRear Suspension System-Rear Suspension System4-54specified torqueN.
m :With ABS
Side slip control sensor wire
Washer
Clip Brake hose
Brake hoseNon-reusable parts

Section 3 LH/RH Rear Suspension Coil SpringReplacement1. Remove rear wheel
2. Remove the wire of the wheel speed sensor(with ABS)
(1) Remove the connector of wheel speed sensor.
(2) Remove bolts and wheel speed sensor from rear axle
frame.
Notes:
Remove the right sensor wire by using same process as left.
3. Remove the load-sensing valve bracket (without ABS)
Remove two nuts and load-sensing valve bracket from the axle
bracket
4. Remove the proportioning valve and rear right brake tube
(1) Remove the proportioning valve and rear right brake tube by
the special tool
(2) Remove the clips
Notes: Don't reuse the clips
5. Remove the proportioning valve and rear left brake tube
Notes: use the same operations of the proportioning valve and
rear right brake tube to remove #3 rear brake tube.
6. Remove right parking brake cable assembly
Remove nuts and right parking brake cable assembly
assembly from rear axle frame
7. Remove left parking brake cable assembly
8. Loose the rear axle assembly
Loose two 2 boltsRear Suspension System-LH/RH Rear Suspension Coil Spring4-57

Rear Suspension System-LH/RH Rear Suspension Coil Spring4-5918. Mount rear right brake tube
Tips:
Mount the right assembly by using same operations as left.
19. Mount sideslip control sensor wire (with ABS)
(1) Tighten sideslip control sensor wire by bolts
Torque: 8.0 N.m
(2) Mount sideslip control sensor wire
Attention: Mount the right wire by using same operations as left.
20. Mount load-sensing valve bracket (without ABS)
Mount load-sensing valve bracket by two buts
21. Sufficiently tighten the rear axle frame assembly
(1) Stabilize the shock absorber assembly
Use the lifting jack and add 90Kg force on rear luggage
carrier if bolts can not be tightened at this point.
(2) Sufficiently tighten bolts
Torque: 82 N.m
22. Sufficiently tighten the left rear shock absorber assembly
Sufficiently tighten nuts
Torque: 49 N.m
23. Sufficiently tighten the right rear shock absorber assembly
Tips: Mount the right rear shock absorber by using same opera-
tions as left.
24. Release the air in the brake hose
25. Mount the rear wheel
Torque: 103 N.m
26. Check rear the wheel alignment
27. Check the wheel speed sensor signal of ABS( with ABS)
