2008 FORD TAURUS X check engine

3. The fuel cap may not have been securely tightened. SeeFuel filler
capin this chapter.
4. Driving through deep water—the electrical system may be wet.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel, properly tightening the fuel cap or letting the
electrical system dry out. After three driving cycles without these or any
other temporary malfunctions present, the
indicator should stay off
the next time the engine is started. A driving cycle consists of a cold
engine startup followed by mixed city/highway driving. No additional
vehicle service is required.
If the
indicator remains on, have your vehicle serviced at the first
available opportunity. Although some malfunctions detected by the
OBD-II may not have symptoms that are apparent, continued driving
with the
indicator on can result in increased emissions, lower fuel
economy, reduced engine and transmission smoothness, and lead to more
costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the
indicator is on or not working properly (bulb is burned
out), or if the OBD-II system has determined that some of the emission
control systems have not been properly checked. In this case, the vehicle
is considered not ready for I/M testing.
If the
indicator is on or the bulb does not work, the vehicle may
need to be serviced. Refer to the On board diagnostics (OBD-II)
description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the ON position
for 15 seconds without cranking the engine. If the
indicator blinks
eight times, it means that the vehicle is not ready for I/M testing; if
the
indicator stays on solid, it means that the vehicle is ready for
I/M testing.
2008 Taurus X(219)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
328

The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by 20
minutes of stop-and-go driving with at least four 30-second idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Refer to thescheduled maintenance informationfor the service
interval schedules.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir. Refer toMaintenance
product specifications and capacitiesin this chapter for the proper
fluid type.
2008 Taurus X(219)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
329

BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSAXLE FLUID
Checking automatic transaxle fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes.Your transaxle does not consume
fluid. However, the fluid level should be checked if the transaxle is not
working properly, i.e., if the transaxle slips or shifts slowly or if you
notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
2008 Taurus X(219)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
330

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant11.1 quarts
(10.5L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
3
VC-7-B /
WSS-M97B51-A1 Engine coolant (with
rear heater)13.2 quarts
(12.5L)
Power steering fluidBetween MAX and
MIN on reservoirMotorcraft MERCONV
AT FX T-5-QM /
MERCONV
Windshield washer fluidTop- off fluid as
neededMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank18.6 gallons
(70.4L)
——
19.0 (71.9L)
(PZEV)
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCONV should only use MERCONV fluid or fluid that
is specified dual usage MERCON/MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.3Add the coolant type originally equipped in your vehicle.4Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.5See your authorized dealer for fluid level checking or filling.
2008 Taurus X(219)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
335

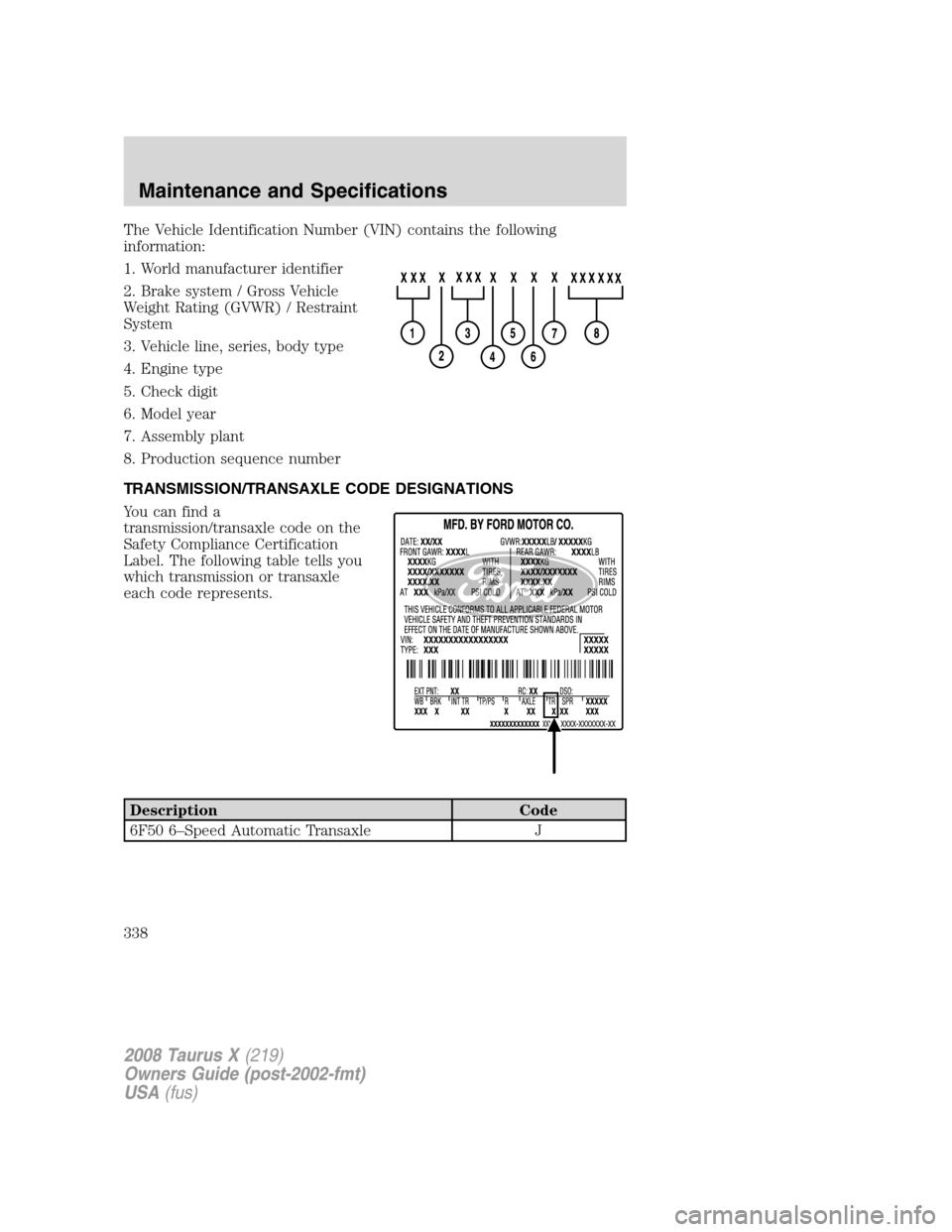

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
6F50 6–Speed Automatic Transaxle J
2008 Taurus X(219)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
338

A
Accessory delay ........................103
AdvanceTrac ..............................248
Air cleaner filter ...............332–333
Air conditioning ........76, 78, 80, 82
Airbag supplemental restraint
system ................180–181, 189, 191
and child safety seats ............182
description ..............181, 189, 191
disposal ....................................194
driver airbag ............183, 190, 192
indicator light .................189, 194
operation .................183, 190, 192
passenger airbag .....183, 190, 192
side airbag ...............................189
All Wheel Drive (AWD),
driving off road .........................258
Antifreeze
(see Engine coolant) ................313
Anti-lock brake system
(see Brakes) ..............................246
Anti-theft system ..............147, 150
arming the system ..................150
disarming a triggered
system .....................................151
Audio system
(see Radio) ......................16, 20, 28
Automatic transaxle
fluid, adding ............................330
fluid, checking ........................330
fluid, refill capacities ..............334
fluid, specification ..................334
Automatic transmission
driving an automatic
overdrive .................................253
Auxiliary input jack (Line in) ....36
B
Battery .......................................311acid, treating emergencies .....311
jumping a disabled battery ....281
maintenance-free ....................311
replacement, specifications ...333
servicing ..................................311
Belt-Minder.............................175
Booster seats .............................195
Brakes ........................................246
anti-lock ...................................246
anti-lock brake system (ABS)
warning light ...........................246
fluid, checking and adding ....330
fluid, refill capacities ..............334
fluid, specifications .................334
lubricant specifications ..........334
parking ....................................247
shift interlock ..........................252
Bulbs ............................................91
C
Capacities for refilling fluids ....334
Cargo cover ...............................129
Cargo net ...................................129
Cell phone use ..............................7
Changing a tire .........................273
Child safety restraints ..............195
child safety belts ....................195
Child safety seats ......................199
in front seat ............................200
in rear seat ..............................200
tether anchorage hardware ...203
Child safety seats - booster
seats ...........................................195
Cleaning your vehicle
engine compartment ..............298
instrument panel ....................300
interior .....................................300
2008 Taurus X(219)
Owners Guide (post-2002-fmt)
USA(fus)
Index
341

plastic parts ............................299
washing ....................................296
waxing .....................................297
wheels ......................................297
wiper blades ............................299
Climate control
(see Air conditioning or
Heating) .....................76, 78, 80, 82
Clock adjust
6-CD in dash .............................29
AM/FM/CD .................................21
Compass, electronic
set zone adjustment ...............118
Console ......................................100
overhead ..............................98–99
Controls
power seat ...............................155
steering column ......................109
Coolant
checking and adding ..............313
refill capacities ................316, 334
specifications ..........................334
Cruise control
(see Speed control) ..................106
Customer Assistance ................264
Ford Extended Service
Plan ..........................................292
Getting assistance outside the
U.S. and Canada .....................293
Getting roadside assistance ...264
Getting the service you
need .........................................288
Ordering additional owner’s
literature .................................294
Utilizing the
Mediation/Arbitration
Program ...................................292D
Daytime running lamps
(see Lamps) ................................89
Dipstick
automatic transmission
fluid ..........................................330
engine oil .................................308
Driving under special
conditions ..........................259, 261
sand .........................................260
snow and ice ...........................262
through water .................260, 263
DVD system .................................44
E
Electronic message center .......116
Emergencies, roadside
jump-starting ..........................281
Emission control system ..........326
Engine ........................................336
cleaning ...................................298
coolant .....................................313
idle speed control ...................311
lubrication specifications .......334
refill capacities ........................334
service points ..........................305
starting after a collision .........266
Engine block heater .................244
Engine oil ..................................308
change oil soon warning,
message center .......................308
checking and adding ..............308
dipstick ....................................308
filter, specifications ........310, 333
recommendations ...................310
refill capacities ........................334
specifications ..........................334
Event data recording ....................6
2008 Taurus X(219)
Owners Guide (post-2002-fmt)
USA(fus)
Index
342

autolock ...................................133
keypad .....................................145
locking and unlocking doors ..146
programming entry code .......145
Keys ...................................131, 148
positions of the ignition .........241
L
Lamps
autolamp system .......................87
bulb replacement
specifications chart ..................92
daytime running light ...............89
fog lamps ...................................88
headlamps .................................87
headlamps, flash to pass ..........88
instrument panel, dimming .....89
interior lamps .....................91–92
replacing bulbs ...................92, 95
Lane change indicator
(see Turn signal) ........................91
Liftgate ......................125, 129, 140
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........246
Load limits .................................231
Locks
autolock ...................................133
childproof ................................136
doors ........................................132
Lubricant specifications ...........334
Lug nuts ....................................280
Luggage rack .............................130
Lumbar support, seats .............154
M
Message center .........................116
english/metric button .............121system check button ..............120
warning messages ...................123
Mirrors ...............................103–104
automatic dimming rearview
mirror ......................................103
fold away .................................105
heated ......................................105
programmable memory ..........140
side view mirrors (power) .....104
Moon roof ..................................111
Motorcraft parts ........302, 317, 333
N
Navigation system .......................73
O
Octane rating ............................322
Oil (see Engine oil) ..................308
Overdrive ...................................253
P
Parking brake ............................247
Parts (see Motorcraft parts) ....333
Passenger Occupant
Classification Sensor .................168
Power adjustable foot pedals ...105
Power distribution box
(see Fuses) ...............................270
Power door locks ......................132
Power liftgate ............................125
Power mirrors ...........................104
Power point ...............................100
Power steering ..........................251
fluid, checking and adding ....329
2008 Taurus X(219)
Owners Guide (post-2002-fmt)
USA(fus)
Index
344
