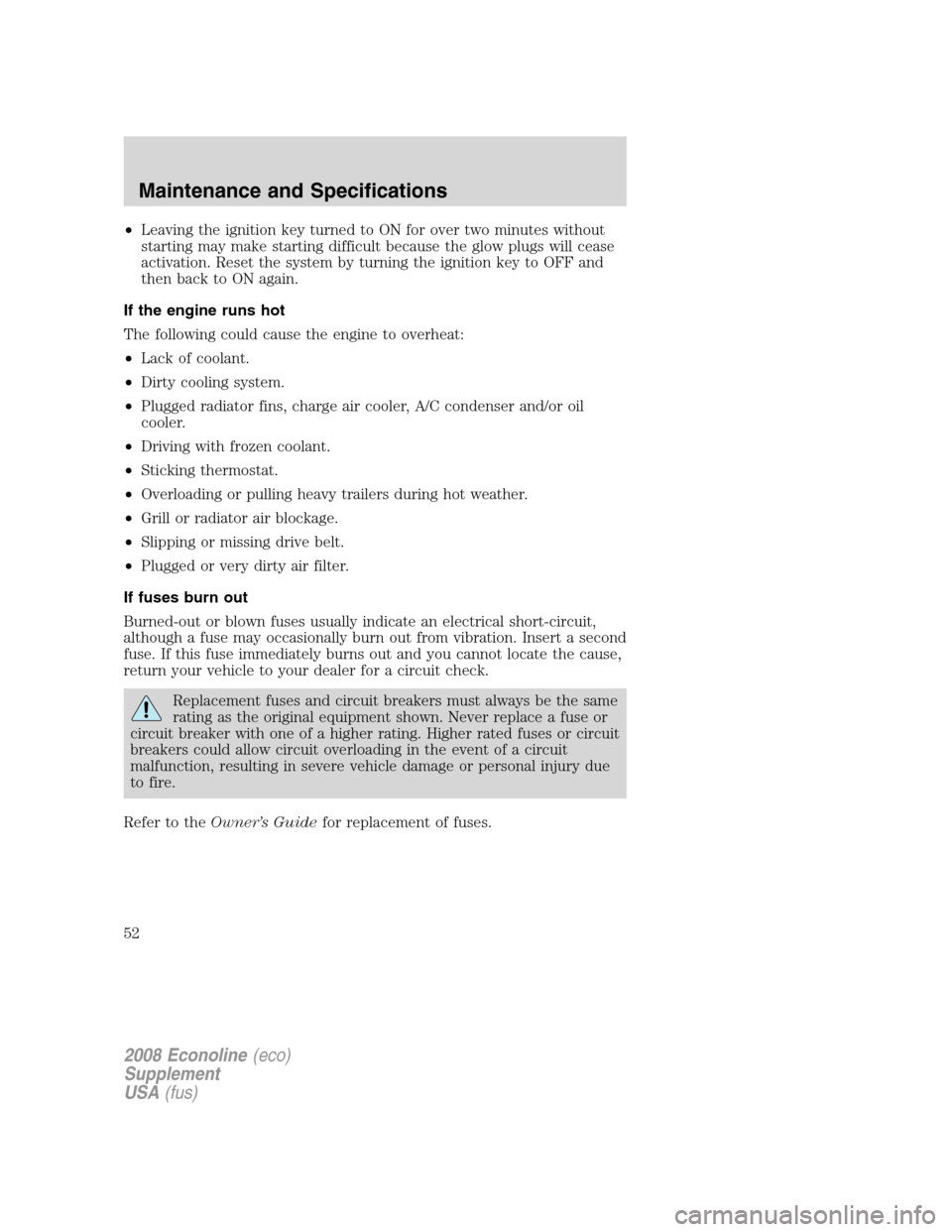

•Leaving the ignition key turned to ON for over two minutes without
starting may make starting difficult because the glow plugs will cease
activation. Reset the system by turning the ignition key to OFF and
then back to ON again.
If the engine runs hot
The following could cause the engine to overheat:
•Lack of coolant.
•Dirty cooling system.
•Plugged radiator fins, charge air cooler, A/C condenser and/or oil
cooler.
•Driving with frozen coolant.
•Sticking thermostat.
•Overloading or pulling heavy trailers during hot weather.
•Grill or radiator air blockage.
•Slipping or missing drive belt.
•Plugged or very dirty air filter.
If fuses burn out
Burned-out or blown fuses usually indicate an electrical short-circuit,
although a fuse may occasionally burn out from vibration. Insert a second
fuse. If this fuse immediately burns out and you cannot locate the cause,
return your vehicle to your dealer for a circuit check.
Replacement fuses and circuit breakers must always be the same
rating as the original equipment shown. Never replace a fuse or
circuit breaker with one of a higher rating. Higher rated fuses or circuit
breakers could allow circuit overloading in the event of a circuit
malfunction, resulting in severe vehicle damage or personal injury due
to fire.
Refer to theOwner’s Guidefor replacement of fuses.
2008 Econoline(eco)
Supplement
USA(fus)
Maintenance and Specifications
52

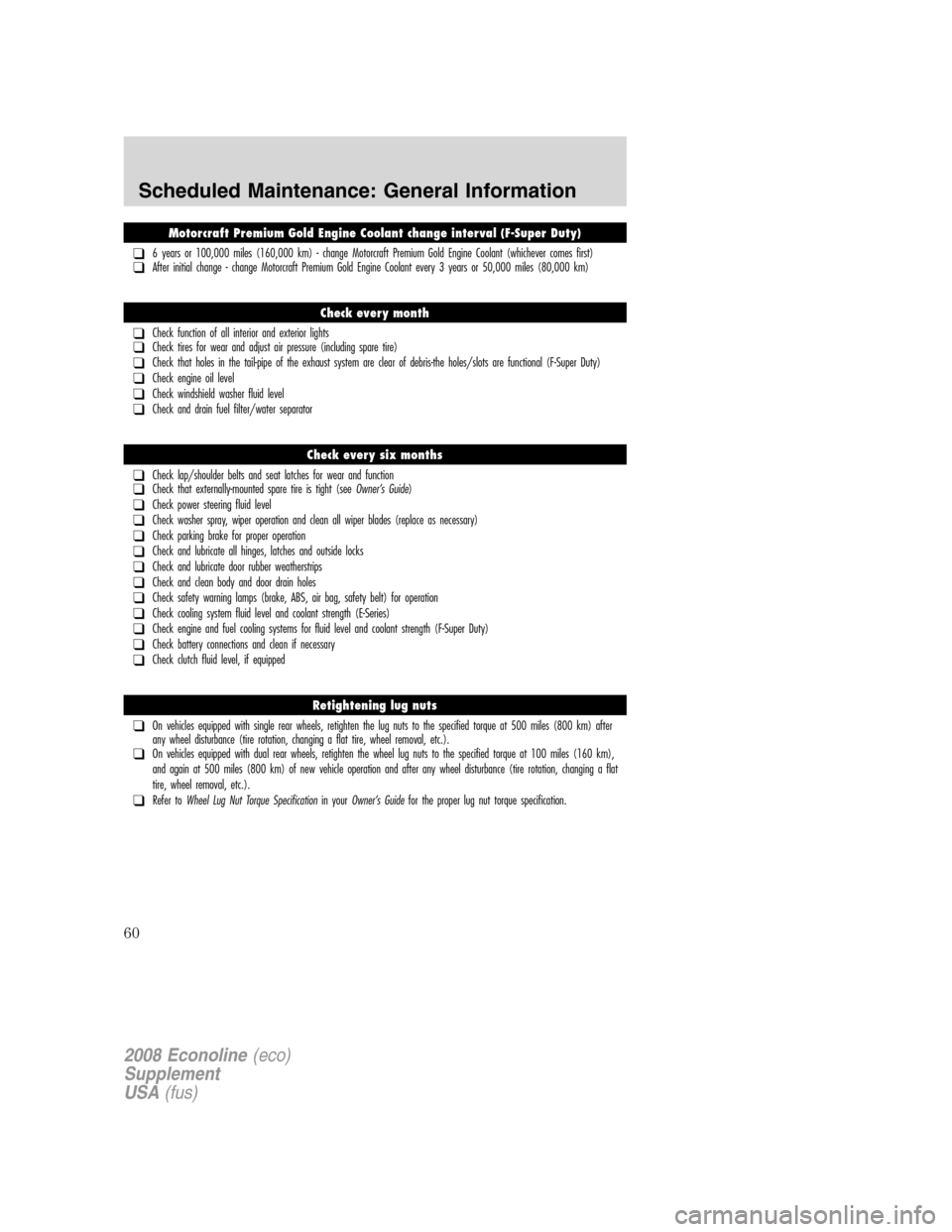

Motorcraft Premium Gold Engine Coolant change interval (F-Super Duty)
❑6 years or 100,000 miles (160,000 km) - change Motorcraft Premium Gold Engine Coolant (whichever comes first)❑After initial change - change Motorcraft Premium Gold Engine Coolant every 3 years or 50,000 miles (80,000 km)
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and adjust air pressure (including spare tire)
❑Check that holes in the tail-pipe of the exhaust system are clear of debris-the holes/slots are functional (F-Super Duty)
❑Check engine oil level
❑Check windshield washer fluid level
❑Check and drain fuel filter/water separator
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check that externally-mounted spare tire is tight (seeOwner’s Guide)
❑Check power steering fluid level
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check parking brake for proper operation
❑Check and lubricate all hinges, latches and outside locks
❑Check and lubricate door rubber weatherstrips
❑Check and clean body and door drain holes
❑Check safety warning lamps (brake, ABS, air bag, safety belt) for operation
❑Check cooling system fluid level and coolant strength (E-Series)
❑Check engine and fuel cooling systems for fluid level and coolant strength (F-Super Duty)
❑Check battery connections and clean if necessary
❑Check clutch fluid level, if equipped
Retightening lug nuts
❑On vehicles equipped with single rear wheels, retighten the lug nuts to the specified torque at 500 miles (800 km) after
any wheel disturbance (tire rotation, changing a flat tire, wheel removal, etc.).
❑On vehicles equipped with dual rear wheels, retighten the wheel lug nuts to the specified torque at 100 miles (160 km),
and again at 500 miles (800 km) of new vehicle operation and after any wheel disturbance (tire rotation, changing a flat
tire, wheel removal, etc.).
❑Refer toWheel Lug Nut Torque Specificationin yourOwner’s Guidefor the proper lug nut torque specification.
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: General Information
60

90,000 miles (144,000 km)
❑Change engine oil and replace oil filter❑Replace engine- and frame-mounted fuel filters❑Vehicles equipped with the Torqshift transmission and the
externally mounted remote filter element, replace the auto-
matic transmission fluid and the externally mounted filter
element (if equipped). Inspect automatic transmission fluid
level on all other vehicles if equipped with dipstick. Consult
your dealer for particular requirements.
❑Perform multi-point inspection (recommended)❑Inspect tires for wear and rotate❑Inspect air filter restriction gauge, replace filter as required❑Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints
❑Inspect engine cooling system and hoses❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake system.
❑Inspect exhaust system and heat shields❑Inspect accessory drive belt(s)❑Check wheels for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
97,500 miles (156,000 km)
❑Change engine oil and replace oil filter❑Change rear axle lubricant (E-450 equipped with DANA axles
only)
❑Perform multi-point inspection (recommended)❑Inspect tires for wear.❑Inspect air filter restriction gauge, replace filter as required
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: E-Series
67

120,000 miles (192,000 km)
❑Change engine oil and replace oil filter❑Replace engine- and frame-mounted fuel filters❑Change automatic transmission fluid and internal Torqshift
transmission fluid filter located inside the transmission bottom
pan. Inspect automatic transmission fluid level on all other
vehicles if equipped with dipstick. Consult your dealer for
particular requirements.
❑Lubricate 4x2 front wheel bearings, adjust wheel bearings
and replace grease seals (if non-sealed bearings)
❑Perform multi-point inspection (recommended)❑Inspect tires for wear and rotate❑Inspect air filter restriction gauge, replace filter as required❑Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints
❑Inspect engine cooling system and hoses❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake system
❑Inspect exhaust system and heat shields❑Inspect accessory drive belt(s)❑Check wheels for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
127,500 miles (204,000 km)
❑Change engine oil and replace oil filter❑Perform multi-point inspection (recommended)❑Inspect tires for wear.❑Inspect air filter restriction gauge, replace filter as required
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: E-Series
69

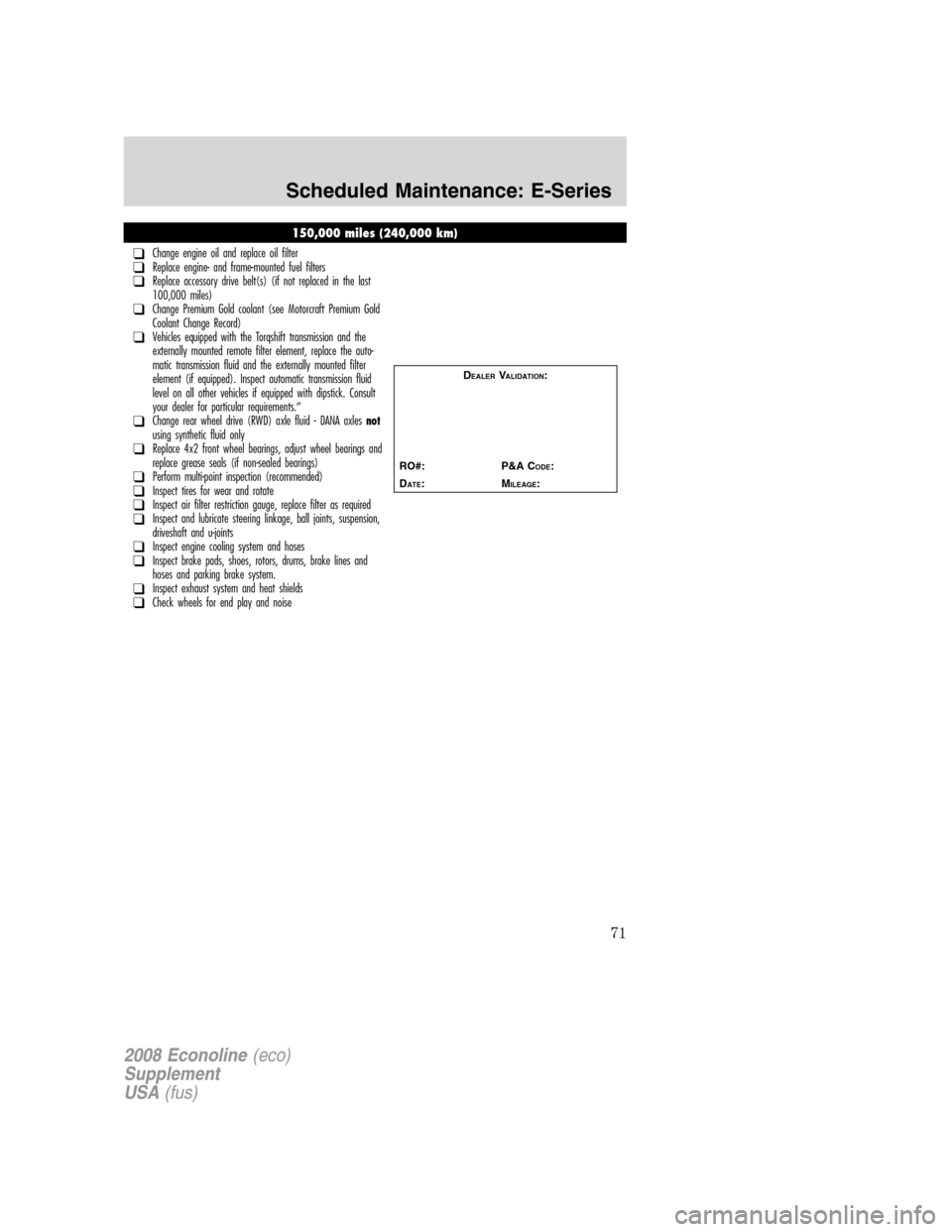

150,000 miles (240,000 km)
❑Change engine oil and replace oil filter❑Replace engine- and frame-mounted fuel filters❑Replace accessory drive belt(s) (if not replaced in the last
100,000 miles)
❑Change Premium Gold coolant (see Motorcraft Premium Gold
Coolant Change Record)
❑Vehicles equipped with the Torqshift transmission and the
externally mounted remote filter element, replace the auto-
matic transmission fluid and the externally mounted filter
element (if equipped). Inspect automatic transmission fluid
level on all other vehicles if equipped with dipstick. Consult
your dealer for particular requirements.
❑Change rear wheel drive (RWD) axle fluid - DANA axlesnot
using synthetic fluid only
❑Replace 4x2 front wheel bearings, adjust wheel bearings and
replace grease seals (if non-sealed bearings)
❑Perform multi-point inspection (recommended)❑Inspect tires for wear and rotate❑Inspect air filter restriction gauge, replace filter as required❑Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints
❑Inspect engine cooling system and hoses❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake system.
❑Inspect exhaust system and heat shields❑Check wheels for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: E-Series
71

100,000 miles (160,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect steering linkage, suspension, driveshaft, ball joints
and u-joints
❑Inspect engine and fuel cooling systems and hoses❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect accessory drive belt❑Change engine coolant and fuel coolant (refer toMotorcraft
Premium Gold Engine Coolant Change Record)
❑Change manual transmission fluid (refer toSpecial Operating
Conditionsfor more information)❑Change rear axle fluid (DANA axles only. Refer toSpecial
Operating Conditionsfor more information)❑Inspect wheels for endplay or noise❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Inspect and lubricate front axle u-joints (4x4 vehicles)❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
110,000 miles (176,000 km)
❑Change engine oil and replace oil filter❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
82

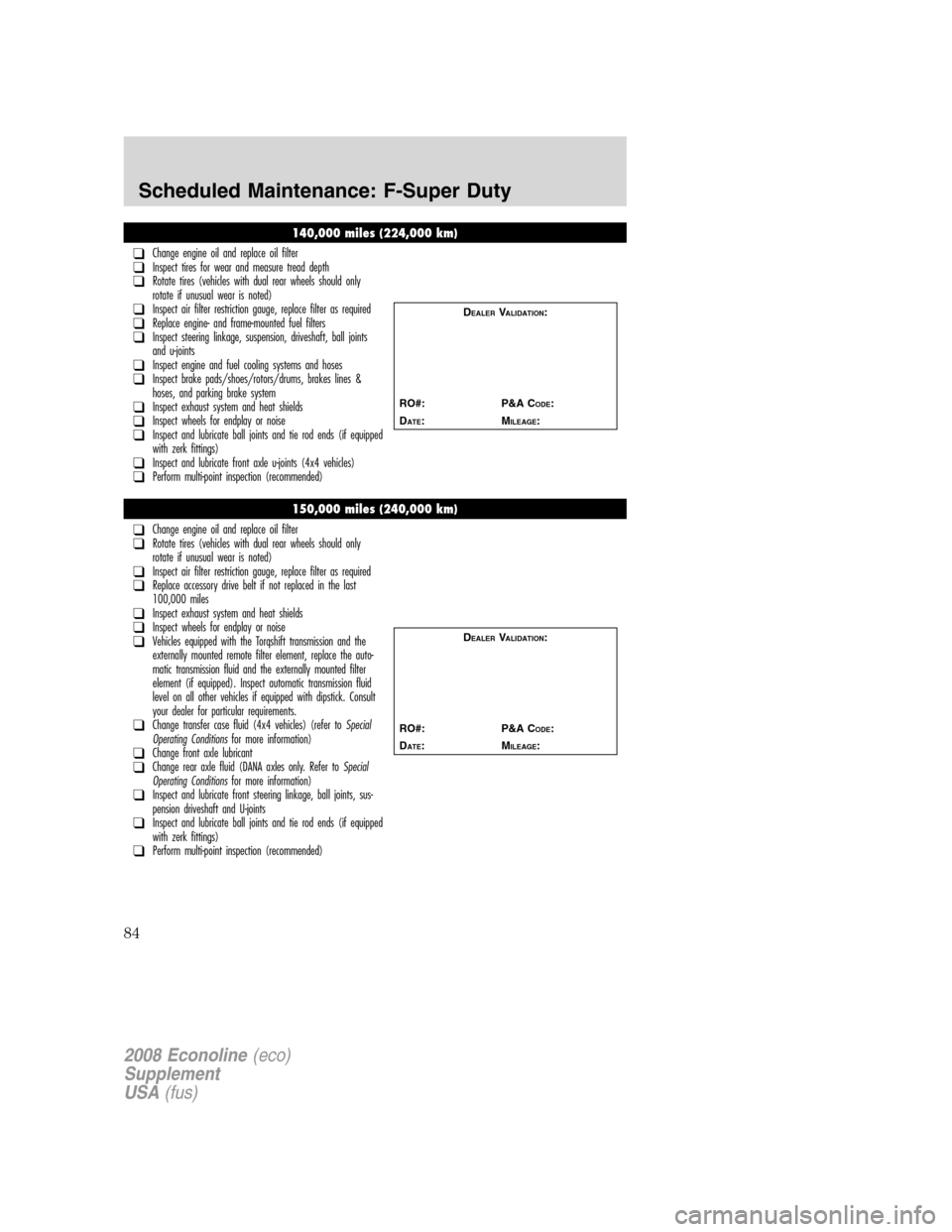

140,000 miles (224,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect steering linkage, suspension, driveshaft, ball joints
and u-joints
❑Inspect engine and fuel cooling systems and hoses❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect wheels for endplay or noise❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Inspect and lubricate front axle u-joints (4x4 vehicles)❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
150,000 miles (240,000 km)
❑Change engine oil and replace oil filter❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace accessory drive belt if not replaced in the last
100,000 miles
❑Inspect exhaust system and heat shields❑Inspect wheels for endplay or noise❑Vehicles equipped with the Torqshift transmission and the
externally mounted remote filter element, replace the auto-
matic transmission fluid and the externally mounted filter
element (if equipped). Inspect automatic transmission fluid
level on all other vehicles if equipped with dipstick. Consult
your dealer for particular requirements.
❑Change transfer case fluid (4x4 vehicles) (refer toSpecial
Operating Conditionsfor more information)❑Change front axle lubricant❑Change rear axle fluid (DANA axles only. Refer toSpecial
Operating Conditionsfor more information)❑Inspect and lubricate front steering linkage, ball joints, sus-
pension driveshaft and U-joints
❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
84
