HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Fog lamp control (if equipped)
The fog lamps can be turned on
when the headlamp control is in
the
orposition and the
high beams are not turned on.
Pull headlamp control towards you
to turn fog lamps on. The fog lamp
indicator light
on the headlamp
control will illuminate.
High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
OFF
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
35

Illuminates 4 footwells and 3
cupholders with a choice of 7 colors.
The ambient lighting control switch
is located on the instrument panel.
To activate, press and release the
control switch to cycle through the
7 color choices plus the OFF state.
The lights come on whenever the
headlamps/parklamps are turned on via the headlamp switch.Note:The
ambient lights will stay on as long as the headlamp switch is ON (same
as parklamps), even after the car is turned off/keys removed.
BULB REPLACEMENT
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamps H13
Park and turn lamp (front) 3457 NAK
Side marker lamp (front) 168
Fog lamps (if equipped) H11 LL
Stop/turn and tail lamps 3057K
Backup lamp 921
License plate lamp C5W L
* High-mount brake lamp LED
* To replace these lamps - see your authorized dealer.
To replace all instrument panel lights - see your authorized dealer
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
39

5. Remove the bulb socket from the
lamp assembly by turning
counterclockwise.
6. Pull the bulb straight out of the
socket.
Install the new bulb in reverse
order.
Replacing tail/brake/backup lights and turn signal bulbs
1. Make sure the headlamp control
is in the OFF position and then
open the trunk.
2. Remove two plastic screws and
cover from inside the luggage
compartment.
3. Remove two nuts from the lamp
assembly.
4. Gently pull the lamp assembly away from the vehicle.
5. Turn the bulb socket counterclockwise and pull it out.
6. Pull the bulb straight out of the socket.
Install the new bulb in reverse order.
Replacing fog lamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the OFF position.
2. Reach under the front fender, and
remove the harness/bulb assembly
from the fog lamp by turning
counterclockwise.
3. Disconnect the harness from the
bulb by pulling it straight off.
Install the new bulb in reverse order.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
42

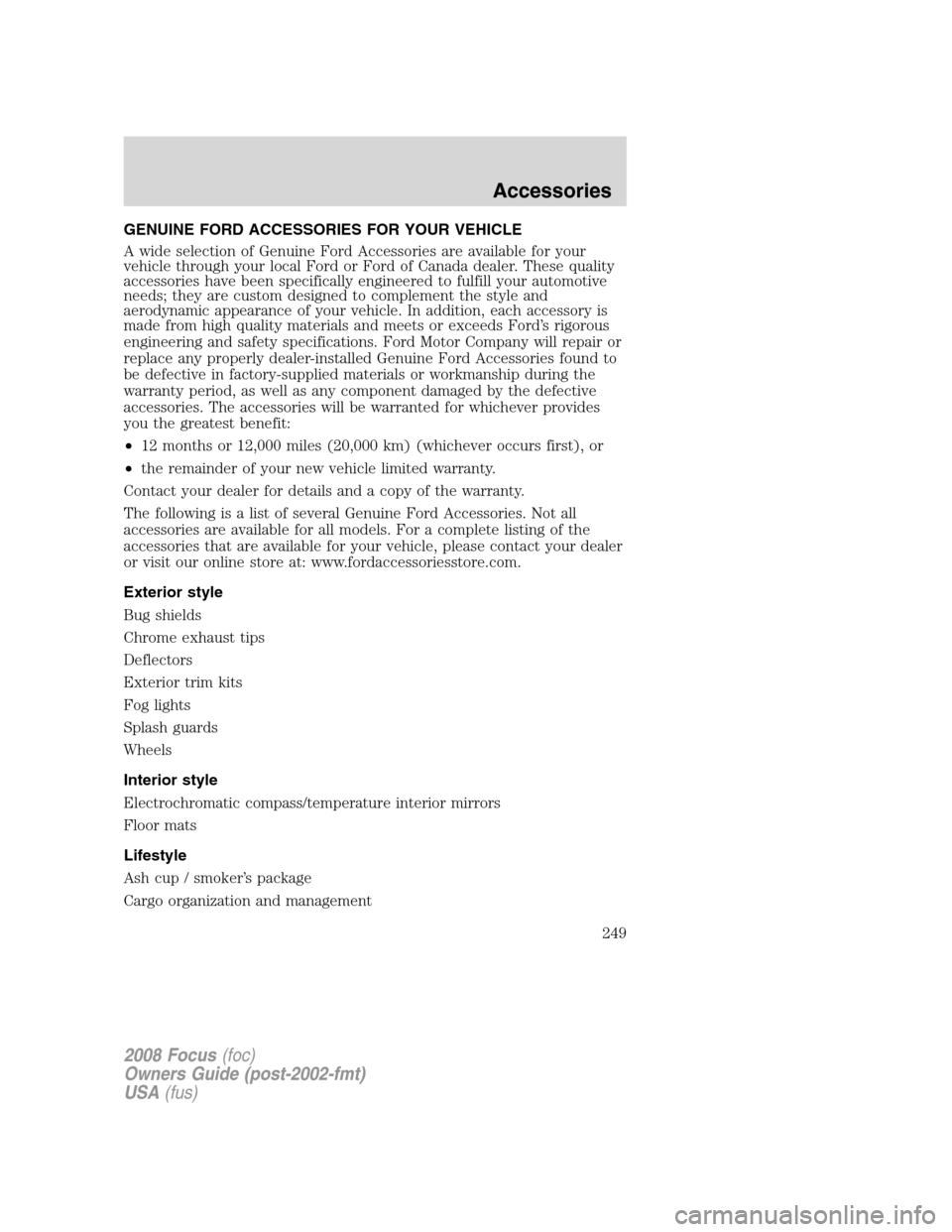

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim kits
Fog lights
Splash guards
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
249

Fan, Engine Cooling .........212, 215
Floor mats ...................................61
Fluid capacities .........................244
Foglamps .....................................35
Fuel ............................................227
calculating fuel
economy ............................56, 232
cap ...........................................229
capacity ...................................244
choosing the right fuel ...........230
comparisons with EPA
fuel economy estimates .........235
detergent in fuel .....................232
filling your vehicle
with fuel ..................227, 229, 232
filter, specifications ........227, 243
fuel pump shut-off switch .....168
improving fuel economy ........232
octane rating ...................231, 246
quality ......................................231
running out of fuel .................232
safety information relating
to automotive fuels ................227
Fuel pump shut-off switch .......168
Fuses ..........................................169
G
Gas cap (see Fuel cap) ............229
Gas mileage
(see Fuel economy) .................232
Gauges .........................................15
H
Hazard flashers .........................168
Head restraints ...........................75
Headlamps ...................................35
aiming ........................................37bulb specifications ....................39
daytime running lights .............36
flash to pass ..............................36
high beam .................................35
replacing bulbs .........................40
turning on and off ....................35
Heating
heating and air conditioning
system .......................................32
Hood ..........................................213
I
Ignition ...............................150, 246
Infant seats
(see Safety seats) .....................115
Inspection/maintenance
(I/M) testing ..............................237
Instrument panel
cleaning ...................................209
cluster ........................................10
lighting up panel and
interior .......................................36
J
Jump-starting your vehicle ......190
K
Keyless entry system
autolock .....................................62
Keys .............................................72
positions of the ignition .........150
L
Lamps
bulb replacement
specifications chart ..................39
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
253

daytime running light ...............36
fog lamps ...................................35
headlamps .................................35
headlamps, flash to pass ..........36
instrument panel, dimming .....36
interior lamps .....................38, 40
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................38
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........156
Load limits .................................144
Locks
autolock .....................................62
childproof ..................................65
doors ..........................................62
Lubricant specifications ...........244
Lug nuts ....................................189
M
Manual transaxle
lubricant specifications ..........244
Manual transmission .................163
fluid capacities ........................244
reverse .....................................164
Message center ...........................55
english/metric button ...............58
system check button ................58
warning messages .....................59
Mirrors ...................................47–48
automatic dimming
rearview mirror .........................48
heated ........................................49
side view mirrors (power) .......48
Moon roof ....................................53
Motorcraft parts ........211, 227, 243
O
Octane rating ............................231Oil (see Engine oil) ..................217
P
Parking brake ............................156
Parts (see Motorcraft parts) ....243
Passenger Occupant
Classification Sensor ...................83
Power distribution box
(see Fuses) ...............................172
Power door locks ........................62
Power mirrors .............................48
Power point .................................45
Power steering ..........................158
fluid, checking and adding ....238
fluid, refill capacity ................244
fluid, specifications .................244
Power Windows ...........................46
R
Radio ............................................17
Relays ........................................169
Remote entry system .................67
locking/unlocking
doors ..............................62, 67–68
opening the trunk .....................69
panic alarm ...............................69
replacement/additional
transmitters ...............................70
replacing the batteries .............69
Roadside assistance ..................166
S
Safety Belt Maintenance ............91
Safety belts (see
Safety restraints) ............82, 85–90
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
254
