2008 FORD FOCUS engine

MOTORCRAFT PART NUMBERS
Component 2.0L I4 engine
Air filter element FA-18901
Fuel filter FG-1036
Oil filter FL-9102
Battery BXT-96R
Temporary mobility kit refill canister TA-33
PCV valve
3
Spark plugs4
1
Non PZEV only: Failure to use the correct air filter element may result
in severe engine damage. The customer warranty may be void for any
damage to the engine if the correct air filter element is not used.
For PZEV, the air filter is designed to last the life of the vehicle. See
your authorized dealer or qualified technician for replacement. The
technician can check the diagnostics system for the possibility of an
excessively dirty air filter.
2Only use the specified replacement oil filter. The use of a non-specified
oil filter can result in engine damage.
3The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
4For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
243

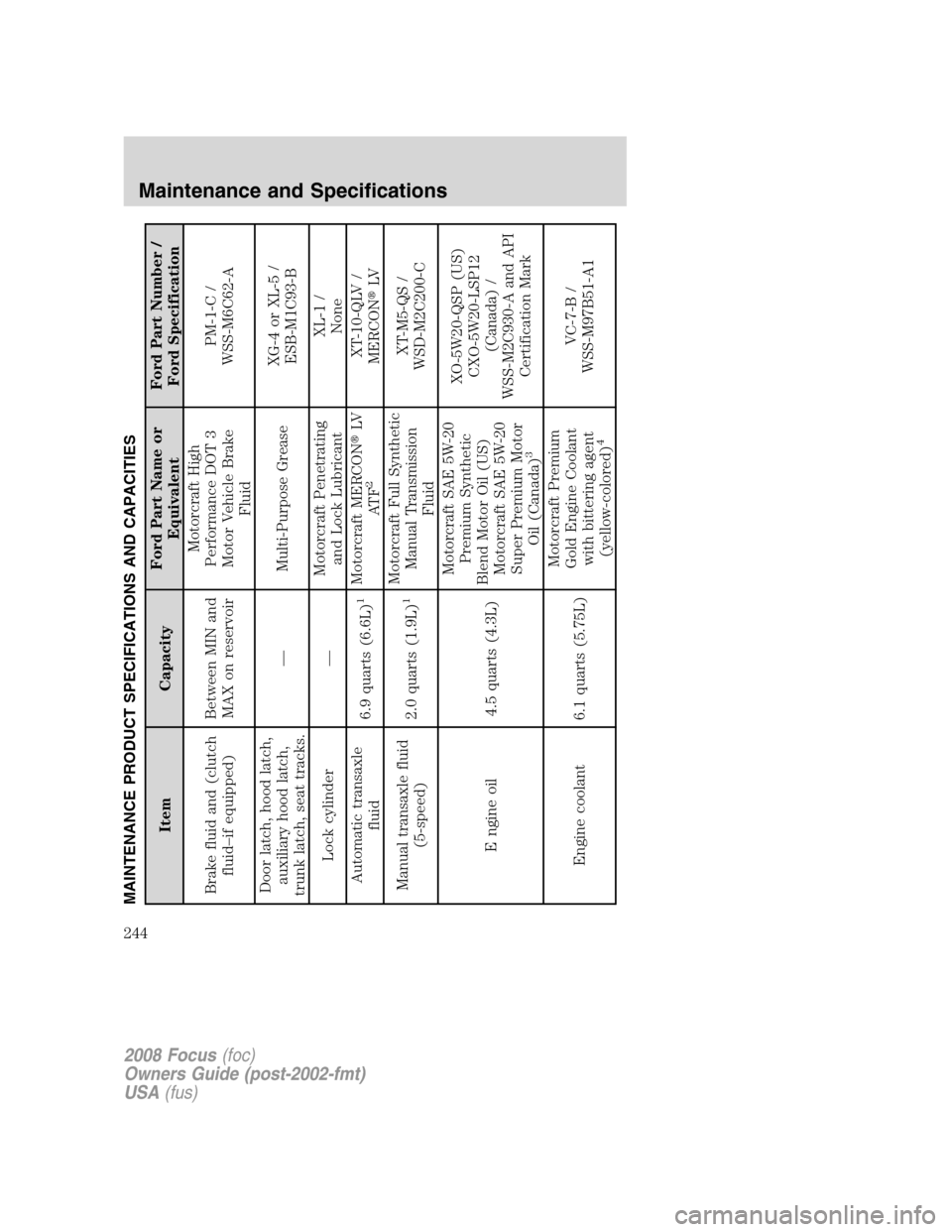

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
EquivalentFord Part Number /
Ford Specification
Brake fluid and (clutch
fluid–if equipped)Between MIN and
MAX on reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A
Door latch, hood latch,
auxiliary hood latch,
trunk latch, seat tracks.— Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinder —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic transaxle
fluid6.9 quarts (6.6L)
1
Motorcraft MERCONLV
AT F
2
XT-10-QLV /
MERCONLV
Manual transaxle fluid
(5-speed)2.0 quarts (1.9L)
1
Motorcraft Full Synthetic
Manual Transmission
FluidXT-M5-QS /
WSD-M2C200-C
E ngine oil 4.5 quarts (4.3L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
3
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine coolant 6.1 quarts (5.75L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
4
VC-7-B /
WSS-M97B51-A1
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
244

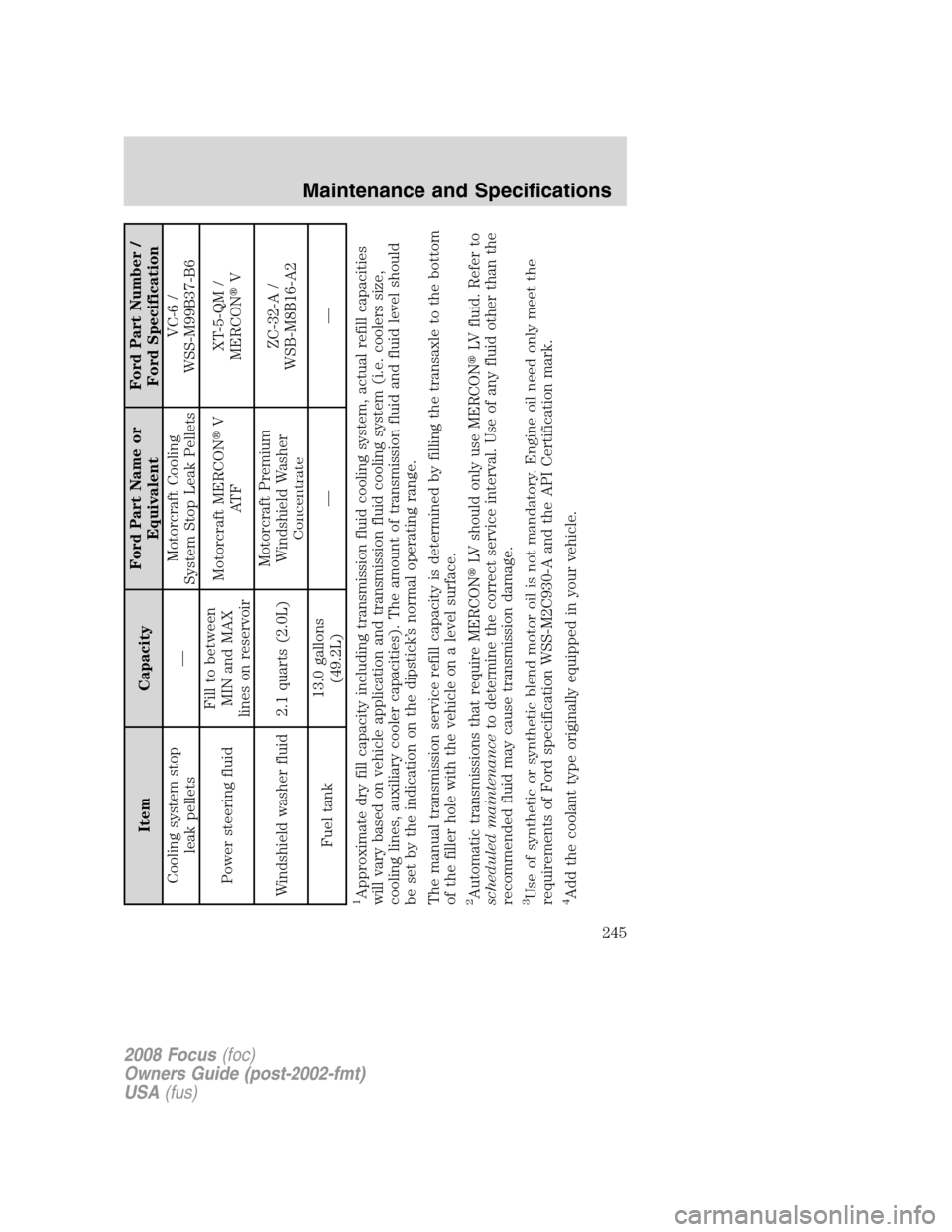

Item CapacityFord Part Name or
EquivalentFord Part Number /
Ford Specification
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft MERCONV
AT FXT-5-QM /
MERCONV
Windshield washer fluid 2.1 quarts (2.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank13.0 gallons
(49.2L)——
1Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.
The manual transmission service refill capacity is determined by filling the transaxle to the bottom
of the filler hole with the vehicle on a level surface.2Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenanceto determine the correct service interval. Use of any fluid other than the
recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle.
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
245

ENGINE DATA
Engine 2.0L I4 engine
Cubic inches 121
Required fuel 87 octane
Firing order 1–3–4–2
Ignition system C.O.P
Compression ratio 10.0 :1
Spark plug gap .051 inch +/- .002
1.3 mm +/- .05
Engine drivebelt routing
•2.0L I4 Engine without A/C
•2.0L I4 Engine with A/C
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
246

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic 2
Five-speed manual (MTX75) Z
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
248

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim kits
Fog lights
Splash guards
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
249

A
Air cleaner filter ...............241–243
Air conditioning
manual heating and air
conditioning system .................32
Airbag supplemental restraint
system ....................96–97, 105, 107
and child safety seats ..............98
description ................97, 105, 107
disposal ....................................111
driver airbag ..............99, 106, 109
indicator light .................105, 110
operation ...................99, 106, 109
passenger airbag .......99, 106, 109
side airbag ...............................105
Ambient mood/lighting ...............38
Antifreeze
(see Engine coolant) ................221
Anti-lock brake system
(see Brakes) ......................155–156
Anti-theft system ..................71, 73
arming the system ....................73
disarming a triggered
system .......................................74
triggering ...................................74
Audio system (see Radio) .........17
Automatic transaxle
fluid, adding ............................239
fluid, checking ........................239
fluid, specification ..................244
Automatic transmission ............159
driving an automatic
overdrive .................................160
fluid, refill capacities ..............244
Auxiliary input jack (Line in) ....25
Axle
refill capacities ........................244B
Battery .......................................219
acid, treating emergencies .....219
jumping a disabled battery ....190
maintenance-free ....................219
replacement, specifications ...243
servicing ..................................219
Belt-Minder...............................92
Booster seats .............................112
Brakes ........................................155
anti-lock ...........................155–156
anti-lock brake system
(ABS) warning light ...............156
fluid, checking and adding ....239
fluid, refill capacities ..............244
fluid, specifications .................244
lubricant specifications ..........244
parking ....................................156
shift interlock ..........................159
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....244
Cell phone use ..............................7
Child safety restraints ..............112
child safety belts ....................112
Child safety seats ......................115
attaching with tether
straps .......................................121
in front seat ....................116, 119
in rear seat ......................116, 119
LATCH .....................................123
Child safety seats -
booster seats .............................112
Cleaning your vehicle
engine compartment ..............207
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
251

instrument panel ....................209
interior .....................................209
plastic parts ............................208
washing ....................................205
waxing .....................................206
wheels ......................................206
wiper blades ............................208
Climate control (see Air
conditioning or Heating) ............32
Clutch
fluid ..........................................239
operation while driving ..........163
recommended shift speeds ....164
Console ........................................45
Controls
steering column ........................52
Coolant
checking and adding ..............221
refill capacities ................224, 244
specifications ..........................244
Cruise control
(see Speed control) ....................49
Customer Assistance ................166
Ford Extended Service
Plan ..........................................201
Getting assistance outside
the U.S. and Canada ..............202
Getting roadside assistance ...166
Getting the service you
need .........................................197
Ordering additional owner’s
literature .................................203
Utilizing the Mediation/
Arbitration Program ...............201
D
Daytime running lamps
(see Lamps) ................................36Dipstick
automatic transmission
fluid ..........................................239
engine oil .................................217
Driving under special
conditions ..................................162
through water .........................165
E
Electronic message center .........55
Emergencies, roadside
jump-starting ..........................190
Emergency Flashers .................168
Emission control system ..........235
Engine ........................................246
cleaning ...................................207
coolant .....................................221
fail-safe cooling .......................225
idle speed control ...................219
lubrication specifications .......244
refill capacities ........................244
service points ..........................215
starting after a collision .........168
Engine block heater .................153
Engine fan .................................215
Engine oil ..................................217
change oil soon warning,
message center .......................217
checking and adding ..............217
dipstick ....................................217
filter, specifications ........218, 243
recommendations ...................218
refill capacities ........................244
specifications ..........................244
Event data recording ....................6
Exhaust fumes ..........................153
F
Fail safe cooling ........................225
2008 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
252
