2008 FORD F650 engine oil capacity

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name / number
Door window
regulatorsNGLI #2
multipurpose
lithium complex
grease— Motorcraft
Multi-Purpose
Grease Spray /
XL-5 or
Motorcraft
Multi-Purpose
Grease / XG-4
Weatherstripping Silicone
lubricant— Motorcraft
Silicone Spray /
XL-6
Engine oil
Refer to engine operator manual
Brake fluid
Master cylinder DOT 3,
ESA-M6C25–A
or
WSS-M6C62–A— Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid, PM-1 or
PM-1–C
REFILL CAPACITIES
Rear axle
Axle codeWeight
capacity - lb.
(kg)DescriptionFluid capacity
- pints
(liters)1,2
S135–S 13500 (6123) Single rear axle,
single reduction24.5 (11.6)
4S150–S 15500 (7031) Single rear axle,
single reduction24.5 (11.6)
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
222

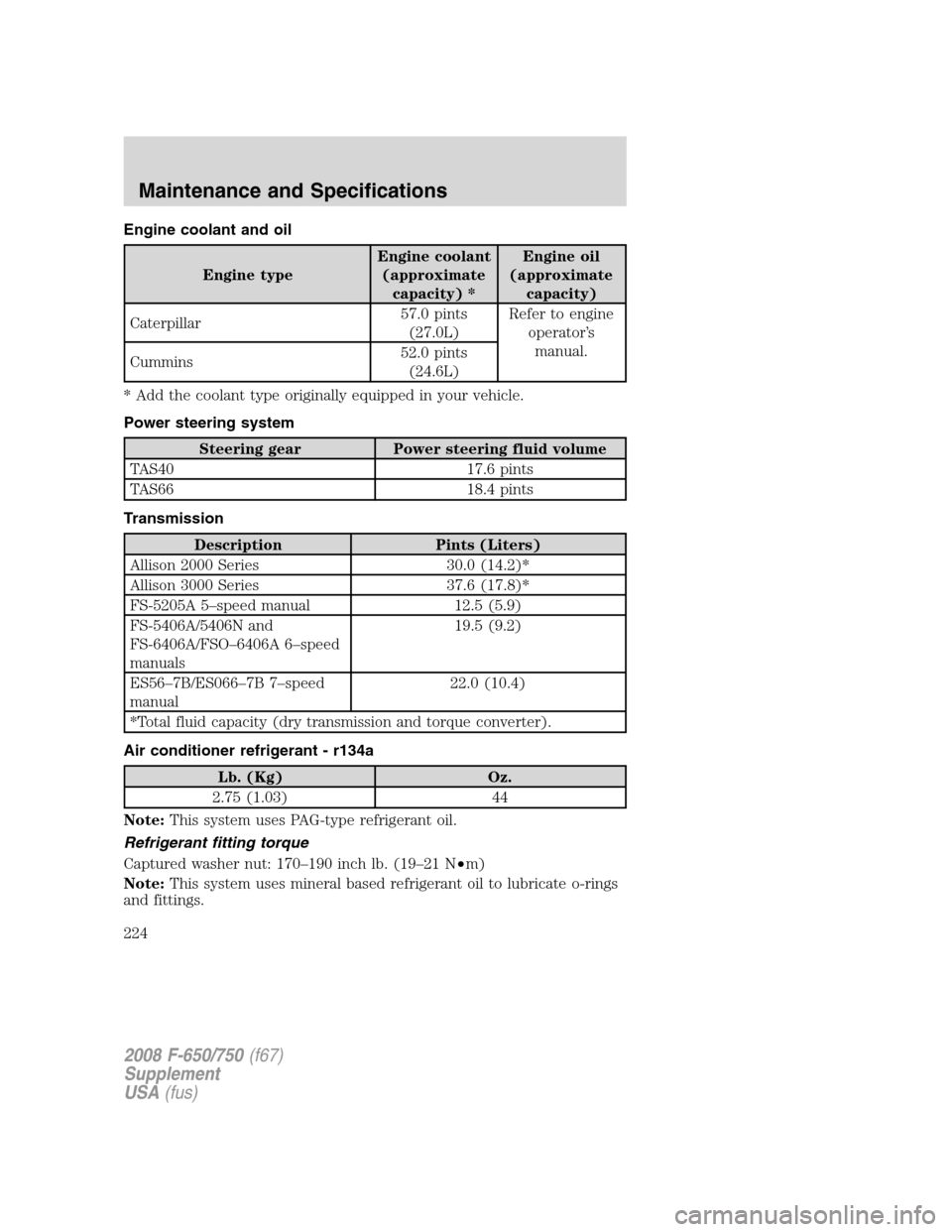

Engine coolant and oil
Engine typeEngine coolant
(approximate
capacity) *Engine oil
(approximate
capacity)
Caterpillar57.0 pints
(27.0L)Refer to engine
operator’s
manual.
Cummins52.0 pints
(24.6L)
* Add the coolant type originally equipped in your vehicle.
Power steering system
Steering gear Power steering fluid volume
TAS40 17.6 pints
TAS66 18.4 pints
Transmission
Description Pints (Liters)
Allison 2000 Series 30.0 (14.2)*
Allison 3000 Series 37.6 (17.8)*
FS-5205A 5–speed manual 12.5 (5.9)
FS-5406A/5406N and
FS-6406A/FSO–6406A 6–speed
manuals19.5 (9.2)
ES56–7B/ES066–7B 7–speed
manual22.0 (10.4)
*Total fluid capacity (dry transmission and torque converter).
Air conditioner refrigerant - r134a
Lb. (Kg) Oz.
2.75 (1.03) 44
Note:This system uses PAG-type refrigerant oil.
Refrigerant fitting torque
Captured washer nut: 170–190 inch lb. (19–21 N•m)
Note:This system uses mineral based refrigerant oil to lubricate o-rings
and fittings.
2008 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
224

temperature gauge ...................27
Cruise control
(see Speed control) ....................57
Customer Assistance ........134, 150
Ford accessories for your
vehicle .....................................158
Getting assistance outside
the U.S. and Canada ......150, 152
Getting roadside assistance ...134
Getting the service you
need .........................................150
Ordering additional owner’s
literature .................................153
D
Daytime running lamps
(see Lamps) ................................47
Defects, reporting .....................153
Defrost ...................................44–45
windshield ...........................44–45
with heating and air
conditioning system .................45
with standard heating
system .......................................44
Doors
lubricant specifications ..........209
Driving under special
conditions
through water ...........................90
E
Emergencies, roadside
jump-starting ..........................142
Emission control
system ................................185, 229
catalytic converter ..................166
Engine
cleaning ...................................156coolant .....................................173
lubrication specifications .......209
Engine fan .................................174
Engine oil ..................................171
oil pressure gauge ....................27
refill capacities ........................224
specifications ..........................209
Event data recording ....................6
F
Fan, Engine Cooling .................174
Flashers, hazard ........................135
Fuel ............................................175
calculating fuel
economy ..........................178–179
capacity ...................................225
choosing the right fuel ...........176
filling your vehicle with
fuel ...........................................175
filter, specifications ................174
gauge .........................................27
improving fuel
economy ..........................178–179
running out of fuel ...........88, 178
safety information relating to
automotive fuels .....................175
Fuses ..................................135, 141
G
Gas mileage
(see Fuel economy) .........178–179
Gauges .........................................27
battery voltage gauge ...............27
engine coolant temperature
gauge .........................................27
engine oil pressure gauge ........27
fuel gauge ..................................27
odometer ...................................27
2008 F-650/750(f67)
Supplement
USA(fus)
Index
263
