2008 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS headlamp

Introduction 3
Instrument Cluster 8
Warning lights and chimes 8
Gauges 13
Lights 16
Headlamps 16
Turn signal control 17
Bulb replacement 17
Driver Controls 18
Windshield wiper/washer control 18
Steering wheel adjustment 18
Speed control 19
Tires, Wheels and Loading 22
Tire information 22
Tire inflation 24
Vehicle loading 39
Trailer towing 44
Driving 48
Starting 48
Brakes 51
Transmission operation 55
Roadside Emergencies 61
Getting roadside assistance 61
Hazard flasher switch 61
Fuses and relays 62
Changing tires 69
Wheel lug nut torque 75
Jump starting 75
Wrecker towing 80
Table of Contents
1
2008 Motorhome(mot)
Supplement
USA(fus)

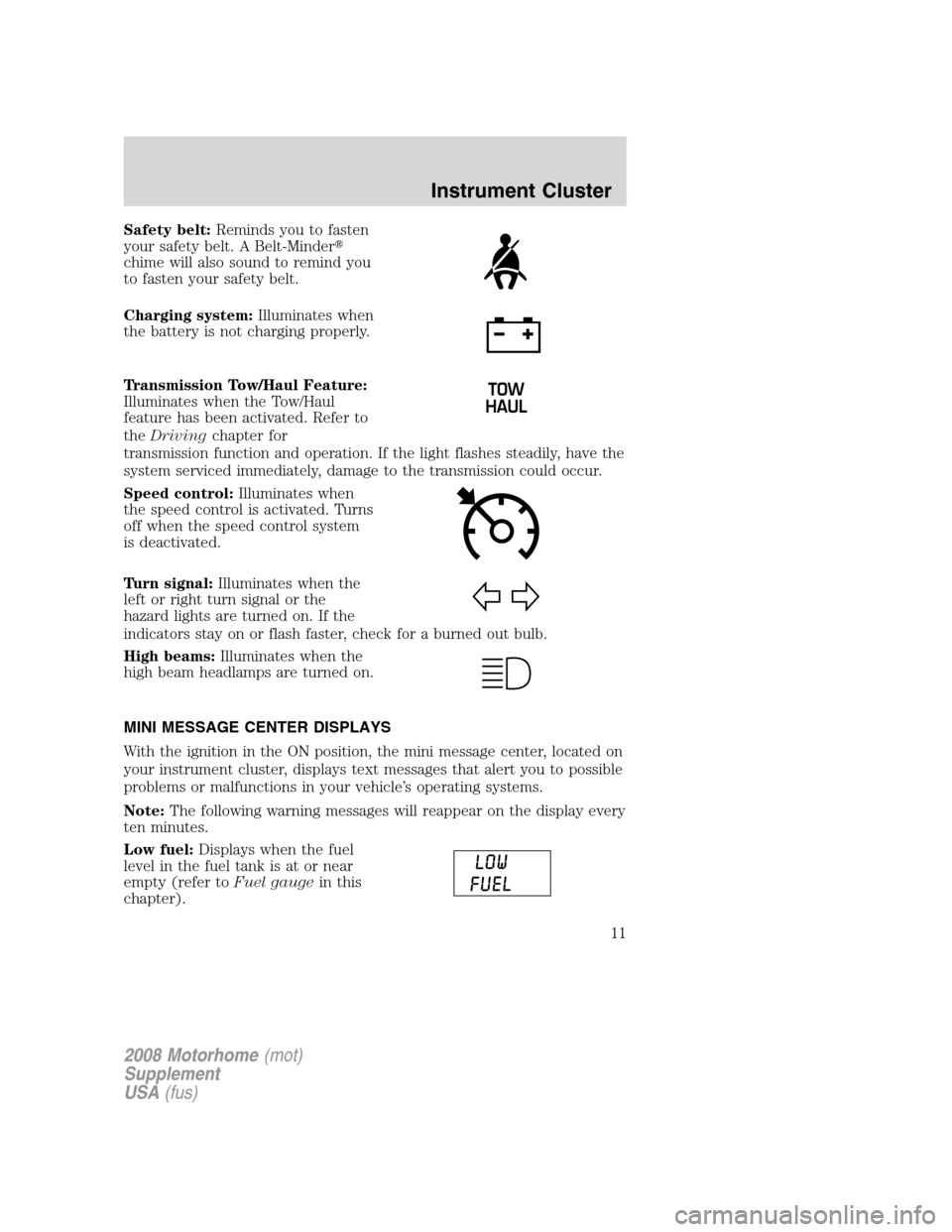

Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you
to fasten your safety belt.
Charging system:Illuminates when
the battery is not charging properly.
Transmission Tow/Haul Feature:
Illuminates when the Tow/Haul
feature has been activated. Refer to
theDrivingchapter for
transmission function and operation. If the light flashes steadily, have the
system serviced immediately, damage to the transmission could occur.
Speed control:Illuminates when
the speed control is activated. Turns
off when the speed control system
is deactivated.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
MINI MESSAGE CENTER DISPLAYS
With the ignition in the ON position, the mini message center, located on
your instrument cluster, displays text messages that alert you to possible
problems or malfunctions in your vehicle’s operating systems.
Note:The following warning messages will reappear on the display every
ten minutes.
Low fuel:Displays when the fuel
level in the fuel tank is at or near
empty (refer toFuel gaugein this
chapter).
2008 Motorhome(mot)
Supplement
USA(fus)
Instrument Cluster
11

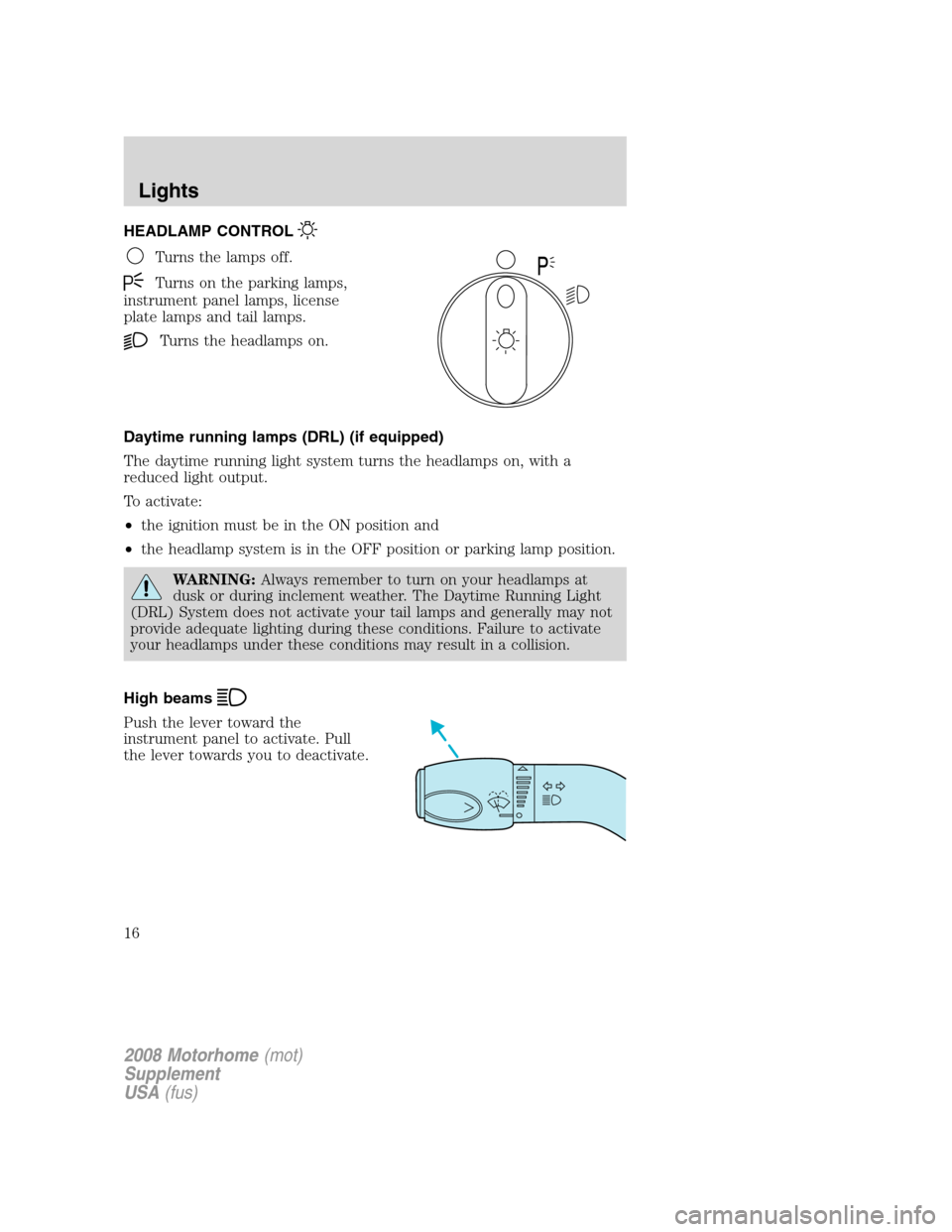

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Daytime running lamps (DRL) (if equipped)
The daytime running light system turns the headlamps on, with a
reduced light output.
To activate:
•the ignition must be in the ON position and
•the headlamp system is in the OFF position or parking lamp position.
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Light
(DRL) System does not activate your tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
2008 Motorhome(mot)
Supplement
USA(fus)
Lights
16

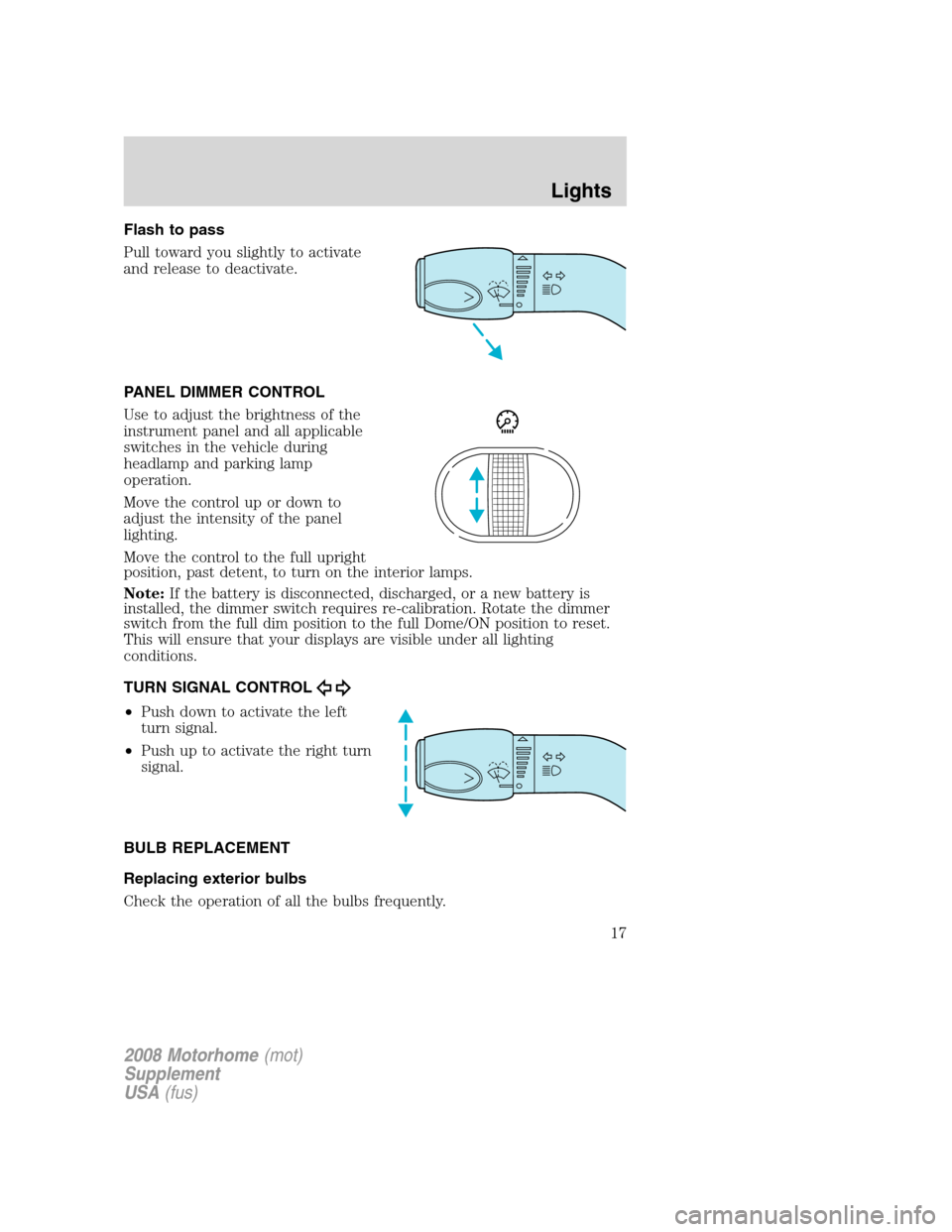

Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parking lamp
operation.
Move the control up or down to
adjust the intensity of the panel
lighting.
Move the control to the full upright
position, past detent, to turn on the interior lamps.
Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer switch requires re-calibration. Rotate the dimmer
switch from the full dim position to the full Dome/ON position to reset.
This will ensure that your displays are visible under all lighting
conditions.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
BULB REPLACEMENT
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
2008 Motorhome(mot)
Supplement
USA(fus)
Lights
17

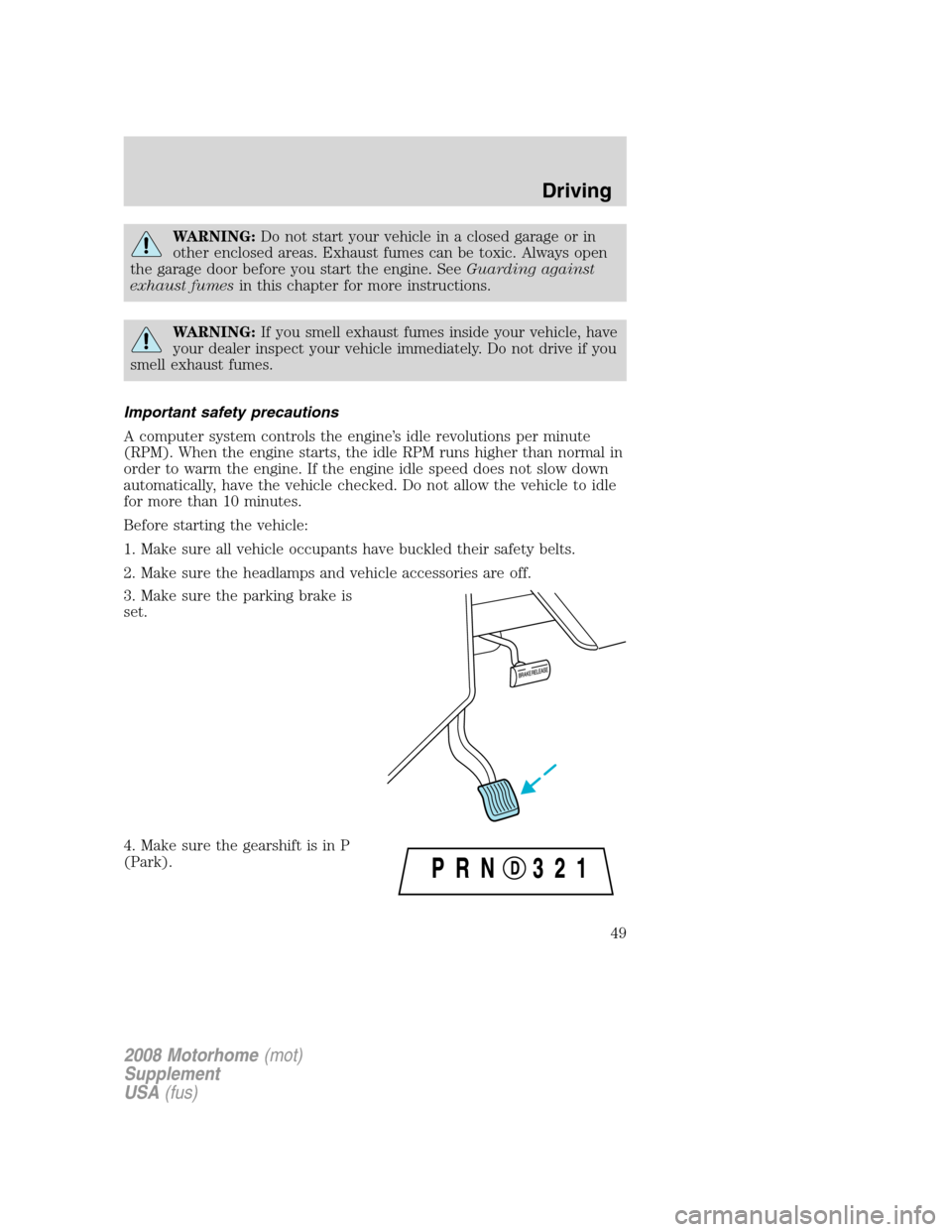

WARNING:Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. SeeGuarding against
exhaust fumesin this chapter for more instructions.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important safety precautions
A computer system controls the engine’s idle revolutions per minute
(RPM). When the engine starts, the idle RPM runs higher than normal in
order to warm the engine. If the engine idle speed does not slow down
automatically, have the vehicle checked. Do not allow the vehicle to idle
for more than 10 minutes.
Before starting the vehicle:
1. Make sure all vehicle occupants have buckled their safety belts.
2. Make sure the headlamps and vehicle accessories are off.
3. Make sure the parking brake is
set.
4. Make sure the gearshift is in P
(Park).
2008 Motorhome(mot)
Supplement
USA(fus)
Driving
49

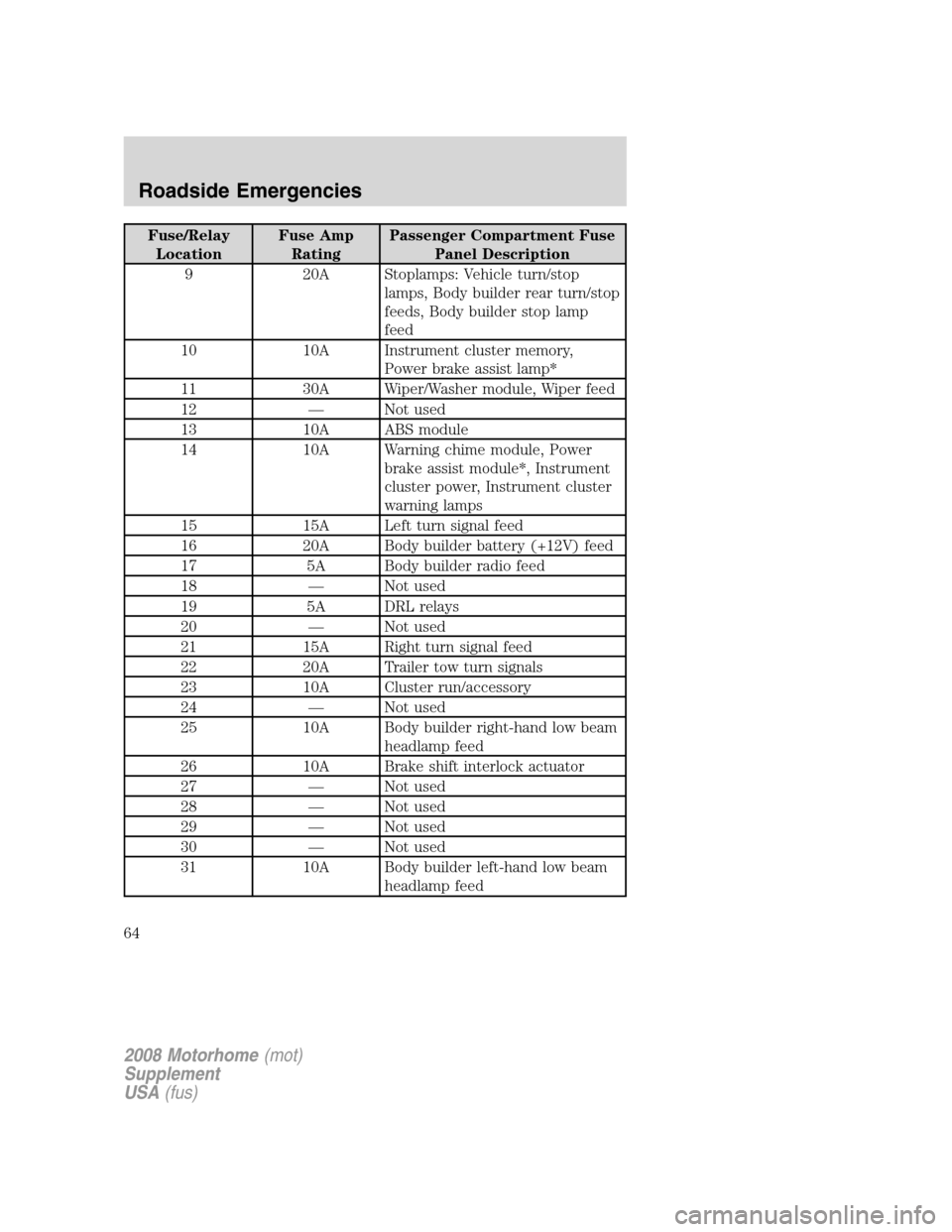

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
9 20A Stoplamps: Vehicle turn/stop
lamps, Body builder rear turn/stop
feeds, Body builder stop lamp
feed
10 10A Instrument cluster memory,
Power brake assist lamp*
11 30A Wiper/Washer module, Wiper feed
12 — Not used
13 10A ABS module
14 10A Warning chime module, Power
brake assist module*, Instrument
cluster power, Instrument cluster
warning lamps
15 15A Left turn signal feed
16 20A Body builder battery (+12V) feed
17 5A Body builder radio feed
18 — Not used
19 5A DRL relays
20 — Not used
21 15A Right turn signal feed
22 20A Trailer tow turn signals
23 10A Cluster run/accessory
24 — Not used
25 10A Body builder right-hand low beam
headlamp feed
26 10A Brake shift interlock actuator
27 — Not used
28 — Not used
29 — Not used
30 — Not used
31 10A Body builder left-hand low beam
headlamp feed
2008 Motorhome(mot)
Supplement
USA(fus)
Roadside Emergencies
64

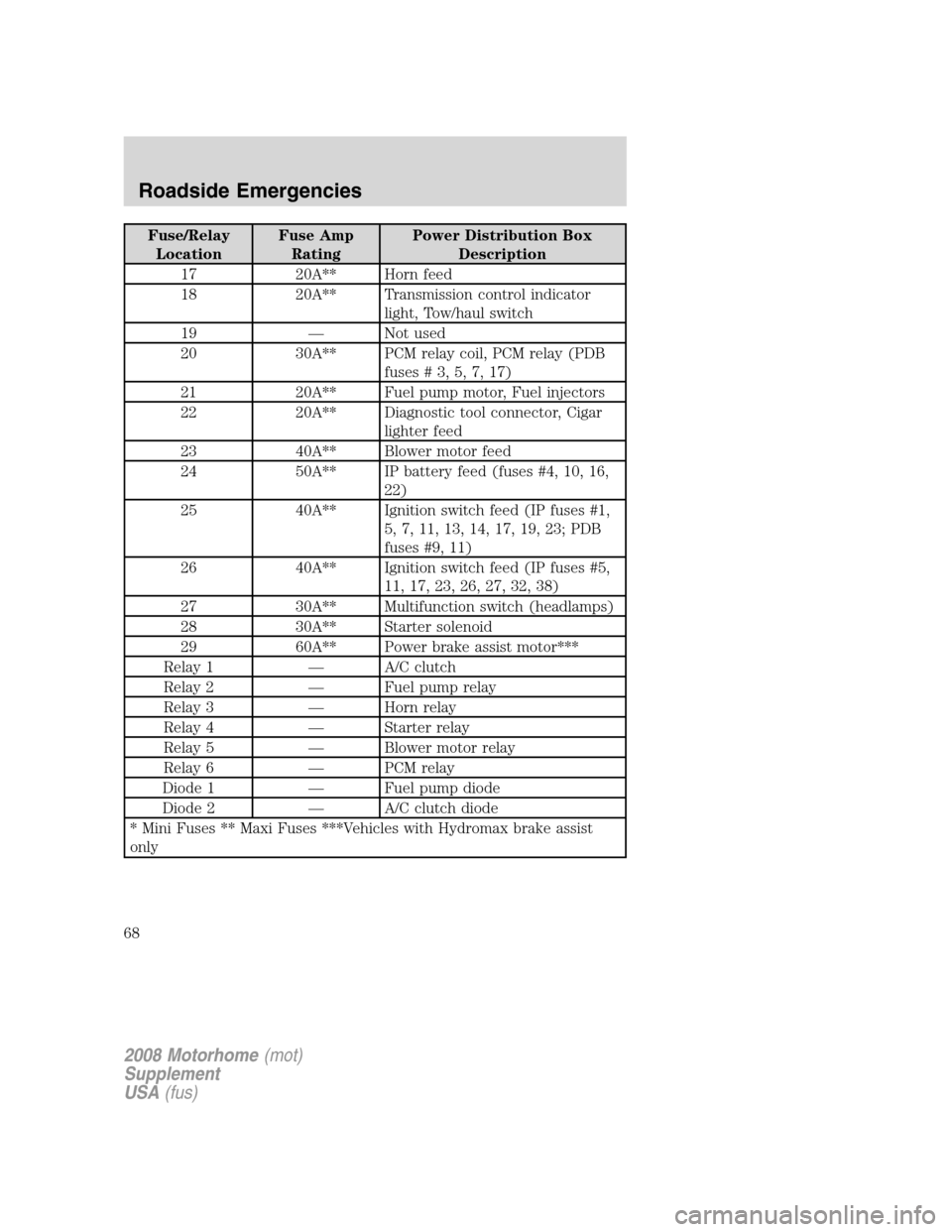

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
17 20A** Horn feed
18 20A** Transmission control indicator
light, Tow/haul switch
19 — Not used
20 30A** PCM relay coil, PCM relay (PDB
fuses#3,5,7,17)
21 20A** Fuel pump motor, Fuel injectors
22 20A** Diagnostic tool connector, Cigar
lighter feed
23 40A** Blower motor feed
24 50A** IP battery feed (fuses #4, 10, 16,
22)
25 40A** Ignition switch feed (IP fuses #1,
5, 7, 11, 13, 14, 17, 19, 23; PDB
fuses #9, 11)
26 40A** Ignition switch feed (IP fuses #5,
11, 17, 23, 26, 27, 32, 38)
27 30A** Multifunction switch (headlamps)
28 30A** Starter solenoid
29 60A** Power brake assist motor***
Relay 1 — A/C clutch
Relay 2 — Fuel pump relay
Relay 3 — Horn relay
Relay 4 — Starter relay
Relay 5 — Blower motor relay
Relay 6 — PCM relay
Diode 1 — Fuel pump diode
Diode 2 — A/C clutch diode
* Mini Fuses ** Maxi Fuses ***Vehicles with Hydromax brake assist
only
2008 Motorhome(mot)
Supplement
USA(fus)
Roadside Emergencies
68

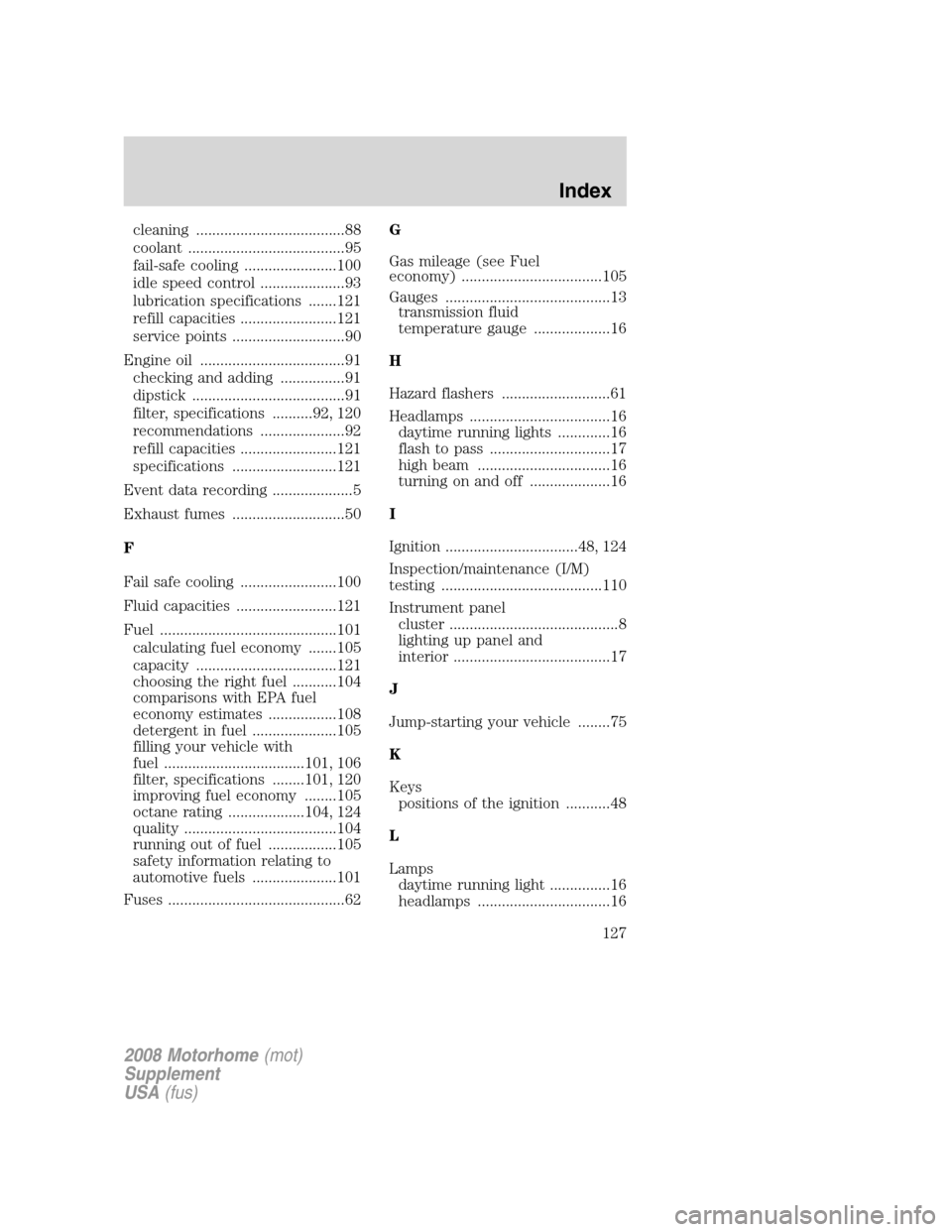

cleaning .....................................88
coolant .......................................95
fail-safe cooling .......................100
idle speed control .....................93
lubrication specifications .......121
refill capacities ........................121
service points ............................90
Engine oil ....................................91
checking and adding ................91
dipstick ......................................91
filter, specifications ..........92, 120
recommendations .....................92
refill capacities ........................121
specifications ..........................121
Event data recording ....................5
Exhaust fumes ............................50
F
Fail safe cooling ........................100
Fluid capacities .........................121
Fuel ............................................101
calculating fuel economy .......105
capacity ...................................121
choosing the right fuel ...........104
comparisons with EPA fuel
economy estimates .................108
detergent in fuel .....................105
filling your vehicle with
fuel ...................................101, 106
filter, specifications ........101, 120
improving fuel economy ........105
octane rating ...................104, 124
quality ......................................104
running out of fuel .................105
safety information relating to
automotive fuels .....................101
Fuses ............................................62G
Gas mileage (see Fuel
economy) ...................................105
Gauges .........................................13
transmission fluid
temperature gauge ...................16
H
Hazard flashers ...........................61
Headlamps ...................................16
daytime running lights .............16
flash to pass ..............................17
high beam .................................16
turning on and off ....................16
I
Ignition .................................48, 124
Inspection/maintenance (I/M)
testing ........................................110
Instrument panel
cluster ..........................................8
lighting up panel and
interior .......................................17
J
Jump-starting your vehicle ........75
K
Keys
positions of the ignition ...........48
L
Lamps
daytime running light ...............16
headlamps .................................16
2008 Motorhome(mot)
Supplement
USA(fus)
Index
127
