2008 FORD EXPLORER SPORT TRAC wiper fluid

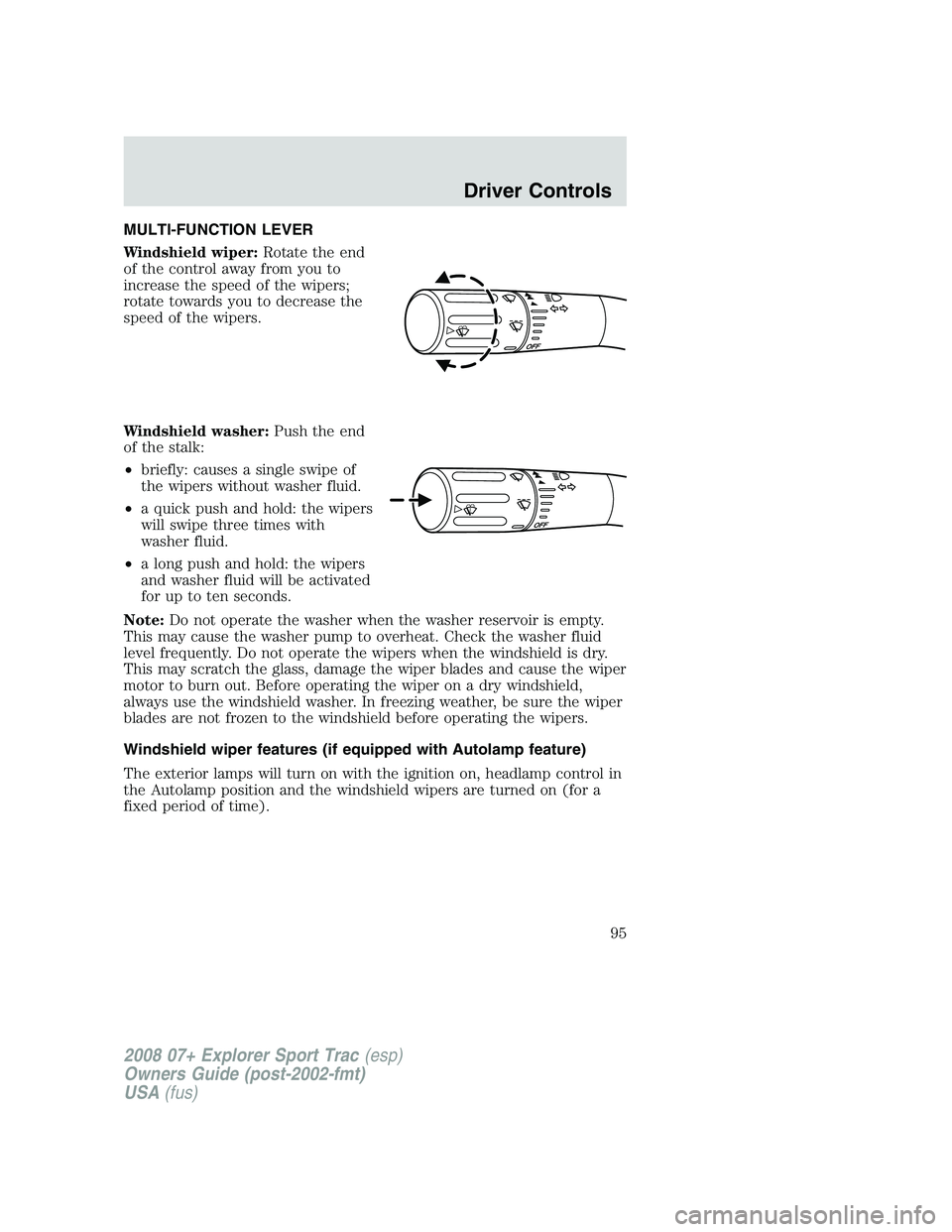

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers
and washer fluid will be activated
for up to ten seconds.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper features (if equipped with Autolamp feature)
The exterior lamps will turn on with the ignition on, headlamp control in
the Autolamp position and the windshield wipers are turned on (for a
fixed period of time).
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
95

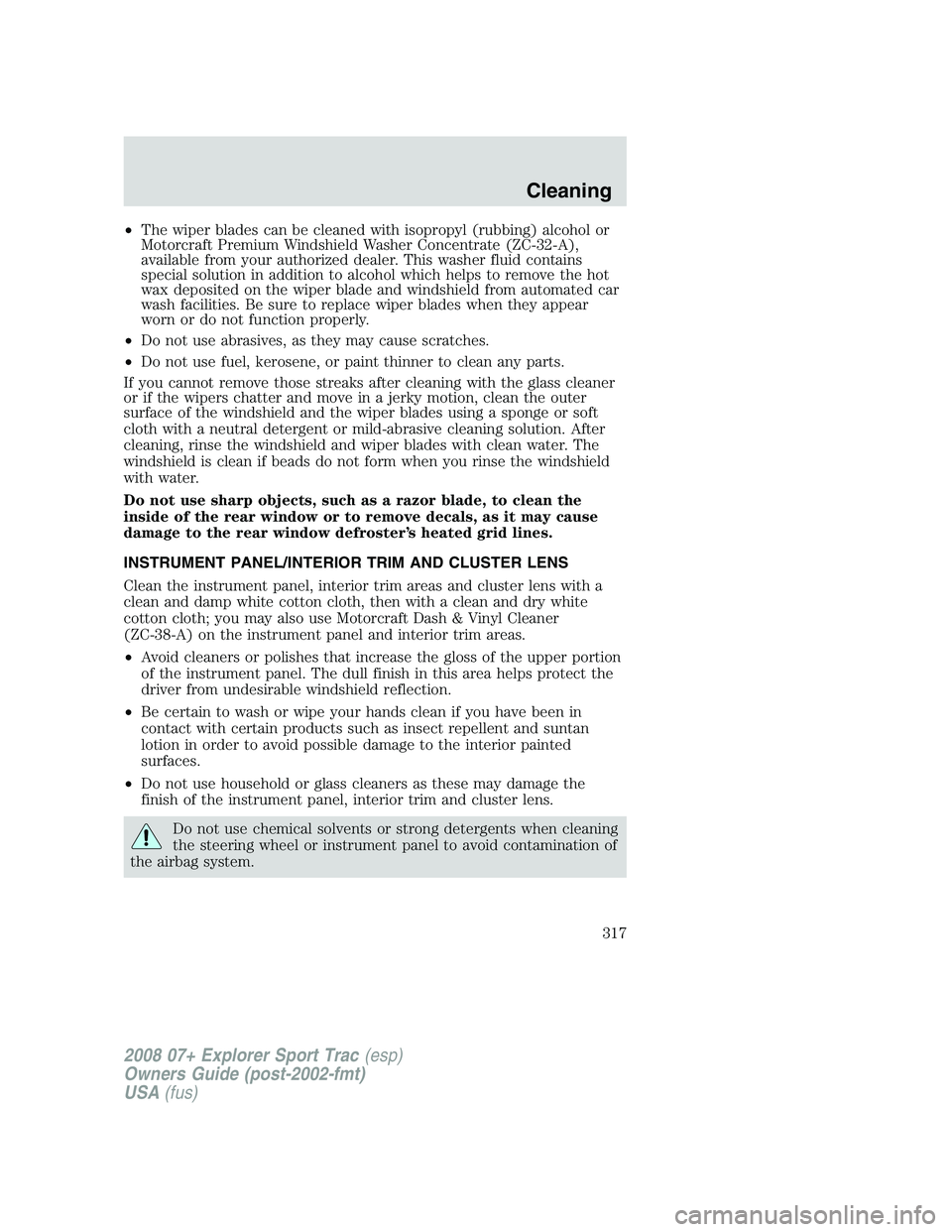

•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
INSTRUMENT PANEL/INTERIOR TRIM AND CLUSTER LENS
Clean the instrument panel, interior trim areas and cluster lens with a
clean and damp white cotton cloth, then with a clean and dry white
cotton cloth; you may also use Motorcraft Dash & Vinyl Cleaner
(ZC-38-A) on the instrument panel and interior trim areas.
•Avoid cleaners or polishes that increase the gloss of the upper portion
of the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the interior painted
surfaces.
•Do not use household or glass cleaners as these may damage the
finish of the instrument panel, interior trim and cluster lens.
Do not use chemical solvents or strong detergents when cleaning
the steering wheel or instrument panel to avoid contamination of
the airbag system.
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
317

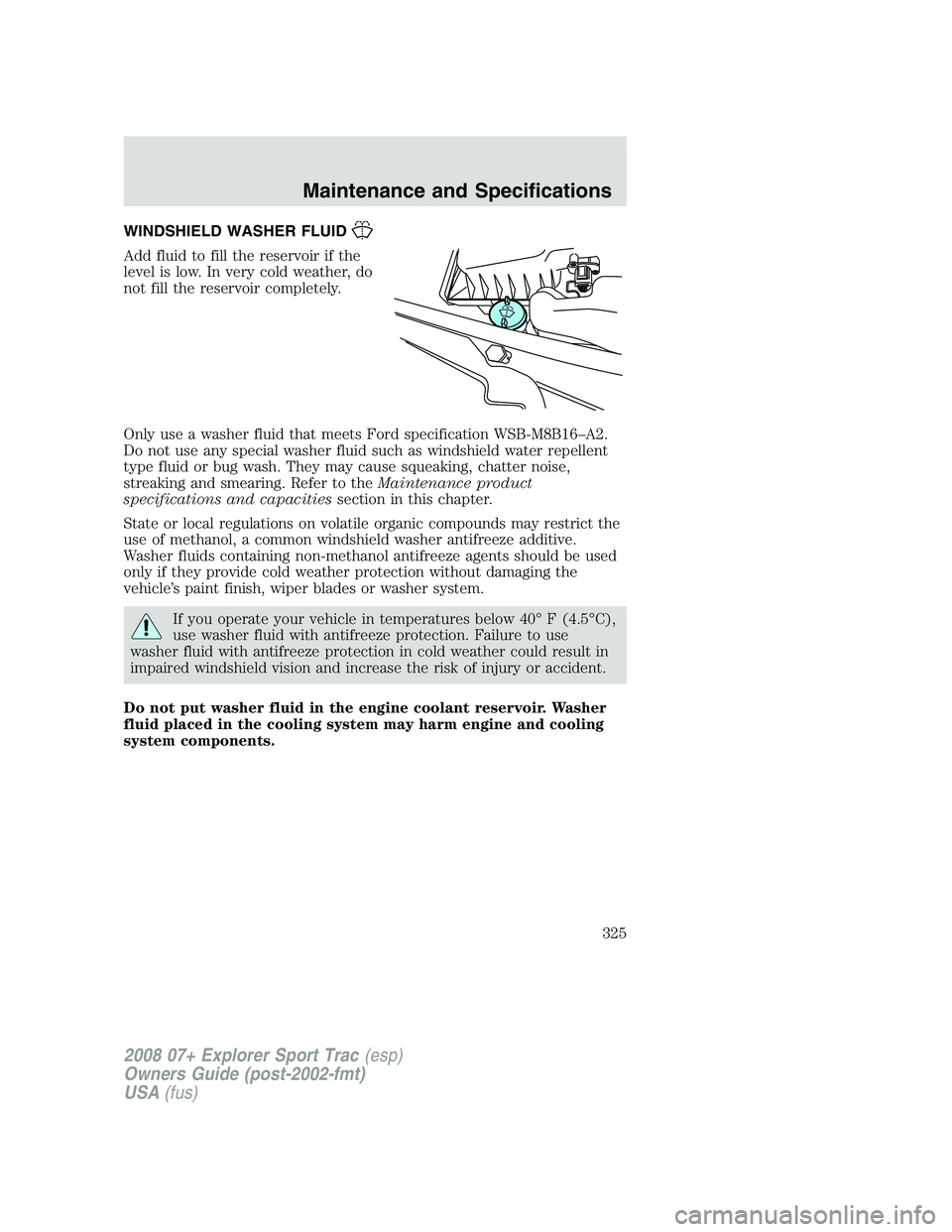

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets Ford specification WSB-M8B16–A2.
Do not use any special washer fluid such as windshield water repellent
type fluid or bug wash. They may cause squeaking, chatter noise,
streaking and smearing. Refer to theMaintenance product
specifications and capacitiessection in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
If you operate your vehicle in temperatures below 40° F (4.5°C),
use washer fluid with antifreeze protection. Failure to use
washer fluid with antifreeze protection in cold weather could result in
impaired windshield vision and increase the risk of injury or accident.
Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling
system components.
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
325

plastic parts ............................316
washing ....................................313
waxing .....................................314
wheels ......................................314
wiper blades ............................316
Climate control (see Air
conditioning or Heating) ............80
Clock adjust
6-CD in dash .............................36
AM/FM/CD .................................28
Compass, electronic ..................118
calibration ...............................120
set zone adjustment .......119, 131
Console ......................................100
overhead ....................................97
Controls
power seat ...............................163
steering column ......................109
Coolant
checking and adding ..............333
refill capacities ................337, 355
specifications ..........................355
Cruise control
(see Speed control) ..................107
Customer Assistance ................280
Ford Extended Service
Plan ..........................................309
Getting assistance outside
the U.S. and Canada ..............310
Getting roadside assistance ...280
Getting the service you
need .........................................305
Ordering additional owner’s
literature .................................311
Utilizing the
Mediation/Arbitration
Program ...................................309D
Daytime running lamps
(see Lamps) ................................86
Dipstick
automatic transmission
fluid ..........................................351
engine oil .................................326
Driveline universal joint and
slip yoke ....................................352
Driving under special
conditions ..................269, 274, 277
sand .........................................276
snow and ice ...........................278
through water .................276, 279
Dual automatic temperature
control (DATC) ...........................80
DVD system .................................50
E
Electronic message center ......113,
124
Emergencies, roadside
jump-starting ..........................299
Emergency Flashers .................281
Emission control system ..........348
Engine ........................................358
cleaning ...................................315
coolant .....................................333
fail-safe cooling .......................338
idle speed control ...................331
lubrication specifications .......355
refill capacities ........................355
service points ..................323–324
starting after a collision .........282
Engine block heater .................252
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
364

Starting your
vehicle ........................248–249, 251
jump starting ..........................299
Steering wheel
controls ....................................109
tilting .........................................96
T
Tailgate ......................................137
Tilt steering wheel ......................96
Tire Pressure Monitoring
System (TPMS)
Driving .....................................276
Roadside Emergencies ...........290
Tires, Wheels and Loading ....229
Warning Displays ......12, 120, 133
Tires ...........................214–216, 290
alignment ................................222
care ..........................................219
changing ..........................290, 294
checking the pressure ............219
inflating ...................................217
label .........................................228
replacing ..........................220, 294
rotating ....................................223
safety practices .......................222
sidewall information ...............224
snow tires and chains ............234
spare tire .........................290, 292
terminology .............................216
tire grades ...............................215
treadwear ........................215, 219
Tonneau cover ...........................140
Towing .......................................241
recreational towing .................247
trailer towing ..........................241
wrecker ....................................304Transfer case
fluid checking .........................352
Transmission .............................261
brake-shift interlock (BSI) ....261
fluid, checking and adding
(automatic) .............................351
fluid, refill capacities ..............355
lubricant specifications ..........355
Trunk .........................................142
Turn signal ..................................89
U
USB port ......................................44
V
Vehicle Identification Number
(VIN) ..........................................359
Vehicle loading ..........................234
camper bodies ........................246
Ventilating your vehicle ...........251
W
Warning lights (see Lights) .......12
Washer fluid ..............................325
Water, Driving through .............279
Windows
power .......................................100
Windshield
defrosting ..................................83
Windshield washer fluid and
wipers ..........................................95
checking and adding fluid .....325
replacing wiper blades ...........326
Wrecker towing .........................304
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
368
