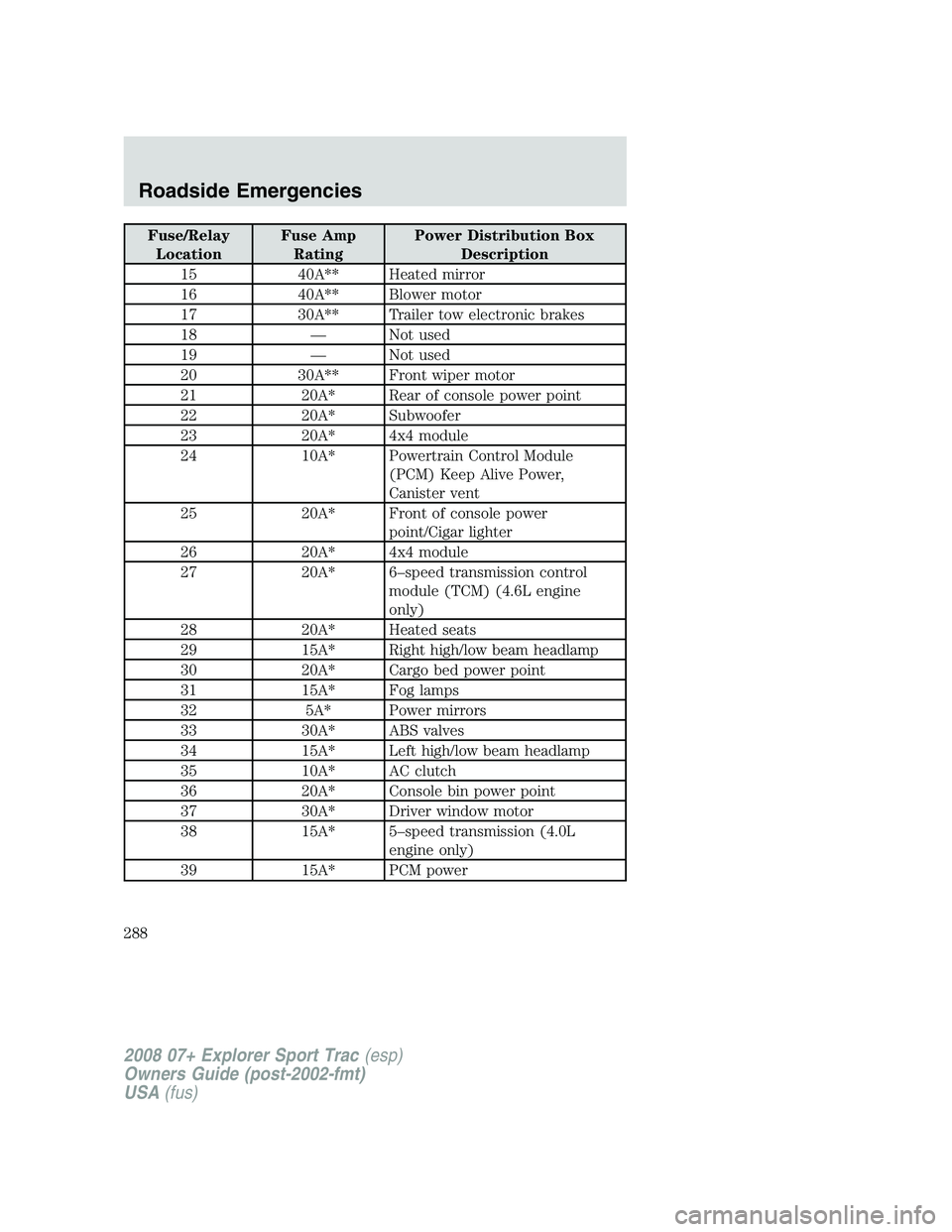

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
15 40A** Heated mirror
16 40A** Blower motor
17 30A** Trailer tow electronic brakes
18 — Not used
19 — Not used
20 30A** Front wiper motor
21 20A* Rear of console power point
22 20A* Subwoofer
23 20A* 4x4 module
24 10A* Powertrain Control Module
(PCM) Keep Alive Power,
Canister vent
25 20A* Front of console power
point/Cigar lighter
26 20A* 4x4 module
27 20A* 6–speed transmission control
module (TCM) (4.6L engine
only)
28 20A* Heated seats
29 15A* Right high/low beam headlamp
30 20A* Cargo bed power point
31 15A* Fog lamps
32 5A* Power mirrors
33 30A* ABS valves
34 15A* Left high/low beam headlamp
35 10A* AC clutch
36 20A* Console bin power point
37 30A* Driver window motor
38 15A* 5–speed transmission (4.0L
engine only)
39 15A* PCM power
2008 07+ Explorer Sport Trac(esp)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
288
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
40 15A* Fan clutch, PCV valve (4.0L
engine only), AC clutch relay
41 15A* SDARS, DVD, SYNC
42 15A* Speed control deactivation
switch, EVMV, MAFS, HEGO,
EVR, CMS, (VCT1, VCT2, CMCV
on 4.6L only)
43 15A* Coil on plug (4.6L engine), Coil
tower (4.0L engine)
44 15A* Fuel injectors
45B — Not used
45A — Not used
46B — Not used
46A — Not used
49 — Fuel pump relay
50B — A/C clutch relay
50A — Fog lamps relay
51 — Not used
52 — A/C clutch diode
53 — One Touch Integrated Start
(OTIS) (diode)
54 — Trailer tow battery charge relay
55B — Front wiper relay
55A — PCM relay
56B — Starter relay
56A — Climate control blower relay
* Mini Fuses ** Cartridge Fuses
