the driver to disable the system only when the ignition is ON and the
gear selector is in R (Reverse). Refer toMessage centerin theDriver
Controlschapter for more information.
Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
ALL WHEEL DRIVE (AWD) SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a full-time All Wheel Drive (AWD)
system. With the AWD option, power will be delivered to the front
wheels and distributed to the rear wheels as needed. The AWD system is
active all the time and requires no input from the operator.
All components of the AWD system are sealed for life and require no
maintenance.
If your vehicle is equipped with AWD, a spare tire of a different size
other than the tire provided should never be used. A dissimilar spare tire
size (other than the spare tire provided) or major dissimilar tire sizes
between the front and rear axles could cause the AWD system to stop
functioning and default to front wheel drive and could damage the
system.
Note:Your AWD vehicle is not intended for severe off-road use. The
AWD feature gives your vehicle some limited off-road capabilities in
which driving surfaces are relatively level, obstruction-free and otherwise
similar to normal on-road driving conditions. Operating your vehicle
under other than those conditions could subject the vehicle to excessive
stress which might result in damage which is not covered under your
warranty.
Driving off-highway with AWD vehicles
AWD vehicles are equipped for driving on sand, snow, mud and rough
roads and have operating characteristics that are somewhat different
from conventional vehicles, both on and off the highway.
When driving at slow speeds off-highway under high outside
temperatures, use L (Low) gear when possible. L (Low) gear operation
will maximize the engine and transmission cooling capability.
Under severe operating conditions, the A/C may cycle on and off to
protect overheating of the engine.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
247

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
10 15A Backlighting, Puddle lamps
11 10A All wheel drive
12 7.5A Power mirror switch, Driver side
power seat memory, Driver seat
module – Keep alive power (KA)
13 5A Not used (Spare)
14 10A Power liftgate module
15 10A Climate control
16 15A Not used (Spare)
17 20A All power lock motor feeds,
Liftgate release, Moon roof
18 20A Not used (Spare)
19 25A Rear wiper
20 15A Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps/Interior lamps
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Overdrive cancel switch
31 10A Automatic dimming rear view
mirror
32 10A Not used (Spare)
33 10A Not used (Spare)
34 5A Steering angle sensor
35 10A Rear park assist, AWD, Heated
seat module
36 5A PATS transceiver
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
259

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
37 10A Climate control
38 20A Subwoofer/Amp (Audiophile
radio)
39 20A Radio
40 20A Not used (Spare)
41 15A Delayed accessory function for
radio and lock switch illumination
42 10A Not used (Spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic, Climate control
relay feed
46 7.5A Occupant Classification Sensor
(OCS), Passenger Airbag
Deactivation Indicator (PADI)
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
260

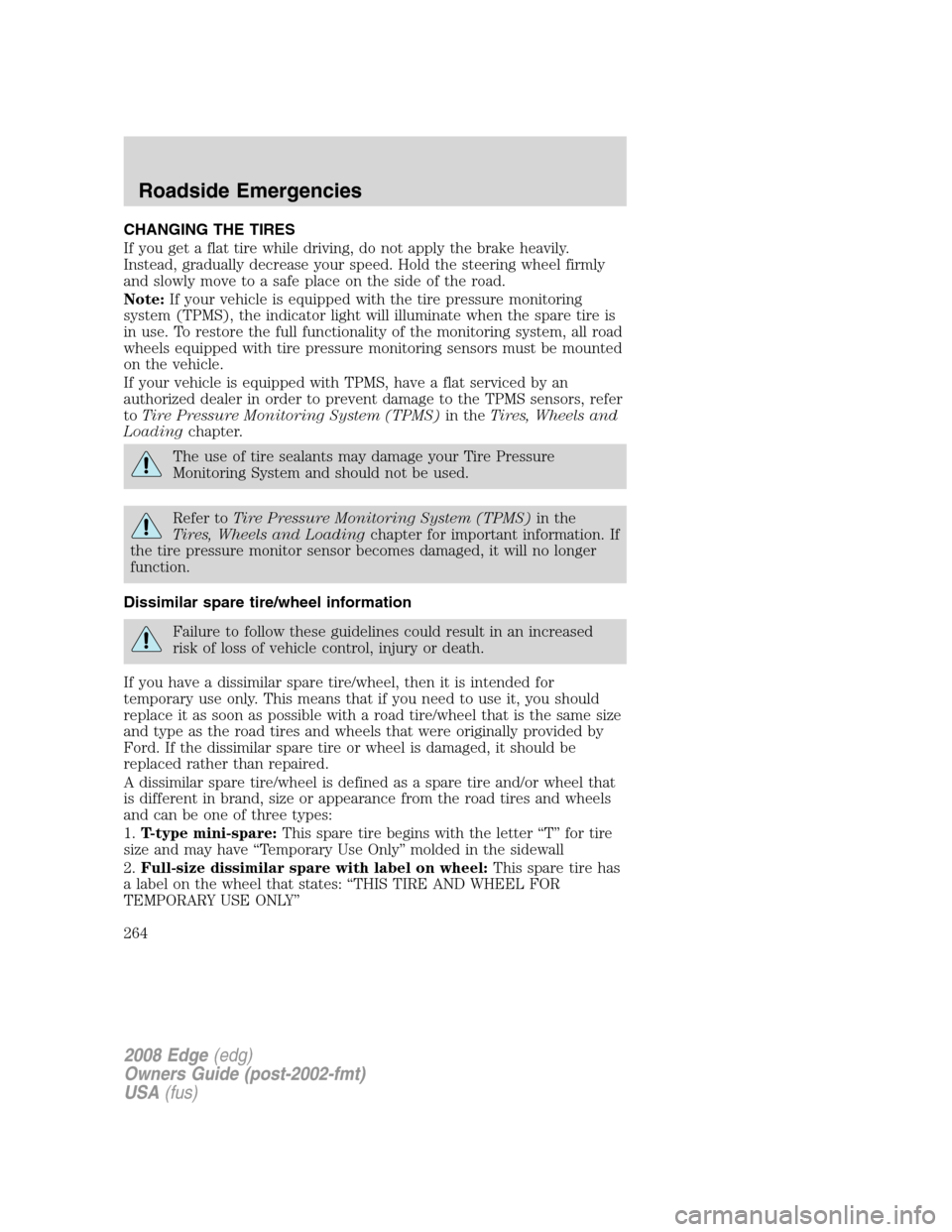

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:If your vehicle is equipped with the tire pressure monitoring
system (TPMS), the indicator light will illuminate when the spare tire is
in use. To restore the full functionality of the monitoring system, all road
wheels equipped with tire pressure monitoring sensors must be mounted
on the vehicle.
If your vehicle is equipped with TPMS, have a flat serviced by an
authorized dealer in order to prevent damage to the TPMS sensors, refer
toTire Pressure Monitoring System (TPMS)in theTires, Wheels and
Loadingchapter.
The use of tire sealants may damage your Tire Pressure
Monitoring System and should not be used.
Refer toTire Pressure Monitoring System (TPMS)in the
Tires, Wheels and Loadingchapter for important information. If
the tire pressure monitor sensor becomes damaged, it will no longer
function.
Dissimilar spare tire/wheel information
Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
264

J
Jack ............................................264
positioning ...............................264
storage .....................................264
Jump-starting your vehicle ......270
K
Keyless entry system ...............139
autolock ...................................128
keypad .....................................140
locking and unlocking doors ..141
programming entry code .......140
Keys ...................................126, 143
positions of the ignition .........231
L
Lamps
autolamp system .......................81
bulb replacement
specifications chart ..................86
daytime running light ...............82
fog lamps ...................................82
headlamps .................................81
headlamps, flash to pass ..........82
instrument panel, dimming .....83
interior lamps .....................85, 87
replacing bulbs .........................87
Liftgate ......................120–121, 135
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........237
Load limits .................................219
Locks
autolock ...................................128
childproof ................................132
doors ........................................128
Lubricant specifications ...........324
Lug nuts ....................................269Lumbar support, seats .............146
M
Message center .................109–111
english/metric button .............115
system check button ..............115
warning messages ...................117
Mirrors ...................................97–98
automatic dimming rearview
mirror ........................................97
fold away ...................................99
heated ........................................99
programmable memory ..........136
side view mirrors (power) .......98
Moon roof ..................................104
Motorcraft parts ........291, 307, 323
N
Navigation system .......................74
O
Octane rating ............................311
Oil (see Engine oil) ..................296
Overdrive ...................................243
P
Parking brake ............................237
Parts (see Motorcraft parts) ....323
Passenger Occupant
Classification Sensor .................157
Power distribution box
(see Fuses) ...............................260
Power door locks ......................128
Power liftgate ............................121
Power mirrors .............................98
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Index
334

Power point .................................94
Power steering ..........................241
fluid, checking and adding ....319
fluid, refill capacity ................324
fluid, specifications .................324
Power Windows ...........................96
R
Radio ................................18, 22, 30
Rear seat entertainment
system ..........................................45
Relays ........................................256
Remote entry system .......132, 134
illuminated entry ............137, 139
locking/unlocking doors .........134
opening the trunk ...................135
panic alarm .............................135
replacement/additional
transmitters .............................137
replacing the batteries ...........136
Reverse sensing system ...........245
Roadside assistance ..................254
S
Safety Belt Maintenance ..........165
Safety belts
(see Safety
restraints) ..................156, 159–163
Safety Canopy ...................180, 183
Safety defects, reporting ..283–284
Safety restraints ........156, 159–163
Belt-Minder
...........................166
extension assembly ................164
for adults .........................160–162for children .............................186
Occupant Classification
Sensor ......................................157
safety belt maintenance .........165
warning light and
chime ...............................165–166
Safety seats for children ..........190
Safety Compliance
Certification Label ....................327
Satellite Radio Information ........43
Seats ..........................................145
child safety seats ....................190
easy access/easyout feature ..150
front seats .......................145–146
heated ................................77, 151
memory seat ...................136, 150
SecuriLock passive anti-theft
system ........................................141
Servicing your vehicle ..............292
Setting the clock
AM/FM single CD .....................24
AM/FM/In-dash 6 CD ................32
Spare tire
(see Changing the Tire) ...........267
Spark plugs,
specifications .....................323, 326
Specification chart,
lubricants ...................................324
Speed control ..............................99
Starting your vehicle ........231–233
jump starting ..........................270
Steering wheel
controls ....................................102
tilting .........................................92
SYNC ............................................74
2008 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Index
335
