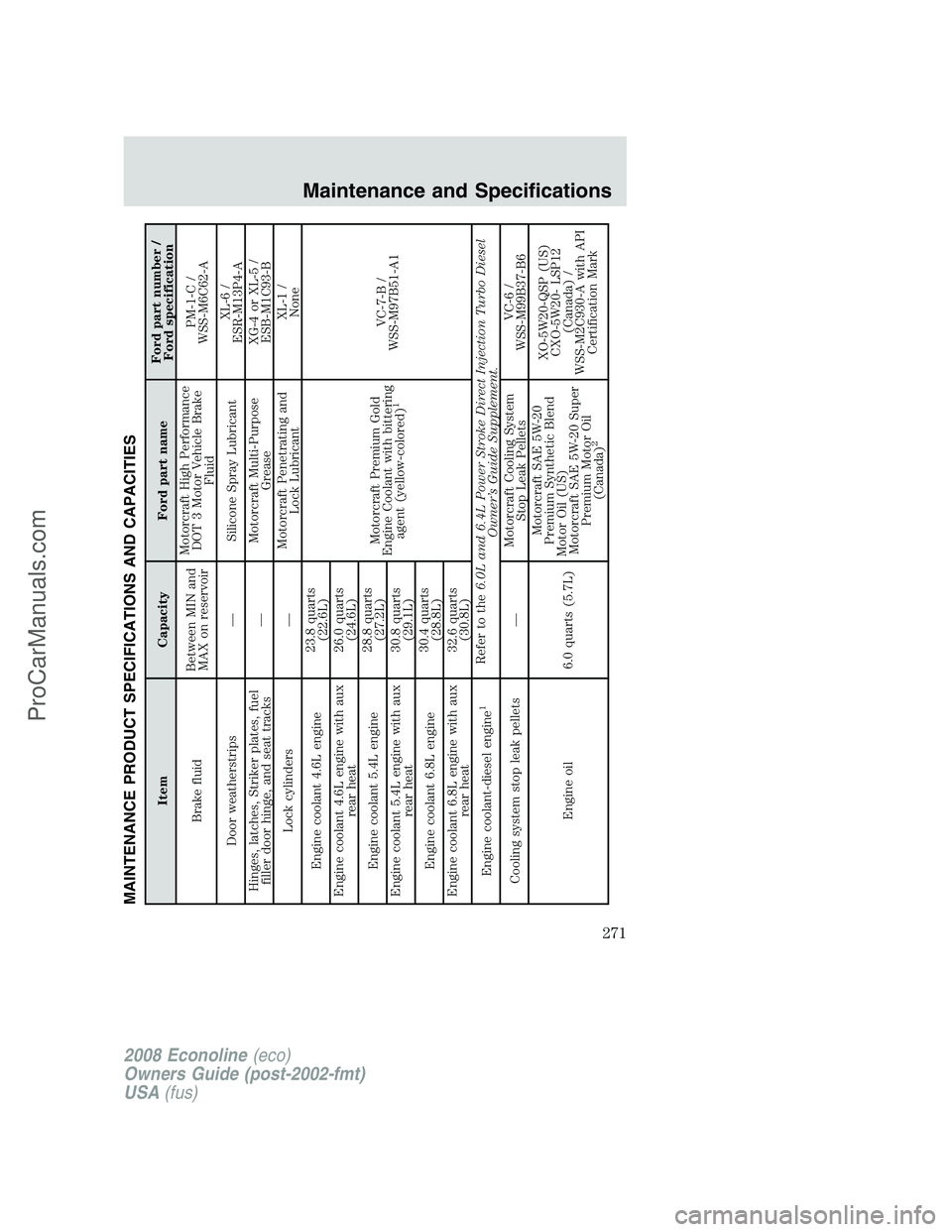

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number /
Ford specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft High Performance
DOT 3 Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Hinges, latches, Striker plates, fuel
filler door hinge, and seat tracks—Motorcraft Multi-Purpose
GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating and
Lock LubricantXL-1 /
None
Engine coolant 4.6L engine23.8 quarts
(22.6L)
Motorcraft Premium Gold
Engine Coolant with bittering
agent (yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant 4.6L engine with aux
rear heat26.0 quarts
(24.6L)
Engine coolant 5.4L engine28.8 quarts
(27.2L)
Engine coolant 5.4L engine with aux
rear heat30.8 quarts
(29.1L)
Engine coolant 6.8L engine30.4 quarts
(28.8L)
Engine coolant 6.8L engine with aux
rear heat32.6 quarts
(30.8L)
Engine coolant-diesel engine
1
Refer to the6.0L and 6.4L Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplement.
Cooling system stop leak pellets —Motorcraft Cooling System
Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil 6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
Motorcraft SAE 5W-20 Super
Premium Motor Oil
(Canada)
2
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
271
ProCarManuals.com

Item Capacity Ford part nameFord part number /
Ford specification
Engine oil-diesel engineRefer to the6.0L and 6.4L Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplement.
Power steering fluidKeep in FULL
range on dipstickMotorcraft MERCON
VATFXT-5-QM /
MERCON
V
Automatic transmission fluid
(4R75E)13.9 quarts
(13.1L)
3
Motorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V
Automatic transmission fluid
TorqShift (5–speed)18.8 quarts
(17.7L)
3
Motorcraft MERCON
SP
AT F
4
XT-6-QSP /
MERCON
SP
Dana conventional and Limited Slip
axle fluid
M60 (M248)
E-350 with 4.10 axle ratio5.9 pints (2.8L)
5,7
SAE 75W-140 Synthetic Rear
Axle Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
Dana Limited Slip Axle fluid
M60 (M248)
E250/E3505.9 pints (2.8L)
5,7
SAE 90 Hypoid Gear OilXY–90–GL /
ESW-M2C105-E Dana Limited Slip Axle fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana Limited Slip Axle fluid
M70HD (M273HD)
E-4508.3 pints (3.9L)
7
Dana conventional axle fluid
M60 (M248)
E-250/3505.9 pints (2.8L)
7
SAE 80W-90 Premium Rear
Axle LubricantXY-80W90-QL /
WSP-M2C197-A Dana conventional axle fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana conventional axle fluid
M70HD (M273HD)
E-4508.3 pints (3.9L)
7
Windshield washer fluid 4.2 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
272
ProCarManuals.com

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank–all regular and extended
length vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)37.0 gallons
(140.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)37.0 gallons
(140.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)37.0 gallons
(140.0L)
8
Fuel tank–158 inch and 176 inch
wheelbase (E-Super Duty)55.0 gallons
(208.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the requirements of Ford
specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if equipped with an
in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote filter assembly. The amount of
transmission fluid and fluid level should be set by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCON
V should only use MERCON
V fluid. Refer toscheduled
maintenance informationto determine the correct service interval. Use of any fluid other than the recommended
fluid may cause transmission damage.
Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid. Use of a dual usage fluid in
an automatic transmission requiring MERCON
SP may cause transmission damage. Refer toscheduled
maintenance informationto determine the correct service interval. Use of any fluid other than the recommended
fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 8 oz. (228 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford
specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated for life. These
lubricants do not need to be checked or changed unless a leak is suspected, service is required or the axle assembly
has been submerged in water. The axle lubricant should be changed any time the rear axle has been submerged in
water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
