2008 FORD E-450 check engine

Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for the service interval
schedules.
Check the fluid level when it is at ambient temperature, 20° – 80° F (-7°
– 25° C):
1.
Check the fluid level on the dipstick. It should be between the arrows in
the FULL COLD range. Do not add fluid if the level is within this range.
2. If the fluid level is low, start the engine.
3. While the engine idles, turn the steering wheel left and right several times.
4. Turn the engine off.
WARNING:For E-350 and E-450 vehicles with the Hydro-Boost
Brake System, do not press the brake pedal after the engine has
been turned off. Pressing the brake pedal after the engine has been
turned off will give a false power steering fluid level reading.
FULL COLD
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
262
ProCarManuals.com

DRIVELINE UNIVERSAL JOINT AND SLIP YOKE
Your vehicle may be equipped with universal joints that require
lubrication. Refer to thescheduled maintenance informationfor
maintenance intervals. If the original universal joints are replaced with
universal joints equipped with grease fittings, lubrication will also be
necessary.
TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic during hot
weather or pulling a trailer, the vehicle should be turned off for about
30 minutes to allow fluid to cool before checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
264
ProCarManuals.com

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank–all regular and extended
length vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)37.0 gallons
(140.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)37.0 gallons
(140.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)37.0 gallons
(140.0L)
8
Fuel tank–158 inch and 176 inch
wheelbase (E-Super Duty)55.0 gallons
(208.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the requirements of Ford
specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if equipped with an
in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote filter assembly. The amount of
transmission fluid and fluid level should be set by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCON
V should only use MERCON
V fluid. Refer toscheduled
maintenance informationto determine the correct service interval. Use of any fluid other than the recommended
fluid may cause transmission damage.
Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid. Use of a dual usage fluid in
an automatic transmission requiring MERCON
SP may cause transmission damage. Refer toscheduled
maintenance informationto determine the correct service interval. Use of any fluid other than the recommended
fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 8 oz. (228 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford
specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated for life. These
lubricants do not need to be checked or changed unless a leak is suspected, service is required or the axle assembly
has been submerged in water. The axle lubricant should be changed any time the rear axle has been submerged in
water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
273
ProCarManuals.com

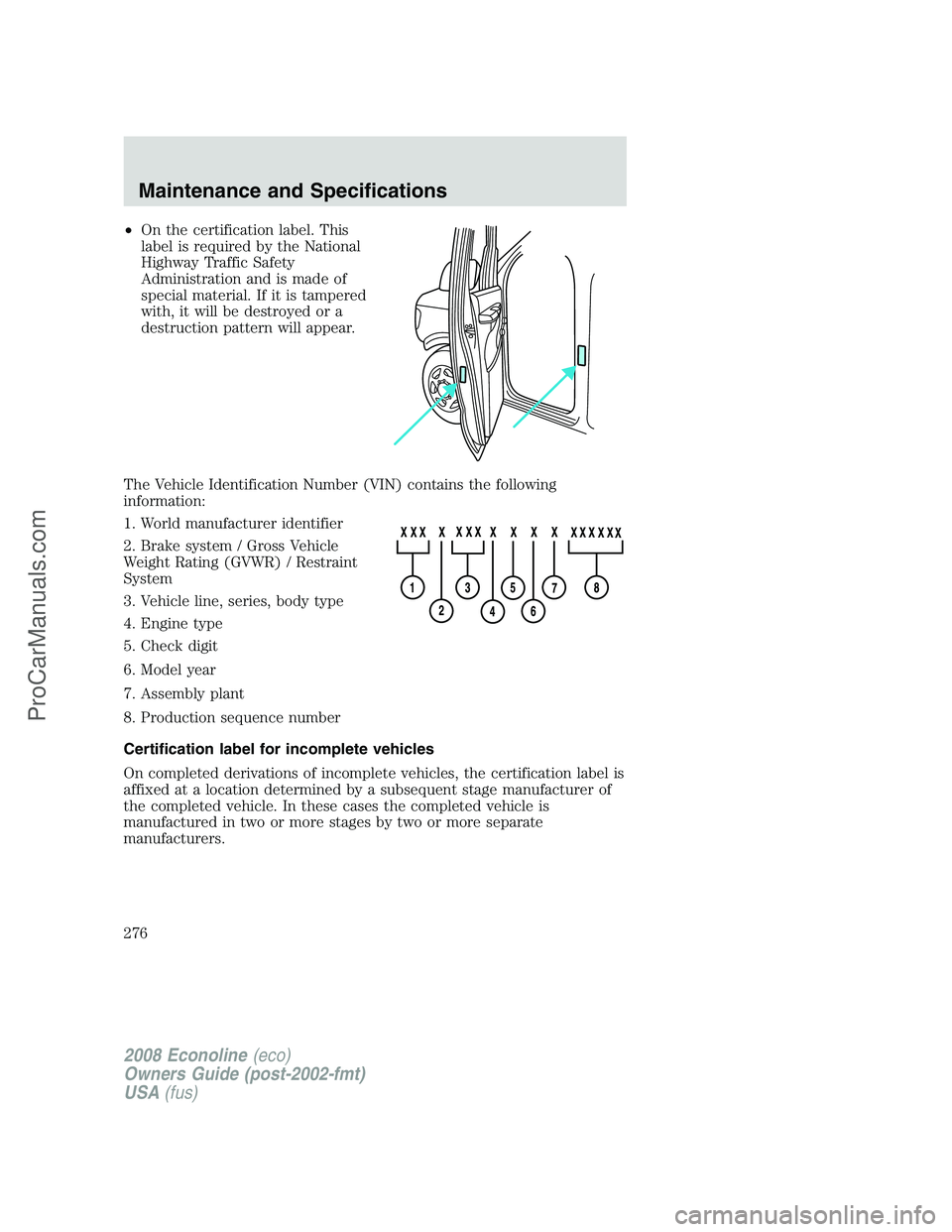

•On the certification label. This
label is required by the National
Highway Traffic Safety
Administration and is made of
special material. If it is tampered
with, it will be destroyed or a
destruction pattern will appear.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
276
ProCarManuals.com

A
Accessory delay ..........................53
AdvanceTrac ..............................170
Air cleaner filter ...............268–270
Airbag supplemental restraint
system ..........................................87
and child safety seats ..............89
description ................................87
disposal ......................................91
driver airbag ..............................89
indicator light ...........................91
operation ...................................89
passenger airbag .......................89
passenger deactivation
switch ........................................92
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................243
Anti-lock brake system
(see Brakes) ......................167–168
Anti-theft system ........................66
arming the system ....................67
Audio system
(see Radio) ......................20, 22, 26
Automatic transmission
driving an automatic
overdrive .................178, 180, 183
fluid, adding ............................264
fluid, checking ........................264
fluid, refill capacities ..............271
fluid, specification ..................271
Auxiliary power point .................51
Axle
lubricant specifications ..........271
refill capacities ........................271
traction lok ..............................174
B
Battery .......................................240acid, treating emergencies .....240
battery saver .............................35
jumping a disabled battery ....210
maintenance-free ....................240
replacement, specifications ...270
servicing ..................................240
Belt-Minder
...............................82
Booster seats ...............................98
Brakes ........................................167
anti-lock ...........................167–168
anti-lock brake system (ABS)
warning light ...........................168
fluid, checking and adding ....263
fluid, refill capacities ..............271
fluid, specifications .................271
lubricant specifications ..........271
parking ....................................168
shift interlock ..........................176
Bulbs ............................................41
C
Capacities for refilling fluids ....271
Cell phone use ..............................9
Changing a tire .........................200
Child safety restraints ................98
child safety belts ......................98
Child safety seats ......................101
in front seat ............................102
in rear seat ..............................102
tether anchorage hardware ...105
Child safety seats - booster
seats .............................................98
Cleaning your vehicle
engine compartment ..............228
exterior ....................................231
instrument panel ....................230
interior .....................................230
plastic parts ............................229
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
280
ProCarManuals.com

safety belts ..............................230
washing ....................................226
waxing .....................................227
wheels ......................................227
wiper blades ............................229
Climate control (see Air
conditioning or Heating) ......32–34
Clock adjust
6-CD in dash .......................24, 28
AM/FM .......................................21
Compass, electronic ....................50
calibration .................................51
set zone adjustment .................50
Console
overhead ..............................48–49
Controls
power seat .................................71
Coolant
checking and adding ..............243
refill capacities ................247, 271
specifications ..........................271
Cruise control
(see Speed control) ....................54
Customer Assistance ................189
Ford Extended Service Plan...222
Getting assistance outside
the U.S. and Canada ..............223
Getting roadside assistance ...189
Getting the service you
need .........................................218
Ordering additional owner’s
literature .................................224
Utilizing the
Mediation/Arbitration
Program ...................................222
D
Daytime running lamps
(see Lamps) ................................36Dipstick
automatic transmission
fluid ..........................................264
engine oil .................................237
Driveline universal joint and
slip yoke ....................................264
Driving under special
conditions
through water .........................188
E
Emergencies, roadside
jump-starting ..........................210
Emergency Flashers .................190
Emission control system ..........259
Engine ........................................274
cleaning ...................................228
coolant .....................................243
diesel ...........................................7
fail-safe cooling .......................248
idle speed control ...................240
lubrication specifications .......271
refill capacities ........................271
service points ..........................235
starting after a collision .........191
Engine block heater .................165
Engine oil ..................................237
checking and adding ..............237
dipstick ....................................237
filter, specifications ........239, 270
recommendations ...................239
refill capacities ........................271
specifications ..........................271
Event data recording ....................6
Exhaust fumes ..........................165
F
Fail safe cooling ........................248
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
281
ProCarManuals.com

L
Lamps
bulb replacement
specifications chart ..................41
daytime running light ...............36
headlamps .................................35
headlamps, flash to pass ..........36
instrument panel, dimming .....37
interior lamps ...........................40
replacing bulbs .........................42
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........168
Load limits .................................145
Loading instructions .................151
Locks ............................................58
autolock .....................................58
doors ..........................................58
Lubricant specifications ...........271
Lug nuts ....................................209
Lumbar support, seats ...............71
M
Mirrors .........................................53
fold away ...................................54
side view mirrors (power) .......53
Motorcraft parts ........232, 249, 270
O
Octane rating ............................254
Oil (see Engine oil) ..................237
P
Parking brake ............................168
Parts (see Motorcraft parts) ....270Power distribution box
(see Fuses) ...............................196
Power door locks ........................58
Power mirrors .............................53
Power point .................................51
Power steering ..........................173
fluid, checking and adding ....262
fluid, refill capacity ................271
fluid, specifications .................271
Power Windows ...........................52
Preparing to drive your
vehicle ........................................174
R
Radio ................................20, 22, 26
Relays ................................192, 199
Remote entry system .................62
illuminated entry ......................66
locking/unlocking doors ..........58,
63–64
panic alarm ...............................64
replacement/additional
transmitters ...............................65
replacing the batteries .............64
Reverse sensing system ...........185
Roadside assistance ..................189
Roll stability control .................170
S
Safety Belt Maintenance ............86
Safety belts (see Safety
restraints) ..............................77–81
Safety defects, reporting ..224–225
Safety restraints ....................77–81
Belt-Minder
.............................82
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283
ProCarManuals.com
