2008 FORD E-450 traction control

The AdvanceTrac
with RSC button
allows the driver to control the
availability of the AdvanceTrac

with RSC system. AdvanceTrac

with RSC system status is indicated
by a warning indicator light with a
“sliding car” icon in the instrument
cluster that will flash when the
system is active and an indicator light in the control button that will
illuminate when the system is turned off.
The AdvanceTrac
with RSC system
warning indicator light may flash to
indicate the system is not fully
initialized. If this happens, slow
down. If the light continues flashing,
have the AdvanceTrac
with RSC
system serviced by an authorized dealer.
If a failure is detected in the AdvanceTrac
with RSC system, the
warning indicator light in the instrument cluster will stay on and the
instrument cluster will chime repeatedly. If the warning indicator light in
the instrument cluster remains on and the chime is active while the
engine is running, have the system serviced by an authorized dealer
immediately.
Pressing the control will disable the AdvanceTrac
with RSC system and
the traction enhancement feature at and below 20 mph (32 km/h). If the
vehicle is stuck in snow or mud or when driving in deep sand, switching
off the AdvanceTrac
with RSC system may be beneficial so the wheels
are allowed to spin. If your vehicle seems to lose engine power while
driving in deep sand or very deep snow and the vehicle speed is 20 mph
(32 km/h) or below, switching off the AdvanceTrac
with RSC stability
enhancement feature will restore full engine power and will enhance
momentum through the obstacle. Remember to switch the AdvanceTrac

with RSC system back on once the vehicle is no longer stuck.
Note:The AdvanceTrac
with RSC system will automatically restore to
full functionality every time the vehicle speed exceeds 20 mph (32 km/h)
or the ignition is turned off and back on. However, the AdvanceTrac

with RSC button remains illuminated even above 20 mph (32 km/h) until
it is pressed.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
172
ProCarManuals.com

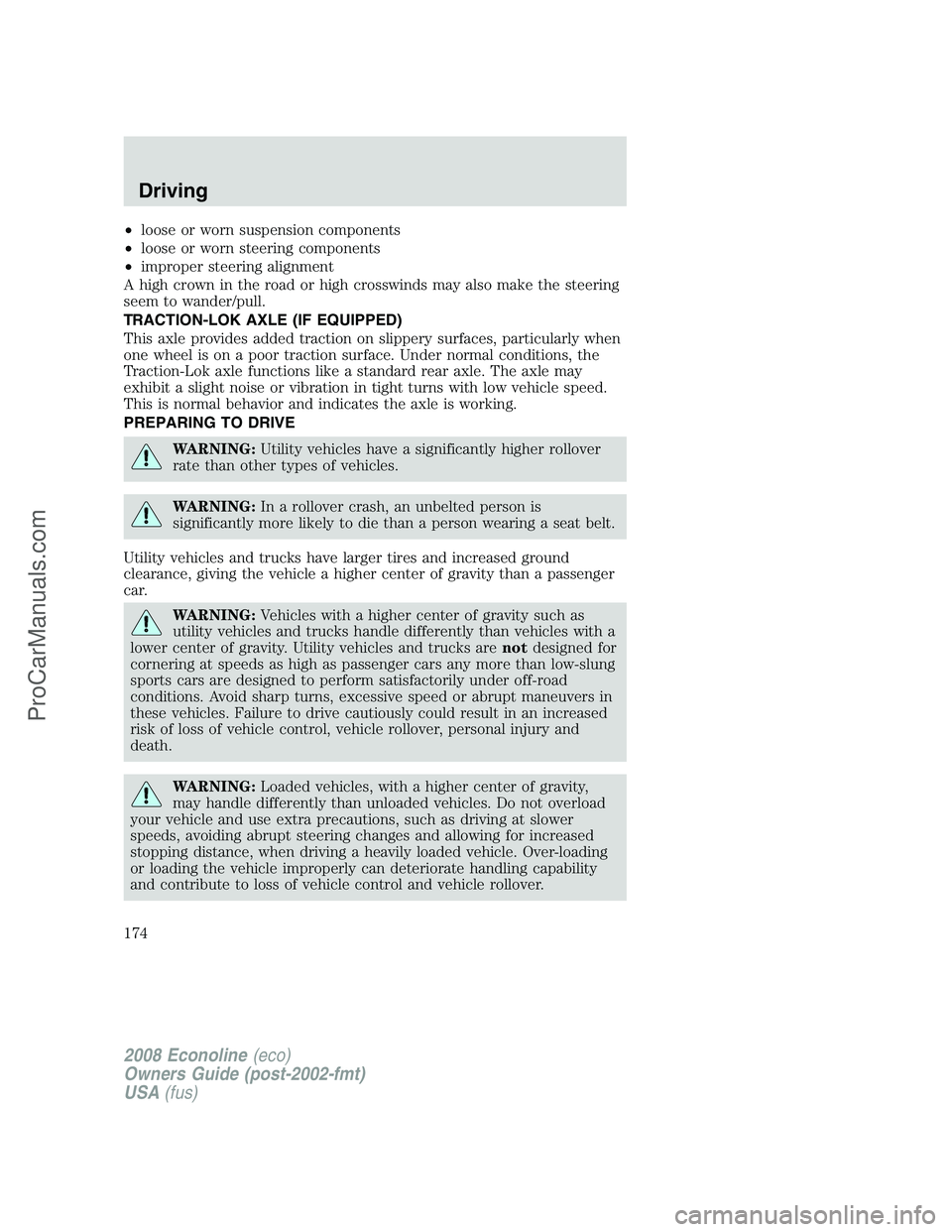

•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
TRACTION-LOK AXLE (IF EQUIPPED)
This axle provides added traction on slippery surfaces, particularly when
one wheel is on a poor traction surface. Under normal conditions, the
Traction-Lok axle functions like a standard rear axle. The axle may
exhibit a slight noise or vibration in tight turns with low vehicle speed.
This is normal behavior and indicates the axle is working.
PREPARING TO DRIVE
WARNING:Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
WARNING:In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat belt.
Utility vehicles and trucks have larger tires and increased ground
clearance, giving the vehicle a higher center of gravity than a passenger
car.
WARNING:Vehicles with a higher center of gravity such as
utility vehicles and trucks handle differently than vehicles with a
lower center of gravity. Utility vehicles and trucks arenotdesigned for
cornering at speeds as high as passenger cars any more than low-slung
sports cars are designed to perform satisfactorily under off-road
conditions. Avoid sharp turns, excessive speed or abrupt maneuvers in
these vehicles. Failure to drive cautiously could result in an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death.
WARNING:Loaded vehicles, with a higher center of gravity,
may handle differently than unloaded vehicles. Do not overload
your vehicle and use extra precautions, such as driving at slower
speeds, avoiding abrupt steering changes and allowing for increased
stopping distance, when driving a heavily loaded vehicle. Over-loading
or loading the vehicle improperly can deteriorate handling capability
and contribute to loss of vehicle control and vehicle rollover.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
174
ProCarManuals.com

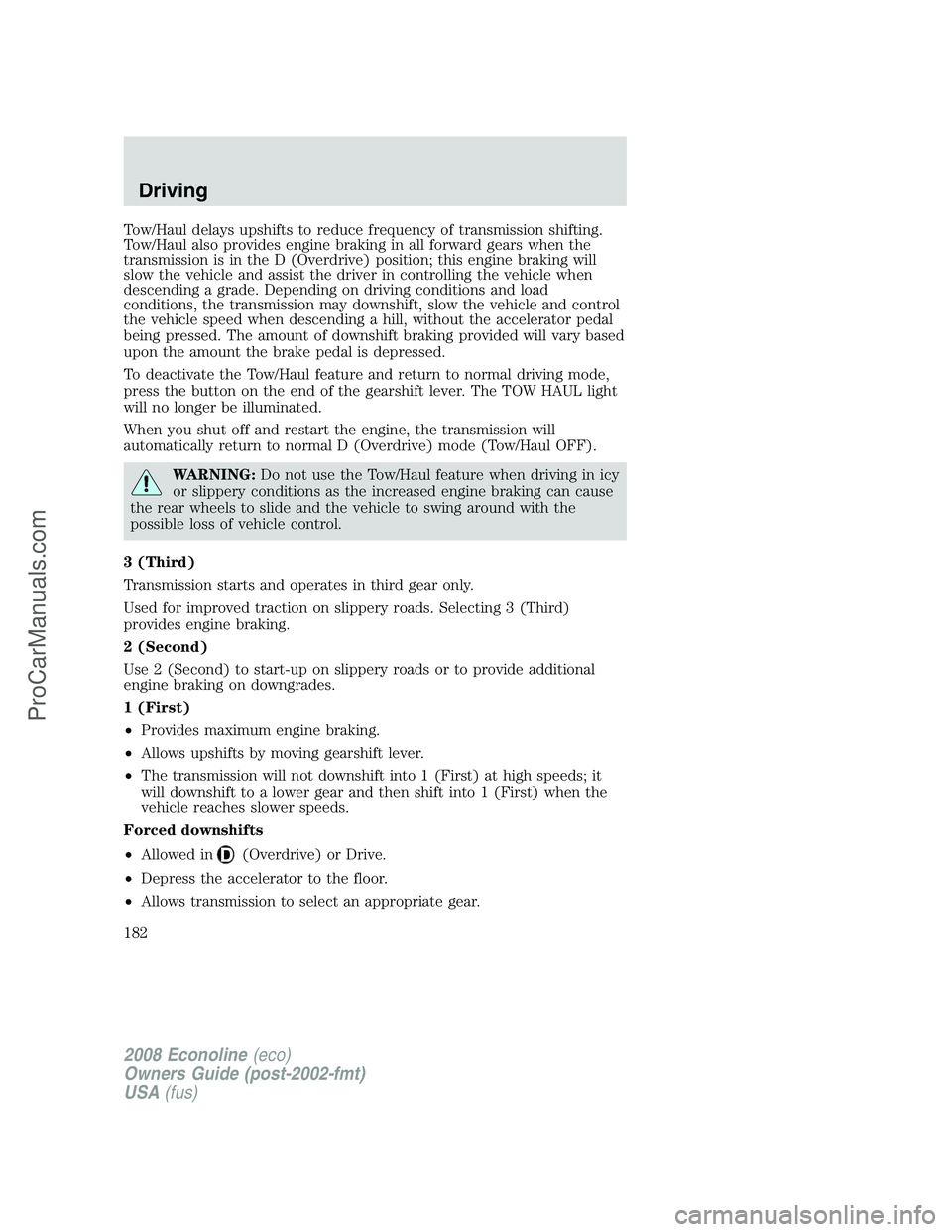

Tow/Haul delays upshifts to reduce frequency of transmission shifting.
Tow/Haul also provides engine braking in all forward gears when the
transmission is in the D (Overdrive) position; this engine braking will
slow the vehicle and assist the driver in controlling the vehicle when
descending a grade. Depending on driving conditions and load
conditions, the transmission may downshift, slow the vehicle and control
the vehicle speed when descending a hill, without the accelerator pedal
being pressed. The amount of downshift braking provided will vary based
upon the amount the brake pedal is depressed.
To deactivate the Tow/Haul feature and return to normal driving mode,
press the button on the end of the gearshift lever. The TOW HAUL light
will no longer be illuminated.
When you shut-off and restart the engine, the transmission will
automatically return to normal D (Overdrive) mode (Tow/Haul OFF).
WARNING:Do not use the Tow/Haul feature when driving in icy
or slippery conditions as the increased engine braking can cause
the rear wheels to slide and the vehicle to swing around with the
possible loss of vehicle control.
3 (Third)
Transmission starts and operates in third gear only.
Used for improved traction on slippery roads. Selecting 3 (Third)
provides engine braking.
2 (Second)
Use 2 (Second) to start-up on slippery roads or to provide additional
engine braking on downgrades.
1 (First)
•Provides maximum engine braking.
•Allows upshifts by moving gearshift lever.
•The transmission will not downshift into 1 (First) at high speeds; it
will downshift to a lower gear and then shift into 1 (First) when the
vehicle reaches slower speeds.
Forced downshifts
•Allowed in
(Overdrive) or Drive.
•Depress the accelerator to the floor.
•Allows transmission to select an appropriate gear.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
182
ProCarManuals.com

D (Drive) without Overdrive
D (Drive) without Overdrive can be
activated by pressing the
transmission control switch (TCS)
on the end of the gearshift lever.
•This position allows for all forward gears except overdrive.
•The O/D OFF lamp will illuminate
in the instrument cluster.
•Provides engine braking.
•Use when driving conditions cause excessive shifting from O/D to
other gears. Examples: city traffic, hilly terrain, heavy loads, trailer
towing and when engine braking is required.
•To return to O/D (Overdrive), press the transmission control switch.
The O/D OFF lamp will not be illuminated.
•O/D (Overdrive) is automatically returned each time the key is turned
off.
3 (Third)
Transmission starts and operates in third gear only.
Used for improved traction on slippery roads. Selecting 3 (Third)
provides additional engine braking.
2 (Second)
Use 2 (Second) to start-up on slippery roads or to provide additional
engine braking on downgrades.
1 (First)
•Provides maximum engine braking.
•Allows upshifts by moving gearshift lever.
•The transmission will not downshift into 1 (First) at high speeds; it
will downshift to a lower gear and then shift into 1 (First) when the
vehicle reaches slower speeds.
Forced downshifts
•Allowed in D (Drive) with Overdrive or D (Drive) without Overdrive.
•Depress the accelerator to the floor.
•Allows transmission to select an appropriate gear.
O/D
ON/OFF
O/D
OFF
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
184
ProCarManuals.com

extension assembly ..................86
for adults .............................78–80
for children .........................97–98
safety belt maintenance ...........86
warning light and chime ..........82
Safety seats for children ..........101
Seats ............................................70
child safety seats ....................101
front seats .................................70
SecuriLock passive anti-theft
system ....................................66, 68
Servicing your vehicle ..............233
Setting the clock
AM/FM stereo ...........................21
AM/FM/In-dash 6 CD ..........24, 28
Spare tire
(see Changing the Tire) ...........203
Spark plugs,
specifications .....................270, 274
Special notice ................................8
ambulance conversions ..............8
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................271
Speed control ..............................54
Stability system .........................170
Starting a flex fuel vehicle .......164
Starting your vehicle ........162–164
jump starting ..........................210
Steering wheel
tilting .........................................48
T
Temperature control
(see Climate control) ...........32, 34Tilt steering wheel ......................48
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....133
Tires ...........................115–116, 200
alignment ................................125
care ..........................................121
changing ..................200, 203–205
checking the pressure ............120
inflating ...................................117
label .........................................132
replacing ..........................123, 205
rotating ....................................125
safety practices .......................124
sidewall information ...............127
snow tires and chains ............144
spare tire .........................201, 203
terminology .............................116
tire grades ...............................116
treadwear ........................115, 122
Towing .......................................151
recreational towing .................161
trailer towing ..........................151
wrecker ....................................216
Traction control ........................169
Traction-lok rear axle ...............174
Transmission .............................176
brake-shift interlock (BSI) ....176
fluid, checking and adding
(automatic) .............................264
fluid, refill capacities ..............271
lubricant specifications ..........271
Turn signal ..................................40
V
Vehicle Identification Number
(VIN) ..........................................275
Vehicle loading ..........................145
Ventilating your vehicle ...........165
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
284
ProCarManuals.com
