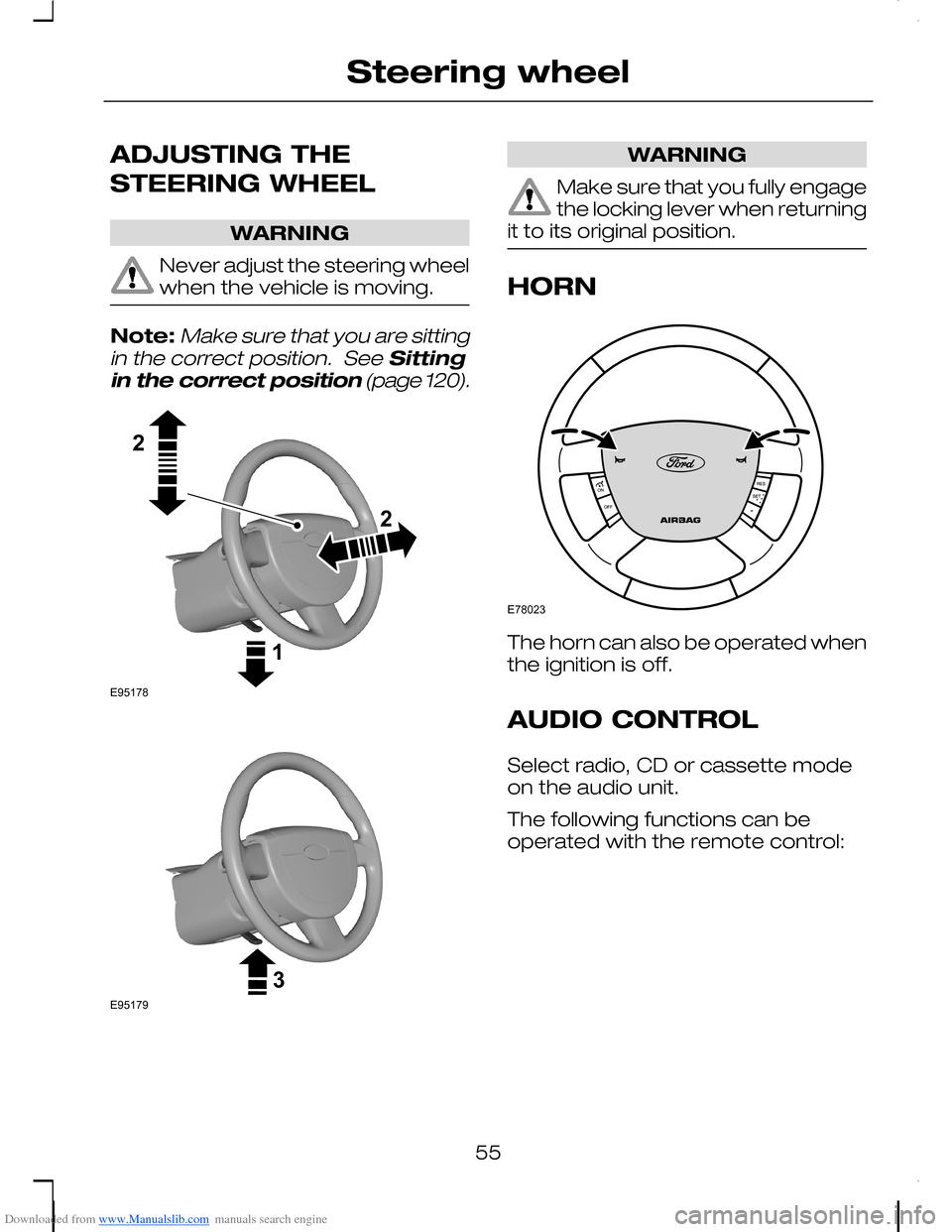

Downloaded from www.Manualslib.com manuals search engine ADJUSTING THE
STEERING WHEEL
WARNING
Never adjust the steering wheelwhen the vehicle is moving.
Note:Make sure that you are sittingin the correct position. See Sittingin the correct position (page 120).
WARNING
Make sure that you fully engagethe locking lever when returningit to its original position.
HORN
The horn can also be operated whenthe ignition is off.
AUDIO CONTROL
Select radio, CD or cassette modeon the audio unit.
The following functions can beoperated with the remote control:
55
Steering wheel122E95178 3E95179 E78023

Downloaded from www.Manualslib.com manuals search engine Volume
Volume up: Press the top button onthe back of the remote control.
Volume down: Press the bottombutton on the back of the remotecontrol.
Seek
Move the lever up or down:
•In radio mode, this will locatethe next radio station up or downthe frequency band.
•In CD mode, it will select thenext or previous track.
Mode
Briefly press the button on the side:
•In radio mode, this will locatethe next pre-set radio station.
•In CD mode, this will select thenext CD if a CD changer is fitted.
•In all modes to abort a trafficmessage during broadcasting.
Press and hold the button on theside:
•In radio mode to change thewaveband.
56
Steering wheelE78046 E78047 E78048

Downloaded from www.Manualslib.com manuals search engine VOICE CONTROL
To select or deselect voice control,press the button on the top.
For further information see theseparate handbook.
57
Steering wheelE78049

Downloaded from www.Manualslib.com manuals search engine ADJUSTING THE PEDALS
WARNINGS
Never adjust the pedals whenthe vehicle is moving.
When a floor mat is fitted, thepedals may get caught on themat. When using floor mats, alwaysensure that there is enoughclearance for the pedals to move.
Press the upper part of the switch tomove the pedals towards the driver.
Press the lower part of the switch tomove the pedals away from thedriver.
See Sitting in the correctposition (page 120).
58
PedalsE78045

Downloaded from www.Manualslib.com manuals search engine WINDSCREEN WIPERS
Single wipeA
Intermittent wipe orautowipersB
Normal wipeC
High speed wipeD
Intermittent wipe
Long wipe intervalA
Intermittent wipeB
Short wipe intervalC
The rotary control can be used toadjust the intermittent wipe interval.
Autowipers
59
Wipers and washersE71012ABCD E71013BCA E71014B

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Replace the wiper blades assoon as they begin to leavebands of water and smears or whenthey do not completely remove waterfrom the windscreen. If the bladesare not replaced, the rain sensor willcontinue to detect water on thewindscreen. This will result in thewipers continuing to operatealthough the majority of thewindscreen is dry.
In icy conditions, make sure thatthe windscreen has been fullydefrosted before selectingautowipers.
Switch off the autowipersbefore entering a car wash.
Note:The autowipers feature isintended for use during wet weatherconditions only. It should not beselected in dry weather conditionsas the system is very sensitive toobjects such as dirt, mist or flieshitting the windscreen near the rainsensor. This may cause the wipersto wipe even though the screen ismostly dry.
Note:The autowipers functionshould not be selected when it issnowing or foggy, or when the roadshave been salted. In these weatherconditions, select position A, C or D,if necessary.
When the lever is moved to positionB with the ignition switched on, thewipers will cycle once regardless ofwhether the front screen is wet ordry.
Depending on the equipment fitted,when the ignition is switched on withthe lever already in position B, thewipers will not cycle until water isdetected on the windscreen.Alternatively, move the lever toanother position and then back to B,or operate the washer.
Thereafter, the rain sensor willcontinuously measure the amount ofwater on the windscreen and adjustthe speed of the front wipersautomatically (single wipe,intermittent, normal or high speedwipe).
Low sensitivityA
High sensitivityB
A.The wipers will only wipe when alarger amount of water isdetected on the windscreen
B.The wipers will wipe even if only asmall amount of water is detectedon the windscreen.
Six settings are available from low tohigh sensitivity.
60
Wipers and washersE71015BA

Downloaded from www.Manualslib.com manuals search engine Automatic wiper system
Some models without autowipers arefitted with a speed-dependent frontscreen wiper system.
When the vehicle is slowed to walkingspeed or is brought to a standstill, thewiper speed will automatically switchto the next lower wiper speedsetting.
When the vehicle speed is increased,the wiper speed will return to themanually-chosen setting.
Moving the wiper lever when thesystem is operating will switch off thesystem.
If the vehicle is again slowed towalking speed or is brought to astandstill, the system is reactivated.
WINDSCREEN WASHERS
WARNING
Do not operate the washer formore than 10 seconds at a time,and never when the reservoir isempty.
While the button at the end of thelever is pressed the washer will workin conjunction with the wipers.
After releasing the button, the wipersoperate for a short time.
REAR WINDOW WIPER
AND WASHERS
Intermittent wipe
Pull the lever towards the steeringwheel.
Reverse gear wipe
The rear wiper will be activatedautomatically when selecting reversegear if:
•the rear wiper is not alreadyswitched on,
•the wiper lever is in position A, B,C or D and
•the front wiper is operating (whenset to position B).
The rear wiper will follow the frontwiper interval (at intermittent ornormal speed).
61
Wipers and washersE71016 E71017

Downloaded from www.Manualslib.com manuals search engine Rear window washer
WARNING
Do not operate the washer formore than 10 seconds at a time,and never when the reservoir isempty.
While the lever is pulled towards thesteering wheel the washer will workin conjunction with the wipers.
Once the wash/wipe cycle iscompleted, the wipers will pause andthen perform one more wipe to clearthe windscreen.
After releasing the lever, the wipersoperate for a short time.
ADJUSTING THE
WINDSCREEN WASHER
JETS
The eye ball jets can be adjustedprecisely using a pin.
HEADLAMP WASHERS
62
Wipers and washersE71018 E73425 E73427
