2008 FIAT SEDICI jacking

209
❒Remove the wheel bolts and wheel.
❒Before installing the new wheel, clean
any mud or dirt off from the surface of
the wheel and hub with a clean cloth.
Clean the hub carefully; it may be hot
from driving.
❒Install the new wheel and replace the
wheel bolts with their cone shaped
end facing the wheel. Tighten each bolt
snugly by hand until the wheel is se-

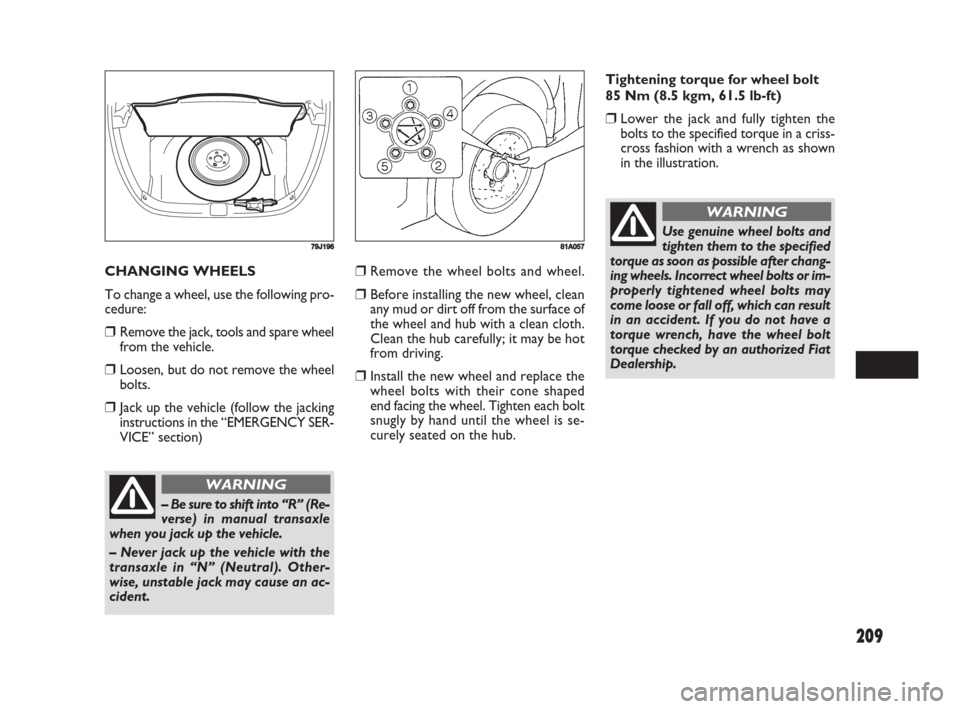

curely seated on the hub. CHANGING WHEELS
To change a wheel, use the following pro-
cedure:
❒Remove the jack, tools and spare wheel
from the vehicle.
❒Loosen, but do not remove the wheel
bolts.
❒Jack up the vehicle (follow the jacking
instructions in the “EMERGENCY SER-
VICE” section)
– Be sure to shift into “R” (Re-
verse) in manual transaxle
when you jack up the vehicle.
– Never jack up the vehicle with the
transaxle in “N” (Neutral). Other-
wise, unstable jack may cause an ac-
cident.
WARNING
Tightening torque for wheel bolt
85 Nm (8.5 kgm, 61.5 lb-ft)
❒Lower the jack and fully tighten the
bolts to the specified torque in a criss-
cross fashion with a wrench as shown
in the illustration.
81A05779J196Use genuine wheel bolts and
tighten them to the specified
torque as soon as possible after chang-
ing wheels. Incorrect wheel bolts or im-
properly tightened wheel bolts may
come loose or fall off, which can result
in an accident. If you do not have a
torque wrench, have the wheel bolt
torque checked by an authorized Fiat
Dealership.
WARNING
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 209

225
E E
M M
E E
R R
G G
E E
N N
C C
Y Y
S S
E E
R R
V V
I I
C C
E E
60G411
JACKING INSTRUCTIONS .............................................. 226
JUMP STARTING INSTRUCTIONS ................................ 227
TOWING .............................................................................. 229
IF THE STARTER DOES NOT OPERATE ..................... 229
IF THE ENGINE IS FLOODED ......................................... 230
IF THE ENGINE OVERHEATS ......................................... 230
9
225-232 Fiat16 New GB 3-09-2008 8:44 Pagina 225

226
❒Place the spare wheel near the wheel
being lifted as shown in the illustration
in case that the jack is slipped.
❒Position the jack vertically and raise the
jack by turning the jack handle clock-
wise until the jack head recess fits the
rod of the body.
❒Continue to raise the jack slowly and
smoothly until the tire clears the
ground. Do not raise the vehicle more
than necessary.

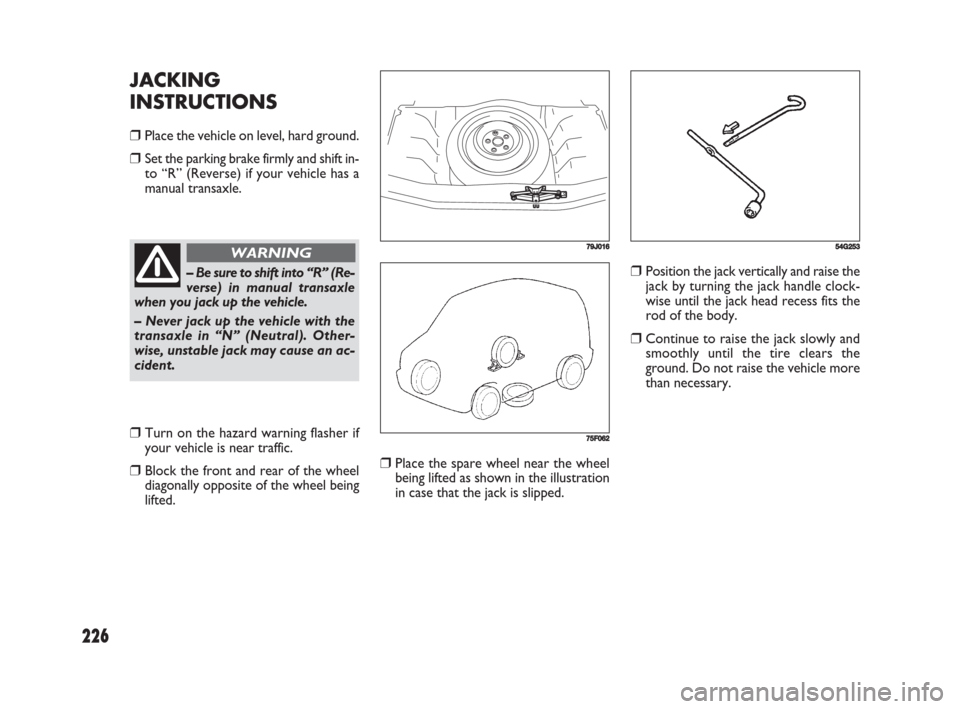

JACKING
INSTRUCTIONS
❒Place the vehicle on level, hard ground.
❒Set the parking brake firmly and shift in-
to “R” (Reverse) if your vehicle has a
manual transaxle.
79J016
75F062
– Be sure to shift into “R” (Re-
verse) in manual transaxle
when you jack up the vehicle.
– Never jack up the vehicle with the
transaxle in “N” (Neutral). Other-
wise, unstable jack may cause an ac-
cident.
WARNING
❒Turn on the hazard warning flasher if
your vehicle is near traffic.
❒Block the front and rear of the wheel
diagonally opposite of the wheel being
lifted.
54G253
225-232 Fiat16 New GB 3-09-2008 8:44 Pagina 226
