2008 FIAT SEDICI steering

189
ENGINE OIL
AND FILTER
OIL SPECIFICATIONS -
PETROL ENGINES
Check whether the adopted engine oil is
falling within the following quality classes:
API SL, SM or ACEA A3, recommended
product: SELENIA K SAE 5W-40, Fiat
9.55535-M2 qualification.
OIL SPECIFICATIONS -
DIESEL ENGINES
Check whether the adopted engine oil is
falling within the following quality classes:
API CF or ACEA B4, recommended
product: SELENIA WR SAE 5W-40,
Fiat 9.55535-N2 qualification.

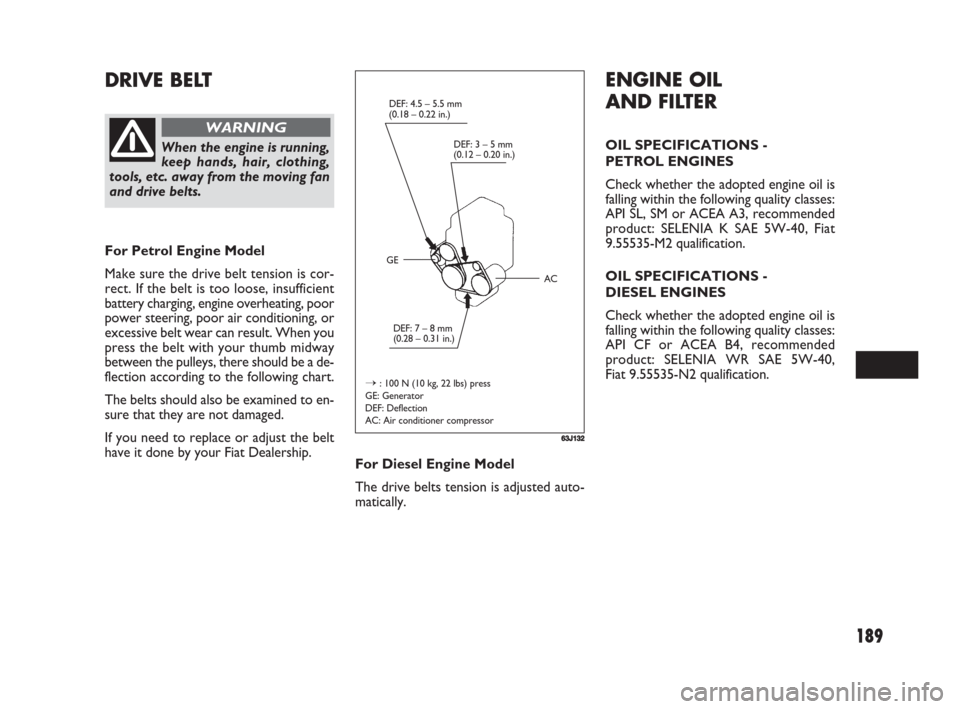

DRIVE BELT
63J132
DEF: 4.5 – 5.5 mm
(0.18 – 0.22 in.)
DEF: 3 – 5 mm
(0.12 – 0.20 in.)
DEF: 7 – 8 mm
(0.28 – 0.31 in.)
AC GE
→: 100 N (10 kg, 22 lbs) press
GE: Generator
DEF: Deflection
AC: Air conditioner compressor
When the engine is running,
keep hands, hair, clothing,
tools, etc. away from the moving fan
and drive belts.
WARNING
For Petrol Engine Model
Make sure the drive belt tension is cor-
rect. If the belt is too loose, insufficient
battery charging, engine overheating, poor
power steering, poor air conditioning, or
excessive belt wear can result. When you
press the belt with your thumb midway
between the pulleys, there should be a de-
flection according to the following chart.
The belts should also be examined to en-
sure that they are not damaged.
If you need to replace or adjust the belt
have it done by your Fiat Dealership.
For Diesel Engine Model
The drive belts tension is adjusted auto-
matically.
181-224 Fiat16 New GB 3-09-2008 8:17 Pagina 189

204

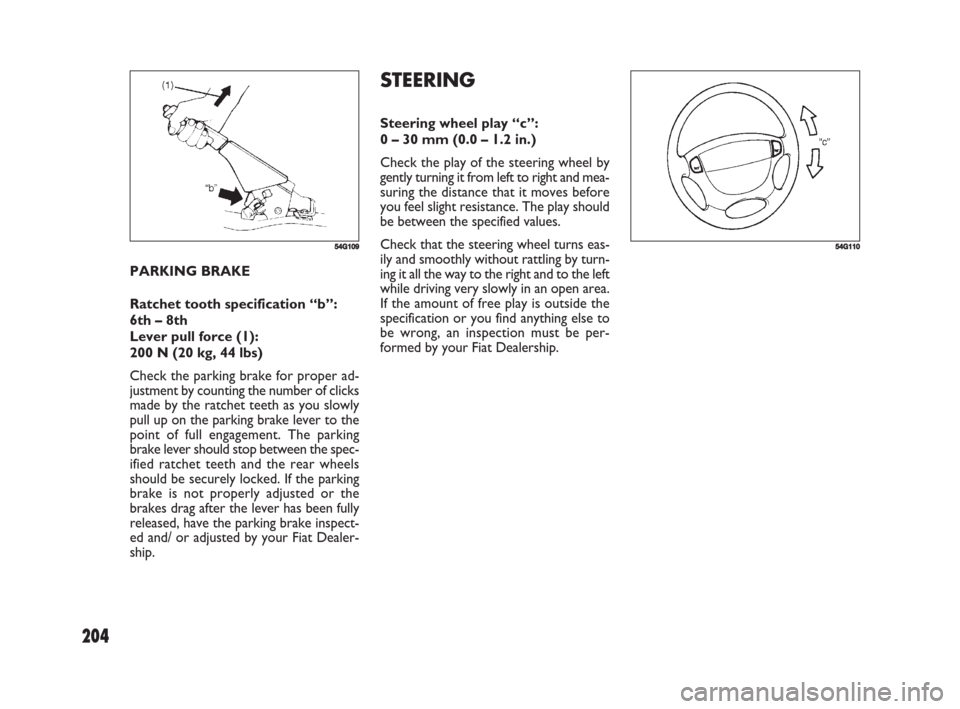

STEERING
Steering wheel play “c”:
0 – 30 mm (0.0 – 1.2 in.)
Check the play of the steering wheel by
gently turning it from left to right and mea-
suring the distance that it moves before
you feel slight resistance. The play should
be between the specified values.
Check that the steering wheel turns eas-
ily and smoothly without rattling by turn-
ing it all the way to the right and to the left
while driving very slowly in an open area.
If the amount of free play is outside the
specification or you find anything else to
be wrong, an inspection must be per-
formed by your Fiat Dealership. PARKING BRAKE
Ratchet tooth specification “b”:
6th – 8th
Lever pull force (1):
200 N (20 kg, 44 lbs)
Check the parking brake for proper ad-
justment by counting the number of clicks
made by the ratchet teeth as you slowly
pull up on the parking brake lever to the
point of full engagement. The parking
brake lever should stop between the spec-
ified ratchet teeth and the rear wheels
should be securely locked. If the parking
brake is not properly adjusted or the
brakes drag after the lever has been fully
released, have the parking brake inspect-
ed and/ or adjusted by your Fiat Dealer-
ship.
54G10954G110
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 204

207
IMPORTANT Replacing the original tires
with tires of a different size may result in
false speedometer or odometer readings.
Check with your Fiat Dealership before
purchasing replacement tires that differ in
size from the original tires.
IMPORTANT For 4-wheel drive (4WD)
models, replacing a tire with one of a dif-
ferent size, or using different brands
among the four tires can result in dam-
age to the drive train.

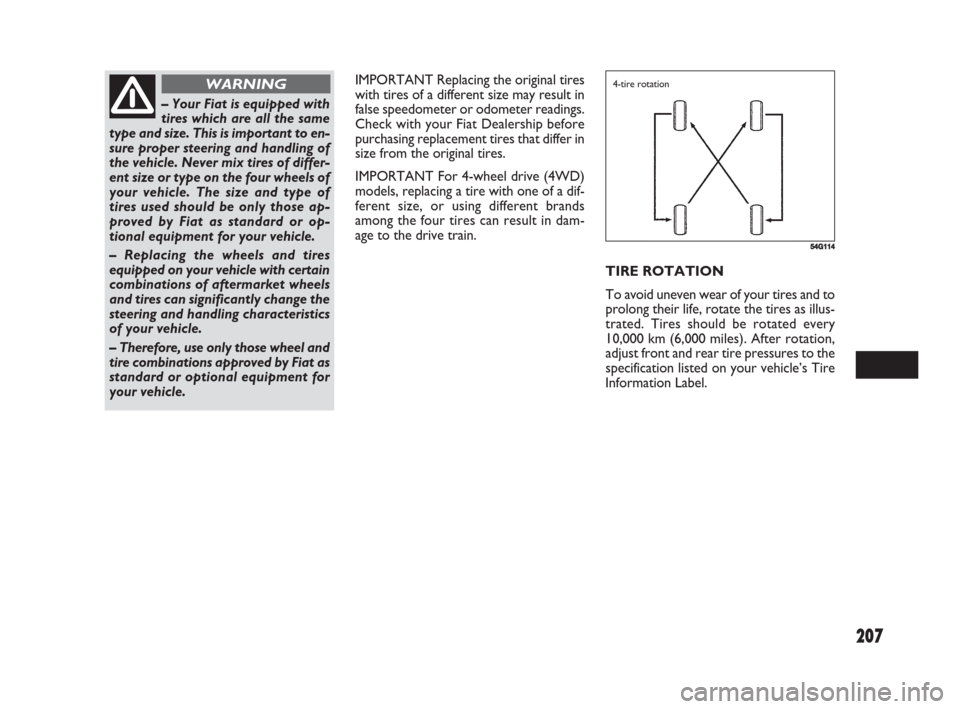

TIRE ROTATION
To avoid uneven wear of your tires and to
prolong their life, rotate the tires as illus-
trated. Tires should be rotated every
10,000 km (6,000 miles). After rotation,
adjust front and rear tire pressures to the
specification listed on your vehicle’s Tire
Information Label.
– Your Fiat is equipped with
tires which are all the same
type and size. This is important to en-
sure proper steering and handling of
the vehicle. Never mix tires of differ-
ent size or type on the four wheels of
your vehicle. The size and type of
tires used should be only those ap-
proved by Fiat as standard or op-
tional equipment for your vehicle.
– Replacing the wheels and tires
equipped on your vehicle with certain
combinations of aftermarket wheels
and tires can significantly change the
steering and handling characteristics
of your vehicle.
– Therefore, use only those wheel and
tire combinations approved by Fiat as
standard or optional equipment for
your vehicle.
WARNING
54G114
4-tire rotation
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 207

213
(1) (2)
(3)
(4)
(5)
62J085
(28) (27) (26) (25) (6) (7) (9) (11)
(12) (13) (14) (15) (16) (17) (18) (19)
(24)
(8) (10)
(22) (21)
(23) (20)
79J092
80A
50A
50A
80A
80A
15A
15A
15A
60A
40A
30A
30A
FUSES IN THE ENGINE COMPARTMENT
Petrol engine
Main fuse / Primary fuse
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)All electric load
Power window, Ignition Wiper, Starter
Tail light, Rear defogger, Door lock, Hazard/
Horn, Dome
Heater, Air compressor, Power steering
Radiator fan, Front fog light, Head light
Head light (Right) fuse
Head light (Left) fuse
Front fog light fuse
Power steering control module fuse
ABS control module fuse
Radiator fan fuse
ABS control module fuse
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 213

215
(6) (7)(4) (5) (2) (1)
(3)
79J172
(33) (30) (29) (28) (8) (9) (14)
(16) (15) (17) (18) (19) (20) (21) (22)
(27)
(10) (11) (13)(12)
(25) (24)
(26) (23)
(32) (31)
79J149
80A
30A
140A
50A
30A
30A
30A
15A
15A
20A
50A
60A
40A
30A
30A
30A
50A
30A
Diesel engine
Main fuse / Primary fuse
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)Glow
Fuel heater
All electric load
Light
Sub heater
Sub heater
Sub heater
Head light (Right) fuse
Head light (Left) fuse
Front fog light fuse
Ignition
Power steering control module fuse
ABS control module fuse
Radiator fan fuse
ABS control module fuse
Starting motor fuse
Ignition
Blower fan fuse
(34) (35)(36)
(37)
(38)
79J173
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 215

229
IMPORTANT The steering column is not
strong enough to withstand shocks trans-
mitted from the front wheels during tow-
ing. Always unlock the steering wheel be-
fore towing.
4-WHEEL DRIVE (4WD)
Your vehicle should be towed under one
of the following conditions:
❒With all four wheels on a flat-bed truck.
❒With the front or rear wheels lifted and
a dolly under the other wheels.
IMPORTANT Towing your vehicle with
front and/ or rear wheels on the ground
can result in damage to the automatic
transaxle and/ or the 4WD drive system.
IF THE STARTER DOES
NOT OPERATE
❒Try turning the ignition switch to the
“START” position with the headlights
turned on to determine the battery
condition. If the headlights go exces-
sively dim or go off, it usually means
that either the battery is flat or the bat-
tery terminal contact is poor. Recharge
the battery or correct battery terminal
contact as necessary.
❒If the headlights remain bright, check
the fuses. If the reason for failure of the
starter is not obvious, there may be a
major electrical problem. Have the ve-
hicle inspected by your authorized
Fiat Dealership.
TOWING
If you need to have your vehicle towed,
contact a professional service. Your deal-
er can provide you with detailed towing
instructions.
IMPORTANT To help avoid damage to
your vehicle during towing, proper equip-
ment and towing procedures must be
used.
2-WHEEL DRIVE (2WD)
MANUAL TRANSAXLE
Manual transaxle vehicles may be towed
using either of the following methods.
❒From the front, with the front wheels
lifted and the rear wheels on the
ground. Before towing, make sure that
the parking brake is released.
❒From the rear, with the rear wheels lift-
ed and the front wheels on the ground,
provided the steering and drivetrain are
in operational condition. Before tow-
ing, make sure that transaxle is in neu-
tral, the steering wheel is unlocked (the
ignition key should be in the “ACC” po-
sition), and the steering wheel is se-
cured with a clamping device designed
for towing service.
225-232 Fiat16 New GB 3-09-2008 8:44 Pagina 229

243
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
ENGINE .................................................................................. 244
FUEL FEED – IGNITION .................................................... 244
ELECTRICAL COMPONENTS ......................................... 245
BULBS ..................................................................................... 245
TRANSMISSION .................................................................. 246
BRAKES .................................................................................. 246
SUSPENSIONS ...................................................................... 246
STEERING .............................................................................. 246
WHEELS ................................................................................. 247
DIMENSIONS ....................................................................... 247
WEIGHTS .............................................................................. 248
PERFORMANCE .................................................................. 248
CAPACITIES .......................................................................... 248
12
243-248 Fiat16 New GB 3-09-2008 8:42 Pagina 243

246
BRAKES
Service brakes Front
Rear
Parking brake
Vacuum brake
SUSPENSIONS
Front
Rear
STEERING
Type
Minimum steering cycleDisc (Ø 280 mm - 11 in.)
Drum (Ø 220 mm - 8.65 in.)
Controlled by hand lever, it works on rear brakes
10”
Mc Pherson independent wheels
Bent twisting axle
Electric, pinion
11 m (433 in.)
TRANSMISSION
Drive 4WD
Clutch
Gearbox1.6 16V
1.9 Multijet4-wheel drive, electronic-control self-locking differential
Dry single disc, Belleville washer,
hydraulic control
5 forward gears + reverse
6 forward gears + reverse
243-248 Fiat16 New GB 3-09-2008 8:42 Pagina 246
