PARKING SENSORS
(where provided)
Parking sensors are located in the rear
bumper fig. 95and their function is to in-
form the driver, through an intermittent
buzzer, about the presence of obstacles
behind the vehicle.
ACTIVATION
The sensors are automatically activated
when the reverse gear is engaged.
As the obstacle behind the vehicle comes
closer to the bumper, the buzzer becomes
more frequent.BUZZER WARNING
When reverse gear is engaged, an inter-
mittent buzzer automatically turns on (a
short beep to indicate the activation of the
system).
The beep:
❒becomes louder as the vehicle goes
closer to the obstacle;
❒becomes continuous when the distance
between the vehicle and the obstacle is
inferior to 30 cm and stops immediately
if the distance increases;
❒is constant if the distance between the
vehicle and the obstacle does not
change.Detection distances
Central operating range 120 cm
Side operating range 60 cm
If several obstacles are detected, the con-
trol unit indicates the nearest one.
FAILURE INDICATIONS
Any failure of the parking sensors is indi-
cated when engaging reverse gear by a
beep lasting 3 seconds.
fig. 95F0T0211m
The sensors must be clean
from mud, dirt, snow or ice in
order to work correctly. Be
careful not to scratch or dam-
age the sensors while cleaning them.
Avoid using dry, rough or hard cloths.
Wash the sensors with clean water with
the addition of car shampoo, if neces-
sary. In washing stations, clean sensors
quickly keeping the vapour jet/high
pressure washing nozzles at 10 cm at
least from the sensors.
036-082 Fiorino GB 1ed 21-10-2008 14:59 Pagina 77

78
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
OPERATION
WITH TRAILER
Parking sensor operation is automatically
disabled when the electric cable plug of the
trailer is fitted into the vehicle tow hook
socket.
Sensors are automatically enabled again
when removing the trailer cable plug.GENERAL WARNINGS
❒When parking, take the utmost care to
obstacles that may be set above or un-
der the sensors.
❒Objects located near the vehicle back,
under certain circumstances, are not
detected and could therefore cause
damage to the vehicle or become dam-
aged.
❒Indications sent by the sensors can be
altered by dirt, snow or ice deposited
on the sensors or by ultrasound sys-
tems (e.g. truck pneumatic brakes or
pneumatic hammers) near the vehicle.
❒For correct parking sensor operation
the swing-doors must be closed. Open
swing-doors may produce incorrect in-
dications by the system. The rear doors
must always be closed.
The driver is fully responsible
for parking operations and
other dangerous manoeuvres. Make
sure that no-one is standing in the
area, especially children or animals.
Parking sensors are designed to assist
drivers, who must always pay the ut-
most attention during potentially
dangerous manoeuvres even if they
are performed at low speed.
WARNING
036-082 Fiorino GB 1ed 21-10-2008 14:59 Pagina 78

82
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ENVIRONMENTAL
PROTECTION
The devices for curtailing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation prevention system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒diesel particulate filter (DPF) (where
provided). Do not place free flames or lit
cigarettes near to the fuel
filler: this may pose a risk of
fire. Keep your face away
from the fuel filler to prevent breath-
ing in harmful vapours.
DIESEL PARTICULATE
FILTER DPF
(Diesel Particulate Filter)
(where provided)
The Diesel Particulate Filter is a mechan-
ical filter integral with the exhaust system
that physically traps carbon particles pre-
sent in the exhaust gases of Diesel engines.
The diesel particulate filter has been
adopted to eliminate particulates almost
totally in compliance with current / future
law regulations. During normal use of the
vehicle, the engine control unit records a
set of data (e.g.: travel time, type of route,
temperatures, etc.) and it will then calcu-
late the amount of particles trapped by the
filter.
Since this filter physically traps particulates,
it shall be cleaned (reclaimed) at regular
intervals by burning carbon particles. The
regeneration procedure is controlled au-
tomatically by the engine control unit ac-
cording to the filter conditions and the
conditions of use of the vehicle.
During the regeneration procedure, the
following situations may occur: limited in-
crease of idle speed, activation of electric
fan, limited increase of smoke, high tem-
peratures at the exhaust. These events
must not be considered as a malfunction-
ing: they do not impair vehicle behaviour
and the environment. If the dedicated
message is displayed, refer to section
“Warning lights and messages”. The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction
noise when you release the cap is there-
fore entirely normal.
036-082 Fiorino GB 1ed 21-10-2008 14:59 Pagina 82

109
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS..................................................... 110
LOW BRAKE FLUID........................................................... 110
HANDBRAKE ON.............................................................. 110
AIRBAG FAILURE................................................................ 111
FRONT PASSENGER AIRBAG/
SIDE BAGS DISABLED....................................................... 111
ENGINE COOLANT HIGH TEMPERATURE............... 112
LOW BATTERY CHARGE................................................ 112
ABS SYSTEM FAILURE....................................................... 112
EBD SYSTEM FAILURE....................................................... 112
ESP SYSTEM FAILURE ........................................................ 113
LOW ENGINE OIL PRESSURE........................................ 113
EXHAUSTED OIL................................................................ 113
SEAT BELTS NOT FASTENED......................................... 114
INCOMPLETE DOOR LOCKING.................................. 114
MINIMUM ENGINE OIL LEVEL....................................... 114
INJECTION SYSTEM FAILURE......................................... 114
EOBD ENGINE CONTROL SYSTEM FAILURE ........... 114PARTICULATE FILTER CLOGGED................................ 115
FUEL RESERVE...................................................................... 115
GLOW PLUG HEATING................................................... 116
GLOW PLUG HEATING FAILURE................................. 116
WATER IN DIESEL FUEL FILTER.................................... 116
VEHICLE PROTECTION SYSTEM
FAILURE - FIAT CODE ...................................................... 116
ALARM FAILURE/THEFT ATTEMPT............................... 116
EXTERNAL LIGHTS FAILURE.......................................... 117
GENERIC FAILURE INDICATION................................. 117
BRAKE PAD WEAR............................................................ 118
PARKING SENSOR FAILURE........................................... 118
SIDE/TAILLIGHTS................................................................ 118
FOLLOW ME HOME.......................................................... 118
FRONT FOG LIGHTS........................................................ 118
REAR FOG LIGHTS............................................................ 118
LEFT-HAND DIRECTION INDICATOR....................... 118
RIGHT-HAND DIRECTION INDICATOR................... 118
MAIN BEAMS........................................................................ 118
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 109

117
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES

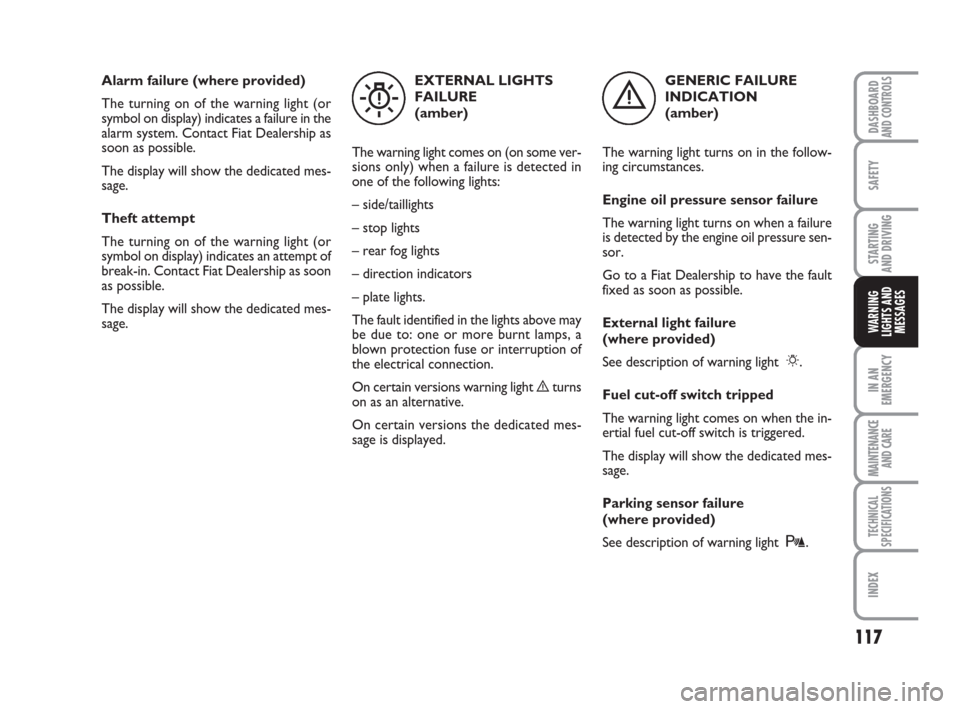

Alarm failure (where provided)
The turning on of the warning light (or
symbol on display) indicates a failure in the
alarm system. Contact Fiat Dealership as
soon as possible.
The display will show the dedicated mes-
sage.
Theft attempt
The turning on of the warning light (or
symbol on display) indicates an attempt of
break-in. Contact Fiat Dealership as soon
as possible.
The display will show the dedicated mes-
sage.GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure sensor failure
The warning light turns on when a failure
is detected by the engine oil pressure sen-
sor.
Go to a Fiat Dealership to have the fault
fixed as soon as possible.
External light failure
(where provided)
See description of warning light 6.
Fuel cut-off switch tripped
The warning light comes on when the in-
ertial fuel cut-off switch is triggered.
The display will show the dedicated mes-
sage.
Parking sensor failure
(where provided)
See description of warning light t.
è
EXTERNAL LIGHTS
FAILURE
(amber)
The warning light comes on (on some ver-
sions only) when a failure is detected in
one of the following lights:
– side/taillights
– stop lights
– rear fog lights
– direction indicators
– plate lights.
The fault identified in the lights above may
be due to: one or more burnt lamps, a
blown protection fuse or interruption of
the electrical connection.
On certain versions warning light èturns
on as an alternative.
On certain versions the dedicated mes-
sage is displayed.
W
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 117

118
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
PARKING SENSOR
FAILURE
(where provided)
(amber)
The warning light turns on when a failure
is detected in the parking sensors.
On certain versions warning light èturns
on as an alternative. Contact the Fiat Deal-
ership.
On certain versions the dedicated mes-
sage is displayed.
SIDE/TAILLIGHTS
(green)
FOLLOW ME HOME
(green)
Side/Taillights
The warning light comes on when the
side/taillights are turned on.Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.
FRONT FOG LIGHTS
(green)
The warning light comes on when the
front fog lights are turned on.
REAR FOG LIGHTS
(amber)
The warning light comes on when the rear
fog lights are turned on. BRAKE PAD WEAR
(amber)
The warning light on the dial
turns on if the front brake pads are worn;
in this case have them changed as soon
as possible.
On certain versions the dedicated mes-
sage is displayed.
d
t
3
5
4
LEFT-HAND
DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the emergency light button
is pressed.MAIN BEAMS
(blue)
The warning light turns on when the
main beams are turned on.
ASR SYSTEM (versions with
multifunction display)
The ASR system can be turned off by
pressing the button ASR OFF.
The display will show the dedicated mes-
sage to warn the driver that the system
is off; at the same time the button led will
turn on.
Pressing again button ASR OFF the but-
ton led will turn off and the display will
show the dedicated message to warn the
driver that the system is on again. RIGHT-HAND
DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the emergency light button
is pressed.
Î
¥
1
109-118 Fiorino GB 1ed 21-10-2008 15:00 Pagina 118

145
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Relay reel T09 (version 1.4) F18 7.5 50
Engine control unit/Relay reel T09 (1.3 Multijet version) F18 7.5 50
Climate system compressor F19 7.5 50
Rear heated window/Mirror demisters F20 30 50
Fuel pump F21 15 50
Engine control unit (1.3 Multijet version) F22 15 50
Injectors/Ignition reel (1.4 version) F22 15 50
ABS (valves) F23 20 50
+15 ABS F24 7.5 50
Fog lights F30 15 50
Plug heating unit (1.3 Multijet version) F81 50 50
Available F83 – 50
Cigar lighter/Passenger compartment current outlets/Heated seats F85 30 50
+15 Reverse lights/decimetre/Water sensor in diesel fuel/
Reels for relays T02, T05, T14, T17 and T19 F87 7.5 50
119-150 Fiorino GB 1ed 21-10-2008 15:05 Pagina 145
