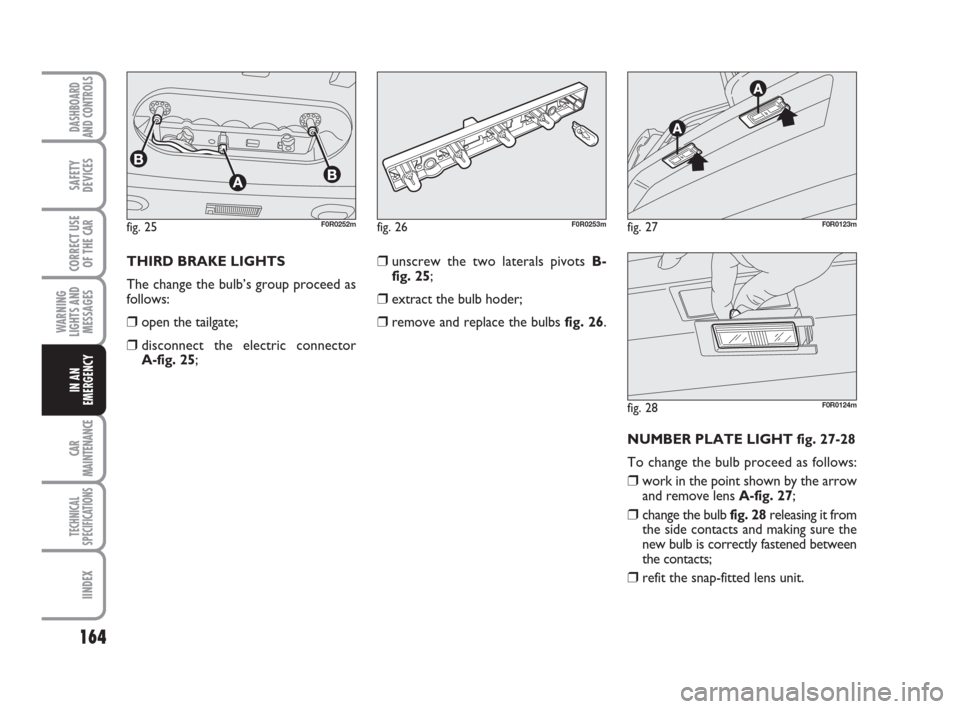

THIRD BRAKE LIGHTS
The change the bulb’s group proceed as
follows:
❒open the tailgate;
❒disconnect the electric connector
A-fig. 25;
❒unscrew the two laterals pivots B-
fig. 25;
❒extract the bulb hoder;
❒remove and replace the bulbs fig. 26.
NUMBER PLATE LIGHT fig. 27-28
To change the bulb proceed as follows:
❒work in the point shown by the arrow
and remove lens A-fig. 27;
❒change the bulb fig. 28releasing it from
the side contacts and making sure the
new bulb is correctly fastened between
the contacts;
❒refit the snap-fitted lens unit.
fig. 25F0R0252mfig. 26F0R0253mfig. 27F0R0123m
fig. 28F0R0124m
145-176 LINEA 1ed GB 5-09-2008 9:22 Pagina 164

165
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light A-fig. 29;
❒open the protection lid B-fig. 30;
❒replace bulbs Creleasing them from the
side contacts; make sure that new bulbs
are correctly clamped between contacts;
❒re-close the lid B-fig. 30and secure light
A-fig. 29into its housing locking it
properly.
REAR CEILING LIGHT
(where provided)
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light D-fig. 31;
❒open the protection lid E-fig. 32;
❒change the bulb F-fig. 32releasing it
from the side contacts and making sure
the new bulb is correctly fastened be-
tween the contacts;
❒re-close the protection lid E-fig. 32
and secure light D-fig. 31into its hous-
ing locking it properly.
fig. 29F0R0115m
fig. 30F0R0117m
fig. 31F0R0116m
fig. 32F0R0118m
145-176 LINEA 1ed GB 5-09-2008 9:22 Pagina 165

166
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

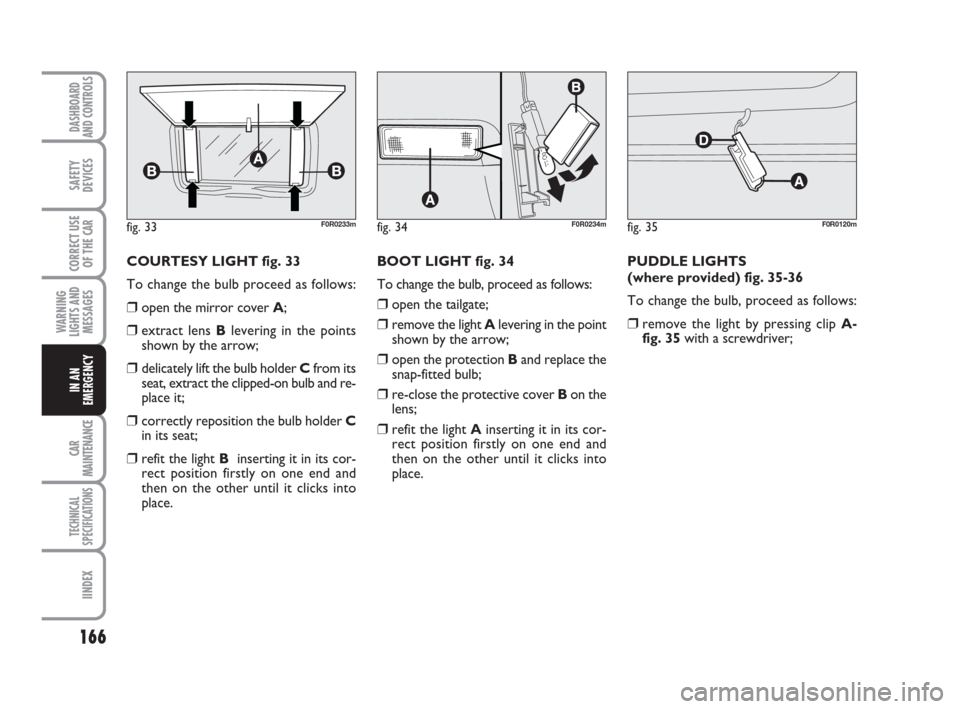

COURTESY LIGHT fig. 33
To change the bulb proceed as follows:
❒open the mirror cover A;
❒extract lens Blevering in the points
shown by the arrow;
❒delicately lift the bulb holder Cfrom its
seat, extract the clipped-on bulb and re-
place it;
❒correctly reposition the bulb holder C
in its seat;
❒refit the light Binserting it in its cor-
rect position firstly on one end and
then on the other until it clicks into
place.BOOT LIGHT fig. 34
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light Alevering in the point
shown by the arrow;
❒open the protection Band replace the
snap-fitted bulb;
❒re-close the protective cover Bon the
lens;
❒refit the light Ainserting it in its cor-
rect position firstly on one end and
then on the other until it clicks into
place.
fig. 33F0R0233mfig. 34F0R0234mfig. 35F0R0120m
PUDDLE LIGHTS
(where provided) fig. 35-36
To change the bulb, proceed as follows:
❒remove the light by pressing clip A-
fig. 35with a screwdriver;
145-176 LINEA 1ed GB 5-09-2008 9:22 Pagina 166

167
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
❒press the bulb protection cover sides
B-fig. 36on the two fastening pins and
turn it;
❒replace the snap-fitted bulb C-fig. 36;
❒refit bulb protection cover fitting the
two fastening pins;
❒refit the ceiling light inserting first end
D-fig. 35and then pressing the other
end until hearing the locking click of the
clip.
fig. 36F0R0121m
ODDMENTS COMPARTMENT
COURTESY LIGHT
(where provided) figs. 37-38
To change the bulb, proceed as follows:
❒work at the points shown by the ar-
rows and remove the courtesy light A-
fig. 37;
❒replace the bulb B-fig. 38releasing it
from the side contacts and making sure
the new bulb is correctly fastened be-
tween the actual contacts;
❒refit the courtesy light A-fig.37in its
housing making sure that it is secure.
fig. 37F0R0303mfig. 38F0R0304m
145-176 LINEA 1ed GB 5-09-2008 9:22 Pagina 167

168
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

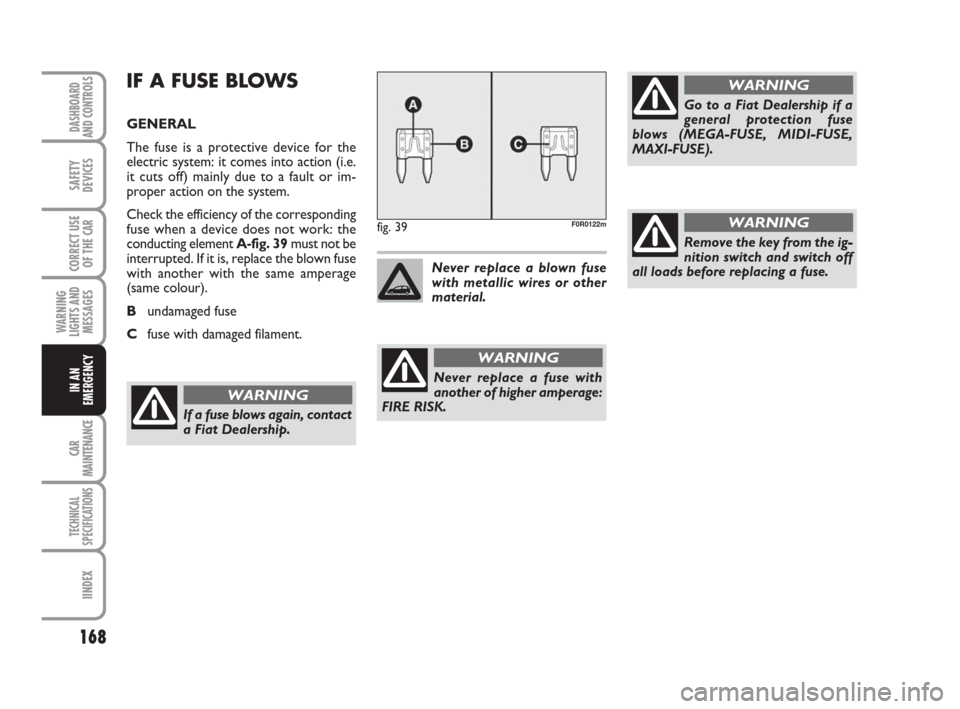

IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
Check the efficiency of the corresponding
fuse when a device does not work: the
conducting element A-fig. 39must not be
interrupted. If it is, replace the blown fuse
with another with the same amperage
(same colour).
Bundamaged fuse
Cfuse with damaged filament.
fig. 39F0R0122m
Never replace a fuse with
another of higher amperage:
FIRE RISK.
WARNING
Never replace a blown fuse
with metallic wires or other
material.
Go to a Fiat Dealership if a
general protection fuse
blows (MEGA-FUSE, MIDI-FUSE,
MAXI-FUSE).
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
Remove the key from the ig-
nition switch and switch off
all loads before replacing a fuse.
WARNING
145-176 LINEA 1ed GB 5-09-2008 9:22 Pagina 168

169
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
FUSE LOCATION
The fuses are grouped in three units on
the dashboard, in the engine compartment
and on the positive battery terminal.
Fuse box on the dashboard fig. 41
To gain access to the fuses in the fuse box
on the dashboard, loosen the fastening
screws A-fig. 40and remove the cover.
fig. 41F0R0126m
F34 F48 F49 F35 F13
F46 F33 F37 F42 F12
F45 F47 F32 F50 F51
F52 F41 F43 F40 F44
F36 F39 F38 F53 F31
fig. 40F0R0125m
145-176 LINEA 1ed GB 5-09-2008 9:22 Pagina 169

170
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
Fuse box in engine compartment
fig. 43
To gain access to the fuses in the fuse box
next to the battery, remove the protec-
tion cover fig. 42.
fig. 42F0R0127m
fig. 43F0R0128m
145-176 LINEA 1ed GB 5-09-2008 9:22 Pagina 170

171
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
7.5
7.5
7.5
15
20
20
7.5
7.5
7.5
20
10
30
7.5
7.5
20 F12
F13
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
F41
F42
F43
FUSE TABLE
Fuse box on dashboard fig. 41
LOADS FUSE AMPERES
Right dipped beam headlight
Left dipped beam headlight, headlight corrector
INT/A for relay coils (T08, T17) in engine compartment fuse box and body
computer node
Heated Seats
Power windows control unit (left rear window motor)
Power windows control unit (right rear window motor)
+15 reversing lights, brake lights control NC, air mass meter, glow plug pre-heating
unit, water in diesel fuel sensor, tachometer generator, level sensor 2
Power window unit (+30 for electronics)
+15 instrument panel, NA brake lights control
Body computer node
Radio node, climate control node, node Blue&Me
Heated rear window
Mirror defrosters
+15 brake system
Windscreen wiper control (two-way pump)
