FIAT PUNTO LPG
AT THE FILLING
STATION
LPG filler
The gas filler is located next to the petrol
filler cap. It has a one-way valve, located
in the actual filler body.
To access the filler B-fig. 8, open the ac-
cess flap Aand undo the cap C.
Observe the following precautions during
the refuelling operation:
– switch off the engine;
– apply the handbrake;
– turn the ignition key to the STOPpo-
sition;
– do not smoke;
– hand the special adaptor over to the
qualified LPG refuelling personnel.
IMPORTANT Before refuelling with LPG,
the qualified personnel should make sure
that the adapator is correctly tightened
onto the filler fitting.
IMPORTANT Depending on the country,
there are two types of adaptors for refu-
elling pumps. The adaptor that comes with
the car in a special case is specifically de-
signed for the country in which the car is
sold. If you are in a different country, find
out what type of adapator is used there.
WHEELS
Wheel repair
The car does not have a spare wheel but
comes with a quick tyre repair kit known
as Fix&Go.
The kit is located on the left side of the
luggage compartment and is fastened by
velcro.
See the instructions in the booklet that
this supplement comes with.
The tool box fig. 9is located under the
driver’s seat and fastened by velcro.
FUSE REPLACEMENT
The LPG system components are pro-
tected by a 20A fuse F81 (power supply +
battery) installed, depending on the ver-
sion, near the battery or in the engine
compartment junction unit and a 5A fuse
F16 (power supply + ignition) in the en-
gine compartment junction unit.
For all the other fuses, consult the Own-
er Handbook that this supplement comes
with.
fig. 8F0M0479m
fig. 9F0M0480m
IMPORTANT Only use LPG for mo-
tor vehicles.
IMPORTANT Look after the LPG
adapator carefully so that it does not
get damamged.
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 15
19
FIAT PUNTO LPG

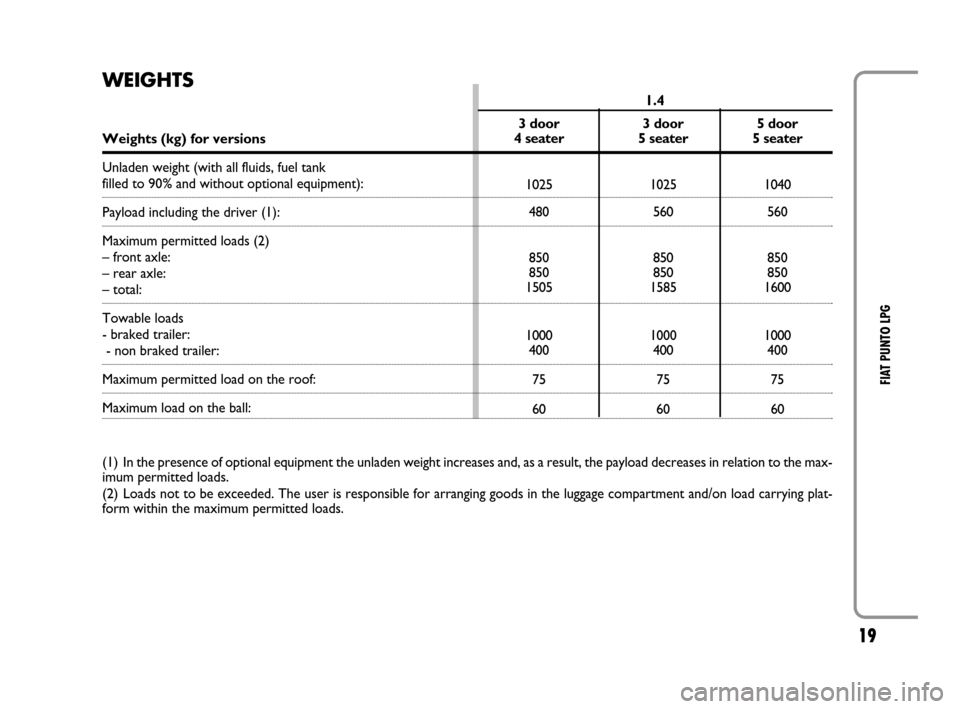

WEIGHTS
