FIAT PUNTO LPG
FUEL CUT-OFF SYSTEM
In the case of an impact to the vehicle, the
petrol supply is immediately cut off caus-
ing the engine to cut out and, as a result,
the LPG safety solenoid valves to close.
For further information, see the “Fuel cut
off system” paragraph in the “Dashboard
and Controls” chapter in the Owner
Handbook.
STARTING
THE ENGINE
The engine is always started on petrol
even with the switch in the LPG position
(green LED flashing, yellow LED on con-
stantly) and switches automatically soon
after.
There must always be some petrol in the
tank to protect the petrol pump.
To carry out the starting manoeuvre cor-
rectly, see the warnings and advice in the
Owner Handbook under the chapter
“Starting the engine” enclosed with this
Supplement.
In this condition it is possible
to continue driving running on
petrol (excluding the LPG fu-
el system). To stop the
buzzer, press button A: the green ON
LED will go out and the yellow OFF
LED will remain on constantly. Go to a
Fiat Dealer as soon as possible to have
the system checked.
System failure signalling
The car has an autodiagnostic system ca-
pable of signalling any malfunctions in the
LPG fuel system through the green ON
LED fig. 7flashing. In the case of faults
that could affect the correct operation of
the engine, the LPG control unit will au-
tomatically switch from LPG operation to
running on petrol.
This condition will be shown by:
– the yellow OFFLED on constantly;
– the green ONLED flashing;
– an acoustic warning from the switch
buzzer (slow frequency).
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 14

15
FIAT PUNTO LPG
AT THE FILLING
STATION
LPG filler
The gas filler is located next to the petrol
filler cap. It has a one-way valve, located
in the actual filler body.
To access the filler B-fig. 8, open the ac-
cess flap Aand undo the cap C.
Observe the following precautions during
the refuelling operation:
– switch off the engine;
– apply the handbrake;
– turn the ignition key to the STOPpo-
sition;
– do not smoke;
– hand the special adaptor over to the
qualified LPG refuelling personnel.
IMPORTANT Before refuelling with LPG,
the qualified personnel should make sure
that the adapator is correctly tightened
onto the filler fitting.
IMPORTANT Depending on the country,
there are two types of adaptors for refu-
elling pumps. The adaptor that comes with
the car in a special case is specifically de-
signed for the country in which the car is
sold. If you are in a different country, find
out what type of adapator is used there.
WHEELS
Wheel repair
The car does not have a spare wheel but
comes with a quick tyre repair kit known
as Fix&Go.
The kit is located on the left side of the
luggage compartment and is fastened by
velcro.
See the instructions in the booklet that
this supplement comes with.
The tool box fig. 9is located under the
driver’s seat and fastened by velcro.
FUSE REPLACEMENT
The LPG system components are pro-
tected by a 20A fuse F81 (power supply +
battery) installed, depending on the ver-
sion, near the battery or in the engine
compartment junction unit and a 5A fuse
F16 (power supply + ignition) in the en-
gine compartment junction unit.
For all the other fuses, consult the Own-
er Handbook that this supplement comes
with.
fig. 8F0M0479m
fig. 9F0M0480m
IMPORTANT Only use LPG for mo-
tor vehicles.
IMPORTANT Look after the LPG
adapator carefully so that it does not
get damamged.
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 15

17
FIAT PUNTO LPG

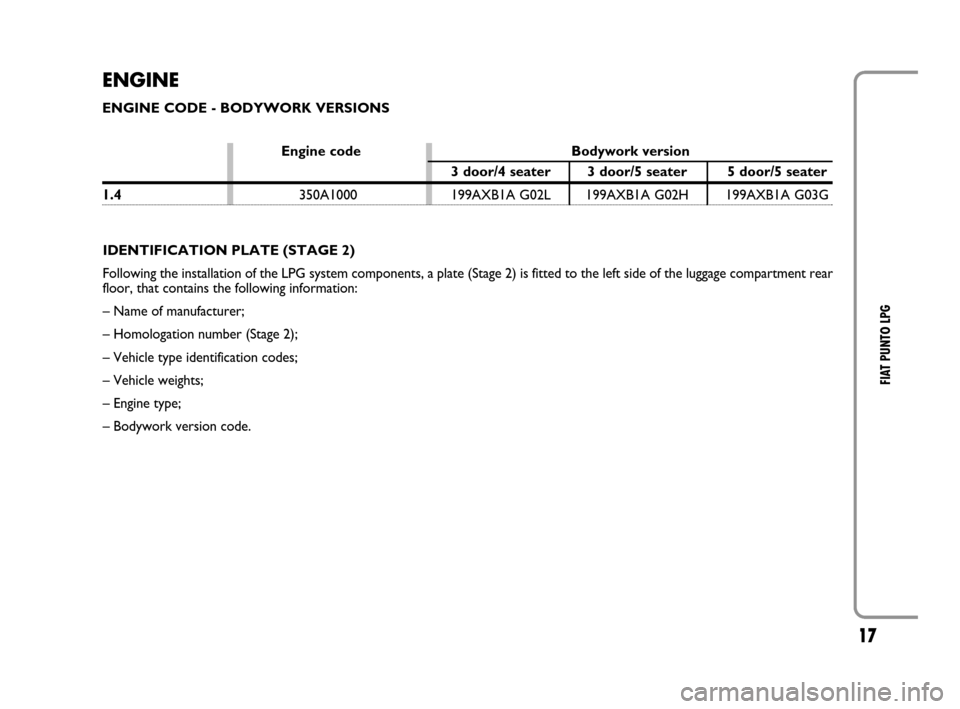

ENGINE
ENGINE CODE - BODYWORK VERSIONS
IDENTIFICATION PLATE (STAGE 2)
Following the installation of the LPG system components, a plate (Stage 2) is fitted to the left side of the luggage compartment rear
floor, that contains the following information:
– Name of manufacturer;
– Homologation number (Stage 2);
– Vehicle type identification codes;
– Vehicle weights;
– Engine type;
– Bodywork version code.
Engine code Bodywork version
3 door/4 seater 3 door/5 seater 5 door/5 seater
1.4350A1000 199AXB1A G02L 199AXB1A G02H 199AXB1A G03G
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 17

18
FIAT PUNTO LPG
LPG FUEL SYSTEM
Electronic injection with special LPG injec-
tors.
Type: Phased, sequential, multipoint.
Stoichiometric metering of the air/gas mix-
ture.
Engine idle speed:
700 ± 50 rpm
The LPG injection system is controlled by
a dedicated control unit (connected to the
petrol one) using the sensors already on
the car.
IGNITION
Static advance, electronic, integrated with
the injection.
PERFORMANCE
Top speed in km/h.
Running on petrol: 165
Running on LPG: 165
Modifications or repairs to
the fuel feed system that are
not carried out properly or do not
take the system’s technical specifica-
tions into account can cause mal-
functions leading to the risk of fire.
WARNING
INTRODUCTION 1.4
Engine identification code 350A1000
Cycle Otto
Number of cylinders and position 4 in line
Piston diameter and stroke mm 72 x 84
Total capacity cm31368
Compression ratio 11.1 : 1
LPG Petrol
kW 57 57
Max power CEE bhp 77 77
at a speed of rpm 6000 6000
Nm 115 115
Max torque CEE kgm 11.7 11.7
at a speed of rpm 3000 3000
Spark plugs NGK ZKR7A-10
Fuel
LPGGreen petrol
unleaded
95 RON
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 18

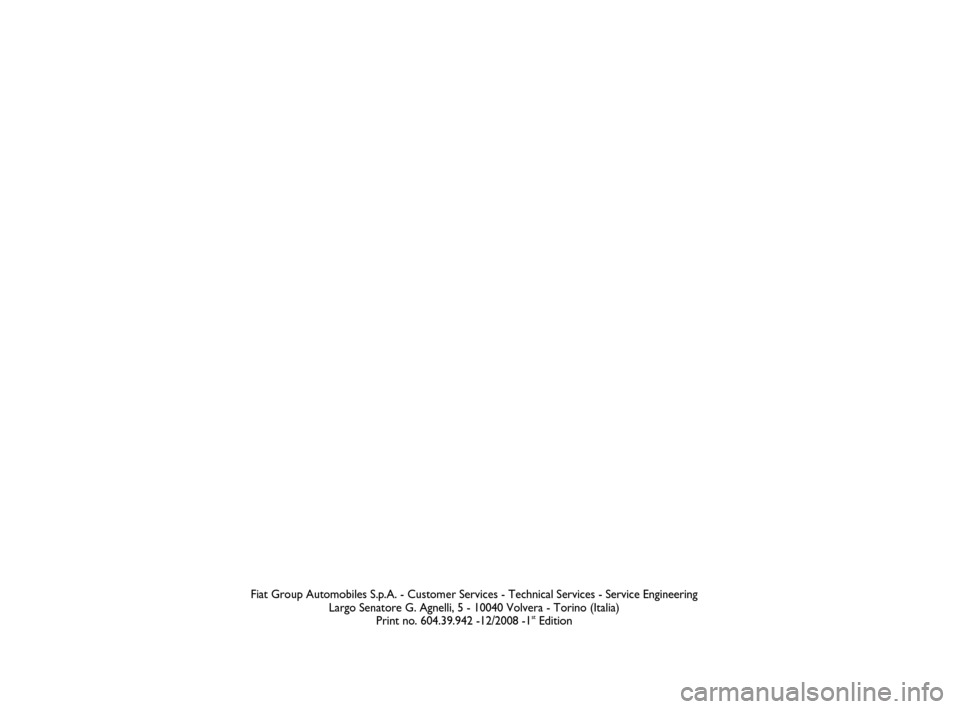

Fiat Group Automobiles S.p.A. - Customer Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 604.39.942 -12/2008 -1
