REARVIEW MIRRORS
DRIVING MIRROR fig. 41
The mirror is fitted with a safety device
that causes it to be released in the event
of a violent crash.
It can be moved using the lever Ato two
different positions: normal or antiglare.
ELECTRO-CHROMIC DRIVING
MIRROR fig. 42
Certain versions are fitted with automat-
ic antiglare electro-chromic mirror. The
electro-chromic function is turned on/off
by pressing button ON/OFFin the low-
er section of the mirror. When this func-
tion is on, the mirror led will turn on.
When engaging reverse, the mirror will al-
ways set to daylight colouring.
DOOR MIRRORS fig. 43
Electrical adjustment
This operation is only possible with igni-
tion key at ON.
Proceed as follows:
❒use switch Bto select the mirror re-
quired (left or right);
❒to adjust the mirror move the switch
Cin the four directions;
Adjust mirrors with car stationary and
handbrake on. Mirror defrosting starts au-
tomatically when switching the heated
rear window on.
Storing the “parking” position of
the door mirror on the passenger
side
To improve visibility during parking ma-
noeuvres when engaging the reverse gear,
the driver can adjust/move (and store) the
passenger door mirror to a position dif-
ferent from that used during normal run-
ning.
fig. 42F0L0310m
fig. 43F0L0386m
039-069 Croma TRW GB 10-11-2008 13:15 Pagina 44

45
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
To store the required mirror position
proceed as follows:
❒engage reverse with car stopped and
ignition key to ON;
❒turn selector B(to select the passen-
ger door mirror);
❒use selector Cto adjust the passenger
door mirror as required to obtain best
position for parking manoeuvres;
❒keep one of the seat storing/recalling
buttons pressed for 3 seconds at least;
Together with the passenger door mirror
“parking” position, also the driver seat and
door mirror positions will be stored.
The sound of a buzzer confirms that the
mirror position has been stored.Recalling the “parking” position of
the passenger door mirror
To recall automatically the “parking” po-
sition of the passenger door mirror, pro-
ceed as follows:
❒engage reverse with car stopped and
ignition key to ON;
❒turn selector Bto select the passen-
ger door mirror; the mirror will set
automatically to the previously stored
position.
If no parking position has been stored,
when engaging reverse the passenger door
mirror will slightly lower to aid the dri-
ver during parking.
The mirror will automatically return to its
original position in the following cases:
❒10 seconds after disengaging reverse;
❒when the car speed exceeds 10 km/h
in forward gear ;
❒when turning selector Bto neutral po-
sition or to driver mirror position.IMPORTANT “Parking” position can on-
ly be stored or recalled with ignition key
at ON.
Automatic door mirror
realignment
Each time the ignition key is turned to
ON, door mirrors return automatically to
the last position set and/or recalled at last
removal of the electronic key.
This enables mirror alignment if when
leaving the car parked one of the door
mirrors has been moved manually and/or
accidentally.
039-069 Croma TRW GB 10-11-2008 13:15 Pagina 45

46
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Manual folding fig. 44
When required (for example when the
mirror causes difficulty in narrow spaces)
it is possible to fold the mirrors moving
it from position Ato position B.
fig. 44F0L0015mfig. 45F0L0387m
Powered folding
(where provided) fig. 45
When required (for example when the
mirror causes difficulty in narrow spaces)
it is possible to fold the mirrors by press-
ing button C.
To reset mirrors to driving position, press
button Cagain.
When driving the mirrors
shall always be in position A.
WARNING
As the driver’s door mirror is
curved, it slightly alters the
perception of distance.
WARNING
039-069 Croma TRW GB 10-11-2008 13:15 Pagina 46

47
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEATING/CLIMATE CONTROL SYSTEM

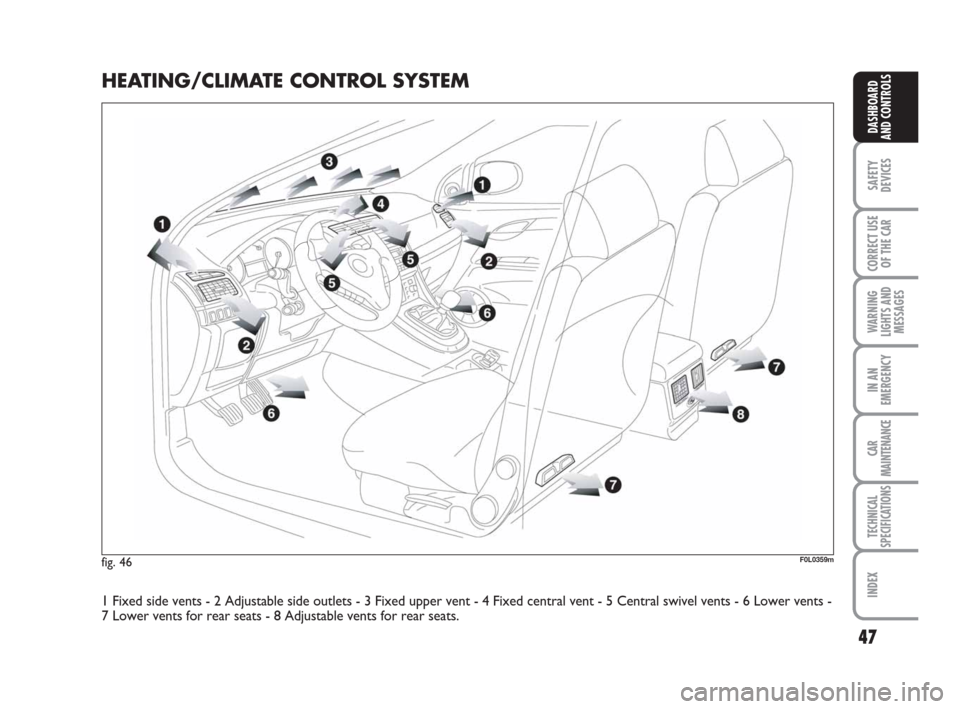

1 Fixed side vents - 2 Adjustable side outlets - 3 Fixed upper vent - 4 Fixed central vent - 5 Central swivel vents - 6 Lower vents -
