2008 FIAT BRAVO dashboard and controls

188
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
IF THE BATTERY IS FLAT
IMPORTANT The battery charging pro-
cedure is described only for information
purposes. This operation should be car-
ried out by Fiat Dealership.
Charging should be slow at a low amp rat-
ing for 24 hours. Charging for a longer
time may damage the battery.Charge the battery as follows:❒ disconnect battery negative terminal;
❒ connect the charger cables to the bat-
tery terminals, observing the poles;
❒ turn on the charger;
❒ when you have finished, turn the charg-
er off before disconnecting the battery;
❒ reconnect battery negative terminal.
IMPORTANT Where relevant, switch the
electronic car alarm off with remote con-
trol (see “Alarm” in section “Dashboard
and controls”).
The liquid contained in the
battery is poisonous and cor-
rosive. Avoid contact with the skin or
eyes. The battery should be charged
in a well ventilated place, away from
naked flames or possible sources of
sparks: danger of explosion and fire.
WARNING
Do not attempt to charge a
frozen battery: it must first-
ly be thawed, otherwise it may burst.
If freezing has occurred, the battery
should be checked by skilled person-
nel to make sure that the internal el-
ements are not damaged and that the
body is not cracked, with the risk of
leaking poisonous and corrosive acid.
WARNING
155-190 BRAVO GB 29-10-2008 12:35 Pagina 188

TOWING THE CAR
The tow ring provided with the car is
housed in the tool box under the boot
mat.
TOW RING HOOKING
Proceed as follows:
❒release the cap operating the tab A-fig.
55-56;
❒ take the tow hook Bfrom its support;
❒ tighten the ring on the rear or front
threaded pin.
fig. 54F0Q0729m
189
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
JACKING THE CAR
If the car is to be lifted, go to a Fiat Deal-
ership which is equipped with the arm
hoist or workshop lift.
The car can only be jacked at the sides,
jack arms or workshop lift shall be placed
as shown in fig. 54.
IMPORTANT For Sport versions, in case
of side lifting with workshop lifter, take
care to avoid damages to the spoilers.
155-190 BRAVO GB 29-10-2008 12:35 Pagina 189

190
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
fig. 55
B
F0Q0730m
fig. 56F0Q0731m
Before starting to tow, turn
the ignition key to MAR and
then to STOP. Do not remove the
key. If the key is removed, the steer-
ing lock engages automatically re-
sulting in the impossibility to steer the
wheels.
WARNING
When towing, remember
that without the help of the
servobrake and power steering, a
greater effort is required on the ped-
al and steering wheel. Do not use
flexible cables for towing and avoid
jerks. During towing operations make
sure that fastening the joint to the car
does not damage the components in
contact with it. When towing the car,
you must comply with the specific
traffic regulations regarding the tow
ring and how to tow on the road.
WARNING
Do not start the engine
when towing the car.
WARNING
Before fitting the hook,
clean accurately its thread-
ed seat. Before starting to tow, make
sure to have tighten the hook.
WARNING
The front and rear tow hooks
must only be used for emer-
gency situations on the road.
The vehicle may be towed for
short distances when a dedicated de-
vice is used in compliance with the
Highway Code (rigid bar), in order to
move the vehicle on the road in prepa-
ration for towing by a tow truck Tow
hooks MUST NOT be used to tow ve-
hicles off the road or where there are
obstacles and/or for towing operations
using cables or other non-rigid devices.
Respecting the above conditions, tow-
ing must only take place with two ve-
hicles (one towing, the other towed)
travelling as far as possible in alignment
along the same centreline.
155-190 BRAVO GB 29-10-2008 12:35 Pagina 190

191
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
SCHEDULED SERVICING ................................................ 192
SERVICE SCHEDULE........................................................... 193
ROUTINE MAINTENANCE ............................................. 197
HEAVY-DUTY ...................................................................... 197
CHECKING FLUID LEVELS................................................ 198
AIR CLEANER/POLLEN FILTER ...................................... 204
BATTERY................................................................................ 204
WHEELS AND TYRES......................................................... 206
RUBBER HOSES.................................................................... 207
WINDSCREEN/REAR WINDOW WIPERS................... 207
BODYWORK........................................................................ 209
INTERIORS ............................................................................ 211
CC C
A A
R R
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E
191-212 BRAVO GB 29-10-2008 12:33 Pagina 191

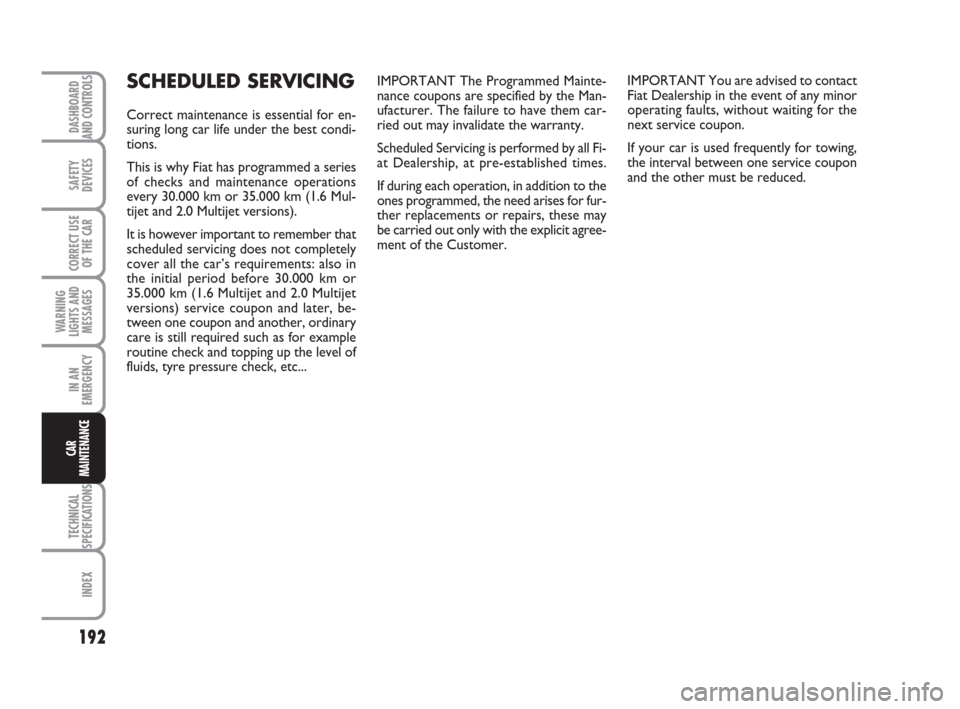

IMPORTANT The Programmed Mainte-
nance coupons are specified by the Man-
ufacturer. The failure to have them car-
ried out may invalidate the warranty.
Scheduled Servicing is performed by all Fi-
at Dealership, at pre-established times.
If during each operation, in addition to the
ones programmed, the need arises for fur-
ther replacements or repairs, these may
be carried out only with the explicit agree-
ment of the Customer.IMPORTANT You are advised to contact
Fiat Dealership in the event of any minor
operating faults, without waiting for the
next service coupon.
If your car is used frequently for towing,
the interval between one service coupon
and the other must be reduced.SCHEDULED SERVICING
Correct maintenance is essential for en-
suring long car life under the best condi-
tions.
This is why Fiat has programmed a series
of checks and maintenance operations
every 30.000 km or 35.000 km (1.6 Mul-
tijet and 2.0 Multijet versions).
It is however important to remember that
scheduled servicing does not completely
cover all the car’s requirements: also in
the initial period before 30.000 km or
35.000 km (1.6 Multijet and 2.0 Multijet
versions) service coupon and later, be-
tween one coupon and another, ordinary
care is still required such as for example
routine check and topping up the level of
fluids, tyre pressure check, etc...
192
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
191-212 BRAVO GB 29-10-2008 12:33 Pagina 192

193
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
SERVICE SCHEDULE
1.4 16V - 1.4 T-JET - 1.9 Multijet 8V - 1.9 Multijet 16V VERSIONS
30 60 90 120 150 180
●● ● ●● ●
●● ● ●● ●
●● ● ●● ●
●● ● ●● ●
●● ● ●● ●
●●●
●● ● ●● ●
●● ● ●● ●
●● ● ●● ●
●●●
●●
●●
●●
●●●
Thousands of km
Check tyre conditions/wear and adjust pressure if necessary
Check lighting system operation (headlights, direction indicators,
hazard lights, luggage compartment lights, passenger
compartment lights, glove compartment lights, instrument
panel warning lights, etc.)
Check operation of windscreen wiper system and
adjust sprays if necessary
Check position/wear of front/rear windscreen wiper blades
Check condition and wear of front disc brake pads and
operation of pad wear indicator
Check conditions and wear of rear disc brake pads
Visually check that the following are in good condition
and intact: body exterior, under body protection,
pipe rigid and flexible sections (exhaust-fuel system-brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check cleanliness of locks, bonnet, engine and boot,
clean and lubricate linkages
Check and top-up fluids (hydraulic brakes/clutch,
windscreen washer, battery, engine coolant, etc.)
Check and adjust handbrake lever travel
Check visually conditions of auxiliary drive belt/s
Visually check conditions of toothed timing belt
(1.4 16V, 1.4 T-JET,1.9 Multijet 8V versions)
Check tension and adjust auxiliary drive belt
(except for engines with automatic tensioners)
Check and adjust tappet clearance (1.9 Multijet 8V version)
191-212 BRAVO GB 29-10-2008 12:33 Pagina 193

194
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
Thousands of km
Check exhaust emissions (petrol versions)
Check emissions/fumes (1.9 Multijet 8V - 1.9 Multijet 16V versions)
Check operation of engine control systems
(by means of test interface)
Replace accessory drive belt/s
Replace toothed timing belt (petrol versions) (*)
Replace toothed timing belt (1.9 Multijet 8Vversions) (*)
Replace toothed timing belt (1.9 Multijet 16Vversions) (*)
Replace spark plugs (petrol versions)
Replace fuel filter (1.9 Multijet 8V - 1.9 Multijet 16V versions)
Replace air filter cartridge (petrol versions)
Replace air filter cartridge (1.9 Multijet 8V - 1.9 Multijet 16V versions)
Replace engine oil and oil filter (petrol versions)
(or every 24 months)
Change engine oil and oil filter (
1.9 Multijet 8V - 1.9 Multijet 16V
versionswithout DPF) (or every 24 months)
Change engine oil and oil filter
(1.9 Multijet 8V - 1.9 Multijet 16V versionswith DPF) (**)
Change brake fluidr (or every 24 months)
Change pollen filter (or every 15 months)
(*) Irrespective of mileage, the timing drive belt must be replace every 4 years for heavy duty applications, cold climates, town use, long
periods idling) or at least every 5 years.
(**) The engine oil and oil filter should be changed depending on their actual condition, which is indicated by a warning light/message on the control panel or at
least every 2 years.
For 1.4 T-JET versions, in order to ensure correct operation and avoid significant damages to the engine, it is mandatory:
- to use spark plugs specifically certified for the T-JET engine only, of the same type and brand (see paragraph “Engine”);
- to replace the plugs as often as required by the Programmed Maintenance Plan;
- we recommend to refer to the Fiat Dealership.
If the car is used mainly on urban routes or if the yearly kilometres travelled are less than 10,000 km, the engine oil and filter must be changed every 12 months.
30 60 90 120 150 180
●● ● ●● ●
●● ● ●● ●
●● ● ●● ●
●
●
●
●
●● ● ●● ●
●●●
●●●
●●●
●● ● ●● ●
●● ● ●● ●
●●●
●●●
●●●●●●
191-212 BRAVO GB 29-10-2008 12:33 Pagina 194

195
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CAR
MAINTENANCE
1.6 Multijet and 2.0 Multijet VERSIONS
Thousands of km
Check tyre conditions/wear and adjust pressure if necessary
Check lighting system operation (headlights, direction indicators,
hazard lights, luggage compartment lights, passenger compartment lights,
glove compartment lights, instrument panel warning lights, etc.)
Check operation of windscreen wiper system and
adjust sprays if necessary
Check position/wear of front/rear windscreen wiper blades
Check condition and wear of front disc brake pads and operation
of pad wear indicator
Check conditions and wear of rear disc brake pads
Visually check that the following are in good condition
and intact: body exterior, under body protection,
pipe rigid and flexible sections (exhaust-fuel system-brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check cleanliness of locks, bonnet, engine and boot,
clean and lubricate linkages
Check and top-up fluids (hydraulic brakes/clutch,
windscreen washer, battery, engine coolant, etc.)
Check and adjust handbrake lever travel
Check visually conditions of auxiliary drive belt/s35 70 105 140 175
●●●● ●
●●●● ●
●●●● ●
●●●● ●
●●●● ●
●●●● ●
●●●● ●
●●●● ●
●●●● ●
●●●● ●
●●
191-212 BRAVO GB 29-10-2008 12:33 Pagina 195
