If Engine Fails to Start
CAUTION!
To prevent damage to the starter, do not crank the
engine for more than 15 seconds at a time. Wait 10 to
15 seconds before trying again.
WARNING!
²Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to
start the vehicle. This could result in flash fire
causing serious personal injury.
²Do not attempt to push or tow your vehicle to get
it started. Unburned fuel could enter the catalytic
converter and once the engine has started, ignite
and damage the converter and vehicle. If the
vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster
battery or the battery in another vehicle. This type
of start can be dangerous if done improperly, so
follow this procedure carefully. See section 6 of
this manual for jump starting instructions.
STARTING AND OPERATING 135
5

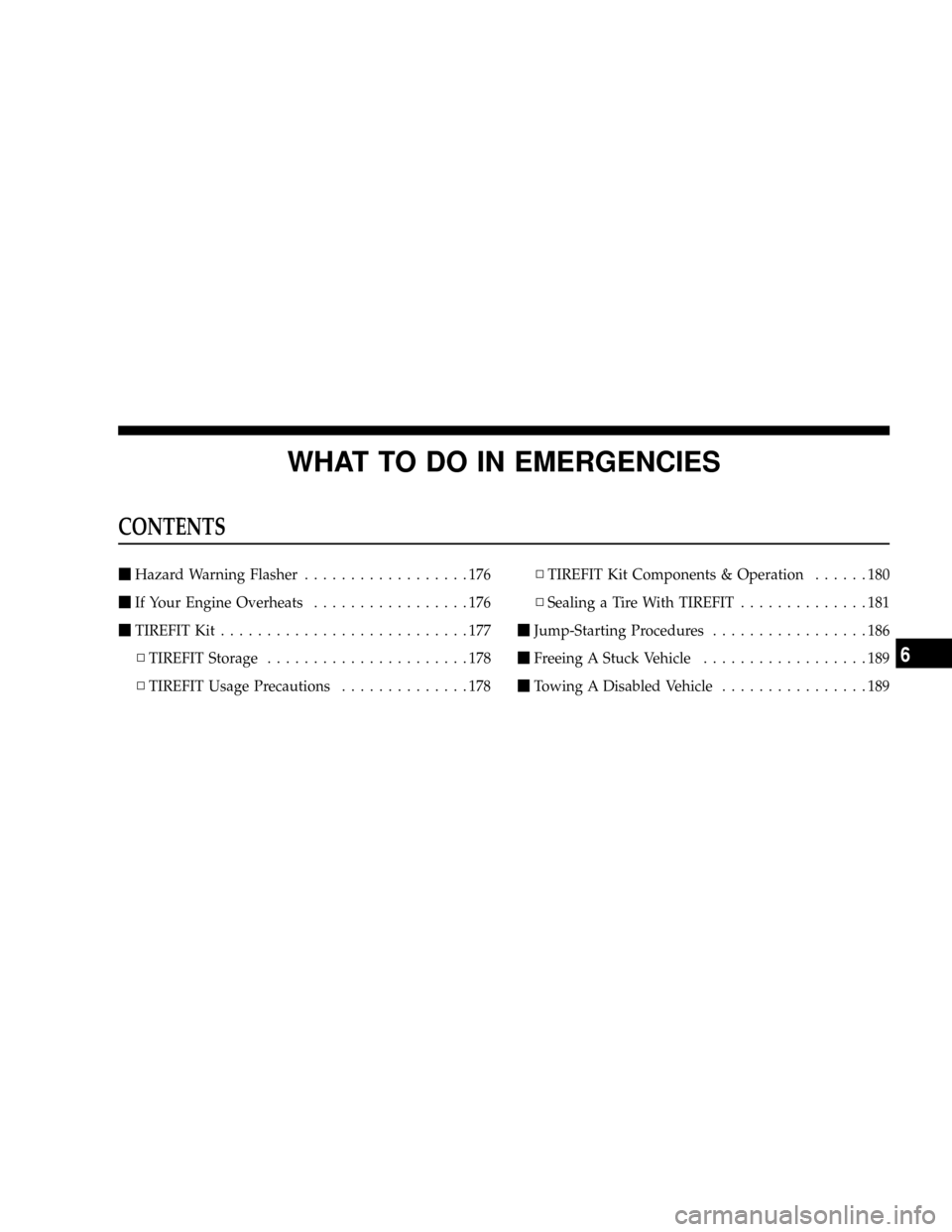

WHAT TO DO IN EMERGENCIES
CONTENTS
mHazard Warning Flasher..................176
mIf Your Engine Overheats.................176
mTIREFIT Kit...........................177
NTIREFIT Storage......................178
NTIREFIT Usage Precautions..............178NTIREFIT Kit Components & Operation......180
NSealing a Tire With TIREFIT..............181
mJump-Starting Procedures.................186
mFreeing A Stuck Vehicle..................189
mTowing A Disabled Vehicle................189
6

JUMP-STARTING PROCEDURES
WARNING!
²Take care to avoid the radiator cooling fans whenever the hood
is raised. They can start anytime the ignition switch is on. You
can be hurt by the fans.
²Take care to avoid the accessory drive whenever the hood is
raised. You can be hurt by the moving components.
²Do not attempt to push or tow your vehicle to get it started.
Unburned fuel could enter the catalytic converter and once the
engine has started, ignite and damage the converter and
vehicle. If the vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster battery or the
battery in another vehicle. This type of start can be dangerous
if done improperly, so follow this procedure carefully.
²Battery fluid is a corrosive acid solution; do not allow battery
fluid to contact eyes, skin, or clothing. Don't lean over battery
when attaching clamps or allow the clamps to touch each
other. If acid splashes in eyes or on skin, flush contaminated
area immediately with large quantities of water.
²A battery generates hydrogen gas, which is flammable and
explosive. Keep flame or spark away from the vent holes.
²Do not use a booster battery or any other booster source with
an output that exceeds 12 volts.
NOTE:The battery is located underneath an access
panel inside the rear compartment on the left side of the
vehicle. A remote battery terminal is located in the engine
compartment for jump-starting.
1. Wear eye protection and remove any metal jewelry
such as watchbands or bracelets that might make an
inadvertent electrical contact.
2. When boost is provided by a battery in another
vehicle, park that vehicle within booster cable reach, but
without allowing the vehicles touch one another.
3. Set the parking brake, place the transmission in neu-
tral, and turn the ignition OFF on both vehicles.
4. Turn off the heater, radio, and all unnecessary electri-
cal loads.
186 WHAT TO DO IN EMERGENCIES

5. Remove the plastic cover from the remote jump-start
positive post(+)in the engine compartment. Refer to the
following illustration for remote jump-starting connec-
tions.6.If you are jump-starting your vehicle,connect one
end of a jumper cable to the positive(+)terminal on the
booster battery. Connect the other end of the same cable
to the remote jump-start positive post(+).
7.If you are jump-starting another vehicle,connect one
end of a jumper cable to the remote jump-start positive
post(+). Connect the other end of the same cable to the
positive(+)terminal of the discharged battery.
8.If you are jump-starting your vehicle,connect the
other cable to the negative2terminal on the booster
battery. Connect the other end of the same cable to the ear
of the thermostat housing on the engine in your vehicle.
Make sure you have a good contact.
9.If you are jump-starting another vehicle,connect the
other cable to the ear of the thermostat housing on the
engine in your vehicle. Connect the other end of the same
cable to a good ground on the engine in the other vehicle.
Make sure that you have a good contact.
Remote Jump-Start Connections
WHAT TO DO IN EMERGENCIES 187
6

WARNING!
²You should not try to start your vehicle by pushing
or towing.
²Do not connect the cable to the negative post of the
discharge battery. The resulting electrical spark
could cause the battery to explode.
²During cold weather when temperatures are be-
low freezing point, electrolyte in a discharged
battery may freeze. Do not attempt jump-starting
because the battery could rupture or explode. The
battery temperature must be brought up above
freezing point before attempting jump-start.10. Start the engine in the vehicle that has the booster
battery. Let the engine idle a few minutes.
11. Turn off the Vehicle Security System.
NOTE:The Vehicle Security System will prevent the
engine from starting.
12. Start the engine in the vehicle with the discharged
battery. If engine does not start in 15 seconds, stop
cranking engine and allow starter to cool down before
cranking again.
13. When removing the booster cables, reverse the above
sequence exactly. Be careful of the moving belts and fans.
188 WHAT TO DO IN EMERGENCIES

NOTE:
²Because of the plastic body shell on your vehicle,
ignition cables should be replaced with the specially
designed RFI cables available at your dealer.
²The ignition timing cannot be set on this engine.
Crankcase Emission Control System
Proper operation of this system depends on freedom
from plugging due to deposits. As vehicle mileage builds
up, the Crankcase Ventilation Valve orifice may accumu-
late deposits. If a valve is not working properly, it should
be replaced with a new orifice. DO NOT ATTEMPT TO
CLEAN THE OLD ORIFICE!
Check the ventilation hose for indication of damage or
plugging deposits and replace if necessary. See your
authorized dealer for service.
Maintenance-Free Battery
The top of the MAINTENANCE-FREE battery is perma-
nently sealed. You will never have to add water, nor is
periodic maintenance required.
The battery is located underneath an access panel inside
the rear compartment on the left side of the vehicle. A
remote battery terminal is located in the engine compart-
ment for jump-starting.
To gain access to the battery, remove the floor portion of
the rear compartment carpet.
206 MAINTAINING YOUR VEHICLE

Emergency Starting..................... 186
Jump Starting......................... 186
Keyless Transmitter Replacement (RKE)....... 21
Location..........................186,206
Saving Feature (Protection)............... 210
Storing Vehicle........................ 210
Bearings.............................. 230
Belt System, Six Point..................... 38
Belts, Drive............................ 202
Belts, Seat.............................. 31
Body Damage.......................... 231
Body Mechanism Lubrication............... 215
Body Mechanisms....................... 216
Boot, Convertible Top...................67,72
B-Pillar Location........................ 153
Brake, Parking.......................... 142
Brake System........................144,225
Anti-Lock (ABS)....................144,145
Fluid Check.......................226,253Hoses.............................. 225
Master Cylinder....................... 226
Warning Light......................... 99
Break-In Recommendations, New Vehicle.....56,144
Bulb Replacement....................... 242
Bulbs, Light............................ 240
Capacities, Antifreeze (Engine Coolant)........ 251
Capacities, Fluid........................ 251
Capacity, Cargo Weight................... 173
Caps, Filler
Fuel................................ 171
Oil (Engine).......................... 200
Power Steering........................ 213
Radiator (Coolant Pressure)............... 221
Car Washes............................ 230
Carbon Monoxide Warning...............57,171
Cargo Compartment
Capacity............................ 173
INDEX 287
10

Selection of Coolant (Antifreeze)......220,251,252
Crankcase Emission Control System.......... 206
Customer Assistance..................... 277
Daytime Running Lights................... 82
Dealer Service.......................... 198
Defroster, Rear Window................... 128
Defroster, Windshield...................58,125
Delay (Intermittent) Wipers................. 87
Diagnostic System, Onboard................ 195
Dimmer Control......................... 85
Dimmer Switch, Headlight.................. 83
Disposal
Antifreeze (Engine Coolant)............... 222
Door Locks............................. 23
Door Locks, Automatic.................... 25
Doors................................. 23
Drive Belts............................ 202Driving
On Slippery Surfaces.................... 139
Through Flowing, Rising, or Shallow
Standing Water........................ 140
Electric Remote Mirrors.................... 76
Electronic Throttle Control Warning Light...... 100
Emergency Brake........................ 142
Emergency, In Case of
Freeing Vehicle When Stuck............... 189
Hazard Warning Flasher................. 176
Jump Starting......................... 186
Overheating.......................... 176
Towing............................. 189
Emission Control System Maintenance......196,256
Engine............................... 194
Air Cleaner.......................... 203
Break-In Recommendations................ 56
Checking Oil Level..................... 198
INDEX 289
10
