412 OperationMaintenance and servicing
4
Service due date display
Vehicles with steering wheel buttonsThe following messages may be dis-
played:\49
Service A in .. days
\49
Service A in .. miles
(km)
\49
Service A due now
The letters
A or
B indicate the type of ser-
vice that is due.
Vehicles without steering wheel
buttonsThe following messages may be dis-
played:\49
for service A
\4´
for service B
The following are also shown:
Service A: Oil Service Plus
Service B: Maintenance Service
\4
the remaining distance in kilometers,
e.g.
1900 miles
(3000 km
)
\4
the remaining time in days, e.g.30 days
.
Missing the service due date An authorized Sprinter Dealer, can reset
the service indicator when the service
has been carried out.
!
CAUTION
If you fail to have the specified ser-
vice carried out, you could be in
breach of relevant regulations and
warranty and goodwill settlements
could be invalidated.
nf_BA.book Page 412 Friday, January 25, 2008 3:53 PM

413 Operation
Maintenance and servicing
4
Vehicles with steering wheel buttons*If you have missed the service due date,
one of the following messages appears
in the display:\49
Service A overdue by .. days

\49
Service A overdue by ..
miles (km)
A signal also sounds.
Vehicles without steering wheel but-
tonsIf you have missed the service due date,
the following symbol flashes in the dis-
play for 10 seconds after the ignition is
switched on:\49
for service A
\4´
for service B
You will also see a minus sign before the
service due date.
Calling up the service due date
\1
Switch on the ignition (
\2
page 111).
The display is activated.
Vehicles with steering wheel buttons*
\1
Press the
è
or
ÿ
button on
the steering wheel repeatedly until
you see the standard display
(
\2
page 151) .
\1
Press the
j
or
k
button on
the steering wheel repeatedly until
you see the following in the display,
for example:
\49
Service A in .. days
\49
Service A in .. miles
(km)
The letters
A or
B indicate the type of
service that is due.
nf_BA.book Page 413 Friday, January 25, 2008 3:53 PM

452 Practical hintsWhat to do if ...
5
The Parktronic* warning displays indicate im-
plausible distances.
For example, all the segments may be lit even
though there is no obstacle present.
The Parktronic* sensors are dirty or iced up.
\1Clean the Parktronic* sensors
(\2page 422).
\1Switch on the ignition again.
An external radio or ultrasonic source may be
causing interference.
\1Check whether Parktronic* works at
another location.
The license plate or other attachment parts
near the sensors may not be secured correct-
ly.
\1Check the number plate and attach-
ment parts near the sensors to see if
they are securely in place.
The speed cannot be set with cruise control*
activated
1.
The display is showing a message of high prior-
ity and cannot therefore show a change in
speed.
\1Proceed as instructed by the message
in the display.
\1Deactivate cruise control* if neces-
sary.
1 Only on vehicles with steering wheel buttons.Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 452 Friday, January 25, 2008 3:53 PM

462 Practical hintsWhat to do if ...
5
#
-
k
6
The yellow ESP
®, ABS-, ASR/BAS
indicator lamps and the red brake
system indicator lamp are lit while
the engine is running.
WAR NING
G
EBV has malfunctioned.
The rear wheels could lock up sooner than ex-
pected when you apply the brakes.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
#
-
k
6
The yellow ESP
®, ABS, ASR/BAS
indicator lamps and the red brake
system indicator lamp are lit while
the engine is running.
WAR NING
G
EBV has been deactivated due to undervoltage.
The battery may not be being charged.
The rear wheels could lock up sooner than ex-
pected when you apply the brakes.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1S t o p y o u r v e h i c l e a s s o o n a s i t i s s a f e t o
do so.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 462 Friday, January 25, 2008 3:53 PM

463 Practical hints
What to do if ...
5
6
The red brake system indicator
lamp is lit while the engine is run-
ning.
A signal also sounds.
WARNING
G
There is insufficient brake fluid in the fluid res-
ervoir.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Do not add brake fluid under any cir-
cumstances. This will not solve the
problem.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 463 Friday, January 25, 2008 3:53 PM

464 Practical hintsWhat to do if ...
5
6
When towing a trailer:
The red brake system indicator
lamp is lit while the engine is run-
ning.
A signal also sounds.
WAR NING
G
The trailer's brake booster is malfunctioning.
The vehicle's driving and braking characteris-
tics may change. There is a risk of the trailer
overbraking.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1S t o p y o u r v e h i c l e a s s o o n a s i t i s s a f e t o
do so.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 464 Friday, January 25, 2008 3:53 PM

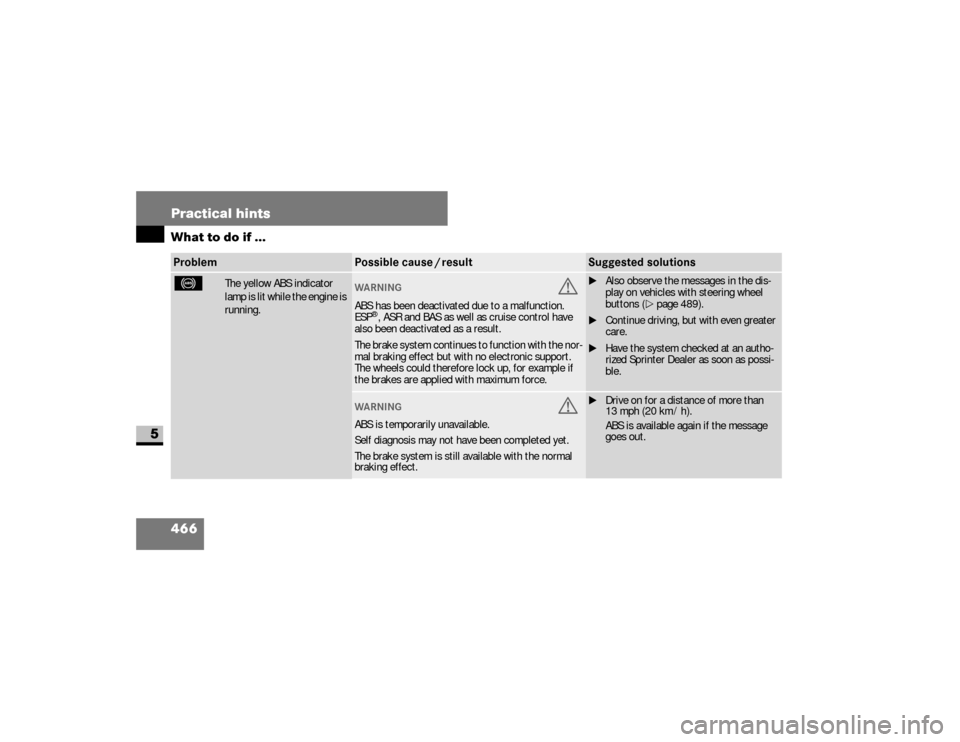

466 Practical hintsWhat to do if ...
5
-
The yellow ABS indicator
lamp is lit while the engine is
running.
WA RNING
G
ABS has been deactivated due to a malfunction.
ESP
®, ASR and BAS as well as cruise control have
also been deactivated as a result.
The brake system continues to function with the nor-
mal braking effect but with no electronic support.
The wheels could therefore lock up, for example if
the brakes are applied with maximum force.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
WA RNING
G
ABS is temporarily unavailable.
Self diagnosis may not have been completed yet.
The brake system is still available with the normal
braking effect.
\1Drive on for a distance of more than
13 mph (20 km / h).
ABS is available again if the message
goes out.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 466 Friday, January 25, 2008 3:53 PM

468 Practical hintsWhat to do if ...
5
#
The yellow ESP
® indicator
lamp is lit while the engine is
running.
WA RNING
G
ESP
® has been deactivated due to a malfunction.
Cruise control is also switched off as a result.
Vehicle stability is no longer automatically controlled
in good time.
Engine power output may be reduced.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
ESP
® has been deactivated due to undervoltage.
The battery may not be being charged.
Vehicle stability is no longer automatically controlled
in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
Problem
Possible cause / result
Suggested solutions
